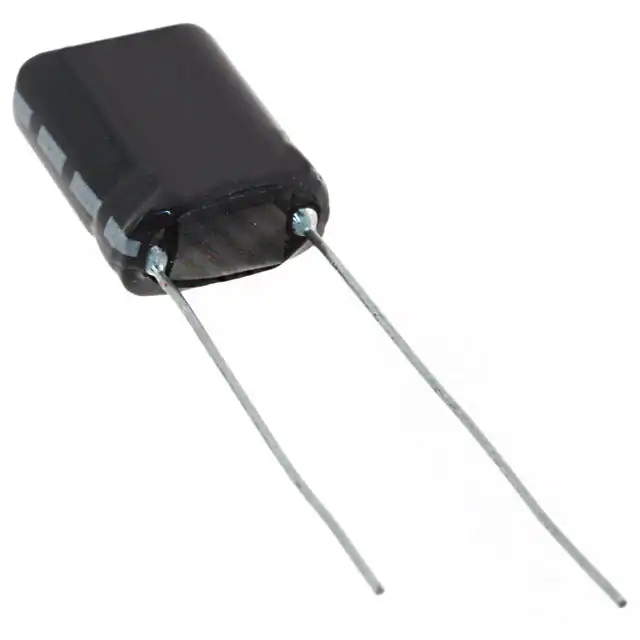

PB-5R0H104-R

Effective October 2017 Supersedes March 2015 Technical Data 4393 PB Supercapacitors Cylindrical pack HALOGEN Pb HF FREE Features • 5.0 Volts • Low Equivalent Series Resistance (ESR) • High capacitance • Long cycle life • Low leakage currents • UL recognized Applications Description Eaton PowerStor supercapacitors are unique, ultrahigh capacitance devices utilizing electrochemical double layer capacitor (EDLC) construction combined with new, high performance materials. This combination of advanced technologies allows Eaton to offer a wide variety of capacitor solutions tailored to specific applications that range from a few micro-amps for several days to several amps for milliseconds. • Bridge or hold-up power • Memory backup • Battery swap out PB Supercapacitors Cylindrical pack  Technical Data 4393 Effective October 2017 Ratings Capacitance 0.1 F to 1.0 F Maximum working voltage 5.0 V Surge voltage 6.0 V Capacitance tolerance -20% to +80% (+20 °C) Operating temperature range - 25 °C to +70 °C extended to +85 °C Specifications Nominal Capacitance (F) Vertical Part Number Horizontal Part Number Maximum Initial ESR (Ω) (Equivalent Series Resistance) Measured @ 100 Hz Nominal leakage current (μA) after 72 hours @ +20 °C Nominal dimensions (mm) Typical mass (grams/piece) 0.1 PB-5R0V104-R PB-5R0H104-R 4.0 3 5.5 x 10.8 x 12.5 1.1 0.47 PB-5R0V474-R PB-5R0H474-R 1.0 7 8.5 x 16.8 x 14.0 2.4 1.0 PB-5R0V105-R PB-5R0H105-R 0.5 12 8.5 x 16.8 x 21.5 3.5 Performance Parameter Capacitance change (% of initial value) ESR (% of max. initial value) Life (1000 hours @ +70 °C, 5.0 Vdc or +85 °C, 4.2 Vdc) ≤ 30% ≤ 300% Storage - Low and High Temperature (1000 hours @ -25 °C to +70 °C) ≤ 30% ≤ 300% Dimensions (mm) Vertical Part Number Horizontal Part Number A B C d’ D D’ E E’ F P PB-5R0V104-R PB-5R0H104-R 6.0 11.3 13.0 0.5 20 15 25 20 2.0 7.3 PB-5R0V474-R PB-5R0H474-R 9.0 17.3 14.5 0.5 20 15 25 20 2.0 11.8 PB-5R0V105-R PB-5R0H105-R 9.0 17.3 22.0 0.5 20 15 25 20 2.0 11.8 Tolerances Maximum B Minimum ± 0.02 B C F ± 0.5 C A A d' d' C C A A D E D' F P E' P Positive lead Positive lead P Vertical Horizontal Part numbering system P B — 5 R 0 V 47 4 -R Multiplier Standard product Capacitance (μF) Family Code Version Voltage (V) R = Decimal Configuration P Family B-High capacitance 5R0 = 5.0 V V = Vertical H = Horizontal Packaging information • • Standard packaging: Bulk, 100 units per bag Larger bulk packages available on request • • • • www.eaton.com/electronics Example: 474 = 47 x 474 or 0.47 F Part marking • 2 Value Manufacturer Capacitance (F) Max Operating Voltage (V) Family Code (or part number) Polarity PB Supercapacitors Cylindrical pack Technical Data 4393 Effective October 2017  Wave solder profile tp Temperature Tp First Wave Second Wave Tsmax Tstyp Tsmin Preheat area Cool down area Time Profile Feature Standard SnPb Solder Lead (Pb) Free Solder • Temperature max. (Tsmax) 100 °C 100 °C • Time max. 60 seconds 60 seconds D preheat to max Temperature 160 °C max. 160 °C max. Peak temperature (TP)* 220 °C – 260 °C 250 °C – 260 °C Time at peak temperature (tp) 10 seconds max 5 seconds max each wave 10 seconds max 5 seconds max each wave Ramp-down rate ~ 2 K/s min ~3.5 K/s typ ~5 K/s max ~ 2 K/s min ~3.5 K/s typ ~5 K/s max Time 25 °C to 25 °C 4 minutes 4 minutes Preheat and soak Manual solder +350 °C, 4-5 seconds. (by soldering iron), generally manual, hand soldering is not recommended. Reflow soldering Do not use reflow soldering using infrared or convection oven heating methods. Cleaning/Washing Avoid cleaning of circuit boards, however if the circuit board must be cleaned use static or ultrasonic immersion in a standard circuit board cleaning fluid for no more than 5 minutes and a maximum temperature of +60 °C. Afterwards thoroughly rinse and dry the circuit boards. In general, treat supercapacitors in the same manner you would an aluminum electrolytic capacitor. Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Eaton Electronics Division 1000 Eaton Boulevard Cleveland, OH 44122 United States www.eaton.com/electronics © 2017 Eaton All Rights Reserved Printed in USA Publication No. 4393 October 2017 Eaton is a registered trademark. All other trademarks are property of their respective owners.
