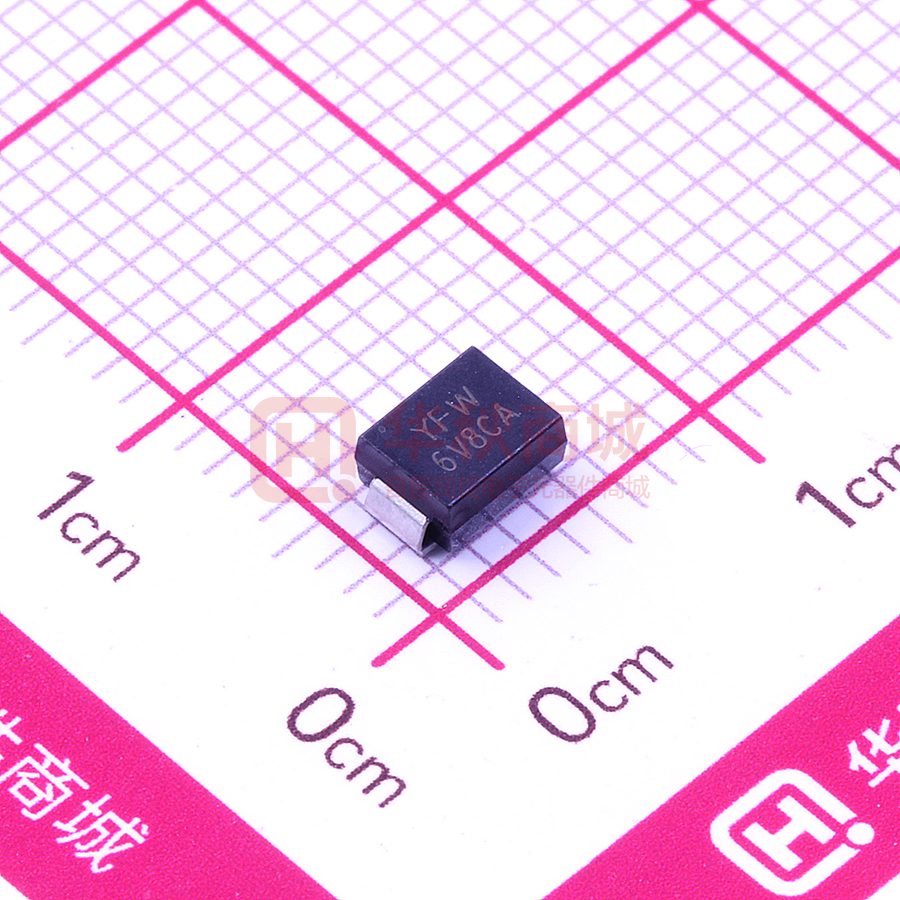

SMBJ6V8CA

SMBJ6.8A(CA) THRU SMBJ68A(CA) SMB Surface mount transient voltage suppressor power 600 watts Stand-Off Voltage: 6.8V~68V Pinning 1.Cathode 2.Anode 　 　 　 FEATURES 　 1  For surface mounted applications in order tooptimize board space.  Low profile package. 　 　 2 Unipolar  Glass passivated junction.  Low inductance. Bipolar  Plastic package has Underwriters Laboratory Flammability. DO-214AA/SMB MECHANICAL DATA  Case: DO-214A A /SMB  Terminals: Solderable per MIL-STD-750, Method 2026  Approx. Weight: 0.1g / 0.0034oz Maximum Ratings and Electrical characteristics Ratings at 25 ambient temperature unless o °C therwise specified. Parameter Symbol Value Unit PPPM 600 W IFSM (UNI) 100 A IPPM see Table 1 A Contact VESD1 ±30 Air VESD2 ±30 Cj 390 pF RθJA 100 °C/W TJ,TSTG -65 to +150 °C Peak Pulse Power Dissipation on TA=25°C (Note 1,2,5, Fig1) Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load, (JEDEC Method) (Note 3,Fig4). Peak Pulse Current on 10/1000 us waveform (Note 1) Fig 3 ESD Voltage per IEC6100-4-2 kV Typical Junction Capacitance at VR=4V, f=1MHz Typical Thermal Resistance Junction to Ambient(Note 2) Operating Junction Temperature and Storage Temperature Range NOTES: 1. Non-repetitive current pulse, per Fig.3 and derated above TA = 25°C per Fig. 2. 2. Mounted on 5mm2 copper pads to each terminal. 3. Peak Forward Surge Current : 8.3ms single half sine-wave Superimposed on rated load (JEDEC method). 4. Peak pulse power waveform is 10/1000μS. www.yfwdiode.com 1/4 Dongguan YFW Electronics Co, Ltd. SMBJ6.8A(CA) THRU SMBJ68A(CA) SMB Type Breakdown Voltage Marking VRMW VBR @ IT Min Max Test Reverse Current Leakage IT Max. Clamp Voltage IR@VRWM VC@IPP Peak Pulse Current IPP Uni Bi Uni Bi V V V mA μA V A SMBJ6V8A SMBJ6V8CA 6V8A 6V8CA 5.8 6.45 7.14 10 1000 10.5 58.1 SMBJ7V5A SMBJ7V5CA 7V5A 7V5CA 6.4 7.13 7.88 10 500 11.3 54 SMBJ8V2A SMBJ8V2CA 8V2A 8V2CA 7.02 7.79 8.61 10 200 12.1 50.4 SMBJ9V1A SMBJ9V1CA 9V1A 9V1CA 7.78 8.65 9.55 1 50 13.4 45.5 SMBJ10A SMBJ10CA 10A 10CA 8.55 9.5 10.5 1 10 14.5 42.1 SMBJ11A SMBJ11CA 11A 11CA 9.4 10.5 11.6 1 5 15.6 39.1 SMBJ12A SMBJ12CA 12A 12CA 10.2 11.4 12.6 1 5 16.7 36.5 SMBJ13A SMBJ13CA 13A 13CA 11.1 12.4 13.7 1 1 18.2 33.5 SMBJ15A SMBJ15CA 15A 15CA 12.8 14.3 15.8 1 1 21.2 28.8 SMBJ16A SMBJ16CA 16A 16CA 13.6 15.2 16.8 1 1 22.5 27.1 SMBJ18A SMBJ18CA 18A 18CA 15.3 17.1 18.9 1 1 25.5 24.2 SMBJ20A SMBJ20CA 20A 20CA 17.1 19 21 1 1 27.7 22 SMBJ22A SMBJ22CA 22A 22CA 18.8 20.9 23.1 1 1 30.6 19.9 SMBJ24A SMBJ24CA 24A 24CA 20.5 22.8 25.2 1 1 33.2 18.4 SMBJ27A SMBJ27CA 27A 27CA 23.1 25.7 28.4 1 1 37.5 16.3 SMBJ30A SMBJ30CA 30A 30CA 25.6 28.5 31.5 1 1 41.4 14.7 SMBJ33A SMBJ33CA 33A 33CA 28.2 31.4 34.7 1 1 45.7 13.3 SMBJ36A SMBJ36CA 36A 36CA 30.8 34.2 37.8 1 1 49.9 12.2 SMBJ39A SMBJ39CA 39A 39CA 33.3 37.1 41 1 1 53.9 11.3 SMBJ43A SMBJ43CA 43A 43CA 36.8 40.9 45.2 1 1 59.3 10.3 SMBJ47A SMBJ47CA 47A 47CA 40.2 44.7 49.4 1 1 64.8 9.4 SMBJ51A SMBJ51CA 51A 51CA 43.6 48.5 53.6 1 1 70.1 8.7 SMBJ56A SMBJ56CA 56A 56CA 47.8 53.2 58.8 1 1 77 7.9 SMBJ58A SMBJ58CA 58A 58CA 52.78 55.1 60.9 1 1 79.8 7.7 SMBJ62A SMBJ62CA 62A 62CA 53 58.9 65.1 1 1 85 7.2 SMBJ68A SMBJ68CA 68A 68CA 58.1 64.6 71.4 1 1 92 6.6 www.yfwdiode.com 2/4 Dongguan YFW Electronics Co, Ltd. SMBJ6.8A(CA) THRU SMBJ68A(CA) SMB Fig.2 Forward Current Derating Curve PEAK PULSE POWER(PPP)OR CURRENT(Ipp) DERATINGIN PERCENTAGE% P PPM ,PEAK PULSE FORWARD ,kW Fig.1 Peak Pulse Power Rating Curve 100 Non-Repetive Pulse.Wavefom Shown in Figure.3 T A=25°C 10 1.0 0.1 0.1 10 1 100 1000 10000 100 80 60 40 20 0 25 I ppm ,Peak Pulse Current (%) I FSM ,PEAK FORWARD SURGE CURRENT, AMPERES T A =25°C 100 Peak Value Pulse Width (td) is Defined as the Point where the Peak. Current Decayst to 50% of Ipp I ppm 80 Half Value-I pp /2 60 10/1000usec Waveform as Defined bye R.E.A. 40 20 0 0 1.0 2.0 3.0 4.0 T,TIME,ms www.yfwdiode.com 100 125 150 175 Fig.4 Maximum Non-Repetitive Peak Forward Surge Current Fig.3 Pulse Waveform t f =10usec 75 T A ,AMBIENT TEMPERATURE,°C td,PULSE WIDTH ,us 120 50 120 100 80 60 40 20 T J =T J max 8.3ms Single Half Sinepwave JEDEC Method 0 1 10 100 Number of Cycles at 60Hz 3/4 Dongguan YFW Electronics Co, Ltd. SMBJ6.8A(CA) THRU SMBJ68A(CA) SMB DO-214AA SMB Package Outline Plastic surface mounted package; 2 leads L A A1 C A b D E E1 UNIT mm mil VM A A1 L C b 5.59 0.20 1.5 0.305 2.2 3.3 5.08 0.05 0.8 0.152 1.9 155 220 7.9 59 12 87 200 2.0 32 6 75 E1 A E D max 2.44 4.70 3.94 min 2.13 4.06 max 96 185 min 84 160 130 The recommended mounting pad size 2.2 (86) 2.4 (94) 2.8 (110) 2.4 (94) mm Unit ： (mil) Summary of Packing Options Package DO-214AA SMB www.yfwdiode.com Packing Description Packing Quantity Industry Standard Tape/Reel,13”reel 3000 EIA-481-1 4/4 Dongguan YFW Electronics Co, Ltd.
