MEM2051-00-195-00-A

MEM2051-00-195-00-A

  • 厂商:

    GCT

  • 封装:

    CONN_14X15.2MM_SM

  • 描述:

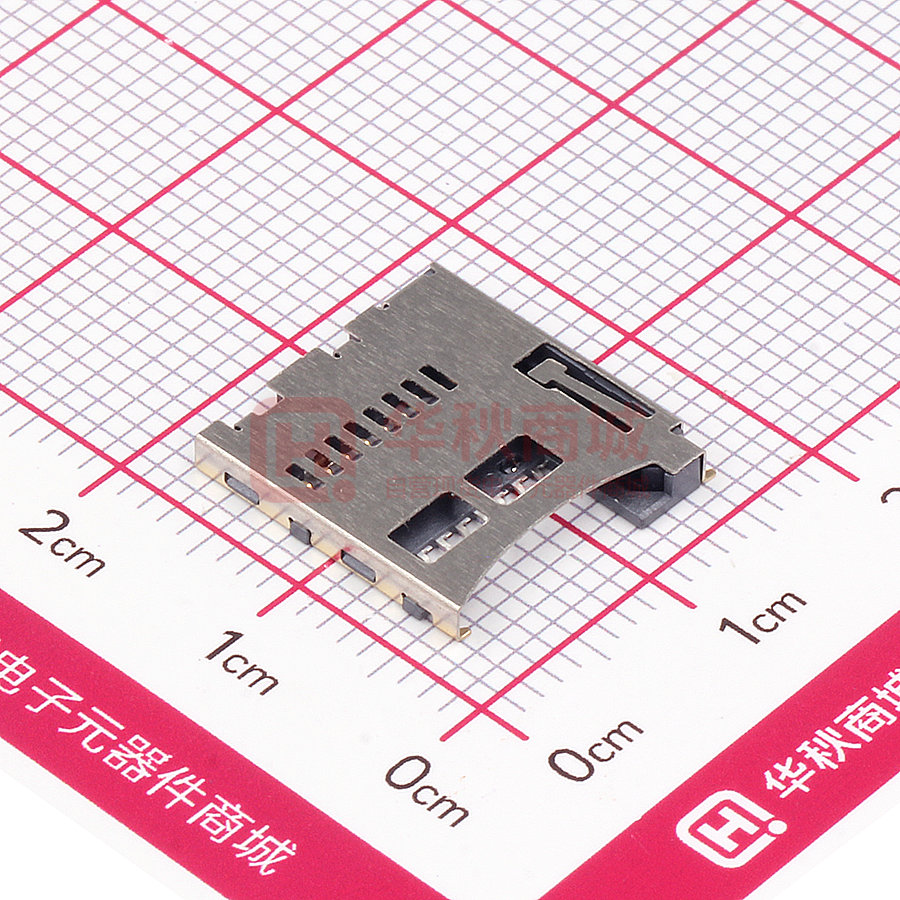

    8 针位 卡连接器 安全数字式 - microSD™ 表面贴装,直角 镀金 100V 0.5A

  • 数据手册
  • 价格&库存
MEM2051-00-195-00-A 数据手册
14.00 11.50 14.00±0.20 5.70 1.54 1.30 1.00 0.90 1.40 1.40 1.10 5.30 ref. (Push Out Position) Specifications 2.10 4.55 0.75 1.65 0.56 1.10 0.20 12.50 Card Detect Switch (Normally Open) Micro SD Card P6 (Vss) touches the Connector Pin 6 first, then touches the Card Detect Pin 1.50 0.80 Detail: A 1.22±0.10 E 1.00±0.15 SD Card Slot SD Card Slot P6 7.70±0.10 8x 0.30 0.85 5.76 Micro SD Card 1.30 15.00 11.16±0.10 9.96 11.30±0.10 11.50±0.10 P8 A 11.00 1.90 P6 Card Detect Pin Electrical Voltage Rating: 100 V AC max Current Rating: 0.5 A max. Contact Resistance: 100mΩ max. Insulating Resistance: 1000MΩ min. Dielectric Withstand Voltage: 500 V AC Card Inserted MICRO SD CARD PIN OUT A P1 Card Detect Pin Without Card Detail A Scale 2:1 0.85 1.10±0.08 Description Pin Name P1 DAT2 Data Bit 2 P2 CD/DAT3 Card Detect/Data Bit 3 P3 CMD Command Line P4 VDD Supply Voltage 2.7v/3.6v Ordering Grid P5 CLK Clock P6 Vss Ground MEM2051 P7 DAT0 Data Bit 0 P8 DAT1 Data Bit 1 Mechanical & Environmental Durability: 5000 Cycles Operating Temperature: -40°C to +85°C 4 Request Samples and Quotation Packing Options A = Tape & Reel (1000 per Reel) Locating Post 00 = Without Product Description Micro SD Memory Card Connector Push-Push, SMT, Card Entry Normal, 1.95mm Profile By 3 A MEM2051 2nd November 2011 2 00 Part Number Drawing Date 7.00 195 00 Switch 00 = Normally Open Detail 1 Component Outline Card Detect Switch Circuit 0.05+0.10 -0.05 A General Tolerance: ±0.05 Keep Out Area 11.21±0.15 0.10 B As viewed from component side Solder Area D C 4.35 Recommended PCB Layout 0.75 1.95±0.10 1.25 1.40 Material Plastic Housing: Hi-temp Thermoplastic, UL94V-0, Black Contact Terminal: Copper Alloy Metallic Shell: Stainless Steel Coil Spring: SWP Latch: Stainless Steel Slider: Hi-temp Thermoplastic,UL94V-0, Black Card Detect Pin: Copper Alloy Plating Contact Terminal: Under-plating: 50µ" min. Nickel all over Contact Area: Gold Flash Soldering Area: 80μ" min. Matte Tin Metallic Shell : Under-plating : 50µ" Nickel all over Soldering Area : Gold Flash Card Detect Pin: Under-plating: 50µ" min. Nickel all over Contact Area: Gold Flash Solder Tail : Gold Flash 1.54±0.10 Section A-A 15.20 2.30 2.07 9.41 11.50 14.20 1.70 ref. (Push Lock Position) 15.20±0.20 1.30 F 0.90 ref. (Push In Position) 14.20±0.20 G 7.37 0.50 0.40 5.70 4.31 0.95 H Revision Date 5 CC Tolerances (Except as Noted) MEM2051 D PCN D1 21/02/19 X.X ±0.35 X° ±1° X.XX ±0.25 X.X° ±0.5° X.XXX ±0.150 X.XX° ±0.25° Length Angle 6 Units: Metric (mm) C 3rd Angle Projection 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By ASE 8 Sheet No. 1/2 H 20.00 2.00 Ø1 .50 Pull out direction 4.00 14.40 0.50 0.35 Set Square x4 Carton 315mm 285mm 14.09 15.90 24.00 1.12 2.00 5.96 11.50 1.75 0.50 G Cover Tape F 0.50 Label 9.43 10.02 2.22 2.82 6° Reel 35 0m m m 0m 35 Carrier Tape Section B-B Section A-A E Pull out direction 2+0.05 -0.00 24+2 -0 End No product 350mm min Product Ø80 No Product 200mm min Label Cover Tape 50mm min Ø330±0.05 Start D C Gross Weight - Reel:0.86 KG Quantity:1000 pcs/Reel Notes: B 1.Primary Packing: 1,000 pcs/reel 2.Secondary Packing: 10 reel/carton (10k pieces/carton) 3.Gross Weight:9.43Kg/carton Part Number Product Description MEM2051 Micro SD Memory Card Connector Push-Push, SMT, Card Entry Normal, 1.95mm Profile Drawing Date A 2nd November 2011 By Detail Revision Date 1 2 3 4 5 CC MEM2051 D PCN D1 21/02/19 Tolerances (Except as Noted) Length Angle Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By ASE 8 Sheet No. 2/2
