LMC7660
LMC7660 Switched Capacitor Voltage Converter
General Description
Features
The LMC7660 is a CMOS voltage converter capable of converting a positive voltage in the range of +1.5V to +10V to
the corresponding negative voltage of −1.5V to −10V. The
LMC7660 is a pin-for-pin replacement for the
industry-standard 7660. The converter features: operation
over full temperature and voltage range without need for an
external diode, low quiescent current, and high power efficiency.
The LMC7660 uses its built-in oscillator to switch 4 power
MOS switches and charge two inexpensive electrolytic capacitors.
n Operation over full temperature and voltage range
without an external diode
n Low supply current, 200 µA max
n Pin-for-pin replacement for the 7660
n Wide operating range 1.5V to 10V
n 97% Voltage Conversion Efficiency
n 95% Power Conversion Efficiency
n Easy to use, only 2 external components
n Extended temperature range
n Narrow SO-8 Package
Block Diagram
Pin Configuration
Ordering Information
Package
Temperature Range
Industrial
NSC
Drawing
−40˚C to +85˚C
http://www.hgsemi.com.cn
8-Lead Molded DIP
LMC7660N
N08E

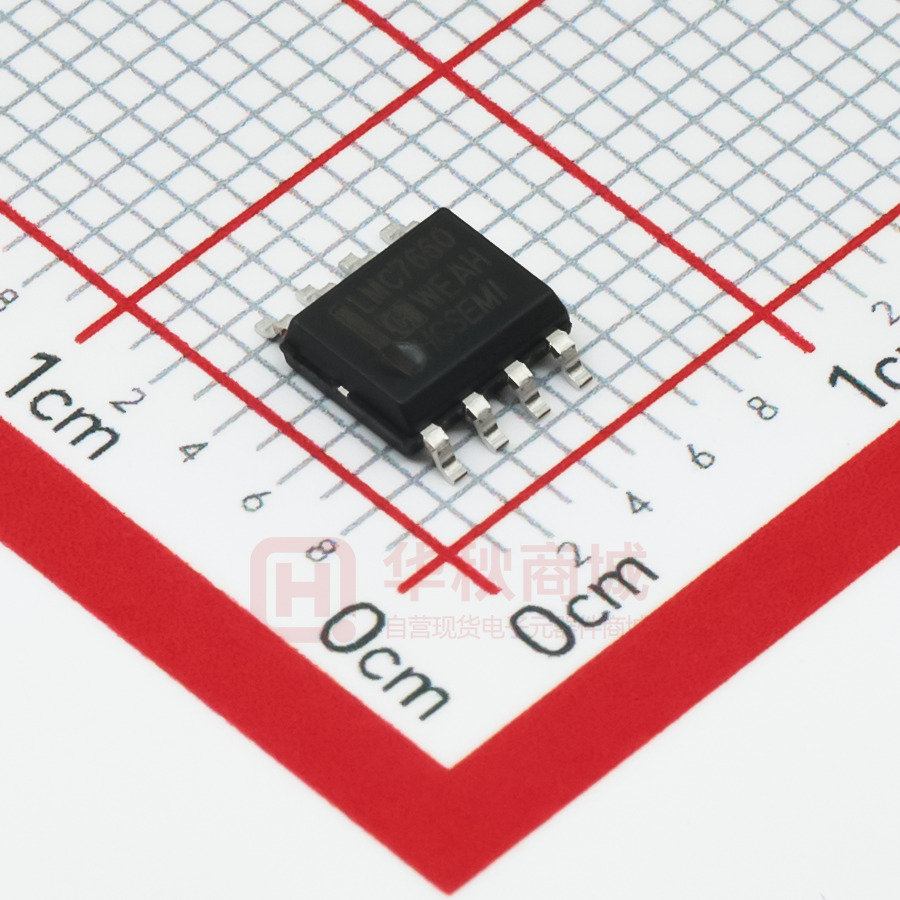

8-Lead Molded Small Outline
LMC7660M
M08A
1
2018 JUN
LMC7660
Absolute Maximum Ratings
Power Dissipation (Note 3)
Dual-In-Line Package
Surface-Mount Package
TJ Max (Note 3)
θJA (Note 3)
Dual-In-Line Package
Surface-Mount Package
Storage Temp. Range
Lead Temperature
(Soldering, 5 sec.)
ESD Tolerance (Note 7)
(Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage
Input Voltage on Pin 6, 7
(Note 2)
Current into Pin 6 (Note 2)
Output Short Circuit
Duration (V+ ≤ 5.5V)
10.5V
+
−0.3V to (V + 0.3V)
for V+ < 5.5V
+
(V − 5.5V) to (V+ + 0.3V)
for V+ > 5.5V
20 µA
Electrical Characteristics
1.4W
0.6W
150˚C
90˚C/W
160˚C/W
−65˚C ≤ T ≤ 150˚C
260˚C
± 2000V
Continuous
(Note 4)
LMC7660IN/
Symbol
Parameter
Conditions
Typ
LMC7660IM
Limit
Units
Limits
(Note 5)
Is
V+H
V+L
Supply Current
120
Supply Voltage
RL = 10 kΩ, Pin 6 Open
Range High (Note 6)
Voltage Efficiency ≥ 90%
RL = 10 kΩ, Pin 6 to Gnd.
Supply Voltage
Range Low
Rout
RL = ∞
Output Source
Voltage Efficiency ≥ 90%
IL = 20 mA
3 to 10
1.5 to 3.5
Oscillator
max
3 to 10
V
1.5 to 3.5
V
1.5 to 3.5
55
110
Pin 6 Short to Gnd.
Fosc
µA
400
3 to 10
Resistance
V = 2V, IL = 3 mA
200
100
Ω
120
max
200
Ω
300
max
10
kHz
Frequency
Peff
Power Efficiency
RL = 5 kΩ
Vo eff
Voltage Conversion
RL = ∞
97
95
%
90
min
99.9
97
%
95
min
Efficiency
Iosc
Oscillator Sink or
Pin 7 = Gnd. or V+
3
µA
Source Current
Note 1: Absolute Maximum ratings indicate limits beyond which damage to the device may occur. DC and AC electrical specifications do not apply when operating
the device beyond its rated operating conditions. See Note 4 for conditions.
Note 2: Connecting any input terminal to voltages greater than V+or less than ground may cause destructive latchup. It is recommended that no inputs from sources
operating from external supplies be applied prior to “power-up” of the LMC7660.
Note 3: For operation at elevated temperature, these devices must be derated based on a thermal resistance of θja and Tj max, Tj = TA + θja PD.
Note 4: Boldface numbers apply at temperature extremes. All other numbers apply at TA = 25˚C, V+ = 5V, Cosc = 0, and apply for the LMC7660 unless otherwise
specified. Test circuit is shown in Figure 1 .
Note 5: Limits at room temperature are guaranteed and 100% production tested. Limits in boldface are guaranteed over the operating temperature range (but not
100% tested), and are not used to calculate outgoing quality levels.
Note 6: The LMC7660 can operate without an external diode over the full temperature and voltage range. The LMC7660 can also be used with the external diode
Dx, when replacing previous 7660 designs.
Note 7: The test circuit consists of the human body model of 100 pF in series with 1500Ω.
http://www.hgsemi.com.cn
2
2018 JUN
LMC7660
Electrical Characteristics
(Note 4) (Continued)
FIGURE 1. LMC7660 Test Circuit
Typical Performance Characteristics
OSC Freq. vs OSC
Capacitance
Supply Current & Power Efficiency
vs Load Current (V+ = 2V)
http://www.hgsemi.com.cn
Vout vs Iout @ V+ = 2V
Supply Current & Power Efficiency
vs Load Current (V+ = 5V)
3
Vout vs Iout @ V+ = 5V
Output Source Resistiance as a
Function of Temperature
2018 JUN
LMC7660
Typical Performance Characteristics
Unloaded Oscillator Frequency
as a Function of Temperature
(Continued)
Output R vs Supply Voltage
The LMC7660 closely approaches 1 and 2 above. By using
a large pump capacitor Cp, the charge removed while supplying the reservoir capacitor is small compared to Cp’s total
charge. Small removed charge means small changes in the
pump capacitor voltage, and thus small energy loss and high
efficiency. The energy loss by Cp is:
Application Information
Circuit Description
The LMC7660 contains four large CMOS switches which are
switched in a sequence to provide supply inversion Vout =
−Vin. Energy transfer and storage are provided by two inexpensive electrolytic capacitors. Figure 2 shows how the
LMC7660 can be used to generate −V+ from V+. When
switches S1 and S3 are closed, Cp charges to the supply
voltage V+. During this time interval, switches S2 and S4 are
open. After Cp charges to V+, S1 and S3 are opened, S2 and
S4 are then closed. By connecting S2 to ground, Cp develops a voltage −V+/2 on Cr. After a number of cycles Cr will be
pumped to exactly −V+. This transfer will be exact assuming
no load on Cr, and no loss in the switches.
In the circuit of Figure 2, S1 is a P-channel device and S2,
S3, and S4 are N-channel devices. Because the output is biased below ground, it is important that the p− wells of S3 and
S4 never become forward biased with respect to either their
sources or drains. A substrate logic circuit guarantees that
these p− wells are always held at the proper voltage. Under
all conditions S4 p− well must be at the lowest potential in the
circuit. To switch off S4, a level translator generates VGS4 =
0V, and this is accomplished by biasing the level translator
from the S4 p− well.
An internal RC oscillator and ÷ 2 circuit provide timing signals to the level translator. The built-in regulator biases the
oscillator and divider to reduce power dissipation on high
supply voltage. The regulator becomes active at about V+ =
6.5V. Low voltage operation can be improved if the LV pin is
shorted to ground for V+ ≤ 3.5V. For V+ ≥ 3.5V, the LV pin
must be left open to prevent damage to the part.
By using a large reservoir capacitor, the output ripple can be
reduced to an acceptable level. For example, if the load current is 5 mA and the accepted ripple is 200 mV, then the reservoir capacitor can omit approximately be calculated from:
Precautions
1. Do not exceed the maximum supply voltage or junction
temperature.
2. Do not short pin 6 (LV terminal) to ground for supply voltages greater than 3.5V.
3. Do not short circuit the output to V+.
4. External electrolytic capacitors Cr and Cp should have
their polarities connected as shown in Figure 1.
Replacing Previous 7660 Designs
To prevent destructive latchup, previous 7660 designs require a diode in series with the output when operated at elevated temperature or supply voltage. Although this prevented the latchup problem of these designs, it lowered the
available output voltage and increased the output series resistance.
The National LMC7660 has been designed to solve the inherent latch problem. The LCM7660 can operate over the
entire supply voltage and temperature range without the
need for an output diode. When replacing existing designs,
the LMC7660 can be operated with diode Dx.
Power Efficiency and Ripple
It is theoretically possible to approach 100% efficiency if the
following conditions are met:
1. The drive circuitry consumes little power.
2. The power switches are matched and have low Ron.
3. The impedance of the reservoir and pump capacitors are
negligibly small at the pumping frequency.
http://www.hgsemi.com.cn
Peff vs OSC Freq. @ V+ = 5V
4
2018 JUN
LMC7660
Application Information
(Continued)
FIGURE 2. Idealized Voltage Converter
current cause an increased impedance of Cr and Cp. The increased impedance, due to a lower switching rate, can be
offset by raising Cr and Cp until ripple and load current requirements are met.
Typical Applications
Changing Oscillator Frequency
It is possible to dramatically reduce the quiescent operating
current of the LMC7660 by lowering the oscillator frequency.
The oscillator frequency can be lowered from a nominal 10
kHz to several hundred hertz, by adding a slow-down capacitor Cosc (Figure 3). As shown in the Typical Performance
Curves the supply current can be lowered to the 10 µA
range. This low current drain can be extremely useful when
used in µPower and battery back-up equipment. It must be
understood that the lower operating frequency and supply
Synchronizing to an External Clock
Figure 4 shows an LMC7660 synchronized to an external
clock. The CMOS gate overrides the internal oscillator when
it is necessary to switch faster or reduce power supply interference. The external clock still passes through the ÷2 circuit
in the 7660, so the pumping frequency will be 1⁄2 the external
clock frequency.
FIGURE 3. Reduce Supply Current by Lowering Oscillator Frequency
FIGURE 4. Synchronizing to an External Clock
Lowering Output Impedance
Paralleling two or more LMC7660’s lowers output impedance. Each device must have it’s own pumping capacitor Cp,
but the reservoir capacitor Cr is shared as depicted in Figure
5. The composite output resistance is:
http://www.hgsemi.com.cn
5
2018 JUN
LMC7660
Typical Applications
(Continued)
Increasing Output Voltage
Stacking the LMC7660s is an easy way to produce a greater
negative voltage. It should be noted that the input current required for each stage is twice the load current on that stage
as shown in Figure 6. The effective output resistance is approximately the sum of the individual Rout values, and so
only a few levels of multiplication can be used.
It is possible to generate −15V from +5V by connecting the
second 7660’s pin 8 to +5V instead of ground as shown in
Figure 7. Note that the second 7660 sees a full 20V and the
input supply should not be increased beyond +5V.
FIGURE 5. Lowering Output Resistance by Paralleling Devices
FIGURE 6. Higher Voltage by Cascade
FIGURE 7. Getting −15V from +5V
Split V+ In Half
Figure 8 is one of the more interesting applications for the
LMC7660. The circuit can be used as a precision voltage divider (for very light loads), alternately it is used to generate a
1⁄2 supply point in battery applications. In the 1⁄2 cycle when
S1 and S3 are closed, the supply voltage divides across the
capacitors in a conventional way proportional to their value.
http://www.hgsemi.com.cn
6
In the 1⁄2 cycle when S2 and S4 are closed, the capacitors
switch from a series connection to a parallel connection. This
forces the capacitors to have the same voltage; the charge
redistributes to maintain precisely V+/2, across Cp and Cr. In
this application all devices are only V+/2, and the supply voltage can be raised to 20V giving exactly 10V at Vout.
2018 JUN
LMC7660
Typical Applications
at V+ + (V+ −VD1). D1 is reverse biased in this interval. This
application uses only two of the four switches in the 7660.
The other two switches can be put to use in performing a
negative conversion at the same time as shown in Figure 10.
In the 1⁄2 cycle that D1 is charging Cp1, Cp2 is connected
from ground to −Vout via S2 and S4, and Cr2 is storing Cp2’s
charge. In the interval that S1 and S3 are closed, Cp1 pumps
the junction of D1 and D2 above V+, while Cp2 is refreshed
from V+.
(Continued)
Getting Up … and Down
The LMC7660 can also be used as a positive voltage multiplier. This application, shown in Figure 9, requires 2 additional diodes. During the first 1⁄2 cycle S2 charges Cp1
through D1; D2 is reverse biased. In the next 1⁄2 cycle S2 is
open and S1 is closed. Since Cp1 is charged to V+ − VD1 and
is referenced to V+through S1, the junction of D1 and D2 is
FIGURE 8. Split V+ in Half
FIGURE 9. Positive Voltage Multiplier
FIGURE 10. Combined Negative Converter and Positive Multiplier
Regulating −Vout
Thermometer Spans 180˚C
Using the combined negative and positive multiplier of Figure 11 with an LM35 it is possible to make a µPower thermometer that spans a 180˚C temperature range. The LM35
temperature sensor has an output sensitivity of 10 mV/˚C,
while drawing only 50 µA of quiescent current. In order for
the LM35 to measure negative temperatures, a pull down to
a negative voltage is required. Figure 11 shows a thermometer circuit for measuring temperatures from −55˚C to
+125˚C and requiring only two 1.5V cells. End of battery life
can be extended by replacing the up converter diodes with
Schottky’s.
http://www.hgsemi.com.cn
It is possible to regulate the output of the LMC7660 and still
maintain µPower performance. This is done by enclosing the
LMC7660 in a loop with a LP2951. The circuit of Figure 12
will regulate Vout to −5V for IL = 10 mA, and Vin = 6V. For Vin
> 7V, the output stays in regulation up to IL = 25 mA. The error flag on pin 5 of the LP2951 sets low when the regulated
output at pin 4 drops by about 5%. The LP2951 can be shutdown by taking pin 3 high; the LMC7660 can be shutdown by
shorting pin 7 and pin 8.
7
2018 JUN
LMC7660
Typical Applications
(Continued)
The LP2951 can be reconfigured to an adjustable type regulator, which means the LMC7660 can give a regulated output
from −2.0V to −10V dependent on the resistor ratios R1 and
R2, as shown in Figure 13, Vref = 1.235V:
*For lower voltage operation, use Schottky rectifiers
FIGURE 11. µPower Thermometer Spans 180˚C, and Pulls Only 150 µA
FIGURE 12. Regulated −5V with 200 µA Standby Current
http://www.hgsemi.com.cn
8
2018 JUN
LMC7660
Typical Applications
(Continued)
Vref = 1.235V
*Low voltage operation
FIGURE 13. LMC7660 and LP2951 Make a Negative Adjustable Regulator
http://www.hgsemi.com.cn
9
2018 JUN
LMC7660
Important statement:
Huaguan Semiconductor Co,Ltd. reserves the right to change
the products and services provided without notice. Customers
should obtain the latest relevant information before ordering,
and verify the timeliness and accuracy of this information.
Customers are responsible for complying with safety
standards and taking safety measures when using our
products for system design and machine manufacturing to
avoid potential risks that may result in personal injury or
property damage.
Our products are not licensed for applications in life support,
military, aerospace, etc., so we do not bear the consequences
of the application of these products in these fields.
Our documentation is only permitted to be copied without
any tampering with the content, so we do not accept any
responsibility or liability for the altered documents.
http://www.hgsemi.com.cn
10
2018 JUN
