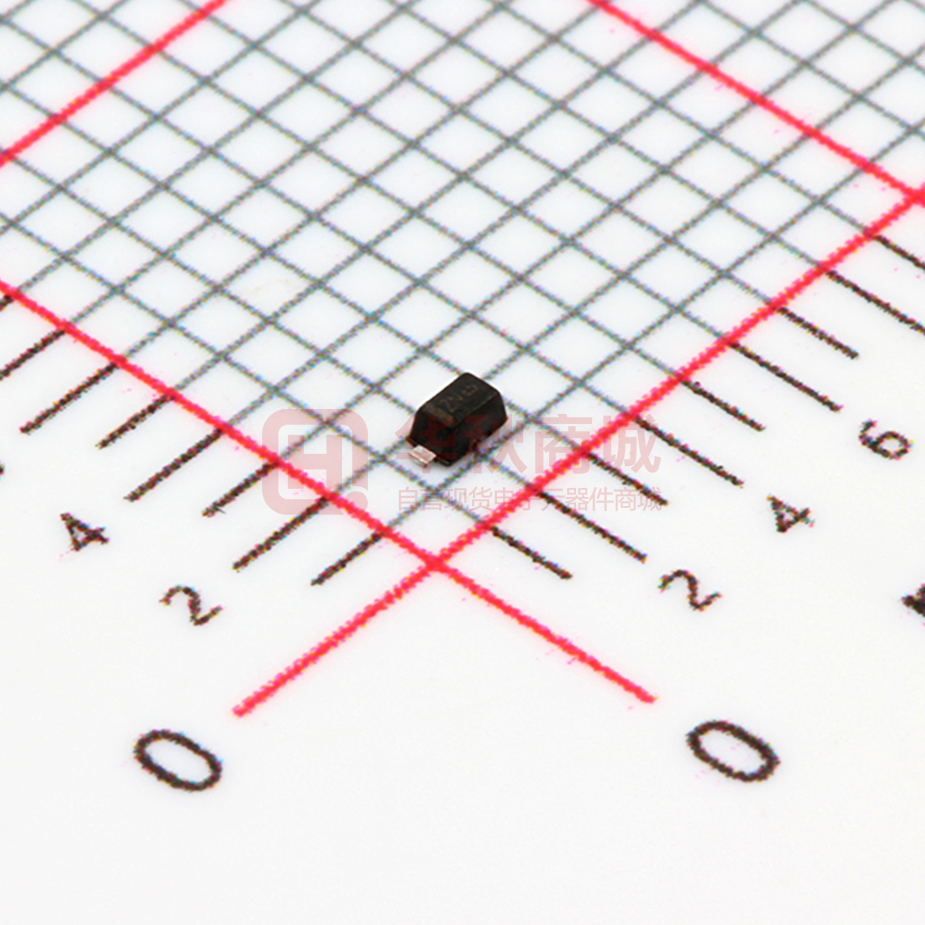

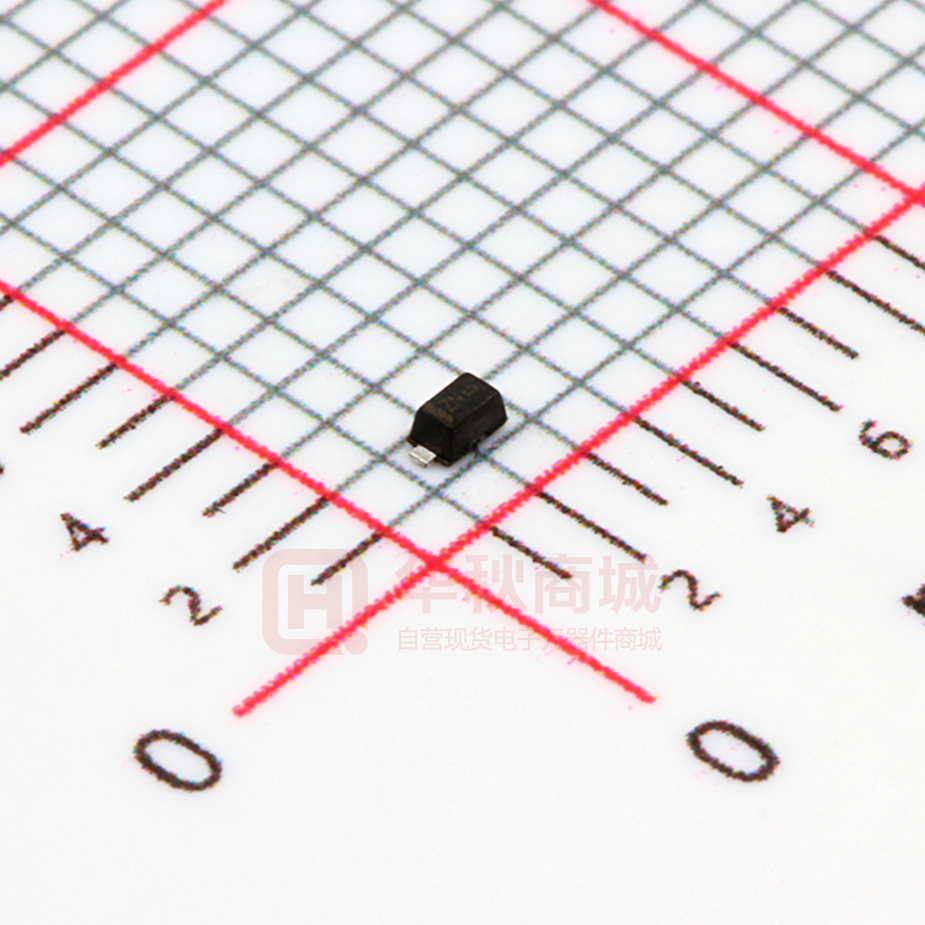

ESD5Z15V

ESD5Z Series Transient Voltage Suppressors SOD-523 Plastic-Encapsulate ESD Protection Diodes DESCRIPTION The ESD5Z Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.. Features Pin Configuration  IEC61000-4-2 Level 4 ESD Protection  Protects one directional I/O line  Low clamping voltage  Working voltages : 2.5V,3.3V,5V,6V,7V, 12V,15V  Low leakage current) Circuit Diagram 2 1 Applications       Cell Phone Handsets and Accessories Microprocessor based equipment Personal Digital Assistants (PDA’s) Notebooks, Desktops, and Servers Portable Instrumentation Peripherals Mechanical Characteristics  Package: SOD-523  Flammability Rating: UL 94V-0  High temperature soldering guaranted: 260℃/10s  Packaging: Tape and Reel Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) ESD Voltage per human body model ESD Voltage per machine model Total Power Dissipation on FR-5 Board (Note 1) @ Ta=25°C Junction and Storage Temperature Lead Solder Temperature – Maximum (10 Second Duration) Symbol Value Unit VESD ± 30 ± 22 kV ESD 16 400 kV PD 150 mW TJ,TSTG −55 to +150 °C TL 260(10S) °C V hese ratings are limiting values above which the serviceability of the diode may be impaired Note:1.FR-5=1.0x0.75x0.62 in 2.The above data above is for reference only. http://www.microdiode.com Rev:2024A1 Page :1 ESD5Z Series Transient Voltage Suppressors Electrical Characteristics (TA=25°C unless otherwise specified) PART NUMBER DEVICE MARKING ESD5Z2V5 VRWM IR VB IT VC VC PPK CJ (V) (V) (W) (pF) (V) (V) (µ (V) M Max ax M Min (mA) Max @A Max @A Max Max ZD + code 2.5 6.0 4.0 0 1 9.0 5.0 11.5 9.0 104 145 ESD5Z3V3 ZE + code 3.3 0.90 5.0 1 10.0 5.0 14.0 7.5 .5 105 105 ESD5Z5V0 ZF + code 5.0 0.08 6.2 1 11.6 5.0 15.0 7.0 .0 105 80 ESD5Z6V0 ZG + code 6.0 0.05 6.8 1 13.5 5.0 17.5 6.0 .0 105 70 ESD5Z7V0 ZH + code 7.0 0.03 7.5 1 14.0 5.0 18.0 6.0 .0 108 65 ESD5Z12V ZM + code 12.0 0.03 14.1 1 20.0 1.0 26.0 4.0 104 45 ESD5Z15V ZN + code 15.0 0.50 16.0 1 23.0 1.0 30.0 4.0 120 28 The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :2 ESD5Z Series Transient Voltage Suppressors ELECTRICAL CHARACTERISTICS CURVE The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :3 ESD5Z Series Transient Voltage Suppressors Outlitne Drawing SOD-523 Package Outline Dimensions 6\PERO A A1 b c D E E1 E2 L Κ 'LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF 'LPHQVLRQV,Q,QFKHV 0D[ 0LQ 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOD-523 Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) 178 3000 183×188×80 7' http://www.microdiode.com QTY/Box (pcs) 18,000 Carton Size (mm) Q'TY/Carton (pcs) 386×265×215 108,000 Rev:2024A1 Page :4
