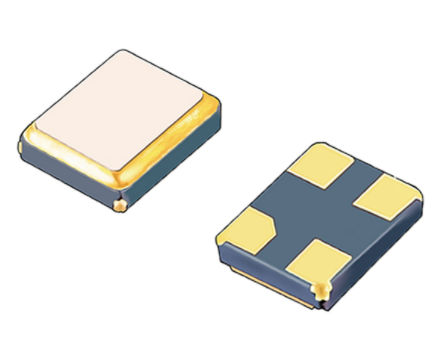

3C16000002-Q

NO.68 Huangjiang Donghuan Road，Huangjiang Town，Dongguan City，Guangdong Province，China TEL :+86(0)769-38879888 Fax :+86(0)769-38879889 E-mail : yl@dgylec.com PRODUCT SPECIFICATION SHEET CUSTOMER : PRODUCT TYPE : OSC 3.2X2.5 (4PAD) NOMINAL FREQ. : 16.000000 MHz FL P/N : 3C16000002-Q REVISION : S2 CUSTOMER P/N : CUSTOMER'S APPROVAL&DATE FL CORPORATION APPROVED CHECKED DESIGNED Xing Yue Huang Ji Ning Li Xiang MSL1 RoHS Compliant TEL : +86(0)769-38879888 FAX : 86(0)769-38879889 FL P/N: 3C16000002-Q VER: CONTENTS S2 PAGE ‧ SPECIFICATION REVISION RECORD SHEET 2 ‧ ELECTRICAL SPECIFICATIONS 3 ‧ DIMENSIONS & MARKING 4 ‧ STRUCTURE ILLUSTRATION 5 ‧ RELIABILITY TEST SPECIFICATIONS 6 ‧ PACKAGING REQUIREMENT 7/8 ‧ SPECIFICATION OF THE ENVIRONMENT-RELATED SUBSTANCES 9 ATTACHMENT（optional） ‧ ELECTRICAL CHARACTERISTICS TEST A YES NO ‧ TEMPERATURE CHARACTERISTICS TEST B YES NO PAGE: 1/9 TEL : +86(0)769-38879888 FL P/N: FAX : 86(0)769-38879889 VER: 3C16000002-Q S2 PAGE: SPECIFICATION REVISION RECORD SHEET Rev. Revise page S0 N/A S1 P.3、P.4 S2 P.4 Revise Contents Date Ref. No. Reviser Initial released 19-Jul-21 N/A Han Shuang P.3 Add ESD&MSL P.4 Change marking information 12-Oct-22 N/A Li Xiang Change reflow map 27-Nov-22 N/A Li Xiang 2/9 TEL : +86(0)769-38879888 FAX : 86(0)769-38879889 FL P/N: VER: 3C16000002-Q S2 PAGE: ELECTRICAL SPECIFICATIONS Standard atmospheric conditions Unless otherwise specified. The standard range of atmospheric conditions for making measurement and tests are as follow: Ambient temperature :25±2℃ Relative humidity :40%~70% If there is no doubt the results, measurement shall be made within the following limits: Ambient temperature :25±2℃ Relative humidity : 40%~70% Measure equipment Electrical characteristics measured by S&A 280A or equivalent. Crystal cutting type The crystal is using AT CUT (thickness shear mode) ELECTRICAL SPECIFICATIONS Parameters Symbol Electrical Spec. UNITS Nominal Frequency FL 16.000000 MHz - Operating Temperature TOPR -40 ~ +85 ℃ - The Total Frequency Offset - +/-50 ppm - Output Load CL 15.0 pF Max. Supply Voltage VDD 3.3 V - “0”Level VOL VDD×0.1 V Max. “1”Level VOH VDD×0.9 V Min. Enable High Voltage ELH VDD×0.7 V Min. Enable Low Voltage ELL VDD×0.3 V Max. Symmetry of Wave From Symmetry 45~55% Current Consumption IDD 10.0 mA Max. Rise and Fall Time Tr,Tf 5.0 nSec Max. Start time tosc 10.0 mSec Max. Aging - +/-5 ppm 1st Year Storage Temperature Range - -55 ~ +125 ℃ - Output waveform - CMOS - - ESD - HBM＞2000V - JESD22-A114-B MSL - Level 1 - IPC/JEDEC J-STD-033C Notes - 3/9 TEL : +86(0)769-38879888 FAX : 86(0)769-38879889 FL P/N: VER: 3C16000002-Q S2 PAGE: DIMENSIONS Enable Control Pad 1 Input Pad 3 Output Level High or Open Normal Operation Level Low Stopped MARKING Frequency Ex 160=16.000MHz Y L 1 6 0 Lot （2 digits） Year Month Code Administrative Symbol SUGGESTED REFLOW PROFILE Total time : 360 sec. Max. o Solder melting point : 225 C 10 sec. Temp. 260 5 220 180 60 -150 sec. 150 60-120 sec. Time 4/9 TEL : +86(0)769-38879888 FAX : 86(0)769-38879889 FL P/N: VER: 3C16000002-Q S2 PAGE: STRUCTURE ILLUSTRATION NO COMPONENTS MATERIALS QTY FINISH/SPECIFICATIONS 1 Cap (Lid) Metal (Fe) 1 - 2 Base (Package) Ceramic (AI2O3) 1 Alumina ceramics 3 Pad (Package) Au 4 Tungsten metalize +Ni plating +Au plating 4 Crystal blank SiO2 1 - 5 Conductive adhesive Ag 4 Silicone resin 6 Electrode Noble metal 2 - 7 IC Silicon (Si) 1 - 5/9 TEL : +86(0)769-38879888 FAX : 86(0)769-38879889 FL P/N: VER: 3C16000002-Q S2 PAGE: 6/9 RELIABILITY SPECIFICATIONS 1.MECHANICAL ENDURANCE No. Test Item 1 Drop Test 2 Mechanical Shock 3 Vibration Test Methods 75 cm height, fall freely onto stainless plate 3 times. Device are shocked to half sine wave ( 1000 G ) three mutually pendicular axes each 3 times. 0.5m sec. duration time Frequency range 10 ~ 2000 Hz Amplitude 1.52 mm JIS C6701 MIL-STD-202F MIL-STD-883E Pendicular axes each test time 4 hours (Total test time 12 hours) 4 Solderability Temperature 260oC +/- 5 oC , 5 +/-1 sec Immersing depth 0.5 mm minimum Immersion time 10 +/- 0.5 seconds Flux Rosin resin methyl alcohol MIL-STD-883E solvent ( 1 : 4 ) 5 Resistance To Soldering Heat Pre-heat temperature 125 oC Pre-heat time 60 ~ 120 sec. Test temperature 260 +/- 5 oC Test time 5 +/- 1 sec. MIL-STD-202F *Storage conditions ：18 months *Constant humidity ：40~70% 2.ENVIRONMENTAL ENDURANCE No. Test Item Test Methods 6 High Temp. Storage + 125 oC +/- 3 oC for 500 +/- 12 hours 7 Low Temp. Storage - 40 oC +/- 3 oC for 500 +/- 12 hours MIL-STD-883E Total 100 cycles of the following temperature cycle 1 cycle 125+/- 3 oC 8 Thermal Shock MIL-STD-883E 25 oC -55+/- 3 o C 30 min. 30 min. 10 min. max. 9 High Temp&Homidity 10 Low Temp. Operation 85℃±3℃, RH 85%,500Hrs o - 40 C, VCC, for 1000 hours JIS C5023 MIL-STD-883E TEL : +86(0)769-38879888 FL P/N: FAX : 86(0)769-38879889 VER: PACKING : 8mm-4mm，3000pcs / reel，φ 178； 3C16000002-Q S2 PAGE: 7/9 TEL : +86(0)769-38879888 FAX : 86(0)769-38879889 FL P/N: VER: 3C16000002-Q S2 PAGE: 8/9 SMD PRODUCT PACKING STANDARD Out-going packing instruction Reel Packing name：reel standard：diameter 18cm material：plastics name：Anti-Static Shielding Bag standard：205×250mm material：APET/CPP Inner Packing name：Anti-Static Bubble Bags standard：430x330+20mm material：HDPE(15 reels enter) Carton name：carton standard：400x400x280mm material：AB corrugated paper (60 boxes enter) L1 L2 L1 L1 The label instruction Label Drawing Mark Name of Article Spec. Size Printing L1 条码标签 Bar Code Label (Chintz Paper) 1.Part No. 2.Lot No. 3.Q'ty 4.Freq 70x50mm White L2 条码标签 Bar Code Label (Chintz Paper) 1.Part No. 2.Date Code 3.Q'ty 4.Freq 70x50mm White Remark Specifications on the label is for the use of templates with different product specifications may vary. If customer specified requirements for labels packaging. please provide the operation procedure. TEL : +86(0)769-38879888 FAX : 86(0)769-38879889 FL P/N: VER: 3C16000002-Q S2 PAGE: 9/9 Range Products Packing Material Banned Substances Maximum concentration ppm(mg/kg) Maximum concentration ppm(mg/kg) 1.镉及镉化合物 Cadmium and cadmium compounds 100 100 2.铅及铅化合物 Lead and lead compounds 1000 100 3.汞及汞化合物 Mercury and mercury compounds 1000 100 4.六价铬化合物 Hexavalent-Chromium VI (Cr+6) 1000 100 5.聚溴联苯 PBB Polybrominated biphenyls 1000 N/A 6.聚溴二苯醚 PBDE Polybrominated diphenyl ethers 1000 N/A 7.邻苯二甲酸二(2-乙基己基)酯 DEHP Di (2-ethylhexyl) phthalate 1000 N/A 8.邻苯二甲酸丁苄酯 BBP Butyl Benzyl Phthalate 1000 N/A 9.邻苯二甲酸二丁酯 DBP Dibutyl Phthalate 1000 N/A 10 邻苯二甲酸二异丁酯 DIBP Diisobutyl Phthalate 1000 N/A 900、900、900、900 注：Br+Cl＜1000 N/A N/A 100 铅(Pb) + 镉(Cd) + 汞(Hg) + 六价铬 (Cr+6)
