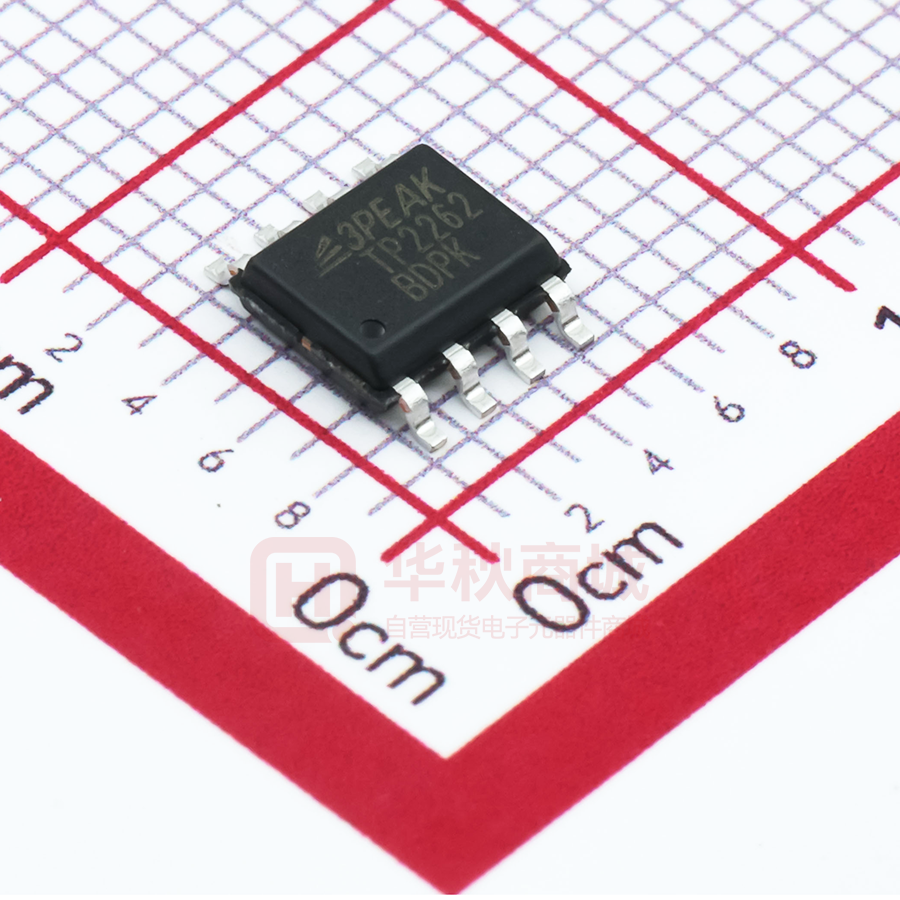

TP2262-SR

TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Features Description  Supply Voltage: 3V to 36V  Low Supply Current: 700μA per channel The TP226X series amplifiers are newest high supply voltage  Rail to Rail Output amplifiers with low offset, low power and stable high frequency  Bandwidth: 4 MHz  Slew Rate: 15V/μs  Excellent EMI Suppress Performance  Offset Voltage: ±3mV Maximum common-mode voltage range extends to V–, and the outputs  Offset Voltage Temperature Drift: 2 μV/°C swing rail-to-rail. The TP226X family can be used as plug-in  Low Noise: 30 nV/√Hz at 1kHz replacements for many commercially available op-amps to  –40°C to 125°C Operation Temperature Range reduce power and improve input/output range and performance. response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 4MHz bandwidth, 15V/μs slew rate and low distortion while drawing only 700μA of quiescent current per amplifier. The input The combination of features makes the TP226X ideal choices Applications for industrial control, motor control and portable audio  Active Filters, ASIC Input or Output Amplifier amplification, sound ports, and other consumer Audio.  Sensor Interface  Motor Control  Industrial Control  Audio Pin Configuration Out 1 ﹣Vs 2 TP2261 TP2262 TP2264 5-Pin SOT23 8-Pin SOIC/TSSOP/MSOP 14-Pin SOIC/TSSOP -T Suffixes -S, -TS and -V Suffixes -S and -T Suffixes 8 ﹢Vs Out A 1 7 Out B ﹣In A 2 ﹢In A 3 ﹢Vs 4 TP2261 ﹢In B 5 8-Pin SOIC (-S Suffix) ﹣In B Out B 3 + In ﹢Vs 5 4 - In 1 ﹣In A 2 ﹢In A 3 ﹣Vs 4 A B 6 ﹣In B 5 ﹢In B 14 Out D 13 ﹣In D 12 ﹢In D 11 ﹣Vs 10 ﹢In C 6 9 ﹣In C 7 8 Out C A B NC 1 8 NC ﹣In 2 7 ﹢Vs ﹢In 3 6 Out ﹣Vs 4 5 NC www.3peakic.com.cn Out A 1 / 19 D C Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Table of Contents Features ........................................................................................................................................................................... 1 Applications ..................................................................................................................................................................... 1 Description....................................................................................................................................................................... 1 Pin Configuration ............................................................................................................................................................ 1 Table of Contents ............................................................................................................................................................ 2 Revision History .............................................................................................................................................................. 3 Order Information ............................................................................................................................................................ 3 Absolute Maximum Ratings Note 1 ................................................................................................................................... 4 ESD Rating ....................................................................................................................................................................... 4 Thermal Information ....................................................................................................................................................... 4 Electrical Characteristics ............................................................................................................................................... 5 Typical Performance Characteristics ............................................................................................................................ 7 Tape and Reel Information ........................................................................................................................................... 12 Package Outline Dimensions ....................................................................................................................................... 13 SC70-5 /SOT-353 ....................................................................................................................................................................... 13 SOT23-5..................................................................................................................................................................................... 13 SOP-8 ........................................................................................................................................................................................ 14 TSSOP-8 .................................................................................................................................................................................... 15 MSOP-8 ..................................................................................................................................................................................... 16 SOP-14 ...................................................................................................................................................................................... 17 TSSOP-14 .................................................................................................................................................................................. 18 www.3peakic.com.cn 2 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Revision History Date Revision Notes 2017/12/21 Rev.Pre Pre-Release Version Order Information Order Number Operating Temperature Range Package Marking Information TP2261-SR Note 1 -40 to 125°C 8-Pin SOIC TP2261-TR Note 1 -40 to 125°C 5-Pin SOT23 TP2262-SR -40 to 125°C 8-Pin SOIC TP2262-TSR Note 1 -40 to 125°C 8-Pin TSSOP TP2262-VR Note 1 -40 to 125°C 8-Pin MSOP TP2264-SR -40 to 125°C 14-Pin SOIC TP2264-TR Note 1 -40 to 125°C 14-Pin TSSOP MSL Transport Media, Quantity 3 Tape and Reel, 4000 3 Tape and Reel, 3000 3 Tape and Reel, 4000 3 Tape and Reel, 3000 3 Tape and Reel, 3000 3 Tape and Reel, 2500 3 Tape and Reel, 3000 2261 XXXX Note 3 226XX Note 2 2262 XXXX Note 3 2262 XXXX Note 3 2262 XXXX Note 3 2264 XXXX Note 3 2264 XXXX Note 3 Note 1: The sample will be ready in 1 month. Note 2: XX is the date code. Note 3: XXXX is date code. www.3peakic.com.cn 3 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Absolute Maximum Ratings Note 1 Parameters Rating Supply Voltage, (+VS)– (-VS) 40 V Input Voltage (-VS) – 0.3 to (+VS) + 0.3 Differential Input Voltage (+VS) - (-VS) Input Current: +IN, –IN ±10mA Note 2 Output Short-Circuit Duration Note 3 Infinite Maximum Junction Temperature 150°C Operating Temperature Range –40 to 125°C Storage Temperature Range –65 to 150°C Lead Temperature (Soldering, 10 sec) 260°C Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300mV beyond the power supply, the input current should be limited to less than 10mA. Note 3: A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD Rating Symbol Parameter Condition Minimum Level Unit HBM Human Body Model ESD MIL-STD-883H Method 3015.8 2 kV CDM Charged Device Model ESD JEDEC-EIA/JESD22-C101E 1 kV Thermal Information Package Type θJA θJC Unit 5-Pin SOT23 250 81 °C/W 8-Pin SOIC 158 43 °C/W 8-Pin TSSOP 191 44 °C/W 8-Pin MSOP 210 45 °C/W 14-Pin SOIC 120 36 °C/W 14-Pin TSSOP 180 35 °C/W www.3peakic.com.cn 4 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Electrical Characteristics All test condition is VS = 30V, TA = 25°C, RL = 10kΩ, unless otherwise noted. Symbol Parameter Conditions Min Typ Max Unit 36 V 1000 μA Power Supply VS Supply Voltage Range 3 VS = 30V 700 VS = 30V, TA = -40°C to 125°C IQ uA Quiescent Current per Amplifier VS = 5V 600 800 μA VS = 5V, TA = -40°C to 125°C PSRR Power Supply Rejection Ratio VS = 3V to 36V 120 dB VS = 3V to 36V, TA = -40°C to 125°C Input Characteristics VS = 30V, VCM = 0V to 28V -3 0.1 3 mV VS = 30V, VCM = 0V to 28V, TA = -40°C to mV VOS Input Offset Voltage 125°C VS = 5V, VCM = 0V to 3V -3 0.1 3 VS = 5V, VCM = 0V to 3V, TA = -40°C to 125°C VOS TC IB Input Offset Voltage Drift Input Bias Current IOS Input Offset Current IIN Different Input Current CIN Av mV mV 2 μV/°C 25 pA TA = -40°C to 85°C 80 pA TA = -40°C to 125°C 1000 pA 25 pA VS = 36V, VID = 36V 1 nA VS = 36V, VID = 36V, TA = -40°C to 125°C 10 nA Differential Mode 5 pF Common Mode 5 pF 120 dB TA = -40°C to 125°C Input Capacitance Open-loop Voltage Gain TA = -40°C to 125°C VCMR Common-mode Input Voltage Range CMRR Common Mode Rejection Ratio dB (V-) VCM = 0V to 28V (V+) - 2 120 V dB VCM = 0V to 28V, TA = -40°C to 125°C dB Output Characteristics VOH, VOL Maximum Output Voltage Swing RLOAD = 10kΩ 200 RLOAD = 10kΩ, TA = -40°C to 125°C ISC Output Short-Circuit Current 300 mV mV 32 TA = -40°C to 125°C mA mA AC Specifications GBW Gain-Bandwidth Product SR Slew Rate tOR Overload Recovery www.3peakic.com.cn G = 1, 10V step 5 / 19 3.5 MHz 15 V/μs 100 ns Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Settling Time, 0.1% tS 0.8 μs 1 μs G = -1, 10V step Settling Time, 0.01% PM Phase Margin VS = 36V, RL=10K, CL=100pF 60 ° GM Gain Margin VS = 36V, RL=10K, CL=100pF 15 dB Noise Performance EN Input Voltage Noise f = 0.1Hz to 10Hz 1.7 μVRMS eN Input Voltage Noise Density f = 1kHz 30 nV/√Hz iN Input Current Noise f = 1kHz 2 fA/√Hz THD+N Total Harmonic Distortion and Noise f = 1kHz, G =1, RL = 10kΩ, VOUT = 6VRMS 0.0005 % www.3peakic.com.cn 6 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Typical Performance Characteristics 2 1.8 1.8 1.6 1.6 1.4 Quiesent Current(mA) Quiesent Current(mA) VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified. 1.4 1.2 1 0.8 0.6 1.2 1 0.8 0.6 0.4 0.4 0.2 0.2 0 0 0 10 20 Supply Voltage(V) 30 40 -50 Figure 1. Quiescent Current vs. Supply Voltage, 2ch TP2262 50 Temperature(℃) 100 150 3 Vs = ±18V 2 input Offset Voltage(mV) 2 1 0 -1 -2 Vs = ±2.5V 1 0 -1 -2 -3 -3 -20 -10 0 10 20 -3 Common mode-Voltage(V) -2 -1 0 1 2 Common mode-Voltage(V) Figure 3. Offset Voltage vs. Common Mode Voltage Figure 4. Offset Voltage vs. Common Mode Voltage 3 3 Vs = 5V, Vcm = 2.5V Vs = 36V, Vcm = 18V 2 input Offset Voltage(mV) 2 input Offset Voltage(mV) 0 Figure 2. Quiescent Current vs. Temperature, 2ch TP2262 3 input Offset Voltage(mV) VS=±18V VS=±2.5V 1 0 -1 -2 1 0 -1 -2 -3 -3 -50 0 50 Temperaure(℃) 100 150 Figure 5. VOS vs. Temperature www.3peakic.com.cn -50 0 50 Temperaure(℃) 100 150 Figure 6. VOS vs. Temperature 7 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified. 1400 Vs = 36V Blue: Vin+ = 36V, Vin- = 0V Red: Vin+ = 0V, Vin- = 36V 6000 5000 1200 Input Bias Current(pA) Input Current in Large Vdm(pA) 7000 4000 3000 2000 IB+ 1000 IB- 800 IOS 600 400 200 1000 0 0 -50 0 50 Temperature(℃) 100 -200 150 -50 0 Figure 7. Input Current in Large Vdm vs. Temperature 50 Temperature(℃) 100 150 Figure 8. IB vs. Temperature 120 120 100 PSRR+ PSRR- 80 80 CMRR(dB) PSRR+(dB) 100 60 60 40 40 20 20 0 0 10 100 1K 10K 100K 1M 10 100 1K Frequency(Hz) Figure 9. PSRR vs. Frequency 100K 1M Figure 10. CMRR vs. Frequency 140 140 120 120 100 100 CMRR(dB) PSRR(dB) 10K Frequency(Hz) 80 60 80 60 40 40 20 20 0 0 -50 0 50 Temperature(℃) 100 150 -50 Figure 11. PSRR vs. Temperature www.3peakic.com.cn 0 50 Temperature(℃) 100 150 Figure 12. CMRR vs. Temperature 8 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified. 100.00 90.00 80.00 EMIRR: dB 70.00 60.00 50.00 40.00 30.00 20.00 10.00 0.00 50 500 Frequency: MHz 5000 Figure 13. EMIRR+- vs. Frequency Figure 14. Open Loop Gain and Phase vs. Frequency 50 40 AV=1 AV=-1 AV=11 AV=100 Close Loop Gain(dB) 30 20 10 0 -10 -20 -30 -40 1 10 100 1K 10K Frequency(kHz) VS =±1.5V, VIN=100mVPP, RL=10K, CL=100pF, G=1 Figure 15. Close Loop Gain and Phase vs. Frequency Figure 16. Waveform under 3V Supply Voltage 0 Maximum Peak Output Voltage(V) Maximum Peak Output Voltage(V) 16 14 12 10 8 6 4 2 0 0.01 0.1 1 10 Load Resistance(kΩ) -2 -4 -6 -8 -10 -12 -14 -16 0.01 100 0.1 1 10 Load Resistance(kΩ) 100 Figure 17. Maximum Peak Output Voltage vs. Load Figure 18. Maximum Peak Output Voltage vs. Load Resistance Resistance www.3peakic.com.cn 9 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified. 16 0 -2 14 -40℃ 25℃ 85℃ 125℃ 10 -4 Output Voltage(V) Output Voltage(V) 12 8 6 4 -6 -8 -10 -12 Vs = ±15V -14 2 -16 0 0 5 10 15 20 25 Output Current(mA) 30 0 35 Figure 19. Positive Output Voltage vs. Output Current 3 0 2.5 -0.5 -40℃ 25℃ 85℃ 125℃ 2 1.5 1 10 20 Output Current(mA) 30 40 Figure 20. Negative Output Voltage vs. Output Current Output Voltage(V) Output Voltage(V) Vs = ±15V -40℃ 25℃ 85℃ 125℃ Vs = ±2.5V -40℃ 25℃ 85℃ 125℃ -1 -1.5 -2 -2.5 0.5 Vs = ±2.5V -3 0 0 5 10 Output Current(mA) 15 20 0 5 10 15 Output Current(mA) 20 25 Figure 21. Positive Output Voltage vs. Output Current Figure 22. Negative Output Voltage vs. Output Current Voltage: 1V/div, Time: 200ns/div Voltage: 1V/div, Time: 200ns/div VS =5V, VIN = 2V, RL=Open, G=3 VS =5V, VIN = 2V, RL=Open, G=3 Figure 23. Positive Overload Recovery Figure 24. Negative Overload Recovery www.3peakic.com.cn 10 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified. Voltage: 20mV/div, Time: 100ns/div Voltage: 2V/div, Time: 1μs/div VS =±15V, RL=2K, CL=100pF, G=1 VS =±15V, RL=2K, CL=100pF, G=1 Figure 25. 100mV Signal Step Response Figure 26. 10V Signal Step Response 0.1 200 RL=10K, Vout = 3.5VRms RL=10K, Vout = 6VRms 0.01 THD+N(%) Equivalent Input Noise Voltage(V) 250 150 100 0.001 50 0 0.0001 10 100 1K Frequency(Hz) 10K 100K 10 100 1K Frequency(Hz) 10K VS =±15V, VCM=0V VS =±15V, VCM=0V, G=1 Figure 27. Voltage Noise Spectral Density vs. Frequency Figure 28. THD+N vs. Frequency www.3peakic.com.cn 11 / 19 100K Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Tape and Reel Information Order Number Package D1 W1 A0 B0 K0 P0 W0 Pin1 Quadrant TP2261-TR 5-Pin SOT23 180.0 13.1 3.2 3.2 1.4 4.0 8.0 Q3 TP2261-SR 8-Pin SOIC 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 TP2262-SR 8-Pin SOIC 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 TP2262-VR 8-Pin MSOP 330.0 17.6 5.2 3.3 1.5 8.0 12.0 Q1 TP2262-TSR 8-Pin TSSOP 330.0 17.6 6.8 3.3 1.2 8.0 12.0 Q1 TP2264-SR 14-Pin SOIC 330.0 21.6 6.5 9.0 2.1 8.0 16.0 Q1 TP2264-TR 14-Pin TSSOP 330.0 17.6 6.8 5.4 1.2 8.0 12.0 Q1 www.3peakic.com.cn 12 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps Package Outline Dimensions SC70-5 /SOT-353 Dimensions Dimensions In Millimeters In Inches Min Max Min Max A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 C 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.650TYP 0.026TYP e1 1.200 0.047 L 0.525REF 0.021REF L1 0.260 0.460 0.010 0.018 θ 0° 8° 0° 8° Symbol 1.400 0.055 SOT23-5 Dimensions Dimensions In Millimeters In Inches Min Max Min Max A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.400 0.012 0.016 C 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950TYP 0.037TYP e1 1.800 0.071 L 0.700REF 0.028REF L1 0.300 0.460 0.012 0.024 θ 0° 8° 0° 8° Symbol www.3peakic.com.cn 13 / 19 2.000 0.079 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps SOP-8 A2 C θ L1 A1 e E D Symbol E1 b 14 / 19 Dimensions In In Millimeters Inches Min Max Min Max A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 C 0.190 0.250 0.007 0.010 D 4.780 5.000 0.188 0.197 E 3.800 4.000 0.150 0.157 E1 5.800 6.300 0.228 0.248 e www.3peakic.com.cn Dimensions 1.270 TYP 0.050 TYP L1 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps TSSOP-8 Symbol Dimensions In Millimeters Min Dimensions In Inches Max Min Max D 2.900 3.100 0.114 0.122 E 4.300 4.500 0.169 0.177 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 E1 6.250 6.550 0.246 0.258 A 1.200 0.047 A2 0.800 1.000 0.031 0.039 A1 0.050 0.150 0.002 0.006 e 0.65(BSC) L 0.500 H 0.25(BSC) θ 1° www.3peakic.com.cn 0.026（BSC） 0.700 0.020 0.028 0.01（BSC） 7° 15 / 19 1° 7° Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps MSOP-8 Dimensions Dimensions In In Millimeters Inches Min Max Min Max A 0.800 1.200 0.031 0.047 A1 0.000 0.200 0.000 0.008 A2 0.760 0.970 0.030 0.038 b 0.30 TYP 0.012 TYP C 0.15 TYP 0.006 TYP D 2.900 e 0.65 TYP E 2.900 3.100 0.114 0.122 E1 4.700 5.100 0.185 0.201 L1 0.410 0.650 0.016 0.026 θ 0° 6° 0° 6° Symbol E E1 A A2 e b D 3.100 0.114 0.122 0.026 A1 R1 R θ L1 www.3peakic.com.cn L L2 16 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps SOP-14 Dimensions In Millimeters Symbol MIN 1.35 1.60 1.75 A1 0.10 0.15 0.25 A2 1.25 1.45 1.65 A3 0.55 0.65 0.75 b 0.36 b1 0.35 c 0.16 c1 0.15 0.20 0.25 D 8.53 8.63 8.73 E 5.80 6.00 6.20 E1 3.80 3.90 4.00 L 17 / 19 MAX A e www.3peakic.com.cn NOM 0.49 0.40 0.45 0.25 1.27 BSC 0.45 0.60 L1 1.04 REF L2 0.25 BSC 0.80 R 0.07 R1 0.07 h 0.30 θ 0° θ1 6° 8° 10° θ2 6° 8° 10° θ3 5° 7° 9° θ4 5° 7° 9° 0.40 0.50 8° Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps TSSOP-14 Dimensions In Millimeters E1 E A A2 e Symbol c D MIN TYP MAX A - - 1.20 A1 0.05 - 0.15 A2 0.90 1.00 1.05 b 0.20 - 0.28 c 0.10 - 0.19 D 4.86 4.96 5.06 E 6.20 6.40 6.60 E1 4.30 4.40 4.50 e L A1 R1 R 0.65 BSC 0.45 0.60 L1 1.00 REF L2 0.25 BSC 0.75 R 0.09 - - θ 0° - 8° θ L1 www.3peakic.com.cn L L2 18 / 19 Rev.Pre TP2261/ TP2262/ TP2264 36V, 4MHz, 15V/μs Op Amps 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 19 / 19 Rev.Pre
