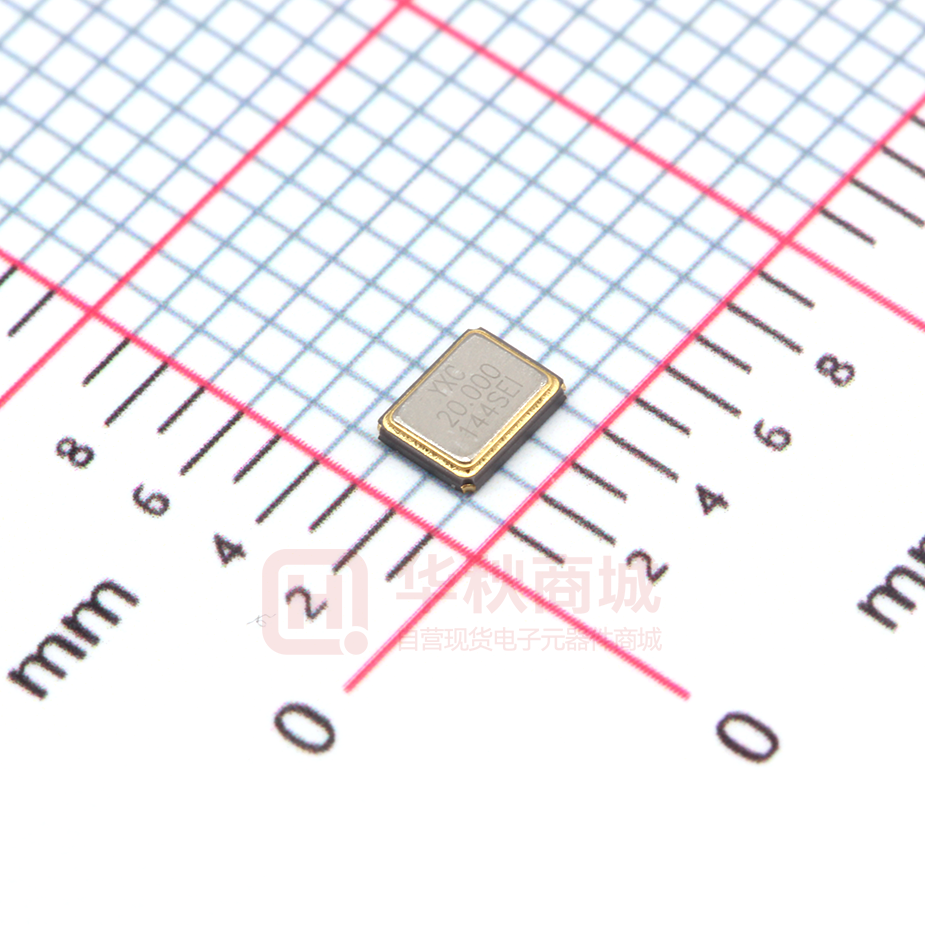

X322520MSB4SI

CRYSTAL UNIT YSX321SL Applications Features ‧SmartWearable ‧Dimensions:3.20 x 2.50 x 0.70 mm. ‧High precision and high frequency stability. IOT Communication. ‧Standard Frequency: 8~64MHz ‧Extremely good for reducing EMI effect. Specifications Standard Frequency 8~64 MHz Vibration Mode AT Fundamental Load Capacitance 10pF,20pF,or specify Frequency Tolerance (at 25 ) ±10ppm,±20ppm,or specify Frequency Versus Temperature Characteristics Operating Temperature ±20ppm,or specify -20~+70℃，-40~+85℃，or specify -55~+125℃ or specify Storage Temperature Shunt Capacitance 7 pF Max. Level of Drive 1~200μWMax.(100uW typical) Aging (at 25 ℃ ) ±3ppm/year Max. Equivalent Series Resistance(ESR) 8 ~ 11.2892MHz 12 ~ 16 MHz 17 ~ 64 MHz Fundamental 150 Ω Max. 80 Ω Max. 50 Ω Max. Dimensions and Patterns [unit:mm] Package Size – Dimensions (Unit: mm) www.yxc.hk 第1页共2页 CRYSTAL UNIT YSX321SL Reflow Soldering Profile Temperature Pre Heating Temperature Tp1 ~ Tp2 = + 170 °C Heating Temperature TMlt = + 220 °C Peek Temperature TMax. = + 260 °C +260℃ TMax. +220℃ Tmlt Point of measuring In case of Solder ability Terminal. In case of Resistance to soldering heat Surface. Tp2 Tp1 35s 100s t(time) Taping Specification(Unit: mm) Size A B C D E F G H SMD-3225 180±2.0 8.0±0.3 3.50±0.1 2.50±0.1 4.0±0.1 1.40±0.1 61.0±1.0 8.0±1.0 3000 pcs per reel www.yxc.hk 第2页共2页
