M051 DN/DE
ARM® Cortex® -M0
32-bit Microcontroller
NuMicro® Family
M051 DN/DE Series
Datasheet
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based
system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Oct. 05, 2015
Page 1 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
M051 DN/DE
Table of Contents
1 GENERAL DESCRIPTION ····················································································································7
2 FEATURES ·············································································································································8
3 ABBREVIATIONS ································································································································12
3.1
List of Abbreviations ···················································································································12
4 PARTS INFORMATION AND PIN CONFIGURATION ·····································································14
®
4.1
NuMicro M051 Series M05xxDN Selection Guide ·······························································14
4.2
NuMicro M051 Series M05xxDE Selection Guide ································································15
®
4.3
Pin Diagrams ·······························································································································17
4.3.1 QFN 33-pin ···································································································································17
4.3.2 LQFP 48-pin ·································································································································18
4.4
Pin Description ····························································································································19
5 BLOCK DIAGRAM ·······························································································································22
6 FUNCTIONAL DESCRIPTION ············································································································23
6.1
®
®
ARM Cortex -M0 Core ·············································································································23
6.2
System Manager ·························································································································25
6.2.1 Overview ·······································································································································25
6.2.2 System Reset·······························································································································25
6.2.3 System Power Architecture ·······································································································26
6.2.4 System Memory Map ··················································································································27
6.2.5 Whole System Memory Mapping ······························································································29
6.2.6 System Timer (SysTick) ·············································································································30
6.2.7 Nested Vectored Interrupt Controller (NVIC) ··········································································31
M051 DN/DE SERIES DATASHEET
6.3
Clock Controller ···························································································································34
6.3.1 Overview ·······································································································································34
6.3.2 System Clock and SysTick Clock ·····························································································37
6.3.3 Power-down Mode Clock ···········································································································38
6.3.4 Frequency Divider Output ··········································································································38
6.4
Flash Memory Controller (FMC) ·······························································································40
6.4.1 Overview ·······································································································································40
6.4.2 Features ········································································································································40
6.5
External Bus Interface (EBI) ······································································································41
6.5.1 Overview ·······································································································································41
6.5.2 Features ········································································································································41
6.6
General Purpose I/O (GPIO) ·····································································································42
6.6.1 Overview ·······································································································································42
6.6.2 Features ········································································································································42
6.7
Timer Controller (TMR) ··············································································································43
6.7.1 Overview ·······································································································································43
6.7.2 Features ········································································································································43
6.8
PWM Generator and Capture Timer (PWM) ···········································································44
6.8.1 Overview ·······································································································································44
6.8.2 Features ········································································································································45
Oct. 05, 2015
Page 2 of 86
Rev 1.03
M051 DN/DE
6.9
Watchdog Timer (WDT) ·············································································································46
6.9.1 Overview ·······································································································································46
6.9.2 Features ········································································································································46
6.10 Window Watchdog Timer (WWDT) ··························································································47
6.10.1 Overview ·····································································································································47
6.10.2 Features ······································································································································47
6.11 UART Controller (UART) ···········································································································48
6.11.1 Overview ·····································································································································48
6.11.2 Features ······································································································································48
2
2
6.12 I C Serial Interface Controller (I C) ··························································································49
6.12.1 Overview ·····································································································································49
6.12.2 Features ······································································································································49
6.13 Serial Peripheral Interface (SPI) ·······························································································50
6.13.1 Overview ·····································································································································50
6.13.2 Features ······································································································································50
6.14 Analog-to-Digital Converter (ADC) ···························································································51
6.14.1 Overview ·····································································································································51
6.14.2 Features ······································································································································51
6.15 Analog Comparator (ACMP) ·····································································································52
6.15.1 Overview ·····································································································································52
6.15.2 Features ······································································································································52
6.16 Hardware Divider (HDIV) (M05xxDN/DE Only) ······································································53
6.16.1 Overview ·····································································································································53
6.16.2 Features ······································································································································53
7 APPLICATION CIRCUIT ·····················································································································54
8.1
Absolute Maximum Ratings ·······································································································55
8.2
DC Electrical Characteristics ·····································································································56
8.3
AC Electrical Characteristics ·····································································································60
8.3.1 External Input Clock ····················································································································60
8.3.2 External 4~24 MHz High Speed Crystal (HXT) ······································································60
8.3.3 Typical Crystal Application Circuits ··························································································61
8.3.4 22.1184 MHz Internal High Speed RC Oscillator (HIRC) ·····················································61
8.3.5 10 kHz Internal Low Speed RC Oscillator (LIRC) ··································································61
8.4
Analog Characteristics ···············································································································62
8.4.1 12-bit SAR ADC ···························································································································62
8.4.2 LDO & Power Management ·······································································································64
8.4.3 Low Voltage Reset ······················································································································64
8.4.4 Brown-out Detector ·····················································································································64
8.4.5 Power-on Reset ···························································································································65
8.4.6 Temperature Sensor ···················································································································66
8.4.7 Comparator ··································································································································66
8.5
Flash DC Electrical Characteristics ··························································································67
8.6
SPI Dynamic Characteristics ·····································································································67
8.6.1 Dynamic Characteristics of Data Input and Output Pin ·························································67
Oct. 05, 2015
Page 3 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
8 M05XXDN ELECTRICAL CHARACTERISTICS ···············································································55
M051 DN/DE
9 M05XXDE ELECTRICAL CHARACTERISTICS ···············································································68
9.1
Absolute Maximum Ratings ·······································································································68
9.2
DC Electrical Characteristics ·····································································································69
9.3
AC Electrical Characteristics ·····································································································73
9.3.1 External Input Clock ····················································································································73
9.3.2 External 4~24 MHz High Speed Crystal (HXT) ······································································73
9.3.3 Typical Crystal Application Circuits ··························································································73
9.3.4 22.1184 MHz Internal High Speed RC Oscillator (HIRC) ·····················································74
9.3.5 10 kHz Internal Low Speed RC Oscillator (LIRC) ··································································75
9.4
Analog Characteristics ···············································································································76
9.4.1 12-bit SAR ADC ···························································································································76
9.4.2 LDO & Power Management ·······································································································77
9.4.3 Low Voltage Reset ······················································································································77
9.4.4 Brown-out Detector ·····················································································································78
9.4.5 Power-on Reset ···························································································································78
9.4.6 Temperature Sensor ···················································································································80
9.4.7 Comparator ··································································································································80
9.5
Flash DC Electrical Characteristics ··························································································81
9.6
SPI Dynamic Characteristics ·····································································································82
9.6.1 Dynamic Characteristics of Data Input and Output Pin ·························································82
10
11
PACKAGE DIMENSIONS ···········································································································83
2
10.1
LQFP-48 (7x7x1.4mm Footprint 2.0mm) ···············································································83
10.2
QFN-33 (5X5 mm , Thickness 0.8mm, Pitch 0.5 mm) ··························································84
2
REVISION HISTORY ···················································································································85
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 4 of 86
Rev 1.03
M051 DN/DE
LIST OF FIGURES
®
Figure 4-1 NuMicro M051 DN/DE Series Naming Rule ............................................................... 16
®
Figure 4-2 NuMicro M051 DN/DE Series QFN-33 Pin Diagram .................................................. 17
®
Figure 4-3 NuMicro M051 DN/DE Series LQFP-48 Pin Diagram................................................. 18
®
Figure 5-1 NuMicro M051 DN/DE Series Block Diagram ............................................................. 22
Figure 6-1 Functional Block Diagram ............................................................................................. 23
®
Figure 6-2 NuMicro M051 DN/DE Series Power Architecture Diagram ....................................... 26
Figure 6-3 Clock Generator Block Diagram ................................................................................... 34
Figure 6-4 Clock Source Controller Overview (1/2) ....................................................................... 35
Figure 6-5 Clock Source Controller Overview (2/2) ....................................................................... 36
Figure 6-6 System Clock Block Diagram ....................................................................................... 37
Figure 6-7 SysTick clock Control Block Diagram ........................................................................... 37
Figure 6-8 Clock Source of Frequency Divider .............................................................................. 38
Figure 6-9 Block Diagram of Frequency Divider ............................................................................ 39
Figure 8-1 M05xxDN Typical Crystal Application Circuit ............................................................... 61
Figure 8-2 Power-up Ramp Condition............................................................................................ 65
Figure 9-1 M05xDE Typical Crystal Application Circuit ................................................................. 74
Figure 9-2 HIRC Accuracy vs. Temperature .................................................................................. 75
Figure 9-3 Power-up Ramp Condition............................................................................................ 79
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 5 of 86
Rev 1.03
M051 DN/DE
LIST OF TABLES
Table 1-1 M05xxBN, M05xxDN and M05xxDE Difference List ........................................................ 7
Table 3-1 List of Abbreviations ....................................................................................................... 13
Table 6-1 Address Space Assignments for On-Chip Modules ...................................................... 28
Table 6-2 Exception Model ............................................................................................................ 32
Table 6-3 System Interrupt Map Vector Table ............................................................................... 33
Table 6-4 Vector Figure Format ..................................................................................................... 33
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 6 of 86
Rev 1.03
M051 DN/DE
1
GENERAL DESCRIPTION
®
®
®
The NuMicro M051 DN/DE series 32-bit microcontroller is embedded with ARM Cortex -M0
core for industrial control and applications which need rich communication interfaces. The
®
NuMicro
M051 DN/DE series includes the following part numbers: M052xDN/xDE,
M054xDN/xDE, M058xDN/xDE and M0516xDN/xDE.
®
The NuMicro M051 DN/DE series can run up to 50 MHz and operate at 2.5V ~ 5.5V, -40℃ ~
85℃, while M05xxDE operates at -40℃ ~ 105℃, and thus can afford to support a variety of
®
industrial control and applications which need high CPU performance. The NuMicro M051
DN/DE series offers 8/16/32/64 KB flash, 4 KB Data Flash, 4 KB flash for the ISP, and 4 KB
SRAM.
Many system level peripheral functions, such as I/O Port, EBI (External Bus Interface), Timer,
2
UART, SPI, I C, PWM, ADC, Watchdog Timer, Window Watchdog Timer, Analog Comparator and
®
Brown-out Detector, have been incorporated into The NuMicro M051 DN/DE series in order to
reduce component count, board space and system cost. These useful functions make The
®
NuMicro M051 DN/DE series powerful for a wide range of applications.
®
Additionally, the NuMicro M051 DN/DE series is equipped with ISP (In-System Programming)
and ICP (In-Circuit Programming) functions, and IAP (In-Application Programming), which allow
the user to update the program memory without removing the chip from the actual end product.
Item
M05xxDN
M05xxDE
-40℃ ~ 85℃
-40℃ ~ 85℃
-40℃ ~ 105℃
Hardware Divider
-
●
●
IAP Mode
-
●
●
Window WDT
-
●
●
Analog Comparators
2
4
4
Configurable I/O mode after
POR
-
●
●
I2C
1
2
(Supports Wake-up)
2
(Supports Wake-up)
Operating Temperature
SPI
Only Supports HCLK Supports HCLK and Supports HCLK and
as SPI clock source
PLL as SPI clock source
PLL as SPI clock source
-
PWM and ADC
-
No FIFO
PWM cannot trigger ADC
4-level FIFO
PWM
ADC conversion
can
-
4-level FIFO
trigger PWM can
ADC conversion
trigger
Table 1-1 M05xxBN, M05xxDN and M05xxDE Difference List
Oct. 05, 2015
Page 7 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
M05xxBN
M051 DN/DE
2
FEATURES
Core
®
ARM® Cortex -M0 core running up to 50 MHz
One 24-bit system timer
Supports Low Power Sleep mode
A single-cycle 32-bit hardware multiplier
NVIC for the 32 interrupt inputs, each with 4-levels of priority
Supports Serial Wire Debug (SWD) interface and two watchpoints/four breakpoints
Provides hardware divider and supports signed 32-bit dividend, 16-bit divisor operation
Wide Operating Voltage Range: 2.5V to 5.5V
Memory
8KB/16KB/32KB/64KB Flash for program memory (APROM)
4KB Flash for data memory (Data Flash)
4KB Flash for loader (LDROM)
4KB SRAM for internal scratch-pad RAM (SRAM)
Clock Control
Programmable system clock source
22.1184 MHz internal oscillator
4~24 MHz external crystal input
10 kHz low-power oscillator for Watchdog Timer and wake-up in Sleep mode
PLL allows CPU operation up to the maximum 50 MHz
I/O Port
M051 DN/DE SERIES DATASHEET
Up to 40 general-purpose I/O (GPIO) pins for LQFP-48 package
Four I/O modes:
Quasi-bidirectional
Push-Pull output
Open-Drain output
Input only with high impendence
TTL/Schmitt trigger input selectable
I/O pin can be configured as interrupt source with edge/level setting
Supports high driver and high sink I/O mode
Configurable I/O mode after POR
Timer
Provides four channel 32-bit timers; one 8-bit pre-scale counter with 24-bit up-timer for
each timer
Independent clock source for each timer
24-bit timer value is readable through TDR (Timer Data Register)
Provides One-shot, Periodic and Toggle operation modes
Provides event counter function
Provides external capture/reset counter function
Two more timer clock sources from external trigger and internal 10 kHz
TIMER wake-up function
External capture input source selected from ACMP or TxEX
Toggle mode output pins selected from TxEX or TMx
Inter-Timer trigger mode
WDT (Watchdog Timer)
Oct. 05, 2015
Page 8 of 86
Rev 1.03
M051 DN/DE
Multiple clock sources
Supports wake-up from Power-down or Sleep mode
Interrupt or reset selectable on watchdog time-out
Time-out reset delay period time can be selected
WWDT (Window Watchdog Timer)
6-bit down counter with 11-bit pre-scale for wide range window selected
PWM
Up to four built-in 16-bit PWM generators, providing eight PWM outputs or four
complementary paired PWM outputs
Individual clock source, clock divider, 8-bit pre-scalar and dead-zone generator for
each PWM generator
PWM interrupt synchronized to PWM period
16-bit digital Capture timers with rising/falling capture inputs
Supports capture interrupt
Internal 10 kHz to PWM clock source
Polar inverse function
Center-aligned type function
Timer duty interrupt enable function
Two kinds of PWM interrupt period/duty type selection
Period/duty trigger ADC function
PWM Timer synchronous start function
UART
Up to two sets of UART devices
Programmable baud-rate generator
Buffered receiver and transmitter, each with 15 bytes FIFO
Optional flow control function (CTS and RTS)
Supports IrDA(SIR) function
Supports RS485 function
Supports LIN function
SPI
Up to two sets of SPI devices
Supports Master/Slave mode
Full-duplex synchronous serial data transfer
Provides 3 wire function
Variable length of transfer data from 1 to 32 bits
MSB or LSB first data transfer
Rx latching data can be either at rising edge or at falling edge of serial clock
Tx sending data can be either at rising edge or at falling edge of serial clock
Supports Byte Suspend mode in 32-bit transmission
PLL clock source
4-level depth FIFO buffer for better performance and flexibility in SPI Burst Transfer
mode
Oct. 05, 2015
Page 9 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
M051 DN/DE
2
IC
2
Up to two sets of I C modules
Supports Master/Slave mode
Bidirectional data transfer between master and slave
Multi-master bus (no central master)
Arbitration between simultaneously transmitting masters without corruption of serial
data on the bus
Serial clock synchronization allows devices with different bit rates to communicate via
one serial bus
Serial clock synchronization can be used as a handshake mechanism to suspend and
resume serial transfer
Programmable clocks allow versatile rate control
Supports multiple address recognition (four slave addresses with mask option)
ADC
Analog Comparator
M051 DN/DE SERIES DATASHEET
12-bit SAR ADC
Up to 8-ch single-ended input or 4-ch differential input
Supports Single mode/Burst mode/Single-cycle Scan mode/Continuous Scan mode
Supports 2’ complement/un-signed format in differential mode conversion results
Each channel with an individual result register
Supports conversion value monitoring (or comparison) for threshold voltage detection
Conversion started either by software trigger or external pin trigger
A/D conversion started by PWM center-aligned trigger or edge-aligned trigger
PWM trigger delay function
Supports conversion result with signed format in Differential input and Burst mode
Up to four sets of Comparator analog modules
External input or internal band-gap voltage selectable at negative node
Interrupt when compared results change
Power-down wake-up
EBI (External Bus Interface) for external memory-mapped device access
Accessible space: 64 KB in 8-bit mode or 128 KB in 16-bit mode
Supports 8-bit or 16-bit data width
Supports byte-write in 16-bit data width
ISP (In-System Programming) and ICP (In-Circuit Programming)
IAP (In-Application Programming)
One built-in temperature sensor with 1℃ resolution
BOD (Brown-out Detector)
With 4 levels: 4.4V/3.7V/2.7V/2.2V
Supports Brown-out interrupt and reset option
96-bit unique ID
LVR (Low Voltage Reset)
Threshold voltage level: 2.0V
Operating Temperature:
Oct. 05, 2015
Page 10 of 86
Rev 1.03
M051 DN/DE
M05xxDN: -40℃~85℃
M05xxDE: -40℃~105℃
Packages:
Green package (RoHS)
48-pin LQFP, 33-pin QFN
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 11 of 86
Rev 1.03
M051 DN/DE
3
ABBREVIATIONS
3.1
List of Abbreviations
M051 DN/DE SERIES DATASHEET
Acronym
Description
ACMP
Analog Comparator Controller
ADC
Analog-to-Digital Converter
AES
Advanced Encryption Standard
APB
Advanced Peripheral Bus
AHB
Advanced High-Performance Bus
BOD
Brown-out Detection
CAN
Controller Area Network
DAP
Debug Access Port
DES
Data Encryption Standard
EBI
External Bus Interface
EPWM
Enhanced Pulse Width Modulation
FIFO
First In, First Out
FMC
Flash Memory Controller
FPU
Floating-point Unit
GPIO
General-Purpose Input/Output
HCLK
The Clock of Advanced High-Performance Bus
HIRC
22.1184 MHz Internal High Speed RC Oscillator
HXT
4~24 MHz External High Speed Crystal Oscillator
IAP
In Application Programming
ICP
In Circuit Programming
ISP
In System Programming
LDO
Low Dropout Regulator
LIN
Local Interconnect Network
LIRC
10 kHz internal low speed RC oscillator (LIRC)
MPU
Memory Protection Unit
NVIC
Nested Vectored Interrupt Controller
PCLK
The Clock of Advanced Peripheral Bus
PDMA
Peripheral Direct Memory Access
PLL
Phase-Locked Loop
PWM
Pulse Width Modulation
QEI
Quadrature Encoder Interface
SDIO
Secure Digital Input/Output
Oct. 05, 2015
Page 12 of 86
Rev 1.03
M051 DN/DE
SPI
Serial Peripheral Interface
SPS
Samples per Second
TDES
Triple Data Encryption Standard
TMR
Timer Controller
UART
Universal Asynchronous Receiver/Transmitter
UCID
Unique Customer ID
USB
Universal Serial Bus
WDT
Watchdog Timer
WWDT
Window Watchdog Timer
Table 3-1 List of Abbreviations
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 13 of 86
Rev 1.03
M051 DN/DE
4
PARTS INFORMATION AND PIN CONFIGURATION
4.1
NuMicro® M051 Series M05xxDN Selection Guide
Timer (32-Bit)
UART
SPI
I2C
COMP
PWM (16-Bit)
ADC (12-Bit)
WDT
WWDT
4
40
4
2
2
2
4
8
8
√
√
4
4
24
4
2
1
2
3
5
5
√
√
M054LDN
16
4
4
4
40
4
2
2
2
4
8
8
√
√
M054ZDN
16
4
4
4
24
4
2
1
2
3
5
5
√
√
M058LDN
32
4
4
4
40
4
2
2
2
4
8
8
√
√
M058ZDN
32
4
4
4
24
4
2
1
2
3
5
5
√
√
M0516LDN
64
4
4
4
40
4
2
2
2
4
8
8
√
√
M0516ZDN
64
4
4
4
24
4
2
1
2
3
5
5
√
√
Operating
Temperature
Range(℃)
I/O
4
4
Package
ISP ROM (KB)
4
8
EBI
Data Flash (KB)
8
ISP/ICP/IAP
RAM (KB)
M052LDN
M052ZDN
Part Number
APROM (KB)
Connectivity
√
√
LQFP48
-40 to +85
√
QFN33
-40 to +85
√
LQFP48
-40 to +85
√
QFN33
-40 to +85
√
LQFP48
-40 to +85
√
QFN33
-40 to +85
√
LQFP48
-40 to +85
√
QFN33
-40 to +85
√
√
√
®
Table 5-2 NuMicro M051 Series M05xxDN Product Selection Guide
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 14 of 86
Rev 1.03
M051 DN/DE
4.2
NuMicro® M051 Series M05xxDE Selection Guide
Timer (32-Bit)
UART
SPI
I2C
COMP
PWM (16-Bit)
ADC (12-Bit)
WDT
WWDT
4
40
4
2
2
2
4
8
8
√
√
4
4
24
4
2
1
2
3
5
5
√
√
M054LDE
16
4
4
4
40
4
2
2
2
4
8
8
√
√
M054ZDE
16
4
4
4
24
4
2
1
2
3
5
5
√
√
M058LDE
32
4
4
4
40
4
2
2
2
4
8
8
√
√
M058ZDE
32
4
4
4
24
4
2
1
2
3
5
5
√
√
M0516LDE
64
4
4
4
40
4
2
2
2
4
8
8
√
√
M0516ZDE
64
4
4
4
24
4
2
1
2
3
5
5
√
√
Operating
Temperature
Range(℃)
I/O
4
4
Package
ISP ROM (KB)
4
8
EBI
Data Flash (KB)
8
ISP/ICP/IAP
RAM (KB)

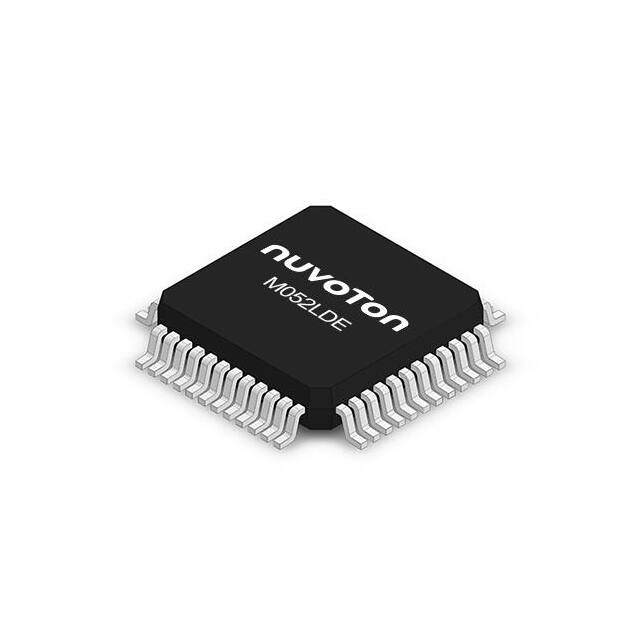

M052LDE
M052ZDE
Part Number
APROM (KB)
Connectivity
√
√
LQFP48
-40 to +105
√
QFN33
-40 to +105
√
LQFP48
-40 to +105
√
QFN33
-40 to +105
√
LQFP48
-40 to +105
√
QFN33
-40 to +105
√
LQFP48
-40 to +105
√
QFN33
-40 to +105
√
√
√
®
Table 5-2 NuMicro M051 Series M05xxDE Product Selection Guide
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 15 of 86
Rev 1.03
M051 DN/DE
M0 5X - X X X
CPU core
ARM Cortex M0
Part Number
52: 08 KB Flash
54: 16 KB Flash
58: 32 KB Flash
516: 64 KB Flash
Package
Temperature
ROM
ROM
ROM
ROM
N: - 40℃ ~ +85 ℃
E: - 40℃~ +105℃
Reserved
Ｌ: LQFP48
Ｚ: QFN33
®
Figure 4-1 NuMicro M051 DN/DE Series Naming Rule
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 16 of 86
Rev 1.03
M051 DN/DE
4.3
4.3.1
Pin Diagrams
QFN 33-pin
ACMP3_N, RXD1, RTS1, P0.1
ACMP3_P, TXD1, CTS1, P0.0
VDD
AVDD
AIN0, T2, P1.0
RXD1, AIN2, P1.2
TXD1, AIN3, P1.3
ACMP0_N, AIN4, P1.4
32 31 30 29 28 27 26 25
ACMP0_P, AIN5, P1.5
1
24 P0.4, SPISS1
nRST
2
23 P0.5, MOSI_1
ACMP1_N, RXD, P3.0
3
22 P0.6, MISO_1
AVSS
4
ACMP1_P, TXD, P3.1
5
T0EX, STADC, nINT0, P3.2
6
19 P4.6, ICE_CLK
SDA, T0, P3.4
7
18 P2.6, PWM6, ACMP1_O
CKO, SCL, T1, P3.5
8
21 P0.7, SCLK1
QFN 33-Pin
20 P4.7, ICE_DAT
33 VSS
10 11 12 13 14 15 16
P2.4, PWM4, SCL1
P2.3, PWM3
P2.2, PWM2
LDO_CAP
VSS
XTAL1
XTAL2
P3.6, CKO, ACMP0_O
M051 DN/DE SERIES DATASHEET
9
17 P2.5, PWM5, SDA1
Top transparent view
®
Figure 4-2 NuMicro M051 DN/DE Series QFN-33 Pin Diagram
Oct. 05, 2015
Page 17 of 86
Rev 1.03
M051 DN/DE
4.3.2
LQFP 48-pin
PWM2, P4.2
ACMP0_N, SPISS0,AIN4,P1.4
TXD1,AIN3,P1.3
RXD1,AIN2, P1.2
nWRH, T3,AIN1,P1.1
nWRL, T2,AIN0,P1.0
AVDD
VDD
ACMP3_P, TXD1, CTS1, AD0, P0.0
ACMP3_N, RXD1, RTS1, AD1, P0.1
TXD, CTS0, AD2, P0.2
RXD, RTS0, AD3, P0.3
48
47
46
45
44
43
42
41
40
39
38
37
ACMP0_P, MOSI_0, AIN5, P1.5
1
36
P4.1, PWM1, T3EX
ACMP2_N, MISO_0, AIN6, P1.6
2
35
P0.4, AD4, SPISS1
ACMP2_P, SPICLK0, AIN7, P1.7
3
34
P0.5, AD5, MOSI_1
nRST
4
33
P0.6, AD6, MISO_1
ACMP1_N, RXD, P3.0
5
32
P0.7, AD7, SPICLK1
AVSS
6
31
P4.7, ICE_DAT
ACMP1_P, TXD, P3.1
7
30
P4.6, ICE_CLK
T0EX, STADC, nINT0, P3.2
8
29
P4.5, ALE, SDA1
T1EX, MCLK, nINT1, P3.3
9
28
P4.4, nCS, SCL1
SDA0, T0, P3.4
10
27
P2.7, AD15, PWM7
CKO, SCL0, T1, P3.5
11
26
P2.6, AD14, PWM6, ACMP1_O
PWM3, P4.3
12
25
P2.5, AD13, PWM5, SDA1
48-pin LQFP
16
17
18
19
20
21
22
23
24
XTAL1
VSS
LDO_CAP
P2.0, AD8, PWM0
P2.1, AD9, PWM1
P2.2, AD10, PWM2
P2.3, AD11, PWM3
P2.4, AD12, PWM4, SCL1
P4.0, PWM0, T2EX
P3.7, nRD
XTAL2
14
P3.6, nWR, CKO, ACMP0_O
15
13
M051 DN/DE SERIES DATASHEET
®
Figure 4-3 NuMicro M051 DN/DE Series LQFP-48 Pin Diagram
Oct. 05, 2015
Page 18 of 86
Rev 1.03
M051 DN/DE
4.4
Pin Description
Pin Number
Alternate Function
Type[1]
Symbol
QFN33 LQFP48
1
2
Description
3
I
External 4~24 MHz (high speed) crystal input pin.
11
16
XTAL1
10
15
XTAL2
O
External 4~24 MHz (high speed) crystal output pin.
27
41
VDD
P
Power supply to I/O ports and LDO source for internal PLL
and digital circuit.
17
VSS
P
Ground pin for digital circuit.
28
42
AVDD
P
Power supply to internal analog circuit.
4
6
AVSS
P
Analog Ground pin for analog circuit.
13
18
LDO_CAP
P
(ST)
12
33
LDO output pin.
Note: This pin needs to be connected with a 1uF
capacitor.
2
4
nRST
26
40
P0.0
CTS1
AD0
25
39
P0.1
RTS1
AD1
NC
38
P0.2
CTS0
AD2
NC
37
P0.3
RTS0
AD3
24
35
P0.4
SPISS1
23
34
P0.5
22
33
21
TXD1[2],
I/O
The P0.0 ~ P0.7 pins are called Port 0. Port 0 is a general
purpose I/O port, which can be configured as Input,
Output, Quasi Bi-direction and Open-drain mode.
/O
Port 0 supports multi-function pins, including CTS1, RTS1,
CTS0, RTS0, SPISS1, MOSI_1, MISO_1, SPICLK1, AD0
~ AD7, TXD1, RXD1, TXD, RXD, ACMP3_P, and
ACMP3_N.
TXD[2]
I/O
AD0 ~ AD7 belong to EBI function for external memory
accessing.
RXD[2]
I/O
The SPISS1, MOSI_1, MISO_1, and SPICLK1 pins are for
SPI function.
AD4
I/O
The CTS0 and CTS1 pins are clear to send input pin for
UART0/1.
MOSI_1
AD5
I/O
The RTS0 and RTS1 pins are Request to Send output pin
for UART0/1.
P0.6
MISO_1
AD6
I/O
32
P0.7
SPICLK1
AD7
I/O
29
43
P1.0
T2
AIN0
nWRL
I/O
NC
44
P1.1
T3
AIN1
nWRH
I/O
ACMP3_P
RXD1[2],
ACMP3_N
The RXD and TXD pins are for UART0 function.
Oct. 05, 2015
The RXD1 and TXD1 pins are for UART1 function.
The ACMP3_N and ACMP3_P pins are for ACMP3
negative/positive inputs.
The P1.0 ~ P1.7 pins are called Port 1. Port 1 is a general
purpose I/O port, which can be configured as Input,
Output, Quasi-bidirectional and Open-drain mode.
Page 19 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
The nRST pin is a Schmitt trigger input pin for hardware
device reset. A “Low” on this pin for 768 clock counter of
I
Internal RC 22M while the system clock is running will
(ST) reset the device. The nRST pin has an internal pull-up
resistor allowing power-on reset by simply connecting an
external capacitor to GND.
M051 DN/DE
30
45
P1.2
RXD1[2]
AIN2
I/O
31
46
P1.3
TXD1[2]
AIN3
I/O
Port 1 supports multi-function pins, including T2, T3,
RXD1, TXD1, SPISS0, MOSI_0, MISO_0, SPICLK0, AIN0
~ AIN7, nWRL, nWRH, ACMP0_N, ACMP0_P,
ACMP2_N, and ACMP2_P.
32
47
P1.4
SPISS0
AIN4
ACMP0_N
I/O
The SPISS0, MOSI_0, MISO_0, and SPICLK0 pins are for
SPI function.
1
1
P1.5
MOSI_0
AIN5
ACMP0_P
I/O
The RXD1 and TXD1 pins are for UART1 function.
NC
2
P1.6
MISO_0
AIN6
ACMP2_N
I/O
The nWRL and nWRH pins are for low/high byte write
enable output in 16-bit data width of EBI.
The AIN0 ~ AIN7 pins are for 12 bits ADC function.
The ACMP0_N and ACMP0_P pins are for ACMP0
negative/positive inputs.
NC
3
P1.7
SPICLK0
AIN7
ACMP2_P
I/O
The ACMP2_N and ACMP2_P pins are for ACMP2
negative/positive inputs.
The T2 and T3 pins are for Timer2/3 external even
counter input and toggle mode output.
NC
19
P2.0
PWM0[2]
AD8
I/O
NC
20
P2.1
PWM1[2]
AD9
I/O
The P2.0 ~ P2.7 pins are called Port 2. Port 2 is a general
purpose I/O port, which can be configured as Input,
Output, Quasi-bidirectional and Open-drain mode.
Port 2 supports multi-function pins, including PWM0 ~
PWM7, AD8 ~ AD15, SCL1, SDA1 and ACMP1_O.
M051 DN/DE SERIES DATASHEET
14
21
P2.2
PWM2[2]
AD10
I/O
15
22
P2.3
PWM3[2]
AD11
I/O
16
23
P2.4
PWM4
AD12
SCL1[2]
I/O
The SDA1 and SCL1 pins are for I2C1 function and both
of them are open-drain.
17
25
P2.5
PWM5
AD13
SDA1[2]
I/O
The ACMP1_O pin is the output of ACMP1.
18
26
P2.6
PWM6
AD14
ACMP1_O
I/O
NC
27
P2.7
PWM7
AD15
3
5
P3.0
RXD[2]
ACMP1_N
I/O
5
7
P3.1
TXD[2]
ACMP1_P
I/O
The PWM0~PWM7 pins are for PWM function in the
LQFP48 package.
AD8 ~ AD15 belong to EBI function for external memory
accessing.
I/O
The P3.0 ~ P3.7 pins are called Port 3. Port 3 is a general
purpose I/O port, which can be configured as Input,
Output, Quasi-bidirectional and Open-drain mode.
6
8
P3.2
nINT0
STADC
T0EX
I/O
Port 3 supports multi-function pins, including RXD, TXD,
nINT0, nINT1, T0, T1, nWR, nRD, STADC, MCLK, SDA,
SCL, CKO, ACMP1_N, ACMP1_P, T0EX, T1EX,
ACMP0_O.
NC
9
P3.3
nINT1
MCLK
T1EX
I/O
The RXD and TXD pins are for UART0 function.
7
10
P3.4
T0
SDA
8
11
P3.5
T1
SCL
9
13
P3.6
nWR
CKO
The nINT0 and nINT1 pins are for external interrupt input.
I/O
The T0 and T1 pins are for Timer0/1 external even
counter input and toggle mode output.
CKO[2]
I/O
The nWR, nRD and MCLK are for EBI function.
ACMP0_O
I/O
The STADC pin is for ADC external trigger input.
The SDA and SCL pins are for I2C function and both of
them are open-drain.
The CKO is clock output pin for clock monitor.
NC
14
P3.7
nRD
I/O
The ACMP1_N and ACMP1_P pins are for ACMP1
negative/positive inputs.
The T0EX and T1EX pins are for external capture/reset
trigger input of Timer0/1.
The ACMP0_O pin is the output of Analog ACMP0.
NC
24
P4.0
PWM0[2]
Oct. 05, 2015
T2EX
I/O
The P4.0 ~ P4.7 pins are called Port 4. Port 4 is a general
Page 20 of 86
Rev 1.03
M051 DN/DE
I/O
purpose I/O port, which can be configured as Input,
Output, Quasi-bidirectional and Open-drain mode.
PWM2[2]
I/O
Port 3 supports multi-function pins, including PWM0 ~
PWM3, nCS, ALE, ICE_CLK, ICE_DAT, SCL1, SDA1,
T2EX and T3EX.
P4.3
PWM3[2]
I/O
The PWM0 ~ PWM3 pins are for PWM function.
28
P4.4
nCS
SCL1
I/O
NC
29
P4.5
ALE
SDA1
I/O
The SDA1 and SCL1 pins are for I2C1 function and both
of them are open-drain.
19
30
P4.6
ICE_CLK
I/O
The T2EX and T3EX pins are for external capture/reset
trigger input of Timer2/3.
20
31
P4.7
ICE_DAT
I/O
NC
36
P4.1
PWM1[2]
NC
48
P4.2
NC
12
NC
T3EX
The nCS and ALE pins are for EBI function.
The ICE_CLK and ICE_DAT pins are for Serial Wire
Debug Interface.
Note 1: I/O type description. I: Input, O: Output, I/O: Quasi-bidirectional, D: Open-drain, P: Power pins, ST: Schmitt trigger.
Note 2: The PWM0 ~ PWM3, RXD, TXD, RXD1, TXD1, SCL1, SDA1 and CKO can be assigned to different pins. However,
a pin function can only be assigned to a pin at the same time, i.e. software cannot assign RXD to P0.3 and P3.0 at the same
time.
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 21 of 86
Rev 1.03
M051 DN/DE
5
BLOCK DIAGRAM
Memory
PWM / Timer
Analog Interface
32-bit Timer x 4
APROM
64/32/16/8 KB
ARM
LDROM
4 KB
HDIV
Watchdog Timer
Cortex-M0
50MHz
DataFlash
4 KB
12-bit ADC x 8
Window
Watchdog Timer
SRAM
4 KB
EBI
Bridge
AHB Bus
Analog
Comparator x 4
PWM/Capture
Timer x 8
APB Bus
Power Control
Clock Control
Connectivity
I/O Ports
LDO
PLL
UART x 2
General Purpose
I/O
Power On Reset
High Speed
Crystal Osc.
4 ~ 24 MHz
SPI x 2
External Interrupt
I2C x 2
Reset Pin
LVR
Low Speed
Oscillator
10 kHz
Brownout
Detection
High Speed
Oscillator
22.1184 MHz
®
Figure 5-1 NuMicro M051 DN/DE Series Block Diagram
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 22 of 86
Rev 1.03
M051 DN/DE
6
FUNCTIONAL DESCRIPTION
ARM® Cortex® -M0 Core
6.1
®
The Cortex -M0 processor is a configurable, multistage, 32-bit RISC processor, which has an
AMBA AHB-Lite interface and includes an NVIC component. It also has optional hardware debug
®
functionality. The processor can execute Thumb code and is compatible with other Cortex -M
profile processor. The profile supports two modes -Thread mode and Handler mode. Handler
mode is entered as a result of an exception. An exception return can only be issued in Handler
mode. Thread mode is entered on Reset, and can be entered as a result of an exception return.
The following figure shows the functional controller of processor.
Cortex-M0 Components
Cortex-M0 Processor
Nested
Vectored
Interrupt
Controller
(NVIC)
Interrupts
Wakeup
Interrupt
Controller
(WIC)
Debug
Cortex-M0
Processor
Core
Breakpoint
and
Watchpoint
Unit
Bus matrix
Debugger
interface
AHB-Lite interface
Debug
Access Port
(DAP)
Serial Wire or
JTAG debug port
The implemented device provides:
A low gate count processor:
ARMv6-M Thumb® instruction set
Thumb-2 technology
ARMv6-M compliant 24-bit SysTick timer
A 32-bit hardware multiplier
System interface supported with little-endian data accesses
Ability to have deterministic, fixed-latency, interrupt handling
Load/store-multiples and multicycle-multiplies that can be abandoned and restarted to
facilitate rapid interrupt handling
C Application Binary Interface compliant exception model. This is the ARMv6-M, C
Application Binary Interface (C-ABI) compliant exception model that enables the use of
pure C functions as interrupt handlers
Low Power Sleep mode entry using the Wait For Interrupt (WFI), Wait For Event
(WFE) instructions, or return from interrupt sleep-on-exit feature
Oct. 05, 2015
Page 23 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
Figure 6-1 Functional Block Diagram
M051 DN/DE
NVIC:
Debug support:
32 external interrupt inputs, each with four levels of priority
Dedicated Non-maskable Interrupt (NMI) input
Supports for both level-sensitive and pulse-sensitive interrupt lines
Supports Wake-up Interrupt Controller (WIC) and provides Ultra-low Power Sleep
mode
Four hardware breakpoints
Two watchpoints
Program Counter Sampling Register (PCSR) for non-intrusive code profiling
Single step and vector catch capabilities
Bus interfaces:
Single 32-bit AMBA-3 AHB-Lite system interface that provides simple integration to all
system peripherals and memory
Single 32-bit slave port that supports the DAP (Debug Access Port)
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 24 of 86
Rev 1.03
M051 DN/DE
6.2
System Manager
6.2.1
Overview
System management includes the following sections:
6.2.2
System Resets
System Power Architecture
System Memory Map
System management registers for Part Number ID, chip reset and on-chip controllers
reset, and multi-functional pin control
System Timer (SysTick)
Nested Vectored Interrupt Controller (NVIC)
System Control registers
System Reset
The system reset can be issued by one of the following listed events. For these reset event flags
can be read by RSTSRC register.
Power-on Reset (POR)
Low level on the Reset Pin (nRST)
Watchdog Timer Time-out Reset (WDT)
Low Voltage Reset (LVR)
Brown-out Detector Reset (BOD)
M051 DN/DE SERIES DATASHEET
Hardware Reset
Software Reset
MCU Reset - SYSRESETREQ(AIRCR[2])
Cortex -M0 Core One-shot Reset - CPU_RST(IPRSTC1[1])
Chip One-shot Reset - CHIP_RST(IPRSTC1[0])
®
Note: ISPCON.BS keeps the original value after MCU Reset and CPU Reset.
Oct. 05, 2015
Page 25 of 86
Rev 1.03
M051 DN/DE
6.2.3
System Power Architecture
In this chip, the power distribution is divided into two segments.
Analog power from AVDD and AVSS provides the power for analog components
operation. AVDD must be equal to VDD to avoid leakage current.
Digital power from VDD and VSS supplies the power to the I/O pins and internal
regulator which provides a fixed 1.8 V power for digital operation.
The output of internal voltage regulator, LDO_CAP, requires an external capacitor which should
be located close to the corresponding pin. Analog power (AV DD) should be the same voltage level
®
as the digital power (VDD). The following figure shows the power distribution of the NuMicro M051
DN/DE series.
Analog Comparator
AVDD
12-bit
SAR-ADC
Low
Voltage
Reset
AVSS
Temperature
Sensor
FLASH
Digital Logic
Brown
Out
Detector
Internal
22.1184 MHz and
10 kHz Oscillator
LDO_CAP
1.8V
1uF
POR18
M051 DN/DE SERIES DATASHEET
5V to 1.8V
LDO
PLL
IO cell
GPIO Pins
POR50
PVSS
VDD VSS
M051 Series Power Distribution
®
Figure 6-2 NuMicro M051 DN/DE Series Power Architecture Diagram
Oct. 05, 2015
Page 26 of 86
Rev 1.03
M051 DN/DE
6.2.4
System Memory Map
®
The NuMicro M051 DN/DE series provides 4G-byte addressing space. The addressing space
assigned to each on-chip controllers are shown in the following table. The detailed register
definition, addressing space, and programming details will be described in the following sections
®
for each on-chip peripheral. The NuMicro M051 DN/DE series only supports little-endian data
format.
Addressing Space
Token
Modules
0x0000_0000 – 0x0000_FFFF
FLASH_BA
FLASH Memory Space (64 KB)
0x2000_0000 – 0x2000_0FFF
SRAM_BA
SRAM Memory Space (4 KB)
Flash & SRAM Memory Space
EBI Space (0x6000_0000 ~ 0x6001_FFFF)
0x6000_0000 – 0x6001_FFFF
EBI_BA
External Memory Space (128 KB)
AHB Modules Space (0x5000_0000 – 0x501F_FFFF)
0x5000_0000 – 0x5000_01FF
GCR_BA
System Global Control Registers
0x5000_0200 – 0x5000_02FF
CLK_BA
Clock Control Registers
0x5000_0300 – 0x5000_03FF
INT_BA
Interrupt Multiplexer Control Registers
0x5000_4000 – 0x5000_7FFF
GPIO_BA
GPIO (P0~P4) Control Registers
0x5000_C000 – 0x5000_FFFF
FMC_BA
Flash Memory Control Registers
0x5001_0000 – 0x5001_03FF
EBI_CTL_BA
EBI Control Registers
0x5001_4000 – 0x5001_7FFF
HDIV_BA
Hardware Divider Register
APB Modules Space (0x4000_0000 ~ 0x400F_FFFF)
WDT_BA
Watchdog Timer Control Registers
0x4000_4100 – 0x4000_7FFF
WWDT_BA
Window Watchdog Timer Control Registers
0x4001_0000 – 0x4001_3FFF
TMR01_BA
Timer0/Timer1 Control Registers
0x4002_0000 – 0x4002_3FFF
I2C0_BA
I2C0 Interface Control Registers
0x4003_0000 – 0x4003_3FFF
SPI0_BA
SPI0 with master/slave function Control Registers
0x4003_4000 – 0x4003_7FFF
SPI1_BA
SPI1 with master/slave function Control Registers
0x4004_0000 – 0x4004_3FFF
PWMA_BA
PWM0/1/2/3 Control Registers
0x4005_0000 – 0x4005_3FFF
UART0_BA
UART0 Control Registers
0x400D_0000 – 0x400D_3FFF
ACMP01_BA
Analog Comparator 0/1 Control Registers
0x400E_0000 – 0x400E_FFFF
ADC_BA
Analog-Digital-Converter (ADC) Control Registers
0x4011_0000 – 0x4011_3FFF
TMR23_BA
Timer2/Timer3 Control Registers
0x4012_0000 – 0x4012_3FFF
I2C1_BA
I2C1 Interface Control Registers
0x4014_0000 – 0x4014_3FFF
PWMB_BA
PWM4/5/6/7 Control Registers
0x4015_0000 – 0x4015_3FFF
UART1_BA
UART1 Control Registers
0x401D_0000 – 0x401D_3FFF
ACMP23_BA
Analog Comparator 2/3 Control Registers
M051 DN/DE SERIES DATASHEET
0x4000_4000 – 0x4000_00FF
System Control Space (0xE000_E000 ~ 0xE000_EFFF)
Oct. 05, 2015
Page 27 of 86
Rev 1.03
M051 DN/DE
0xE000_E010 – 0xE000_E0FF
SYST_BA
System Timer Control Registers
0xE000_E100 – 0xE000_ECFF
NVIC_BA
External Interrupt Controller Control Registers
0xE000_ED00 – 0xE000_ED8F
SCB_BA
System Control Block Registers
Table 6-1 Address Space Assignments for On-Chip Modules
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 28 of 86
Rev 1.03
M051 DN/DE
6.2.5
Whole System Memory Mapping
M052/54/58/516
4 GB
0xFFFF_FFFF
Reserved
System Control
Reserved
|
System Control
0xE000_F000
System Control Block
0xE000_ED00
SCB_BA
0xE000_EFFF
External Interrupt Controller
0xE000_E100
NVIC_BA
0xE000_E000
System Timer Control
0xE000_E010
SYST_BA
0xE000_DFFF
System Control Space
0xE000_E000
SCS_BA
|
0x6002_0000
EBI
0x6001_FFFF
0x6000_0000
0x5FFF_FFFF
Reserved
|
0x5020_0000
AHB peripherals
0x501F_FFFF
Hardw are Divider Control
0x5001_4000
HDIV_BA
0x5000_0000
EBI Control
0x5001_0000
EBI_CTL_BA
0x4FFF_FFFF
FMC
0x5000_C000
FLASH_BA
GPIO Control
0x5000_4000
GPIO_BA
Interrupt Multiplexer Control
0x5000_0300
INT_BA
0x4020_0000
Clock Control
0x5000_0200
CLK_BA
0x401F_FFFF
System Global Control
0x5000_0000
GCR_BA
ACMPB Control
0x401D_0000
ACMP23_BA
0x2000_1000
UART1 Control
0x4015_0000
UART1_BA
0x2000_0FFF
PWM4/5/6/7 Control
0x4014_0000
PWMB_BA
I2C1 Control
0x4012_0000
I2C1_BA
Timer2/Timer3 Control
0x4011_0000
TMR23_BA
ADC Control
0x400E_0000
ADC_BA
0x2000_0000
ACMPA Control
0x400D_0000
ACMP01_BA
0x1FFF_FFFF
UART0 Control
0x4005_0000
UART0_BA
PWM0/1/2/3 Control
0x4004_0000
PWMA_BA
SPI1 Control
0x4003_4000
SPI1_BA
0x0001_0000
SPI0 Control
0x4003_0000
SPI0_BA
64 KB on-chip Flash (M0516)
0x0000_FFFF
I2C Control
0x4002_0000
I2C0_BA
32 KB on-chip Flash (M058)
0x0000_7FFF
Timer0/Timer1 Control
0x4001_0000
TMR01_BA
16 KB on-chip Flash (M054)
0x0000_3FFF
WDT Control
0x4000_4000
WDT_BA
0x0000_1FFF
WWDT Control
0x4000_4100
WWDT_BA
AHB
Reserved
APB
1 GB
|
|
0x4000_0000
0x3FFF_FFFF
Reserved
0.5 GB
Reserved
8 KB on-chip Flash (M052)
0 GB
|
|
APB peripherals
M051 DN/DE SERIES DATASHEET
4 KB SRAM
(M052/M054/M058/M0516)
|
0x0000_0000
Oct. 05, 2015
Page 29 of 86
Rev 1.03
M051 DN/DE
6.2.6
System Timer (SysTick)
®
The Cortex -M0 includes an integrated system timer, SysTick, which provides a simple, 24-bit
clear-on-write, decrementing, wrap-on-zero counter with a flexible control mechanism. The
counter can be used as a Real Time Operating System (RTOS) tick timer or as a simple counter.
When system timer is enabled, it will count down from the value in the SysTick Current Value
Register (SYST_CVR) to 0, and reload (wrap) to the value in the SysTick Reload Value Register
(SYST_RVR) on the next clock cycle, then decrement on subsequent clocks. When the counter
transitions to 0, the COUNTFLAG status bit is set. The COUNTFLAG bit clears on reads.
The SYST_CVR value is UNKNOWN on reset. Software should write to the register to clear it to 0
before enabling the feature. This ensures the timer will count from the SYST_RVR value rather
than an arbitrary value when it is enabled.
If the SYST_RVR is 0, the timer will be maintained with a current value of 0 after it is reloaded
with this value. This mechanism can be used to disable the feature independently from the timer
enable bit.
For more detailed information, please refer to the “ARM
®
Manual” and “ARM v6-M Architecture Reference Manual”.
®
®
Cortex -M0 Technical Reference
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 30 of 86
Rev 1.03
M051 DN/DE
6.2.7
Nested Vectored Interrupt Controller (NVIC)
®
The Cortex -M0 provides an interrupt controller as an integral part of the exception mode, named
as “Nested Vectored Interrupt Controller (NVIC)”, which is closely coupled to the processor core
and provides following features:
Nested and Vectored interrupt support
Automatic processor state saving and restoration
Reduced and deterministic interrupt latency
The NVIC prioritizes and handles all supported exceptions. All exceptions are handled in “Handler
Mode”. This NVIC architecture supports 32 (IRQ[31:0]) discrete interrupts with 4 levels of priority.
All of the interrupts and most of the system exceptions can be configured to different priority
levels. When an interrupt occurs, the NVIC will compare the priority of the new interrupt to the
current running one’s priority. If the priority of the new interrupt is higher than the current one, the
new interrupt handler will override the current handler.
When an interrupt is accepted, the starting address of the interrupt service routine (ISR) is fetched
from a vector table in memory. There is no need to determine which interrupt is accepted and
branch to the starting address of the correlated ISR by software. While the starting address is
fetched, NVIC will also automatically save processor state including the registers “PC, PSR, LR,
R0~R3, R12” to the stack. At the end of the ISR, the NVIC will restore the mentioned registers
from stack and resume the normal execution. Thus it will take less and deterministic time to
process the interrupt request.
The NVIC supports “Tail Chaining” which handles back-to-back interrupts efficiently without the
overhead of states saving and restoration and therefore reduces delay time in switching to
pending ISR at the end of current ISR. The NVIC also supports “Late Arrival” which improves the
efficiency of concurrent ISRs. When a higher priority interrupt request occurs before the current
ISR starts to execute (at the stage of state saving and starting address fetching), the NVIC will
give priority to the higher one without delay penalty. Thus it advances the real-time capability.
6.2.7.1
®
®
Cortex -M0 Technical Reference
Exception Model and System Interrupt Map
®
The following table lists the exception model supported by NuMicro M051 DN/DE series.
Software can set four levels of priority on some of these exceptions as well as on all interrupts.
The highest user-configurable priority is denoted as “0” and the lowest priority is denoted as “3”.
The default priority of all the user-configurable interrupts is “0”. Note that priority “0” is treated as
the fourth priority on the system, after three system exceptions “Reset”, “NMI” and “Hard Fault”.
Exception Name
Vector Number
Priority
Reset
1
-3
NMI
2
-2
Hard Fault
3
-1
Reserved
4 ~ 10
Reserved
SVCall
11
Configurable
Reserved
12 ~ 13
Reserved
Oct. 05, 2015
Page 31 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
For more detailed information, please refer to the “ARM
®
Manual” and “ARM v6-M Architecture Reference Manual”.
M051 DN/DE
PendSV
14
Configurable
SysTick
15
Configurable
Interrupt (IRQ0 ~ IRQ31)
16 ~ 47
Configurable
Table 6-2 Exception Model
Exception
Number
Vector
Address
Interrupt
Number
(Bit In
Interrupt
Registers)
Interrupt
Name
Source
Module
1-15
Interrupt Description
PowerDown
Wakeup
System exceptions
M051 DN/DE SERIES DATASHEET
16
0x40
0
BOD_INT
Brown-out
Brown-out low voltage detected
interrupt
Yes
17
0x44
1
WDT_INT
WDT
Watchdog Timer interrupt
Yes
18
0x48
2
EINT0
GPIO
External signal interrupt from P3.2
pin
Yes
19
0x4C
3
EINT1
GPIO
External signal interrupt from P3.3
pin
Yes
20
0x50
4
GP01_INT
GPIO
External signal interrupt from P0[7:0]
Yes
/ P1[7:0]
21
0x54
5
GP234_INT
GPIO
External interrupt from
P2[7:0]/P3[7:0]/P4[7:0], except P32
and P33
Yes
22
0x58
6
PWMA_INT
PWM0~3
PWM0, PWM1, PWM2 and PWM3
interrupt
No
23
0x5C
7
PWMB_INT
PWM4~7
PWM4, PWM5, PWM6 and PWM7
interrupt
No
24
0x60
8
TMR0_INT
TMR0
Timer 0 interrupt
No
25
0x64
9
TMR1_INT
TMR1
Timer 1 interrupt
No
26
0x68
10
TMR2_INT
TMR2
Timer 2 interrupt
No
27
0x6C
11
TMR3_INT
TMR3
Timer 3 interrupt
No
28
0x70
12
UART0_INT
UART0
UART0 interrupt
Yes
29
0x74
13
UART1_INT
UART1
UART1 interrupt
Yes
30
0x78
14
SPI0_INT
SPI0
SPI0 interrupt
No
31
0x7C
15
SPI1_INT
SPI1
SPI1 interrupt
No
32-33
0x80-0x84
16-17
Reserved
-
-
-
34
0x88
18
I2C0_INT
I2C0
I2C0 interrupt
Yes
2
2
35
0x8C
19
I2C1_INT
I C1
I C1 interrupt
Yes
36-40
0x90-0xA0
20-24
Reserved
-
-
-
41
0xA4
25
ACMP01_INT
ACMP0/1
Analog Comparator 0 or Comparator
Yes
1 interrupt
Oct. 05, 2015
Page 32 of 86
Rev 1.03
M051 DN/DE
ACMP2/3
Analog Comparator 2 or Comparator
Yes
3 interrupt
PWRWU_INT
CLKC
Clock controller interrupt for chip
wake-up from Power-down state
Yes
29
ADC_INT
ADC
ADC interrupt
No
30-31
Reserved
-
-
42
0xA8
26
ACMP23_INT
43
0xAC
27
Reserved
44
0xB0
28
45
0xB4
46-47
0xB8-0xBC
Table 6-3 System Interrupt Map Vector Table
6.2.7.2
Vector Table
When an interrupt is accepted, the processor will automatically fetch the starting address of the
interrupt service routine (ISR) from a vector table in memory. For ARMv6-M, the vector table base
address is fixed at 0x00000000. The vector table contains the initialization value for the stack
pointer on reset, and the entry point addresses for all exception handlers. The vector number on
previous page defines the order of entries in the vector table associated with exception handler
entry as illustrated in previous section.
Vector Table Word Offset
Description
0
SP_main – The Main stack pointer
Vector Number
Exception Entry Pointer using that Vector Number
Table 6-4 Vector Figure Format
6.2.7.3
Operation Description
NVIC interrupts can be pended/un-pended using a complementary pair of registers to those used
to enable/disable the interrupts, named the Set-Pending Register and Clear-Pending Register
respectively. The registers use a write-1-to-enable and write-1-to-clear policy, both registers
reading back the current pended state of the corresponding interrupts. The Clear-Pending
Register has no effect on the execution status of an Active interrupt.
NVIC interrupts are prioritized by updating an 8-bit field within a 32-bit register (each register
supporting four interrupts).
The general registers associated with the NVIC are all accessible from a block of memory in the
System Control Space and will be described in next section.
Oct. 05, 2015
Page 33 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
NVIC interrupts can be enabled and disabled by writing to their corresponding Interrupt SetEnable or Interrupt Clear-Enable register bit-field. The registers use a write-1-to-enable and write1-to-clear policy, both registers reading back the current enabled state of the corresponding
interrupts. When an interrupt is disabled, interrupt assertion will cause the interrupt to become
Pending, however, the interrupt will not be activated. If an interrupt is Active when it is disabled, it
remains in its Active state until cleared by reset or an exception return. Clearing the enable bit
prevents new activations of the associated interrupt.
M051 DN/DE
6.3
Clock Controller
6.3.1
Overview
The clock controller generates clocks for the whole chip, including system clocks and all
peripheral clocks. The clock controller also implements the power control function with the
individually clock ON/OFF control, clock source selection and clock divider. The chip enters
®
Power-down mode when Cortex -M0 core executes the WFI instruction only if the
PWR_DOWN_EN (PWRCON[7]) bit and PD_WAIT_CPU (PWRCON[8]) bit are both set to 1.
After that, chip enters Power-down mode and waits for wake-up interrupt source triggered to exit
Power-down mode. In Power-down mode, the clock controller turns off the 4~24 MHz external
high speed crystal (HXT) and 22.1184 MHz internal high speed RC oscillator (HIRC) to reduce
the overall system power consumption. The following figures show the clock generator and the
overview of the clock source control.
The clock generator consists of 4 clock sources as listed below:
4~24 MHz external high speed crystal oscillator (HXT)
Programmable PLL output clock frequency (PLL source can be selected from external
4~24 MHz external high speed crystal (HXT) or 22.1184 MHz internal high speed
oscillator (HIRC)) (PLL FOUT)
22.1184 MHz internal high speed RC oscillator (HIRC)
10 kHz internal low speed RC oscillator (LIRC)
XTL12M_EN (PWRCON[0])
HXT
XTAL1
PLL_SRC (PLLCON[19])
4~24 MHz HXT
M051 DN/DE SERIES DATASHEET
XTAL2
0
OSC22M_EN (PWRCON[2])
PLL
PLL FOUT
1
22.1184 MHz
HIRC
HIRC
OSC10K_EN(PWRCON[3])
LIRC
10 kHz
LIRC
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Note: Before clock switching, both the pre-selected and newly selected clock sources must be
turned on and stable.
Figure 6-3 Clock Generator Block Diagram
Oct. 05, 2015
Page 34 of 86
Rev 1.03
M051 DN/DE
HIRC
111
LIRC
CPUCLK
011
PLL FOUT
010
Reserved
1/(HCLK_N+1)
HCLK
001
HXT
CPU
HDIV*
PCLK
000
CLKSEL0[2:0]
EBI
ACMP0
ACMP1
ACMP2*
ACMP3*
I2C0
I2C1*
HIRC
FMC
HCLK
1
PLL FOUT
SPI0
SPI1
0
CLKSEL1[4:5]*
HIRC
11
HCLK
10
PLL FOUT
1/(ADC_N+1)
ADC
1/(UART_N+1)
UART 0-2
01
HXT
00
CLKSEL1[3:2]
HIRC
11
01
HXT
00
CLKSEL1[25:24]
LIRC
BOD
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Note: Before clock switching, both the pre-selected and newly selected clock sources must be
turned on and stable.
Figure 6-4 Clock Source Controller Overview (1/2)
Oct. 05, 2015
Page 35 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
PLL FOUT
M051 DN/DE
HIRC
111
Reserved
101
T0~T3**
011
HCLK
010
HXT
TMR 0
TMR 1
TMR 2
TMR 3
000
CLKSEL1[22:20]
CLKSEL1[18:16]
CLKSEL1[14:12]
CLKSEL1[10:8]
HIRC
1/2
111
HCLK
1/2
011
HXT
1/2
010
CPUCLK
1
SysTick
Reserved
001
HXT
000
0
SYST_CSR[2]
CLKSEL0[5:3]
HIRC
11
HCLK
10
Reserved
01
HXT
00
FDIV
PWM 6-7
PWM 4-5
PWM 2-3
PWM 0-1
M051 DN/DE SERIES DATASHEET
CLKSEL2[7:2]
CLKSEL1[31:28]
LIRC
HCLK/2048
LIRC
HCLK
1/2048
11
WWDT*
10
CLKSEL2[17:16]*
11
10
Reserved
WDT
01
CLKSEL1[1:0]
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Note1: T0 is for TMR0, T1 is for TMR1, T2 is for TMR2 and T3 is for TMR3.
Note2: Before clock switching, both the pre-selected and newly selected clock sources must be
turned on and stable.
Figure 6-5 Clock Source Controller Overview (2/2)
Oct. 05, 2015
Page 36 of 86
Rev 1.03
M051 DN/DE
6.3.2
System Clock and SysTick Clock
The system clock has 4 clock sources which were generated from clock generator block. The
clock source switch depends on the register HCLK_S (CLKSEL0[2:0]). The block diagram is
shown below.
HCLK_S (CLKSEL0[2:0])
22.1184 MHz
HIRC
10 kHz LIRC
PLL FOUT
111
011
CPUCLK
010
1/(HCLK_N+1)
Reserved
001
4~24 MHz HXT
HCLK_N (CLKDIV[3:0])
HCLK
PCLK
CPU
AHB
APB
000
CPU in Power Down Mode
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Note: Before clock switching, both the pre-selected and newly selected clock sources must be
turned on and stable.
Figure 6-6 System Clock Block Diagram
STCLK_S (CLKSEL0[5:3])
22.1184 MHz
HIRC
HCLK
4~24 MHz HXT
1/2
111
1/2
011
1/2
010
Reserved
STCLK
001
4~24 MHz HXT
000
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Note: Before clock switching, both the pre-selected and newly selected clock sources must be
turned on and stable.
Figure 6-7 SysTick clock Control Block Diagram
Oct. 05, 2015
Page 37 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
The clock source of SysTick in Cortex-M0 core can use CPU clock or external clock
(SYST_CSR[2]). If using external clock, the SysTick clock (STCLK) has 4 clock sources. The
clock source switch depends on the setting of the register STCLK_S (CLKSEL0[5:3]. The block
diagram is shown below.
M051 DN/DE
6.3.3
Power-down Mode Clock
When chip enters Power-down mode, system clocks, some clock sources, and some peripheral
clocks will be disabled. Some clock sources and peripherals clocks are still active in Power-down
mode.
The clocks still kept active are listed below:
6.3.4
Clock Generator
10 kHz internal low speed oscillator clock
Peripherals Clock (when 10 kHz low speed oscillator is adopted as clock source)
Frequency Divider Output
This device is equipped with a power-of-2 frequency divider which is composed by 16 chained
divide-by-2 shift registers. One of the 16 shift register outputs selected by a sixteen to one
multiplexer is reflected to the CKO pin. Therefore there are 16 options of power-of-2 divided
1
16
clocks with the frequency from Fin/2 to Fin/2 where Fin is input clock frequency to the clock
divider.
(N+1)
The output formula is Fout = Fin/2
, where Fin is the input clock frequency, Fout is the clock
divider output frequency and N is the 4-bit value in FSEL (FRQDIV [3:0]).
When writing 1 to DIVIDER_EN (FRQDIV[4]), the chained counter starts to count. When writing 0
to DIVIDER_EN (FRQDIV[4]), the chained counter continuously runs till divided clock reaches low
state and stay in low state.
M051 DN/DE SERIES DATASHEET
If DIVIDER1(FRQDIV[5]) set to 1, the frequency divider clock (FRQDIV_CLK) will bypass powerof-2 frequency divider. The frequency divider clock will be output to CKO pin directly.
FRQDIV_S (CLKSEL2[3:2])
22.1184 MHz
HIRC
HCLK
FDIV_EN (APBCLK[6])
11
FRQDIV_CLK
10
10 kHz* LIRC
4~24 MHz HXT
01
00
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Note: Before clock switching, both the pre-selected and newly selected clock sources must be
turned on and stable.
Figure 6-8 Clock Source of Frequency Divider
Oct. 05, 2015
Page 38 of 86
Rev 1.03
M051 DN/DE
DIVIDER_EN
(FRQDIV[4])
Enable
divide-by-2 counter
FRQDIV_CLK
1/22
1/2
FSEL
(FRQDIV[3:0])
16 chained
divide-by-2 counter
1/23
…...
1/215
DIVIDER1*
(FRQDIV[5])
1/216
000
000
0
1
:
:
111
111
0
1
16 to 1
MUX
0
CKO
1
Note1: DIVIDER1 = 1 is only available on M05xxDE.
Note2: Before clock switching, both the pre-selected and newly selected clock sources must be
turned on and stable.
Figure 6-9 Block Diagram of Frequency Divider
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 39 of 86
Rev 1.03
M051 DN/DE
6.4
Flash Memory Controller (FMC)
6.4.1
Overview
The M05xxDN/DE are equipped with 64/32/16/8 Kbytes on chip embedded Flash memory for
application program (APROM) that can be updated through ISP registers. In-SystemProgramming (ISP) and In-Application-Programming (IAP) enable user to update program
®
memory when chip is soldered on PCB. After chip power on Cortex -M0 CPU fetches code from
APROM or LDROM decided by boot select (CBS) in CONFIG0. By the way, the M05xxDN/DE
also provide additional 4 Kbytes DATA Flash for user to store some application depended data
before chip power off in 64/32/16/8 Kbytes APROM model.
The M05xxDN/DE provides more settings in CONFIG0 to support more advanced functions,
including power-on with tri-state I/O, default to enable WDT after booting, enable WDT in Powerdown mode, and IAP functions.
6.4.2
Features
Runs up to 50 MHz with zero wait state for continuous address read access
64/32/16/8 Kbytes application program memory (APROM)
4 Kbytes in system programming (ISP) loader program memory (LDROM)
Fixed 4 Kbytes Data Flash
All embedded flash memory supports 512 bytes page erase
In System Program (ISP)/In Application Program (IAP) to update on chip Flash EPROM
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 40 of 86
Rev 1.03
M051 DN/DE
6.5
External Bus Interface (EBI)
6.5.1
Overview
®
The NuMicro M05xxDN/DE LQFP-48 package has an external bus interface (EBI) for access
external device.
To save the connections between external device and this chip, EBI supports address bus and
data bus multiplex mode which is differentiated by address latch enable signal.
6.5.2
Features
The External Bus Interface has the following functions:
Supports external devices with max. 64 KB size (8-bit data width) / 128 KB (16-bit data
width)
Supports variable external bus base clock (MCLK) which based on HCLK
Supports 8-bit or 16-bit data width
Supports variable data access time (tACC), address latch enable time (tALE) and address
hold time (tAHD)
Supports address bus and data bus multiplex mode to save the address pins
Supports configurable idle cycle for different access condition: Write command finish (W2X),
Read-to-Read (R2R)
Supports zero address hold time with read/write operation and write buffer for write
operation to enhance read/write performance
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 41 of 86
Rev 1.03
M051 DN/DE
6.6
General Purpose I/O (GPIO)
6.6.1
Overview
®
The NuMicro M05xxDN/DE has up to 40 General Purpose I/O pins to be shared with other
function pins depending on the chip configuration. These 40 pins are arranged in 5 ports named
as P0, P1, P2, P3 and P4. Each port has the maximum of 8 pins. Each of the 40 pins is
independent and has the corresponding register bits to control the pin mode function and data.
The I/O type of each pin can be configured by software individually as Input, Push-pull output,
Open-drain output or Quasi-bidirectional mode. After the chip is reset, the I/O mode of all pins is
stay in quasi-bidirectional mode and each port data register Px_DOUT[7:0] resets to 0x000_00FF.
Each I/O pin has a very weakly individual pull-up resistor which is about 110 k ~ 300 k for VDD
which is from 5.0 V to 2.5 V.
6.6.2
Features
Four I/O modes:
Input only with high impedance
Push-pull output
Open-drain output
M051 DN/DE SERIES DATASHEET
Quasi-bidirectional TTL/Schmitt trigger input mode selected by Px_MFP[23:16]
I/O pin configured as interrupt source with edge/level setting
I/O pin internal pull-up resistor enabled only in Quasi-bidirectional I/O mode
Enabling the pin interrupt function will also enable the pin wake-up function
Configurable default I/O mode of all pins after reset by CIOINI(CONFIG[10]) setting
CIOINI = 0, all GPIO pins in Input tri-state mode after chip reset
CIOINI = 1, all GPIO pins in Quasi-bidirectional mode after chip reset
Oct. 05, 2015
Page 42 of 86
Rev 1.03
M051 DN/DE
6.7
Timer Controller (TMR)
6.7.1
Overview
The Timer Controller includes four 32-bit timers, TIMER0 ~ TIMER3, allowing user to easily
implement a timer control for applications. The timer can perform functions, such as frequency
measurement, delay timing, clock generation, and event counting by external input pins, and
interval measurement by external capture pins.
6.7.2
Features
Four sets of 32-bit timers with 24-bit up counter and one 8-bit prescale counter
Independent clock source for each timer
Provides four timer counting modes: one-shot, periodic, toggle and continuous counting
Time-out period = (Period time of timer clock input) * (8-bit prescale counter + 1) * (24-bit
TCMP)
Maximum counting cycle time = (1 / T MHz) * (2 ) * (2 ), T is the period time of timer clock
24-bit up counter value is readable through TDR (Timer Data Register)
Supports event counting function to count the input event from external counter pin (T0~T3)
24-bit capture value is readable through TCAP (Timer Capture Data Register)
Supports external capture pin (T0EX~T3EX) for interval measurement
Supports external capture pin (T0EX~T3EX) to reset 24-bit up counter
Supports chip wake-up from Idle/Power-down mode if a timer interrupt signal is generated
Supports internal capture triggered while internal ACMP output signal transition
Supports Inter-Timer trigger mode
8
Page 43 of 86
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
24
Rev 1.03
M051 DN/DE
6.8
PWM Generator and Capture Timer (PWM)
6.8.1
Overview
®
The NuMicro M051 DN/DE series has two sets of PWM groups supporting a total of four sets of
PWM generators, which can be configured as eight independent PWM outputs, PWM0~PWM7, or
as four complementary PWM pairs, (PWM0, PWM1), (PWM2, PWM3), (PWM4, PWM5) and
(PWM6, PWM7) with 4 programmable Dead-zone generators.
Each PWM generator has one 8-bit prescaler, one clock divider with 5 divided frequencies (1, 1/2,
1/4, 1/8, 1/16), two PWM Timers including two clock selectors, two 16-bit PWM counters for PWM
period control, two 16-bit comparators for PWM duty control and one Dead-zone generator. The 4
sets of PWM generators provide eight independent PWM period interrupt flags set by hardware
when the corresponding PWM period down counter reaches 0. Each PWM period interrupt source
with its corresponding enable bit can cause CPU to request PWM interrupt. The PWM generators
can be configured as one-shot mode to produce only one PWM cycle signal or auto-reload mode
to output PWM waveform continuously.
When DZEN01 (PCR[4]) is set, PWM0 and PWM1 perform complementary PWM paired function;
the paired PWM period, duty and Dead-zone are determined by PWM0 timer and Dead-zone
generator 0. Similarly, the complementary PWM pairs of (PWM2, PWM3), (PWM4, PWM5) and
(PWM6, PWM7) are controlled by PWM2, PWM4 and PWM6 timers and Dead-zone generator 2,
4 and 6, respectively. Refer to figures below for the architecture of PWM Timers.
To prevent PWM driving output pin with unsteady waveform, the 16-bit period down counter and
16-bit comparator are implemented with double buffer. When user writes data to
counter/comparator buffer registers, the updated value will be loaded into the 16-bit down
counter/ comparator at the time down counter reaching 0. The double buffering feature avoids
glitch at PWM outputs.
M051 DN/DE SERIES DATASHEET
When the 16-bit period down counter reaches 0, the interrupt request is generated. If PWM-Timer
is set as Auto-reload mode when the down counter reaches 0, it is reloaded with PWM Counter
Register (CNRx) automatically and then starts decreasing repeatedly. If the PWM-Timer is set as
one-shot mode, the down counter will stop and generate one interrupt request when it reaches 0.
The value of PWM counter comparator is used for pulse high width modulation. The counter
control logic changes the output to high level when down-counter value matches the value of
compare register.
The alternate feature of the PWM-Timer is digital input Capture function. If Capture function is
enabled the PWM output pin is switched as capture input mode. The Capture0 and PWM0 share
one timer which is included in PWM0 and the Capture1 and PWM1 share PWM1 timer, and etc.
Therefore user must set the PWM-Timer before enabling the Capture feature. After capture
feature is enabled, the capture always latched PWM-counter to Capture Rising Latch Register
(CRLR) when input channel has a rising transition and latched PWM-counter to Capture Falling
Latch Register (CFLR) when input channel has a falling transition. Capture channel 0 interrupt is
programmable by setting CRL_IE0 (CCR0[1]) (Rising latch Interrupt enable) and CFL_IE0
(CCR0[2]) (Falling latch Interrupt enable) to decide the condition of interrupt occur. Capture
channel 1 has the same feature by setting CRL_IE1 (CCR0[17]) and CFL_IE1 (CCR0[18]). The
capture channel 2 to channel 3 on each group have the same feature by setting the
corresponding control bits in CCR2. For each group, whenever Capture issues Interrupt 0/1/2/3,
the PWM counter 0/1/2/3 will be reload at this moment.
The maximum captured frequency that PWM can capture is confined by the capture interrupt
latency. When capture interrupt occurred, software will do at least three steps, including: Read
PIIR to get interrupt source, read CRLRx/CFLRx (x = 0~3) to get capture value and finally write 1
to clear PIIR to 0. If interrupt latency will take time T0 to finish, the capture signal mustn’t
transition during this interval (T0). In this case, the maximum capture frequency will be 1/T0.
Oct. 05, 2015
Page 44 of 86
Rev 1.03
M051 DN/DE
6.8.2
Features
PWM function:
PWM group has two PWM generators. Each PWM generator supports one 8-bit prescaler, one
clock divider, two PWM-Timers (down counter), one dead-zone generator and two PWM outputs.
Up to 2 PWM groups (PWMA/PWMB) to support 8 PWM channels or 4 complementary
PWM paired channels
Each PWM group has two PWM generators with each PWM generator supporting one 8-bit
prescaler, two clock dividers, two PWM-Timers, one Dead-zone generator and two PWM
outputs.
Up to 16-bit resolution
One-shot or Auto-reload mode
Edge-aligned type or Center-aligned type option
PWM trigger ADC start-to-conversion
Capture function:
Timing control logic shared with PWM generators
Supports 8 Capture input channels shared with 8 PWM output channels
Each channel supports one rising latch register (CRLRx), one falling latch register (CFLRx)
and Capture interrupt flag (CAPIFx)
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 45 of 86
Rev 1.03
M051 DN/DE
6.9
Watchdog Timer (WDT)
6.9.1
Overview
The purpose of Watchdog Timer is to perform a system reset when system runs into an unknown
state. This prevents system from hanging for an infinite period of time. Besides, this Watchdog
Timer supports the function to wake-up system from Idle/Power-down mode.
6.9.2
Features
18-bit free running up counter for Watchdog Timer time-out interval
Selectable time-out interval (2 ~ 2 ) WDT_CLK cycle and the time-out interval period is
104 ms ~ 26.3168 s if WDT_CLK = 10 kHz
System kept in reset state for a period of (1 / WDT_CLK) * 63
Supports selectable Watchdog Timer reset delay period 3/18/130/1026 * WDT_CLK
Supports to force Watchdog Timer enabled after chip powered on or reset while CWDTEN
(CONFIG[31] Watchdog Enable) bit is set to 0.
Supports Watchdog Timer time-out wake-up function only if WDT clock source is selected
as 10 kHz
4
18
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 46 of 86
Rev 1.03
M051 DN/DE
6.10 Window Watchdog Timer (WWDT)
6.10.1 Overview
The Window Watchdog Timer is used to perform a system reset within a specified window period
to prevent software run to uncontrollable status by any unpredictable condition.
6.10.2 Features
6-bit down counter value (WWDTCVAL) and 6-bit compare window value (WINCMP) to
make the WWDT time-out window period flexible
Supports 4-bit value to programmable maximum 11-bit prescale counter period of WWDT
counter
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 47 of 86
Rev 1.03
M051 DN/DE
6.11 UART Controller (UART)
6.11.1 Overview
®
The NuMicro
M05xxDN/DE provides two channels of Universal Asynchronous
Receiver/Transmitters (UART). UART Controller performs Normal Speed UART, and support flow
control function. The UART Controller performs a serial-to-parallel conversion on data received
from the peripheral, and a parallel-to-serial conversion on data transmitted from the CPU. The
UART controller also supports IrDA SIR Function, LIN master/slave function and RS-485 function
mode. Each UART Controller channel supports seven types of interrupts.
6.11.2 Features
M051 DN/DE SERIES DATASHEET
Full-duplex, asynchronous communications
Separate receive / transmit 16/16 bytes entry FIFO for data payloads
Supports hardware auto-flow control and flow control function (CTS, RTS) and
programmable RTS flow control trigger level
Programmable receiver buffer trigger level
Supports programmable baud-rate generator for each channel individually
Supports CTS wake-up function
Supports 8-bit receiver buffer time-out detection function
Programmable transmitting data delay time between the last stop and the next start bit by
setting DLY (UA_TOR [15:8]) register
Supports break error, frame error, parity error and receive / transmit buffer overflow detect
function
Fully programmable serial-interface characteristics
Programmable number of data bit, 5-, 6-, 7-, 8- bit character
Programmable parity bit, even, odd, no parity or stick parity bit generation and
detection
Programmable stop bit, 1, 1.5, or 2 stop bit generation
Supports IrDA SIR function mode
Supports for 3/16 bit duration for normal mode
Supports LIN function mode
Supports LIN master/slave mode
Supports programmable break generation function for transmitter
Supports break detect function for receiver
Supports RS-485 function mode
Supports RS-485 9-bit mode
Supports hardware or software enable to program RTS pin to control RS-485
transmission direction directly
Oct. 05, 2015
Page 48 of 86
Rev 1.03
M051 DN/DE
6.12 I2C Serial Interface Controller (I2C)
6.12.1 Overview
2
I C is a two-wire, bi-directional serial bus that provides a simple and efficient method of data
2
exchange between devices. The I C standard is a true multi-master bus including collision
detection and arbitration that prevents data corruption if two or more masters attempt to control
2
the bus simultaneously. There are two sets of I C which supports Power-down wake-up function.
6.12.2 Features
2
The I C bus uses two wires (SDA and SCL) to transfer information between devices connected to
2
the bus. The main features of the I C bus include:
2
Supports up to two I C ports
Master/Slave mode
Bidirectional data transfer between master and slave
Multi-master bus (no central master)
Arbitration between simultaneously transmitting masters without corruption of serial data on
the bus
Serial clock synchronization allowing devices with different bit rates to communicate via one
serial bus
Serial clock synchronization used as a handshake mechanism to suspend and resume serial
transfer
Built-in a 14-bit time-out counter requesting the I C interrupt if the I C bus hangs up and
timer-out counter overflows.
Programmable clocks allowing for versatile rate control
Supports 7-bit addressing mode
Supports multiple address recognition ( four slave address with mask option)
Supports Power-down Wake-up function
2
Page 49 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
2
M051 DN/DE
6.13 Serial Peripheral Interface (SPI)
6.13.1 Overview
The Serial Peripheral Interface (SPI) applies to synchronous serial data communication and
allows full-duplex transfer. Devices communicate in Master/Slave mode with 4-wire bi-direction
®
interface. The NuMicro M051 DN/DE series contains up to two sets of SPI controllers performing
a serial-to-parallel conversion on data received from a peripheral device, and a parallel-to-serial
conversion on data transmitted to a peripheral device. Each SPI controller can be configured as a
master or a slave device.
6.13.2 Features
Up to two sets of SPI controllers
Supports Master or Slave mode operation
Configurable transfer bit length
Provides FIFO buffers
Supports MSB or LSB first transfer
Supports byte reorder function
Supports byte or word suspend mode
Supports Slave 3-wire mode
SPI bus clock rate can be configured to equal the system clock rate
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 50 of 86
Rev 1.03
M051 DN/DE
6.14 Analog-to-Digital Converter (ADC)
6.14.1 Overview
®
The NuMicro M05xxDN/DE contains one 12-bit successive approximation analog-to-digital
converter (SAR A/D converter) with eight input channels. The A/D converter supports four
operation modes: Single, Burst, Single-cycle Scan and Continuous Scan mode. The A/D
converter can be started by software, external pin (STADC/P3.2) or PWM trigger.
6.14.2 Features
Analog input voltage range: 0 ~ AVDD
12-bit resolution and 10-bit accuracy is guaranteed
Up to eight single-end analog input channels or 4 differential analog input channels
Maximum ADC peripheral clock frequency is 16 MHz
Up to 760 kSPS sample rate
Four operation modes:
Single mode: A/D conversion is performed one time on a specified channel.
Burst mode: A/D converter samples and converts the specified single channel and
sequentially stores the result in FIFO.
Single-cycle Scan mode: A/D conversion is performed only one cycle on all specified
channels with the sequence from the smallest numbered channel to the largest
numbered channel.
Continuous Scan mode: A/D converter continuously performs Single-cycle Scan mode
until software stops A/D conversion.
An A/D conversion can be started by:
Software Write 1 to ADST bit
External pin (STADC)
PWM trigger with optional start delay period
Each conversion result is held in data register of each channel with valid and overrun
indicators.
Conversion result can be compared with specified value and user can select whether to
generate an interrupt when conversion result matches the compare register setting.
Channel 7 supports 3 input sources: external analog voltage, internal band-gap voltage and
Internal temperature sensor output.
Oct. 05, 2015
Page 51 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
M051 DN/DE
6.15 Analog Comparator (ACMP)
6.15.1 Overview
®
The NuMicro M05xxDN/DE contains up to four comparators which can be used in a number of
different configurations. The comparator output is logic 1 when positive input greater than
negative input, otherwise the output is 0. Each comparator can be configured to generate interrupt
request when the comparator output value changes.
6.15.2 Features
Up to four sets of ACMP
Analog input voltage range: 0 ~ AVDD
Supports Hysteresis function
Supports ACMP output inverse Function (M05xxDE only)
Optional internal reference voltage source for each comparator negative input
Two interrupt vectors for the four analog comparators
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 52 of 86
Rev 1.03
M051 DN/DE
6.16 Hardware Divider (HDIV) (M05xxDN/DE Only)
6.16.1 Overview
The hardware divider (HDIV) is useful to the high performance application. The hardware divider
is a signed, integer divider with both quotient and remainder outputs.
6.16.2 Features
Signed (two’s complement) integer calculation
32-bit dividend with 16-bit divisor calculation capacity
32-bit quotient and 32-bit remainder outputs (16-bit remainder with sign extends to 32-bit)
Divided by zero warning flag
6 HCLK clocks taken for one cycle calculation
Write divisor to trigger calculation
Waiting for calculation ready automatically when reading quotient and remainder
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 53 of 86
Rev 1.03
M051 DN/DE
7
APPLICATION CIRCUIT
DVCC
[1]
AVCC
SPISS0
SPICLK0
MISO_0
AVDD
DVCC
Power
FB
VDD
CS
CLK
MISO
MOSI
MOSI_0
VDD
SPI Device
VSS
0.1uF
0.1uF
VSS
DVCC
FB
DVCC
AVSS
4.7K
4.7K
CLK
SCL0
VDD
ICE_CLK
ICE_DAT
nRST
VSS
SWD
Interface
SDA0
20p
XTAL1
Crystal
20p
4~24 MHz
crystal
LATCH
M05xxDN/DE
LQFP48
D
ALE
XTAL2
AD[15:0]
DVCC
Q
I2C Device
VSS
64K x 16-bit
SRAM
Addr[15:0]
En
nCE
nOE
nWE
nLB
nUB
nCS
nRD
nWR
nWRL
nWRH
EBI
Data[15:0]
AD[15:0]
Reset
Circuit
VDD
DIO
10K
nRST
RS232 Transceiver
TXD
10uF/25V
M051 DN/DE SERIES DATASHEET
RXD
ROUT
TXD
TIN
RIN
TOUT
PC COM Port
UART
LDO_CAP
1uF
Note: For the SPI device, the M05xx chip supply
voltage must be equal to SPI device working
voltage. For example, when the SPI Flash
working voltage is 3.3 V, the M05xx chip supply
voltage must also be 3.3V.
LDO
Oct. 05, 2015
Page 54 of 86
Rev 1.03
M051 DN/DE
8 M05XXDN ELECTRICAL CHARACTERISTICS
8.1
Absolute Maximum Ratings
Symbol
Parameter
Min
Max
Unit
VDD VSS
DC Power Supply
-0.3
+7.0
V
VSS - 0.3
VDD + 0.3
V
4
24
MHz
VIN
1/tCLCL
Input Voltage
Oscillator Frequency
TA
Operating Temperature
-40
+85
℃
TST
Storage Temperature
-55
+150
℃
IDD
Maximum Current into VDD
-
120
mA
ISS
Maximum Current out of VSS
-
120
mA
Maximum Current sunk by an I/O pin
-
35
mA
Maximum Current sourced by an I/O pin
-
35
mA
Maximum Current sunk by total I/O pins
-
100
mA
Maximum Current sourced by total I/O pins
-
100
mA
IIO
Note: Exposure to conditions beyond those listed under absolute maximum ratings may adversely affects the
life and reliability of the device.
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 55 of 86
Rev 1.03
M051 DN/DE
8.2
DC Electrical Characteristics
(VDD - VSS = 2.5 ~ 5.5 V, TA = 25C)
Symbol
Parameter
Min
Typ
Max
Unit
Test Conditions
VDD
Operation voltage
2.5
-
5.5
V
VSS /
AVSS
Power Ground
-0.3
-
-
V
VLDO
LDO Output Voltage
1.62
1.8
1.98
V
VDD ≥ 2.5 V
1.16
1.20
1.24
V
VDD = 2.5 V ~ 5.5 V, TA = 25C
1.14
1.20
1.26
V
-0.3
0
0.3
V
-
21
-
mA
VBG
VDDAVDD
IDD1
Band-gap Voltage
Allowed Voltage
Difference for VDD and
AVDD
Operating Current
Normal Run Mode
IDD2
HCLK = 50 MHz
VDD = 2.5 V ~ 5.5 V up to 50 MHz
VDD = 2.5 V ~ 5.5 V,
TA = -40C~85C
-
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
12 MHz
X
V
V
-
15
-
mA
5.5V
12 MHz
X
V
X
-
20
-
mA
3.3V
12 MHz
X
V
V
-
13
-
mA
3.3V
12 MHz
X
V
X
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
X
V
X
V
while(1){}
IDD3
Executed from Flash
IDD4
IDD5
Operating Current
-
6.6
-
mA
Normal Run Mode
M051 DN/DE SERIES DATASHEET
IDD6
HCLK =22.1184 MHz
-
3.7
-
mA
5.5V
X
V
X
X
-
6.4
-
mA
3.3V
X
V
X
V
-
3.6
-
mA
3.3V
X
V
X
X
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
12 MHz
X
X
V
5.5V
12 MHz
X
X
X
3.3V
12 MHz
X
X
V
3.3V
12 MHz
X
X
X
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
4 MHz
X
X
V
while(1){}
IDD7
Executed from Flash
IDD8
IDD9
-
5.4
-
mA
Operating Current
Normal Run Mode
IDD10
-
3.6
-
-
4.0
-
IDD12
-
2.3
-
mA
IDD13
-
3.3
-
mA
HCLK = 12 MHz
while(1){}
IDD11
Executed from Flash
Operating Current
mA
mA
Normal Run Mode
IDD14
HCLK =4 MHz
-
2.5
-
mA
5.5V
4 MHz
X
X
X
-
2.0
-
mA
3.3V
4 MHz
X
X
V
-
1.3
-
mA
3.3V
4 MHz
X
X
X
while(1){}
IDD15
Executed from Flash
IDD16
Oct. 05, 2015
Page 56 of 86
Rev 1.03
M051 DN/DE
IDD17
Operating Current
-
110
-
HXT
HIRC
LIRC
PLL
All digital
modules
5.5V
X
X
V
X
V[4]
μA
Normal Run Mode
HCLK = 10 kHz
VDD
-
105
-
μA
5.5V
X
X
V
X
X
-
92
-
μA
3.3V
X
X
V
X
V[4]
IDD20
-
90
-
μA
3.3V
X
X
V
X
X
IIDLE1
-
17
-
mA
IDD18
while(1){}
IDD19
Executed from Flash
Operating Current
IIDLE2
Idle Mode
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
12 MHz
X
V
V
-
10
-
mA
5.5V
12 MHz
X
V
X
IIDLE3
-
15
-
mA
3.3V
12 MHz
X
V
V
IIDLE4
-
8
-
mA
3.3V
12 MHz
X
V
X
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
X
V
X
V
HCLK = 50 MHz
IIDLE5
-
4.5
-
mA
Operating Current
IIDLE6
Idle Mode
-
1.6
-
mA
5.5V
X
V
X
X
IIDLE7
-
4.4
-
mA
3.3V
X
V
X
V
IIDLE8
-
1.6
-
mA
3.3V
X
V
X
X
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
12 MHz
X
X
V
HCLK =22.1184 MHz
IIDLE9
-
4.1
-
mA
Operating Current
Idle Mode
-
2.4
-
mA
5.5V
12 MHz
X
X
X
IIDLE11
-
2.8
-
mA
3.3V
12 MHz
X
X
V
IIDLE12
-
1.2
-
mA
3.3V
12 MHz
X
X
X
VDD
HXT
HIRC
PLL
IIDLE13
-
2.9
-
mA
All digital
modules
5.5V
4 MHz
X
X
V
HCLK =12 MHz
Operating Current
IIDLE14
Idle Mode
-
2.1
-
mA
5.5V
4 MHz
X
X
X
IIDLE15
-
1.6
-
mA
3.3V
4 MHz
X
X
V
IIDLE16
-
0.9
-
mA
3.3V
4 MHz
X
X
X
HCLK =4 MHz
IIDLE17
-
106
-
HXT
HIRC
LIRC
PLL
All digital
modules
5.5V
X
X
V
X
V[4]
μA
Operating Current
Idle Mode
VDD
-
104
-
μA
5.5V
X
X
V
X
X
IIDLE19
-
90
-
μA
3.3V
X
X
V
X
V[4]
IIDLE20
-
89
-
μA
3.3V
X
X
V
X
X
-
10
-
A
IIDLE18
at 10 kHz
IPWD1
Standby Current
Oct. 05, 2015
VDD = 5.5 V, All oscillators and analog blocks turned off.
Page 57 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
IIDLE10
M051 DN/DE
Power-down Mode
IPWD2
(Deep Sleep Mode)
-
8
-
A
VDD = 3.3 V, All oscillators and analog blocks turned off.
IIL
Logic 0 Input Current
P0/1/2/3/4 (Quasibidirectional Mode)
-
-65
-75
A
VDD = 5.5 V, VIN = 0V
ITL
Logic 1 to 0 Transition
Current P0/1/2/3/4
(Quasi-bidirectional
Mode) [*3]
-
-690
-750
A
VDD = 5.5 V, VIN = 2.0V
ILK
Input Leakage Current
P0/1/2/3/4
-1
-
+1
A
Input Low Voltage
P0/1/2/3/4 (TTL Input)
-0.3
-
0.8
VIL1
VIH1
VIL3
VIH3
VILS
Input High Voltage
P0/1/2/3/4 (TTL Input)
Input Low Voltage
XTAL1[*2]
Input High Voltage
XTAL1[*2]
Negative-going
Threshold
VDD = 5.5 V, 0 < VIN < VDD
Open-drain or input only mode
VDD = 4.5 V
V
-0.3
-
0.6
2.0
-
VDD + 0.3
VDD = 2.5 V
VDD = 5.5 V
V
1.5
-
VDD + 0.3
VDD = 3.0 V
0
-
0.8
0
-
0.4
3.5
-
VDD + 0.3
2.4
-
VDD + 0.3
-0.3
-
0.2 VDD
V
-
0.7 VDD
-
VDD + 0.3
V
-
150
kΩ
-
V
VDD = 4.5 V
VDD = 2.5 V
V
VDD = 5.5 V
VDD = 3.0 V
(Schmitt Input), nRST
VIHS
Positive-going
Threshold
(Schmitt Input), nRST
M051 DN/DE SERIES DATASHEET
RRST
VILS
VIHS
Internal nRST Pin
Pull-up Resistor
Negative-going
Threshold
(Schmitt input),
P0/1/2/3/4
Positive-going
Threshold
(Schmitt input),
P0/1/2/3/4
ISR11
ISR12
Source Current
P0/1/2/3/4 (Quasibidirectional Mode)
ISR13
ISR21
ISR22
Source Current
P0/1/2/3/4 (Push-pull
Mode)
ISR23
ISK11
ISK12
Sink Current
P0/1/2/3/4 (Quasibidirectional, Open-
Oct. 05, 2015
40
-0.3
-
0.3 VDD
V
-
0.7 VDD
-
VDD + 0.3
V
-
-300
-420
-
A
VDD = 4.5 V, VS = 2.4 V
-50
-75
-
A
VDD = 2.7 V, VS = 2.2 V
-40
-67
-
A
VDD = 2.5 V, VS = 2.0 V
-20
-26
-
mA
VDD = 4.5 V, VS = 2.4 V
-3
-5
-
mA
VDD = 2.7 V, VS = 2.2 V
-2.5
-4.2
-
mA
VDD = 2.5 V, VS = 2.0 V
10
16
-
mA
VDD = 4.5 V, VS = 0.45 V
6
9
-
mA
VDD = 2.7 V, VS = 0.45 V
Page 58 of 86
Rev 1.03
M051 DN/DE
ISK13
Drain and Push-pull
Mode)
5
8
-
mA
VDD = 2.5 V, VS = 0.45 V
Notes:
1. nRST pin is a Schmitt trigger input.
2. XTAL1 is a CMOS input.
3. Pins of P0, P1, P2, P3 and P4 can source a transition current when they are being externally driven from
1 to 0. In the condition of VDD=5.5V, the transition current reaches its maximum value when VIN
approximates to 2V.
4. Only enable modules which support 10 kHz LIRC clock source.
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 59 of 86
Rev 1.03
M051 DN/DE
8.3
AC Electrical Characteristics
8.3.1
External Input Clock
tCLCL
tCLCH
0.7 VDD
90%
tCLCX
10%
0.3 VDD
tCHCL
tCHCX
Note: Duty cycle is 50%.
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
tCHCX
Clock High Time
10
-
-
ns
-
tCLCX
Clock Low Time
10
-
-
ns
-
tCLCH
Clock Rise Time
2
-
15
ns
-
tCHCL
Clock Fall Time
2
-
15
ns
-
8.3.2
External 4~24 MHz High Speed Crystal (HXT)
M051 DN/DE SERIES DATASHEET
Symbol
Parameter
Min.
Typ.
Max
Unit
Test Condition
VHXT
Operation Voltage
2.5
-
5.5
V
-
TA
Temperature
-40
-
85
℃
-
-
2
-
mA
12 MHz, VDD = 5.5V
IHXT
Operating Current
-
0.8
-
mA
4
-
24
MHz
fHXT
Clock Frequency
Oct. 05, 2015
Page 60 of 86
12 MHz, VDD = 3.3V
-
Rev 1.03
M051 DN/DE
8.3.3
Typical Crystal Application Circuits
Crystal
C1
C2
4 MHz ~ 24 MHz
10~20 pF
10~20 pF
XTAL1
XTAL2
4~24 MHz
Crystal
C1
Vss
C2
Vss
Figure 8-1 M05xxDN Typical Crystal Application Circuit
8.3.4
22.1184 MHz Internal High Speed RC Oscillator (HIRC)
Parameter
Min
Typ
Max
Unit
Test Condition
VHRC
Supply Voltage
1.62
1.8
1.98
V
-
Center Frequency
-
22.1184
-
MHz
-
-1
-
+1
%
-3
-
+3
%
-
800
-
μA
TA = 25 ℃,VDD = 5 V
fHRC
Calibrated Internal
Oscillator Frequency
IHRC
8.3.5
Operating Current
TA = 25 ℃
VDD = 5 V
TA = -40 ℃ ~ 85 ℃
VDD = 2.5 V ~ 5.5 V
10 kHz Internal Low Speed RC Oscillator (LIRC)
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
VLRC
Supply Voltage
2.5
-
5.5
V
-
Center Frequency
-
10
-
kHz
-
-10
-
+10
%
-40
-
+40
%
fLRC
VDD = 2.5 V ~ 5.5 V
TA = 25℃
Oscillator Frequency
Oct. 05, 2015
Page 61 of 86
VDD = 2.5 V ~ 5.5 V
TA = -40℃ ~ +85℃
Rev 1.03
M051 DN/DE SERIES DATASHEET
Symbol
M051 DN/DE
8.4
Analog Characteristics
8.4.1 12-bit SAR ADC
Symbol
Min
Typ
Max
Unit
Test Condition
Resolution
-
-
12
Bit
-
DNL
Differential Nonlinearity Error
-
±1
-1~+4
LSB
-
INL
Integral Nonlinearity Error
-
±2
±4
LSB
-
EO
Offset Error
-
2
4
LSB
-
EG
Gain Error (Transfer Gain)
-
-2
-4
LSB
-
EA
Absolute Error
-
3
4
LSB
-
-
-
-
-
Parameter
Monotonic
Guaranteed
-
FADC
FS
-
16
ADC Clock Frequency
AVDD = 4.5~5.5 V
MHz
-
-
8
AVDD = 2.5~5.5 V
-
-
800
kSPS
AVDD = 4.5~5.5 V
-
-
400
kSPS
AVDD = 2.5~5.5 V
Sample Rate (FADC/TCONV)
TACQ
Acquisition Time (Sample Stage)
7
1/FADC
-
TCONV
Total Conversion Time
20
1/FADC
-
AVDD
Supply Voltage
-
2.5
-
5.5
V
M051 DN/DE SERIES DATASHEET
IDDA
Supply Current (Avg.)
-
2.9
-
mA
VIN
Analog Input Voltage
0
-
AVDD
V
-
CIN
Input Capacitance
-
3.2
-
pF
-
RIN
Input Load
-
6
-
kΩ
-
Oct. 05, 2015
Page 62 of 86
AVDD = 5 V
Rev 1.03
M051 DN/DE
EF (Full scale error) = EO + EG
Gain Error
EG
Offset Error
EO
4095
4094
4093
4092
Ideal transfer curve
7
6
ADC
output
code
5
Actual transfer curve
4
3
2
DNL
1
1 LSB
Offset Error
EO
Analog input voltage
(LSB)
4095
Oct. 05, 2015
Page 63 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
Note: The INL is the peak difference between the transition point of the steps of the calibrated
transfer curve and the ideal transfer curve. A calibrated transfer curve means it has calibrated the
offset and gain error from the actual transfer curve.
M051 DN/DE
8.4.2 LDO & Power Management
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
VDD
DC Power Supply
2.5
-
5.5
V
-
VLDO
Output Voltage
1.62
1.8
1.98
V
-
TA
Temperature
-40
25
85
℃
-
CLDO
Capacitor
-
1
-
μF
RESR = 1Ω
Notes:
1.
2.
It is recommended a 0.1μF bypass capacitor is connected between VDD and the closest VSS pin of the
device.
For ensuring power stability, a 1μF or higher capacitor must be connected between LDO_CAP pin and
the closest VSS pin of the device.
8.4.3 Low Voltage Reset
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
AVDD
Supply Voltage
0
-
5.5
V
-
TA
Temperature
-40
25
85
℃
-
ILVR
Quiescent Current
-
1
5
μA
AVDD = 5.5 V
1.90
2.00
2.20
V
TA = 25 ℃
2.00
2.10
2.40
V
TA = -40 ℃
1.70
1.90
2.10
V
TA = 85 ℃
VLVR
Threshold Voltage
M051 DN/DE SERIES DATASHEET
8.4.4 Brown-out Detector
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
AVDD
Supply Voltage
0
-
5.5
V
-
TA
Temperature
-40
25
85
℃
-
IBOD
Quiescent Current
-
-
140
μA
AVDD = 5.5 V
4.2
4.38
4.55
V
BOV_VL [1:0] = 11
Brown-out Voltage
3.5
3.68
3.85
V
BOV_VL [1:0] = 10
(Falling edge)
2.5
2.68
2.85
V
BOV_VL [1:0] = 01
2.0
2.18
2.35
V
BOV_VL [1:0] = 00
4.3
4.52
4.75
V
BOV_VL [1:0] = 11
Brown-out Voltage
3.5
3.8
4.05
V
BOV_VL [1:0] = 10
(Rising edge)
2.5
2.77
3.05
V
BOV_VL [1:0] = 01
2.0
2.25
2.55
V
BOV_VL [1:0] = 00
VBOD
VBOD
Oct. 05, 2015
Page 64 of 86
Rev 1.03
M051 DN/DE
8.4.5 Power-on Reset
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
TA
Temperature
-40
25
85
℃
-
VPOR
Reset Voltage
-
2
-
V
V+
VPOR
VDD Start Voltage to Ensure
Power-on Reset
-
-
100
mV
-
RRVDD
VDD Raising Rate to Ensure
Power-on Reset
0.025
-
-
V/ms
-
tPOR
Minimum Time for VDD Stays at
VPOR to Ensure Power-on Reset
0.5
-
-
ms
-
VDD
tPOR
RRVDD
VPOR
Time
M051 DN/DE SERIES DATASHEET
Figure 8-2 Power-up Ramp Condition
Oct. 05, 2015
Page 65 of 86
Rev 1.03
M051 DN/DE
8.4.6 Temperature Sensor
Symbol
Parameter
Min
Typ
Max
Unit
VTEMP
Supply Voltage
1.62
1.8
1.98
V
TA
Temperature
-40
-
85
℃
ITEMP
Current Consumption
-
16
-
μA
-
Gain
-1.65
-1.75
-1.85
mV/℃
-
Offset
714
724
734
mV
Test Condition
TA = 0 ℃
Note:
The temperature sensor formula for the output voltage (Vtemp) is as below equation.
Vtemp (mV) = Gain (mV/℃) x Temperature (℃) + Offset (mV)
8.4.7 Comparator
M051 DN/DE SERIES DATASHEET
Symbol
Parameter
Min
VCMP
Supply Voltage
2.5
TA
Temperature
-40
ICMP
Operation Current
-
VOFF
Input Offset Voltage
VSW
Output Swing
VCOM
Max
Unit
5.5
V
25
85
℃
-
50
100
μA
AVDD = 5 V
10
20
mV
-
0.1
-
AVDD - 0.1
V
-
Input Common Mode Range
0.1
-
AVDD – 0.1
V
-
-
DC Gain
40
70
-
dB
-
TPGD
Propagation Delay
-
200
-
ns
VCM = 1.2 V,
VDIFF = 0.1 V
VHYS
Hysteresis
-
±20
±30
mV
TSTB
Stable time
-
-
1
μs
Oct. 05, 2015
Typ
Page 66 of 86
Test Condition
Rev 1.03
M051 DN/DE
8.5
Flash DC Electrical Characteristics
Symbol
Parameter
Min
Typ
Max
Unit
VFLA[1]
Supply Voltage
1.62
1.8
1.98
V
TRET
Data Retention
10
-
-
year
TERASE
Page Erase Time
-
3
-
ms
TPROG
Program Time
-
40
-
us
IDD1
Read Current
-
0.25
-
mA
IDD2
Program Current
-
7
-
mA
IDD3
Erase Current
-
20
-
mA
Test Condition
TA = 85℃
Notes:
1.
2.
8.6
8.6.1
VFLA is source from chip LDO output voltage.
Guaranteed by design, and not tested in production.
SPI Dynamic Characteristics
Dynamic Characteristics of Data Input and Output Pin
SYMBOL
PARAMETER
MIN.
TYP.
MAX.
UNIT
SPI MASTER MODE (VDD = 4.5 V ~ 5.5 V, 30 PF LOADING CAPACITOR)
tDS
Data setup time
0
-
-
ns
tDH
Data hold time
4
-
-
ns
tV
Data output valid time
-
9
11
ns
tDS
Data setup time
0
-
-
ns
tDH
Data hold time
4
-
-
ns
tV
Data output valid time
-
19.5
20.5
ns
SPI SLAVE MODE (VDD = 4.5 V ~ 5.5 V, 30 PF LOADING CAPACITOR)
tDS
Data setup time
0
-
-
ns
tDH
Data hold time
4
-
-
ns
tV
Data output valid time
-
26
34
ns
SPI SLAVE MODE (VDD = 3.0 V ~ 3.6 V, 30 PF LOADING CAPACITOR)
tDS
Data setup time
0
-
-
ns
tDH
Data hold time
4
-
-
ns
tV
Data output valid time
-
44
48
ns
Oct. 05, 2015
Page 67 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
SPI MASTER MODE (VDD = 3.0 V ~ 3.6 V, 30 PF LOADING CAPACITOR)
M051 DN/DE
9
M05XXDE ELECTRICAL CHARACTERISTICS
9.1
Absolute Maximum Ratings
Symbol
Parameter
Min
Max
Unit
VDD VSS
DC Power Supply
-0.3
+7.0
V
VSS - 0.3
VDD + 0.3
V
4
24
MHz
VIN
1/tCLCL
Input Voltage
Oscillator Frequency
TA
Operating Temperature
-40
+105
℃
TST
Storage Temperature
-55
+150
℃
IDD
Maximum Current into VDD
-
120
mA
ISS
Maximum Current out of VSS
-
120
mA
Maximum Current sunk by an I/O pin
-
35
mA
Maximum Current sourced by an I/O pin
-
35
mA
Maximum Current sunk by total I/O pins
-
100
mA
Maximum Current sourced by total I/O pins
-
100
mA
IIO
Note: Exposure to conditions beyond those listed under absolute maximum ratings may adversely affects the
life and reliability of the device.
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 68 of 86
Rev 1.03
M051 DN/DE
9.2
DC Electrical Characteristics
(VDD - VSS = 2.5 ~ 5.5 V, TA = 25C)
Symbol
Min
Typ
Max
Unit
Operation voltage
2.5
-
5.5
V
VSS /
AVSS
Power Ground
-0.3
0
0.3
V
VLDO
LDO Output Voltage
1.62
1.8
1.98
V
VDD ≥ 2.5 V
1.22
1.25
1.28
V
VDD = 2.5 V ~ 5.5 V, TA = 25C
1.18
1.25
1.32
V
-0.3
0
0.3
V
-
21
-
mA
VDD
VBG
VDDAVDD
IDD1
Parameter
Band-gap Voltage
Allowed voltage
difference for VDD and
AVDD
Operating Current
Normal Run Mode
IDD2
HCLK = 50 MHz
Test Conditions
VDD = 2.5 V ~ 5.5 V up to 50 MHz
VDD = 2.5 V ~ 5.5 V,
TA = -40C~105C
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
12 MHz
X
V
V
-
15
-
mA
5.5V
12 MHz
X
V
X
-
20
-
mA
3.3V
12 MHz
X
V
V
-
13
-
mA
3.3V
12 MHz
X
V
X
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
X
V
X
V
while(1){}
IDD3
executed from flash
IDD4
IDD5
Operating Current
-
6.6
-
mA
Normal Run Mode
HCLK =22.1184 MHz
-
3.7
-
mA
5.5V
X
V
X
X
-
6.4
-
mA
3.3V
X
V
X
V
-
3.6
-
mA
3.3V
X
V
X
X
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
12 MHz
X
X
V
while(1){}
IDD7
executed from flash
IDD8
IDD9
Operating Current
-
5.4
-
mA
Normal Run Mode
IDD10
HCLK = 12 MHz
-
3.6
-
mA
5.5V
12 MHz
X
X
X
-
4
-
mA
3.3V
12 MHz
X
X
V
IDD12
-
2.3
-
mA
3.3V
12 MHz
X
X
X
VDD
HXT
HIRC
PLL
IDD13
-
3.3
-
mA
All digital
modules
5.5V
4 MHz
X
X
V
while(1){}
IDD11
executed from flash
Operating Current
Normal Run Mode
IDD14
HCLK =4 MHz
-
2.5
-
mA
5.5V
4 MHz
X
X
X
-
2.0
-
mA
3.3V
4 MHz
X
X
V
-
1.3
-
mA
3.3V
4 MHz
X
X
X
while(1){}
IDD15
executed from flash
IDD16
Oct. 05, 2015
Page 69 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
IDD6
M051 DN/DE
IDD17
Operating Current
-
110
-
HXT
HIRC
LIRC
PLL
All digital
modules
5.5V
X
X
V
X
V[4]
μA
Normal Run Mode
HCLK = 10 kHz
VDD
-
105
-
μA
5.5V
X
X
V
X
X
-
92
-
μA
3.3V
X
X
V
X
V[4]
IDD20
-
90
-
μA
3.3V
X
X
V
X
X
IIDLE1
-
17
-
mA
IDD18
while(1){}
IDD19
Executed from Flash
Operating Current
IIDLE2
Idle Mode
VDD
HXT
HIRC
PLL
All digital
modules
5.5V
12 MHz
X
V
V
-
10
-
mA
5.5V
12 MHz
X
V
X
IIDLE3
-
14
-
mA
3.3V
12 MHz
X
V
V
IIDLE4
-
6
-
mA
3.3V
12 MHz
X
V
X
VDD
HXT
HIRC
PLL
IIDLE5
-
5.2
-
mA
All digital
modules
5.5V
X
V
X
V
HCLK = 50 MHz
Operating Current
IIDLE6
Idle Mode
-
2
-
mA
5.5V
X
V
X
X
IIDLE7
-
5
-
mA
3.3V
X
V
X
V
IIDLE8
-
1.8
-
mA
3.3V
X
V
X
X
VDD
HXT
HIRC
PLL
IIDLE9
-
4.3
-
mA
All digital
modules
5.5V
12 MHz
X
X
V
mA
5.5V
12 MHz
X
X
X
HCLK =22.1184 MHz
Operating Current
M051 DN/DE SERIES DATASHEET
IIDLE10
Idle Mode
2.4
HCLK =12 MHz
IIDLE11
-
3.2
-
mA
3.3V
12 MHz
X
X
V
IIDLE12
-
1.3
-
mA
3.3V
12 MHz
X
X
X
VDD
HXT
HIRC
PLL
IIDLE13
-
2.9
-
mA
All digital
modules
5.5V
4 MHz
X
X
V
Operating Current
IIDLE14
Idle Mode
-
2.1
-
mA
5.5V
4 MHz
X
X
X
IIDLE15
-
1.8
-
mA
3.3V
4 MHz
X
X
V
IIDLE16
-
1
-
mA
3.3V
4 MHz
X
X
X
IIDLE17
-
106
-
μA
HCLK =4 MHz
Operating Current
Idle Mode
VDD
HXT
HIRC
LIRC
PLL
All digital
modules
5.5V
X
X
V
X
V[4]
-
104
-
μA
5.5V
X
X
V
X
X
IIDLE19
-
90
-
μA
3.3V
X
X
V
X
V[4]
IIDLE20
-
89
-
μA
3.3V
X
X
V
X
X
-
10
-
A
IIDLE18
at 10 kHz
IPWD1
Standby Current
Oct. 05, 2015
VDD = 5.5 V, All oscillators and analog blocks turned off.
Page 70 of 86
Rev 1.03
M051 DN/DE
Power-down Mode
IPWD2
(Deep Sleep Mode)
-
8
-
A
VDD = 3.3 V, All oscillators and analog blocks turned off.
IIL
Logic 0 Input Current
P0/1/2/3/4 (Quasibidirectional mode)
-
-65
-75
A
VDD = 5.5 V, VIN = 0V
ITL
Logic 1 to 0 Transition
Current P0/1/2/3/4
(Quasi-bidirectional
mode) [*3]
-
-510
-650
A
VDD = 5.5 V, VIN = 2.0V
ILK
Input Leakage Current
P0/1/2/3/4
-1
-
+1
A
Input Low Voltage
P0/1/2/3/4 (TTL input)
-0.3
-
0.8
VIL1
VIH1
VIL3
VIH3
VILS
Input High Voltage
P0/1/2/3/4 (TTL input)
Input Low Voltage
XT1[*2]
Input High Voltage
XT1[*2]
Negative going
threshold
VDD = 5.5 V, 0 < VIN < VDD
Open-drain or input only mode
VDD = 4.5 V
V
-0.3
-
0.6
2.0
-
VDD + 0.3
VDD = 2.5 V
VDD = 5.5 V
V
1.5
-
VDD + 0.3
VDD = 3.0 V
0
-
0.8
0
-
0.4
3.5
-
VDD + 0.3
2.4
-
VDD + 0.3
-0.3
-
0.2 VDD
V
0.7 VDD
-
VDD + 0.3
V
150
kΩ
V
VDD = 4.5 V
VDD = 2.5 V
V
VDD = 5.5 V
VDD = 3.0 V
(Schmitt input), nRST
VIHS
Positive going
threshold
(Schmitt input), nRST
VILS
VIHS
Internal nRST pin pull
up resistor
Negative going
threshold
(Schmitt input),
P0/1/2/3/4
Positive going
threshold
(Schmitt input),
P0/1/2/3/4
ISR11
ISR12
Source Current
P0/1/2/3/4 (Quasibidirectional Mode)
ISR13
ISR21
ISR22
Source Current
P0/1/2/3/4 (Push-pull
Mode)
ISR23
ISK11
ISK12
Sink Current
P0/1/2/3/4 (Quasibidirectional, Open-
Oct. 05, 2015
40
-0.3
-
0.3 VDD
V
0.7 VDD
-
VDD + 0.3
V
-300
-370
-
A
VDD = 4.5 V, VS = 2.4 V
-50
-70
-
A
VDD = 2.7 V, VS = 2.2 V
-40
-60
-
A
VDD = 2.5 V, VS = 2.0 V
-20
-25
-
mA
VDD = 4.5 V, VS = 2.4 V
-3
-5
-
mA
VDD = 2.7 V, VS = 2.2 V
-2.5
-4.5
-
mA
VDD = 2.5 V, VS = 2.0 V
10
15
-
mA
VDD = 4.5 V, VS = 0.45 V
6
9
-
mA
VDD = 2.7 V, VS = 0.45 V
Page 71 of 86
M051 DN/DE SERIES DATASHEET
RRST
Rev 1.03
M051 DN/DE
ISK13
Drain and Push-pull
Mode)
5
8
-
mA
VDD = 2.5 V, VS = 0.45 V
Notes:
1. nRST pin is a Schmitt trigger input.
2. XTAL1 is a CMOS input.
3. Pins of P0, P1, P2, P3 and P4 can source a transition current when they are being externally driven from 1
to 0. In the condition of VDD=5.5V, the transition current reaches its maximum value when V IN
approximates to 2V.
4. Only enable modules which support 10 kHz LIRC clock source.
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 72 of 86
Rev 1.03
M051 DN/DE
9.3
AC Electrical Characteristics
9.3.1
External Input Clock
tCLCL
tCLCH
0.7 VDD
90%
tCLCX
10%
0.3 VDD
tCHCL
tCHCX
Note: Duty cycle is 50%.
Symbol
Parameter
Min
Typ
Max
Unit
Test Conditions
tCHCX
Clock High Time
10
-
-
ns
-
tCLCX
Clock Low Time
10
-
-
ns
-
tCLCH
Clock Rise Time
2
-
15
ns
-
tCHCL
Clock Fall Time
2
-
15
ns
-
9.3.2
External 4~24 MHz High Speed Crystal (HXT)
Parameter
Min.
Typ.
Max
Unit
Test Conditions
VHXT
Operation Voltage
2.5
-
5.5
V
-
TA
Temperature
-40
-
105
℃
-
-
2
-
mA
12 MHz, VDD = 5.5V
IHXT
Operating Current
-
0.8
-
mA
4
-
24
MHz
fHXT
9.3.3
Clock Frequency
12 MHz, VDD = 3.3V
-
Typical Crystal Application Circuits
Crystal
C1
C2
4 MHz ~ 24 MHz
10~20 pF
10~20 pF
Oct. 05, 2015
Page 73 of 86
Rev 1.03
M051 DN/DE SERIES DATASHEET
Symbol
M051 DN/DE
XTAL1
XTAL2
4~24 MHz
Crystal
C1
Vss
C2
Vss
Figure 9-1 M05xDE Typical Crystal Application Circuit
9.3.4
22.1184 MHz Internal High Speed RC Oscillator (HIRC)
Symbol
Parameter
Min
Typ
Max
Unit
Test Conditions
VHRC
Supply Voltage
1.62
1.8
1.98
V
-
Center Frequency
-
22.1184
MHz
-
-1
-
+1
%
-2
-
+2
%
-
800
-
μA
fHRC
Calibrated Internal
Oscillator Frequency
IHRC
Operating Current
TA = 25 ℃
VDD = 5 V
TA = -40 ℃ ~ 105 ℃
VDD = 2.5 V ~ 5.5 V
TA = 25 ℃,VDD = 5 V
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 74 of 86
Rev 1.03
M051 DN/DE
HIRC oscillator accuracy vs. temperature
1.00
0.80
Deviation Percentage %
0.60
0.40
0.20
0.00
Max
-0.20
Min
-0.40
-0.60
-0.80
-1.00
-40 -30 -20 -10 0 10 20 25 30 40 50 60 70 80 85 90 100 110
TA ℃
Figure 9-2 HIRC Accuracy vs. Temperature
10 kHz Internal Low Speed RC Oscillator (LIRC)
Symbol
Parameter
Min
Typ
Max
Unit
Test Conditions
VLRC
Supply Voltage
2.5
-
5.5
V
-
Center Frequency
-
10
-
kHz
-
-10
-
+10
%
-40
-
+40
%
fLRC
VDD = 2.5 V ~ 5.5 V
TA = 25℃
Oscillator Frequency
Oct. 05, 2015
Page 75 of 86
VDD = 2.5 V ~ 5.5 V
TA = -40℃ ~ +105℃
Rev 1.03
M051 DN/DE SERIES DATASHEET
9.3.5
M051 DN/DE
9.4
Analog Characteristics
9.4.1 12-bit SAR ADC
Symbol
Min
Typ
Max
Unit
Test Condition
Resolution
-
-
12
Bit
-
DNL
Differential Nonlinearity Error
-
±1
-1~+4
LSB
-
INL
Integral Nonlinearity Error
-
±2
±4
LSB
-
EO
Offset Error
-
2
4
LSB
-
EG
Gain Error (Transfer Gain)
-
-2
-4
LSB
-
EA
Absolute Error
-
3
4
LSB
-
-
-
-
-
Parameter
Monotonic
Guaranteed
-
FADC
FS
-
20
ADC Clock Frequency
AVDD = 4.5~5.5 V
MHz
-
-
8
AVDD = 2.5~5.5 V
-
-
1000
kSPS
AVDD = 4.5~5.5 V
-
-
400
kSPS
AVDD = 2.5~5.5 V
Sample Rate (FADC/TCONV)
TACQ
Acquisition Time (Sample Stage)
7
1/FADC
-
TCONV
Total Conversion Time
20
1/FADC
-
AVDD
Supply Voltage
-
2.5
-
5.5
V
M051 DN/DE SERIES DATASHEET
IDDA
Supply Current (Avg.)
-
2.5
-
mA
VIN
Analog Input Voltage
0
-
AVDD
V
-
CIN
Input Capacitance
-
3.2
-
pF
-
RIN
Input Load
-
6
-
kΩ
-
Oct. 05, 2015
Page 76 of 86
AVDD = 5 V
Rev 1.03
M051 DN/DE
EF (Full scale error) = EO + EG
Gain Error
EG
Offset Error
EO
4095
4094
4093
4092
Ideal transfer curve
7
6
ADC
output
code
5
Actual transfer curve
4
3
2
DNL
1
1 LSB
Offset Error
EO
4095
Analog input voltage
(LSB)
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
VDD
DC Power Supply
2.5
-
5.5
V
-
VLDO
Output Voltage
1.62
1.8
1.98
V
-
TA
Temperature
-40
25
105
℃
CLDO
Capacitor
-
1
-
μF
RESR = 1Ω
Notes:
1.
2.
It is recommended a 0.1μF bypass capacitor is connected between VDD and the closest VSS pin of the
device.
For ensuring power stability, a 1μF or higher capacitor must be connected between LDO_CAP pin and
the closest VSS pin of the device.
9.4.3 Low Voltage Reset
Symbol
Parameter
Oct. 05, 2015
Min
Typ
Page 77 of 86
Max
Unit
Test Condition
Rev 1.03
M051 DN/DE SERIES DATASHEET
9.4.2 LDO & Power Management
M051 DN/DE
AVDD
Supply Voltage
0
-
5.5
V
-
TA
Temperature
-40
25
105
℃
-
ILVR
Quiescent Current
-
1
5
μA
AVDD = 5.5 V
1.90
2.00
2.10
V
TA = 25 ℃
1.70
1.90
2.05
V
TA = -40 ℃
2.00
2.20
2.45
V
TA = 105 ℃
VLVR
Threshold Voltage
9.4.4 Brown-out Detector
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
AVDD
Supply Voltage
0
-
5.5
V
-
TA
Temperature
-40
25
105
℃
-
IBOD
Quiescent Current
-
-
140
μA
AVDD = 5.5 V
4.2
4.38
4.55
V
BOV_VL [1:0] = 11
Brown-out Voltage
3.5
3.68
3.85
V
BOV_VL [1:0] = 10
(Falling edge)
2.5
2.68
2.85
V
BOV_VL [1:0] = 01
2.0
2.18
2.35
V
BOV_VL [1:0] = 00
4.3
4.52
4.75
V
BOV_VL [1:0] = 11
Brown-out Voltage
3.5
3.8
4.05
V
BOV_VL [1:0] = 10
(Rising edge)
2.5
2.77
3.05
V
BOV_VL [1:0] = 01
2.0
2.25
2.55
V
BOV_VL [1:0] = 00
VBOD
VBOD
M051 DN/DE SERIES DATASHEET
9.4.5 Power-on Reset
Symbol
Parameter
Min
Typ
Max
Unit
Test Condition
TA
Temperature
-40
25
105
℃
-
VPOR
Reset Voltage
1.6
2
2.4
V
-
VPOR
VDD Start Voltage to Ensure
Power-on Reset
-
-
100
mV
RRVDD
VDD Raising Rate to Ensure
Power-on Reset
0.025
-
-
V/ms
tPOR
Minimum Time for VDD Stays at
VPOR to Ensure Power-on Reset
0.5
-
-
ms
Oct. 05, 2015
Page 78 of 86
Rev 1.03
M051 DN/DE
VDD
tPOR
RRVDD
VPOR
Time
Figure 9-3 Power-up Ramp Condition
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 79 of 86
Rev 1.03
M051 DN/DE
9.4.6 Temperature Sensor
Symbol
Parameter
Min
Typ
Max
Unit
TA
Temperature
-40
-
105
℃
ITEMP
Current Consumption
-
16
-
μA
-
Gain
-1.55
-1.65
-1.75
mV/℃
-
Offset
735
745
755
mV
Test Condition
TA = 0 ℃
Note:
The temperature sensor formula for the output voltage (Vtemp) is as below equation.
Vtemp (mV) = Gain (mV/℃) x Temperature (℃) + Offset (mV)
9.4.7 Comparator
M051 DN/DE SERIES DATASHEET
Symbol
Parameter
Min
Typ
Max
Unit
VCMP
Supply Voltage
2.5
-
5.5
V
TA
Temperature
-40
25
105
℃
-
ICMP
Operation Current
-
35
70
μA
AVDD = 5 V
VOFF
Input Offset Voltage
10
20
mV
-
VSW
Output Swing
0.1
-
AVDD - 0.1
V
-
VCOM
Input Common Mode Range
0.1
-
AVDD – 0.1
V
-
-
DC Gain
40
70
-
dB
-
TPGD
Propagation Delay
-
200
-
ns
VCM = 1.2 V,
VDIFF = 0.1 V
VHYS
Hysteresis
-
±40
±60
mV
TSTB
Stable time
-
-
1
μs
Oct. 05, 2015
Page 80 of 86
Test Condition
Rev 1.03
M051 DN/DE
9.5
Flash DC Electrical Characteristics
Symbol
Parameter
Min
Typ
Max
Unit
VFLA[2]
Supply Voltage
1.62
1.8
1.98
V
NENDUR
Endurance
20,000
-
-
cycles[1]
TRET
Data Retention
10
-
-
year
TERASE
Page Erase Time
-
20
-
ms
TPROG
Program Time
-
40
-
us
IDD1
Read Current
-
6
-
mA
IDD2
Program Current
-
8
-
mA
IDD3
Erase Current
-
12
-
mA
Test Condition
TA = 85℃
Notes:
1.
2.
3.
Number of program/erase cycles.
VFLA is source from chip LDO output voltage.
Guaranteed by design, not test in production.
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 81 of 86
Rev 1.03
M051 DN/DE
9.6
9.6.1
SPI Dynamic Characteristics
Dynamic Characteristics of Data Input and Output Pin
SYMBOL
PARAMETER
MIN.
TYP.
MAX.
UNIT
SPI MASTER MODE (VDD = 4.5 V~5.5V, 30 PF LOADING CAPACITOR)
tW(SCKH)
tW(SCKL)
SPI high and low time, peripheral clock
= 20MHz
tDS
22.5
-
27.5
ns
Data input setup time
0
-
-
ns
tH(MI)
Data input hold time
5
-
-
ns
tV
Data output valid time
-
1
2
ns
tH(MO)
Data output hold time
1
-
-
ns
SPI MASTER MODE (VDD = 3.0~3.6 V, 30 PF LOADING CAPACITOR)
tW(SCKH)
tW(SCKL)
SPI high and low time, peripheral clock
= 20MHz
tDS
22.5
-
27.5
ns
Data input setup time
0
-
-
ns
tH(MI)
Data input hold time
4
-
-
ns
tV
Data output valid time
0
1
ns
tH(MO)
Data output hold time
-
-
ns
1
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 82 of 86
Rev 1.03
M051 DN/DE
10 PACKAGE DIMENSIONS
10.1 LQFP-48 (7x7x1.4mm2 Footprint 2.0mm)
H
36
25
37
24
48
13
H
12
1
Controlling dimension : Millimeters
A
A1
A2
b
c
D
E
e
HD
HE
L
L1
Y
0
Oct. 05, 2015
Dimension in inch
Dimension in mm
Min Nom Max
Min Nom Max
0.002 0.004
0.006
0.05
0.053 0.055
0.057
1.35
1.40
1.45
0.006 0.008
0.010
0.15
0.20
0.25
0.004 0.006
0.008
0.10
0.15
0.20
0.272 0.276
0.280
6.90
7.00
7.10
0.272 0.276
0.280
6.90
7.00
7.10
0.020
0.026
0.35
0.50
0.65
0.014
0.10
0.15
0.350
0.354
0.358
8.90
9.00
9.10
0.350
0.354
0.358
8.90
9.00
9.10
0.018
0.024
0.030
0.45
0.60
0.75
1.00
0.039
0.004
0
M051 DN/DE SERIES DATASHEET
Symbol
7
Page 83 of 86
0.10
0
7
Rev 1.03
M051 DN/DE
10.2 QFN-33 (5X5 mm2, Thickness 0.8mm, Pitch 0.5 mm)
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 84 of 86
Rev 1.03
M051 DN/DE
11 REVISION HISTORY
Date
Revision
Description
2013.09.15
1.00
1.
Initially issued.
2014.06.03
1.01
1.
Modified M05xDN LVR specification
1.
Changed the order of Chapter 5 BLOCK DIAGRAM and
Chapter 6 FUNCTIONAL DESCRIPTION.
2.
Fixed typos and obscure description.
3.
Fixed the number of COMP. sets in 4.1 NuMicro M051
®
Series M05xxDN Selection Guide and 4.2 NuMicro M051
Series M05xxDE Selection Guide
4.
Added clock switching note in Chapter 6.3 Clock
Controller.
5.
Removed description about ACMP output inverse function
available on M05xxDN.
1.
Changed NuMicro™ to NuMicro .
2.
Updated Figure 5-1 NuMicro M051 DN/DE Series Block
Diagram.
2015.05.12
2015.10.05
1.02
1.03
®
®
®
M051 DN/DE SERIES DATASHEET
Oct. 05, 2015
Page 85 of 86
Rev 1.03
M051 DN/DE
M051 DN/DE SERIES DATASHEET
Important Notice
Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any
malfunction or failure of which may cause loss of human life, bodily injury or severe property
damage. Such applications are deemed, “Insecure Usage”.
Insecure usage includes, but is not limited to: equipment for surgical implementation, atomic
energy control instruments, airplane or spaceship instruments, the control or operation of
dynamic, brake or safety systems designed for vehicular use, traffic signal instruments, all
types of safety devices, and other applications intended to support or sustain life.
All Insecure Usage shall be made at customer’s risk, and in the event that third parties lay
claims to Nuvoton as a result of customer’s Insecure Usage, customer shall indemnify the
damages and liabilities thus incurred by Nuvoton.
Oct. 05, 2015
Page 86 of 86
Rev 1.03
工商网监
湘ICP备2023018690号
