VLR-04V

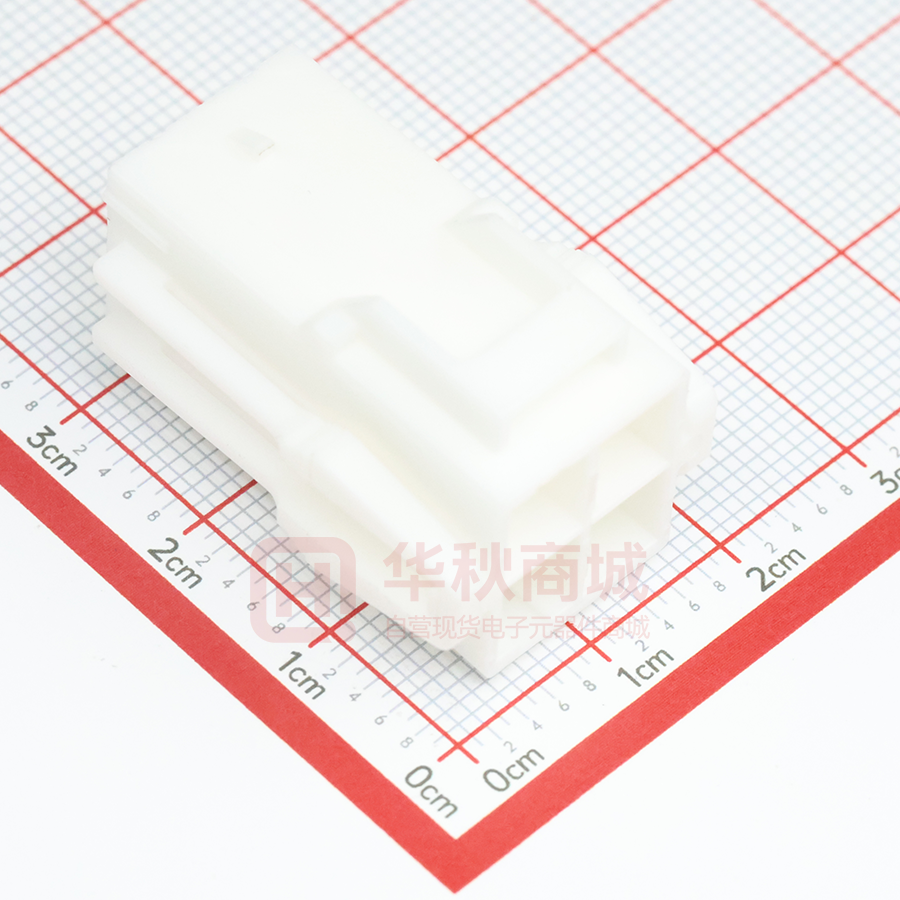

VL CONNECTOR 6.2mm pitch/Disconnectable Crimp style Wire-to-wire connectors (Combined use for both wire-to-board and wire-to-wire connections) Specifications ––––––––––––––––––– This VL connector is designed for wire-to-wire and wire-to-board 6.2 mm pitch connector corresponding to large current up to 20 A (1 or 2-circuit with 3.5 mm2 wire). Secondary retainer, which prevents from insufficient insertion of contact and coming off contact, may use and large current circuit can be connected certainly and safety. • Housing lances for contact retention • Secondary retainer • Suited for circuits with high power requirements • Panel lock construction Standards –––––––––––––––––––– 0 Recognized E60389 1 Certified LR20812 2R9351103 • Current rating: 20 A AC, DC max. • Voltage rating: 600 V AC, DC max. • Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/ 7 mΩ max. After environmental tests/ 10 mΩ max. • Insulation resistance: 1,000 MΩ min. • Withstanding voltage: 2,000 VAC/minute • Applicable wire: AWG #22 to #12 0.3 to 3.5 mm2 • Applicable panel thickness: 0.5 to 2.0 mm * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. * Compliant with RoHS. Note: The current rating varies depending on the number of circuits and the wire size used in each connector. The table below lists the current rating as a function of the number of circuits and the wire size. Current unit: A Circuits 1 2 3 4 6 8 12 #12 #14 20 20 19 18 16 16 15 15 15 14 13 12 11 10 Wire size (AWG) #16 #18 10 10 9 9 8 7 7 #20 #22 6 6 6 6 5 5 4 4 4 4 4 3 3 3 8 8 8 7 7 6 6 Inner-housing lock Inner-housing lock 12.2 19.3 (including retainer) Panel layout and Assembly layout 40.5 40.5 44.1 (including retainer) 44.1 (including retainer) Outer-housing lock 14.6 21.7 (including retainer) Outer-housing lock 40.5 40.5 44.1 (including retainer) 44.1 (including retainer) Shape I Shape II 9.8±0.13 B 18.6±0.13 C E D 2 12.2±0.13 C E A 0.5±0.13 4.2±0.13 Circuits D 9.8 ±0.13 3 4 4 (Single-row) 6 A 8 B 12 Receptacle housing Model No. VLR-02V VLR-03V VLR-04V VLR-04VN VLR-06V VLR-08V VLR-12V Note: 1. Punch holes in the panel according to the figures and table shown above. Burrs must be removed. 2. The strength of the panel must be considered when punching two or more holes. 3. The connector must be inserted from the same side as the hole is punched. 1 Panel hole dimensions (mm) General tolerance Panel hole shape A B C D E 1 13.8 20.6 5.7 8.5 1.4 1 20.0 26.8 5.7 8.5 1.4 2 13.8 20.6 7.0 15.4 4.2 1 26.2 33.0 5.7 8.5 1.4 2 20.0 26.8 7.0 15.4 4.2 2 26.2 33.0 7.0 15.4 4.2 2 38.9 45.4 7.0 15.4 4.2 A, B, D: ±0.13 C, E: ±0.1 Applicable panel thickness (mm) 0.5∼2.0 VL CONNECTOR Contact Applicable wire mm2 AWG # Model No. Pin contact Socket contact Pin contact SVF-42T-P2.0 SVM-61T-P2.0 SVF-61T-P2.0 SVM-81T-P2.0 SVF-81T-P2.0 4.1 3.2 TSJ 22.2 3.6 2 0.3∼1.25 22∼16 1.7∼3.2 0.3+0.3∼ 0.5+0.75 22+22∼ 20+18 1.7+1.7∼ 2.5+2.7 0.5∼2.0 20∼14 1.9∼3.4 0.5+0.5∼ 0.75+1.25 20+20∼ 18+16 1.9+1.9∼ 2.1+2.7 3.5 12 4.1 Q'ty/ reel 2,000 3.1 1.7 SVM-42T-P2.0 Insulation O.D. (mm) 2 Material and Finish Phosphor bronze, tin-plated (reflow treatment) Socket contact 4.1 TSJ RoHS compliance Note: Contact JST for special products. SVM-42T-P2.0 16.7 3.6 2 1.7 − SVM-61T-P2.0 MKS-L AP-K2N Crimp applicator with dies MK/SVF/M-42-20 APLMK SVF/M42-20 MKS-L SVF-42T-P2.0 SVF-61T-P2.0 3.1 Applicator Dies Crimping machine Crimp applicator Contact − − MK/SVF/M-61-20 APLMK SVF/M61-20 − − − SVM-81T-P2.0 MKS-L SVF-81T-P2.0 − MK/SVF/M-81-20 APLMK SVF/M81-20 − − Note: Contact JST for fully automatic crimping applicator. Contact position location numbers Retainer Retainer Contact position numbers are stamped Receptacle housing Plug housing Receptacle housing 5 4 9 3 8 2 7 1 12 11 10 9 8 7 L JST 10 1 5 L JST 11 2 6 L JST 4 3 2 1 6 12 L JST 1 4 1 8 7 6 5 3 7 2 2 1 6 3 5 2 4 1 4 3 5 L JST 1 3 1 L JST 6 3 2 L JST L JST 4 2 3 1 8 4 2 4 3 2 1 3 2 1 2 1 4 3 2 1 6 5 4 3 2 1 Plug housing L JST 3 2 4 2 4 1 3 L JST 4 3 2 1 12 11 8 7 9 L JST 10 5 4 3 8 7 6 5 2 L JST 6 1 5 L JST 4 3 2 1 1 8 7 4 3 3 6 2 5 1 4 2 6 5 3 4 L JST 12 11 10 9 8 7 2 10 9 8 1 7 L JST 6 5 4 3 2 1 1 12 11 6 5 4 3 5 8 7 6 5 2 8 7 6 L JST 3 4 5 4 2 1 6 3 2 1 L JST 3 6 2 5 1 4 4 3 2 1 6 1 1 1 3 2 3 2 1 3 L JST 2 1 2 L JST 2 L JST 4 2 2 4 1 3 1 1 3 2 JST 2 1 1 3 3 2 1 L 2 L JST 1 1 4 L JST 6 5 4 3 2 1 12 11 10 9 8 7 L JST 2 VL CONNECTOR Housing Material: Housing...PA 66, UL94V-0, white Retainer...Glass-filled PA 66, UL94V-0, ivory Voltage Current rating rating Receptacle housing (for pin contact) 600V 20A VLP-01V Q'ty/ bag 7.2 1 Q'ty/ bag Retainer VLS-01V Q'ty/ bag 7.2 VLR-01VF (Without panel product) Plug housing (for socket contact) 500 9.2 3 Q'ty/ bag 11 2.8 7.3 VLP-02V Q'ty/ bag L JST 13.4 2 L JST 13.4 1,000 500 9.4 2 3.4 VLR-02V 13 29.5 6.2 Circuits 9.4 VLS-02V (commonly used for 2-circuit housing and 4-circuit housing) Q'ty/ bag 1 1 13 20A 8.2 11 2.8 8.4 29.5 3 500 VLP-02V-1 500 9.4 1 L JST 15 L JST 2 13.4 1,000 5.9 2 VLR-02VF (Without panel lock product) 11.4 600V 3.4 2 1 8.2 13 29.5 3 Q'ty/ bag 5.2 8.4 Q'ty/ bag VLP-03V Q'ty/ bag 2 JST 1 L 3.4 VLS-03V (commonly used for 3-circuit housing and 6-circuit housing) 19.6 3 VLR-03V 11 3 11 2.8 8.4 VLP-03V-1 500 1,000 29.5 19.6 3 5.9 9.4 1 8.2 2 L JST 3.4 3 1 500 17.6 19A 2 L JST 600V 19.6 13 3 13 5.2 8.4 VLP-04V Q'ty/ bag VLS-02V Q'ty/ bag 3 1 13.4 2 4 13.4 2 4 Q'ty/ bag 3.4 VLR-04V 11 1 3 L JST L JST 2.8 15.4 11.4 3 15 11 29.5 500 VLP-04V-1 500 3 13.4 1 L JST 1 L JST 15 3 13 29.5 VLR-04VN 5.2 15.4 VLP-04VN-1 Q'ty/ bag VLS-08V (commonly used for 4-circuit housing and 8-circuit housing) 500 Q'ty/ bag 4 3.4 Q'ty/ bag 11 23.8 18A 3 600V 9.4 15 2 4 4 1,000 5.9 2 VLR-04VF (Without panel lock product) 4 3.4 13 25.8 2 L JST 25.8 3 L JST 3 4 2 500 3.4 1 1 13 8.2 3 29.5 RoHS compliance Note: 1. Contact JST for special products. 2. Contact JST for Glow Wire compliant connectors. 3 11 5.2 8.4 5.9 9.4 1,000 VL CONNECTOR Housing Material: Housing...PA 66, UL94V-0, white Retainer...Glass-filled PA 66, UL94V-0, ivory Voltage rating Current rating Receptacle housing (for pin contact) VLR-06V Plug housing (for socket contact) VLP-06V Q'ty/ bag 5 VLS-03V (commonly used for 3-circuit housing and 6-circuit housing) Q'ty/ bag 4 1 3.4 2 6 3 Q'ty/ bag Retainer 19.6 Circuits L JST 2.8 15.4 17.6 19.6 11 2 16A 5 600V 3 6 6 13 500 VLP-06V-1 500 1,000 1 4 6 5.9 9.4 1 4 5 29.5 2 3 15 19.6 3.4 3 L JST 13 L JST 15.4 VLP-08V Q'ty/ bag 7 VLS-08V (commonly used for 4-circuit housing and 8-circuit housing) 6 1 5 2 3.4 L JST 3 8 Q'ty/ bag 4 Q'ty/ bag 5.2 25.8 VLR-08V 11 L JST 4 8 25.8 16A 15.4 L JST 600V 2.8 3 7 8 11 23.8 13 6 2 100 200 VLP-08V-1 1,000 1 5 7 5.9 L JST 29.5 9.4 1 5 2 6 3 15 25.8 3 3.4 4 8 L JST 13 L JST 15.4 VLP-12V 11 10 5 8 9 L JST 4 2 3 3.4 7 1 L JST 11 2.8 36.2 3 15.4 100 VLP-12V-1 1,000 100 2 8 12 11 5.9 10 29.5 8 2 RoHS compliance Note: 1. Contact JST for special products. 2. Contact JST for Glow Wire compliant connectors. 11 5.2 7 1 13 9.4 9 L JST 4 3 3 15 38.2 3.4 6 1 7 5 38.2 4 9 13 L JST 10 15A 5 11 600V Q'ty/ bag 6 12 12 VLS-12V 12 Q'ty/ bag 6 Q'ty/ bag 5.2 38.2 VLR-12V 11 15.4 4
