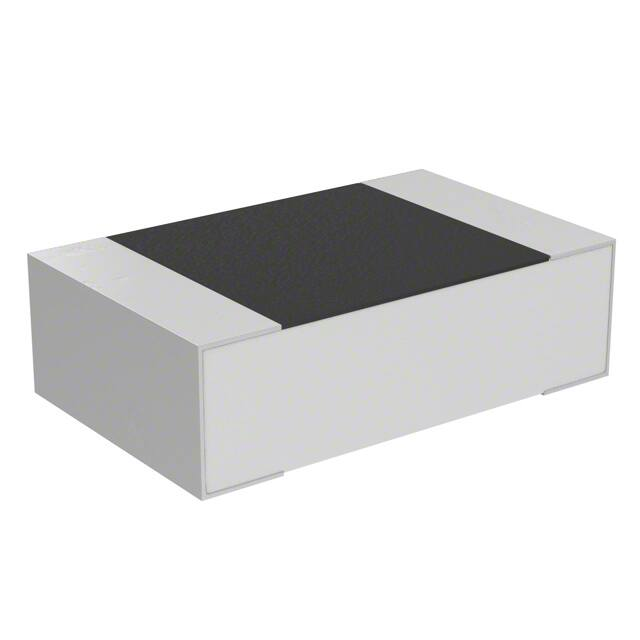

PF0603FRE7T0R01Z

CURRENT SENSOR-LOW TCR PF0603-series 5%,1%, size 0603 Product specification – Feb. 17, 2010 V0 RoHS Compliant & Halogen Free www.yageo.com 1 Chip Resistor Surface Mount SCOPE This specification describes PF0603 current sensor – low TCR chip resistors with lead-free terminations. PF SERIES 0603 ORDERING INFORMATION - GLOBAL PART NUMBER Part number is identified by the series name, size, tolerance, packaging type, temperature coefficient of resistance, taping reel, resistance value. X X X XX XXXX (1) (2) (3) (4) (5) APPLICATIONS PF0603 ● ● ● ● (1) TOLERANCE Power supplies Consumer(Mobile、PNDs、…) Laptop HDDs FEATURES ● Products with lead free terminations meet 6 Z (6) F = ±1% J = ±5% (2) PACKAGING TYPE R = Paper/PE taping reel RoHS requirements. ● High component and equipment reliability with high power rating 0.33W (1/3W). (3)TEMPERATURE COEFFICIENT OF RESISTANCE E=±50ppm/°C, M=±75ppm/°C, F=±100ppm/°C ● Low resistance 10mΩ and narrow tolerance ±1% can suitable for current detection. (4) TAPING REEL 07 = 7 inch dia. Reel & 0.1W(1/10W) 7W = 7 inch dia. Reel & Power Rating 0.2W(1/5W) 7T = 7 inch dia. Reel & Power Rating 0.33W(1/3W) 47 = 7 inch dia. Reel & Power Rating 0.4W 57 = 7 inch dia. Reel & Power Rating 0.5W (5) RESISTANCE VALUE 0R01 (10mR) to 0R1 (100mR) (6) Default Code Letter Z is system default code for order only(NOTE) ORDERING EXAMPLE The ordering code for a PF0603 0.2W chip resistor,TC100 value 0.068Ω(68mR) with ±1% tolerance, supplied in 7-inch tape reel with 5Kpcs quantify is: PF0603FRF7W0R068Z. NOTE 1. All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D reel label mentions "Lead Free Process". 2. On customized label, "LFP" or specific symbol can be printed. www.yageo.com 2 Chip Resistor Surface Mount PF SERIES 0603 6 MARKING PF0603: Fig.1 Value=10mΩ CONSTRUCTION OUTLINES The resistors are constructed out of For dimension see Table 1 a high-grade ceramic body. Internal metal electrodes are added at each end and connected by a resistive paste. The composition of the paste is adjusted to give the approximate required resistance and laser cutting of this resistive layer that achieves tolerance trims the value. The resistive layer is covered with a protective coat and printed with the resistance value. Finally, the two external terminations (matte tin) are added. See fig. 2. Fig.2 Chip resistor outlines DIMENSIONS Table 1 TYPE L (mm) W (mm) H (mm) I1 (mm) PF0603 1.60±0.20 0.80±0.20 0.60±0.15 0.30±0.15 www.yageo.com 3 Chip Resistor Surface Mount PF SERIES 0603 6 ELECTRICAL CHARACTERISTICS Table 2 CHARACTERISTICS PF0603 0.1W;0.2W;0.33W;0.4W;0.5W –55°C to +155°C Operating Temperature Range ( P * R) Maximum Working Voltage 10mΩ to 100mΩ Resistance Range ± 50ppm/℃,± 75ppm/℃, ±100ppm/°C Temperature Coefficient PACKING STYLE AND PACKAGING QUANTITY Table 3 PRODUCT TYPE PACKING STYLE REEL DIMENSION PF0603 Paper taping reel 7" (178 mm) QUANTITY PER REEL 5,000 Units FUNCTIONAL DESCRIPTION POWER RATING PF0603 rated power at 70°C is 0.1W; 0.2W ; 0.33W; 0.4W and 0.5W RATED VOLTAGE The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: U= ( P * R) Where U=Continuous rated DC or AC (rms) working voltage (v) P=Rated power R=Resistance value (Ω) www.yageo.com 4 Chip Resistor Surface Mount PF SERIES 0603 6 TAPING REEL Table 4 DIMENSION Tape Width(mm) 0603 8 ØA (mm) 180.0+0/-3 ØN (mm) ØC (mm) 60.0+1/-0 13.0±0.2 ØD (mm) W1 (mm) 21.0±0.8 8.4 +1/-0 W2 (mm) Max 18.4 Fig.4 Reel PAPER/PE TAPE SPECIFICATION Table 5 DIMENSION 0603 A0 (mm) 1.10±0.15 B0 (mm) W (mm) 1.90±0.15 8.0±0.30 E (mm) F (mm) 1.75±0.10 3.50±0.10 P0 (mm) P1 (mm) 4.0±0.10 4.0±0.10 P2 (mm) D0 (mm) 2.0±0.10 1.50±0.10 T (mm) 0.85±0.15 Fig.5 Paper/PE tape www.yageo.com 5 Chip Resistor Surface Mount PF SERIES 0603 6 FOOTPRINT DIMENSION Size Footprint PF0603 Dimensions Code unit :mm A B C D 2.10 0.60 0.75 0.92 Fig.6 RECOMMENDED FOOTPRINT DIMENSIONS www.yageo.com 6 Chip Resistor Surface Mount PF SERIES 0603 6 TESTS AND REQUIREMENTS TEST Life/ Endurance TEST METHOD IEC 60115-1 4.25.1 High Temperature Exposure/ Endurance at upper category temperature Moisture Resistance IEC 60068-2-2 Thermal Shock MIL-STD-202 Method 107G Short time overload IEC 60115-1 4.13 Board Flex/ Bending IEC 60068-2-21 Solderability - Wetting IPC/JEDEC J-STD-002B test B - Leaching IPC/JEDEC J-STD-002B test D - Resistance to Soldering Heat IEC 60068-2-58 MIL-STD-202 Method 106G PROCEDURE 1,000 hours at 70±5 °C applied RCWV 1.5 hours on, 0.5 hour off, still air required 1,000 hours at 155±5 °C,unpowered REQUIREMENT Each temperature / humidity cycle is defined at 8 hours (Method 106G), 3 cycles / 24 hours for 10d. with 25 °C / 65 °C 95% R.H, without steps 7a & 7b, un-powered Parts mounted on test-boards, without condensation on parts Measurement at 24±2 hours after test conclusion. -55/+125 °C Note: Number of cycles required is 300. Devices unmounted Maximum transfer time is 20 seconds. Dwell time is 15 minutes. Air – Air Applied 5 times of rating power 5 seconds at room temperature ± ( 0.5% + 0.0005Ω) Chips mounted on a 90mm glass epoxy resin PCB(FR4) 2 mm bending Bending time: 60±1 seconds Electrical Test not required Magnification 50X SMD conditions: 1st step: Method B, aging 4 hours at 155 °C dry heat 2nd step: leadfree solder bath at 245±3 °C Dipping time: 3±0.5 seconds Leadfree solder, 260 °C, 30 seconds immersion time ± (1.0 % + 0.0005Ω) Condition B, no pre-heat of samples Leadfree solder, 260±5 °C, 10±1seconds immersion time Procedure 2 for SMD: devices fluxed and cleaned with isopropanol ± ( 0.5% + 0.0005Ω) ± (1.0 % + 0.0005Ω) ± (1.0 % + 0.0005Ω) ± ( 1.0% + 0.0005Ω) ± (0.5% + 0.0005Ω) No visible damage Well tinned (>95% covered) No visible damage No visible damage No visible damage www.yageo.com 7 Chip Resistor Surface Mount PF SERIES 0603 6 REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 2010-02-17 - First issue of this specification Version 1 2010-12-16 - Range Extension Version 2 2011-6-15 - Dimension of Paper Tape Modify Version 3 2011-12-2 - Dimension of Paper Tape Modify www.yageo.com
