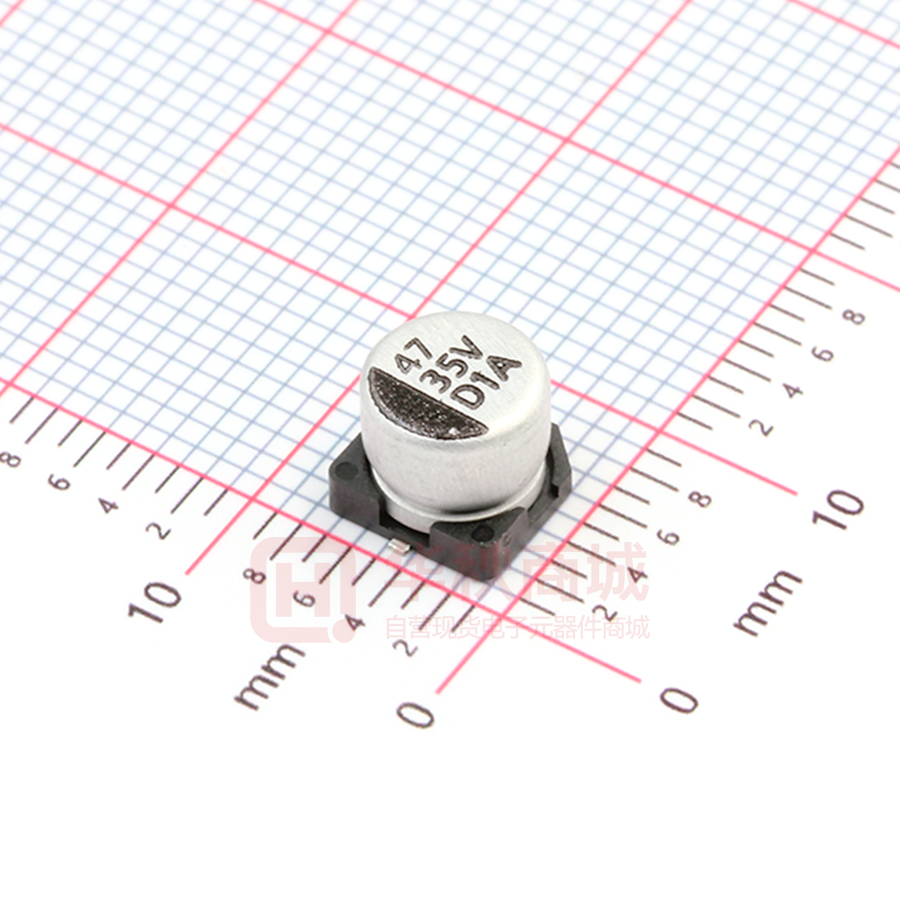

DV470M035E055ETR

ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES DV SERIES ▪ LOW IMPEDANCE, AUTOMOTIVE 105°C TYPE KEY FEATURES ▪ ▪ ▪ ▪ ▪ ALUMINUM ELECTROLYTIC CAPACITOR ▪ SMD type Endurance: 105°C ▪ 2 000 hours up to 5 000 hours Low impedance type Vibration-proof (VP) version (up to 30g) available upon request AEC-Q200 version available SPECIFICATIONS Items Operating Temperature Range Rated Voltage Range VR Surge Voltage VS Capacitance Range CR Cap. Tolerance ΔC Leakage Current ILEAK (20°C ▪ VR applied) Dissipation Factor % tanδ (20°C ▪ 120Hz) Low Temperature Characteristics at 120Hz Performance Characteristics -55 ~ +105°C 6.3 ~ 100V DC VS = 1.15∙VR 1 ~ 6800µF ±20% (120Hz ▪ 20°C) ≤ 0.01∙CR∙VR or 3µA, whichever is greater ▪ After 2 minutes [ ILEAK (µA) ; CR (µF) ; VR (V) ] VR (V DC) tanδ VR (V DC) Z ratio max. Z-25°C/Z+20°C Z-40°C/Z+20°C Z-55°C/Z+20°C 6.3 24 10 19 16 16 25 14 35 14 50 12 63 10 80 9 100 8 6.3 2 8 12 10 2 6 10 16 2 4 6 25 2 4 6 35 2 3 4 50 2 3 4 63 2 3 4 80 2 3 4 100 2 3 4 ~ Lifetime Test Endurance 105°C (VR applied) Shelf Life 105°C (VR = 0) Resistance to Soldering Heat CapXon_Ver. 004 – 01/07/2022 ≥ Ø 12.5mm 5 000 hours < Ø 12.5mm 2 000 hours △C/CR ≤ ±30% of initial measured value tanδ ≤ 300% of initial specified value ILeak ≤ the initial specified value Test 1 000 hours △C/CR ≤ ±30% of initial measured value tanδ ≤ 300% of initial specified value ILeak ≤ the initial specified value Before measurement: Restore capacitor to 20°C, apply VR for 30 min according JIS-C-5101-4 The capacitors shall be kept on a hot plate maintained at 250°C for 30 seconds. After removing from the hot plate and restored at room temperature, they meet the characteristic requirements listed below △C/CR Within ±10% of initial value tanδ Less than specified value ILeak Less than specified value Test 1 For further information please contact sales@capxon.org Document Number: DV series ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES 6.3 10 Standard VR (V) ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Vibration-proof STANDARD RATINGS ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Part number shows blister tape on paper reel CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 22 27 33 33 47 47 56 68 68 100 100 150 150 220 220 330 330 470 680 1000 1000 1200 1500 1800 3300 6800 22 27 33 33 47 47 56 68 100 100 150 150 220 220 330 470 680 4 4 4 5 4 5 5 5 6.3 5 6.3 6.3 8 6.3 6.3 6.3 8 8 8 8 10 10 10 10 12.5 16 4 5 4 5 5 6.3 6.3 6.3 5 6.3 6.3 8 6.3 8 8 8 10 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 6.5 7.7 5.5 7.7 6.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5 14 17 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 6.5 7.7 6.5 10.5 10.5 10.5 2200 1980 1900 1300 1880 1100 1100 900 550 800 530 510 480 450 480 360 340 280 250 200 170 160 130 80 80 52 2200 1900 1850 1200 1100 590 570 550 800 530 490 470 440 400 250 250 200 75 79 82 130 86 150 150 160 220 170 230 235 250 260 240 275 290 450 500 530 570 600 650 860 1100 1250 80 125 90 150 165 180 210 220 210 240 250 260 270 285 500 550 680 DV220M6R3B055ETR ꙱꙱ DV270M6R3B055ETR ꙱꙱ DV330M6R3B055ETR ꙱꙱ DV330M6R3C055ETR ꙱꙱ DV470M6R3B055ETR ꙱꙱ DV470M6R3C055ETR ꙱꙱ DV560M6R3C055ETR ꙱꙱ DV680M6R3C055ETR ꙱꙱ DV680M6R3E055ETR ꙱꙱ DV101M6R3C055ETR ꙱꙱ DV101M6R3E055ETR ꙱꙱ DV151M6R3E055ETR ꙱꙱ DV151M6R3F065ETR ꙱꙱ DV221M6R3E077ETR ꙱꙱ DV221M6R3E055ETR ꙱꙱ DV331M6R3E077ETR ꙱꙱ DV331M6R3F065ETR ꙱꙱ DV471M6R3F105ETR ꙱꙱ DV681M6R3F105ETR ꙱꙱ DV102M6R3F105ETR ꙱꙱ DV102M6R3G105ETR ꙱꙱ DV122M6R3G105ETR ꙱꙱ DV152M6R3G105ETR ꙱꙱ DV182M6R3G105ETR ꙱꙱ DV332M6R3Z140ETR ꙱꙱ DV682M6R3J170ETR ꙱꙱ DV220M010B055ETR ꙱꙱ DV270M010C055ETR ꙱꙱ DV330M010B055ETR ꙱꙱ DV330M010C055ETR ꙱꙱ DV470M010C055ETR ꙱꙱ DV470M010E055ETR ꙱꙱ DV560M010E055ETR ꙱꙱ DV680M010E055ETR ꙱꙱ DV101M010C055ETR ꙱꙱ DV101M010E055ETR ꙱꙱ DV151M010E055ETR ꙱꙱ DV151M010F065ETR ꙱꙱ DV221M010E077ETR ꙱꙱ DV221M010F065ETR ꙱꙱ DV331M010F105ETR ꙱꙱ DV471M010F105ETR ꙱꙱ DV681M010G105ETR ꙱꙱ ꙱꙱ see description at end of standard ratings CapXon_Ver. 004 – 01/07/2022 2 For further information please contact sales@capxon.org Document Number: DV series ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES 10 16 25 Standard VR (V) ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Vibration-proof STANDARD RATINGS ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Part number shows blister tape on paper reel CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 1000 2200 4700 10 15 22 22 27 33 47 47 56 68 68 100 150 150 220 220 330 470 680 1500 3300 6.8 10 15 22 22 27 33 33 47 47 56 68 68 100 100 150 220 330 470 10 12.5 16 4 4 4 5 5 6.3 5 6.3 6.3 6.3 8 6.3 6.3 8 6.3 8 8 8 10 12.5 16 4 4 5 5 6.3 6.3 5 6.3 6.3 6.3 6.3 6.3 8 6.3 8 8 8 8 10 10.5 14 17 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 6.5 5.5 7.7 6.5 7.7 6.5 10.5 10.5 10.5 14 17 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 7.7 5.5 5.5 5.5 6.5 7.7 6.5 10.5 10.5 10.5 10.5 150 80 52 2200 2000 1980 1600 740 600 1050 580 560 540 500 520 450 440 430 410 250 220 160 80 52 2800 2100 1900 1200 1150 620 1050 580 540 560 540 480 450 380 360 250 220 200 150 740 1100 1250 80 85 90 140 170 185 195 210 220 230 240 255 265 270 275 285 550 590 720 1100 1250 70 85 125 145 160 200 160 220 230 220 230 240 260 290 300 480 530 570 650 DV102M010G105ETR ꙱꙱ DV222M010Z140ETR ꙱꙱ DV472M010J170ETR ꙱꙱ DV100M016B055ETR ꙱꙱ DV150M016B055ETR ꙱꙱ DV220M016B055ETR ꙱꙱ DV220M016C055ETR ꙱꙱ DV270M016C055ETR ꙱꙱ DV330M016E055ETR ꙱꙱ DV470M016C055ETR ꙱꙱ DV470M016E055ETR ꙱꙱ DV560M016E055ETR ꙱꙱ DV680M016E055ETR ꙱꙱ DV680M016F065ETR ꙱꙱ DV101M016E055ETR ꙱꙱ DV151M016E077ETR ꙱꙱ DV151M016F065ETR ꙱꙱ DV221M016E077ETR ꙱꙱ DV221M016F065ETR ꙱꙱ DV331M016F105ETR ꙱꙱ DV471M016F105ETR ꙱꙱ DV681M016G105ETR ꙱꙱ DV152M016Z140ETR ꙱꙱ DV332M016J170ETR ꙱꙱ DV6R8M025B055ETR ꙱꙱ DV100M025B055ETR ꙱꙱ DV150M025C055ETR ꙱꙱ DV220M025C055ETR ꙱꙱ DV220M025E055ETR ꙱꙱ DV270M025E055ETR ꙱꙱ DV330M025C055ETR ꙱꙱ DV330M025E055ETR ꙱꙱ DV470M025E077ETR ꙱꙱ DV470M025E055ETR ꙱꙱ DV560M025E055ETR ꙱꙱ DV680M025E055ETR ꙱꙱ DV680M025F065ETR ꙱꙱ DV101M025E077ETR ꙱꙱ DV101M025F065ETR ꙱꙱ DV151M025F105ETR ꙱꙱ DV221M025F105ETR ꙱꙱ DV331M025F105ETR ꙱꙱ DV471M025G105ETR ꙱꙱ ꙱꙱ see description at end of standard ratings CapXon_Ver. 004 – 01/07/2022 3 For further information please contact sales@capxon.org Document Number: DV series ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES 25 35 50 Standard VR (V) ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Vibration-proof STANDARD RATINGS ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Part number shows blister tape on paper reel CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 1000 2200 3.3 4.7 6.8 10 10 15 22 22 27 33 33 47 47 56 68 100 100 150 220 330 470 680 1500 1 2.2 3.3 4.7 6.8 10 10 15 22 27 33 33 47 47 56 68 100 150 12.5 16 4 4 4 4 5 5 5 6.3 6.3 6.3 8 6.3 8 6.3 6.3 6.3 8 8 8 10 12.5 12.5 16 4 4 4 4 5 5 6.3 6.3 6.3 6.3 6.3 8 6.3 8 8 8 8 10 14 17 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 6.5 5.5 6.5 7.7 7.7 7.7 10.5 10.5 10.5 10.5 14 14 17 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 7.7 7.7 6.5 7.7 6.5 10.5 10.5 10.5 10.5 80 52 2800 2500 2200 2000 1400 1200 1100 1050 600 540 510 530 490 490 400 380 280 240 210 150 80 80 52 4500 4500 4500 4500 3800 2800 2200 1600 1300 1200 710 700 700 690 520 500 460 250 1100 1250 80 85 88 90 125 140 155 170 210 230 260 240 250 250 265 300 420 510 570 650 1100 1100 1250 55 55 55 55 75 95 130 140 150 180 190 200 230 240 300 320 350 600 DV102M025Z140ETR ꙱꙱ DV222M025J170ETR ꙱꙱ DV3R3M035B055ETR ꙱꙱ DV4R7M035B055ETR ꙱꙱ DV6R8M035B055ETR ꙱꙱ DV100M035B055ETR ꙱꙱ DV100M035C055ETR ꙱꙱ DV150M035C055ETR ꙱꙱ DV220M035C055ETR ꙱꙱ DV220M035E055ETR ꙱꙱ DV270M035E055ETR ꙱꙱ DV330M035E055ETR ꙱꙱ DV330M035F065ETR ꙱꙱ DV470M035E055ETR ꙱꙱ DV470M035F065ETR ꙱꙱ DV560M035E077ETR ꙱꙱ DV680M035E077ETR ꙱꙱ DV101M035E077ETR ꙱꙱ DV101M035F105ETR ꙱꙱ DV151M035F105ETR ꙱꙱ DV221M035F105ETR ꙱꙱ DV331M035G105ETR ꙱꙱ DV471M035Z140ETR ꙱꙱ DV681M035Z140ETR ꙱꙱ DV152M035J170ETR ꙱꙱ DV010M050B055ETR ꙱꙱ DV2R2M050B055ETR ꙱꙱ DV3R3M050B055ETR ꙱꙱ DV4R7M050B055ETR ꙱꙱ DV6R8M050C055ETR ꙱꙱ DV100M050C055ETR ꙱꙱ DV100M050E055ETR ꙱꙱ DV150M050E055ETR ꙱꙱ DV220M050E055ETR ꙱꙱ DV270M050E077ETR ꙱꙱ DV330M050E077ETR ꙱꙱ DV330M050F065ETR ꙱꙱ DV470M050E077ETR ꙱꙱ DV470M050F065ETR ꙱꙱ DV560M050F105ETR ꙱꙱ DV680M050F105ETR ꙱꙱ DV101M050F105ETR ꙱꙱ DV151M050G105ETR ꙱꙱ ꙱꙱ see description at end of standard ratings CapXon_Ver. 004 – 01/07/2022 4 For further information please contact sales@capxon.org Document Number: DV series ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES 50 63 80 100 Standard VR (V) ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Vibration-proof STANDARD RATINGS ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Part number shows blister tape on paper reel CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 220 330 1000 4.7 10 22 33 47 68 100 100 150 220 470 4.7 10 22 33 47 68 100 220 10 22 33 47 47 68 100 220 10 12.5 16 5 6.3 6.3 8 8 10 10 12.5 12.5 12.5 16 6.3 6.3 6.3 8 10 10 12.5 16 6.3 8 10 10 12.5 12.5 12.5 16 10.5 14 17 5.5 5.5 7.7 10.5 10.5 10.5 10.5 14 14 14 17 5.5 7.7 7.7 10.5 10.5 10.5 14 17 7.7 10.5 10.5 10.5 14 14 14 17 230 210 78 2800 1600 1100 800 550 400 280 260 200 180 85 3800 3000 1700 1100 900 650 420 260 4000 2000 1300 1000 950 600 500 280 650 800 1000 45 80 150 230 260 380 400 520 780 810 1390 50 70 110 200 320 490 580 930 65 110 180 370 480 580 620 1050 DV221M050G105ETR ꙱꙱ DV331M050Z140ETR ꙱꙱ DV102M050J170ETR ꙱꙱ DV4R7M063C055ETR ꙱꙱ DV100M063E055ETR ꙱꙱ DV220M063E077ETR ꙱꙱ DV330M063F105ETR ꙱꙱ DV470M063F105ETR ꙱꙱ DV680M063G105ETR ꙱꙱ DV101M063G105ETR ꙱꙱ DV101M063Z140ETR ꙱꙱ DV151M063Z140ETR ꙱꙱ DV221M063Z140ETR ꙱꙱ DV471M063J170ETR ꙱꙱ DV4R7M080E055ETR ꙱꙱ DV100M080E077ETR ꙱꙱ DV220M080E077ETR ꙱꙱ DV330M080F105ETR ꙱꙱ DV470M080G105ETR ꙱꙱ DV680M080G105ETR ꙱꙱ DV101M080Z140ETR ꙱꙱ DV221M080J170ETR ꙱꙱ DV100M100E077ETR ꙱꙱ DV220M100F105ETR ꙱꙱ DV330M100G105ETR ꙱꙱ DV470M100G105ETR ꙱꙱ DV470M100Z140ETR ꙱꙱ DV680M100Z140ETR ꙱꙱ DV101M100Z140ETR ꙱꙱ DV221M100J170ETR ꙱꙱ ꙱꙱: Enter blank for Standard package ꙱꙱: Enter W for Vibration proof version CapXon_Ver. 004 – 01/07/2022 ꙱꙱: Enter X for AEC-Q200 ꙱꙱: Enter XW for AEC-Q200 and Vibration proof version 5 For further information please contact sales@capxon.org Document Number: DV series ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES ±0 DIMENSIONS STANDARD PACKAGE ▪ All dimensions in mm ± øD 4.0 5.0 6.3 6.3 8.0 8.0 10.0 12.5 16.0 L 5.5 5.5 5.5 7.7 6.5 10.5 10.5 14.0 17.0 α Max Max 0.2 Max Max Max Max Max 0.5 A ± 0.2 4.3 5.3 6.6 6.6 8.3 8.3 10.3 13.0 17.0 B ± 0.2 4.3 5.3 6.6 6.6 8.3 8.3 10.3 13.0 17.0 C ± 0.2 4.9 5.9 7.2 7.2 9.0 9.0 11.0 13.9 18.0 F 0.3 max. 0.3 max. 0.3 max. 0.3 max. 0.3 max. 0.3 max. 0.3 max. 0.3 max. 0.3 max. P ± 0.2 1.0 1.4 2.2 2.2 2.3 3.1 4.5 4.5 6.6 W 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.7 to 1.1 0.7 to 1.1 1 to 1.4 1 to 1.4 DIMENSIONS VP PACKAGE (VIBRATION-PROOF) Ø D6.3 ▪ All dimensions in mm c ±0 c T ± øD L α A ± 0.2 A1 (max.) B ± 0.2 C (max.) F 6.3 8.0 0.3 6.6 7.1 6.6 7.8 0 to 0.15 øD 6.3 L 8.0 P ± 0.2 2.2 CapXon_Ver. 004 – 01/07/2022 S ± 0.1 2.9 I ± 0.1 2.4 T ± 0.1 1.1 6 For further information please contact sales@capxon.org U ± 0.1 1.55 K 0.35 +0.15/-0.2 W ± 0.1 0.65 Document Number: DV series ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES ±0 DIMENSIONS VP PACKAGE (VIBRATION-PROOF) Ø D8 and D10 ▪ All dimensions in mm T ± øD 8 10 L 10.5 10.5 α 0.5 0.5 A ± 0.2 8.3 10.3 A1 (max.) 8.8 10.8 B ± 0.2 8.3 10.3 C (max.) 10.0 12.0 F 0 to 0.15 0 to 0.15 K ± 0.2 0.7 0.7 øD 8 10 L 10.5 10.5 P ± 0.2 3.1 4.6 S ± 0.1 3 3.3 I ± 0.1 3.4 3.5 T ± 0.1 1.4 1.5 U ± 0.1 0.7 0.8 W ± 0.1 1.2 1.2 M ± 0.1 0.7 0.9 ±0 DIMENSIONS VP PACKAGE (VIBRATION-PROOF) Ø D12.5 and D16 ▪ All dimensions in mm T ± øD 12.5 16.0 L 14.0 17.0 α 1.0 1.0 A ± 0.2 13.5 17.0 A1 (max.) 13.5 17.0 B ± 0.2 13.5 17.0 C (max.) 15.0 19.0 F 0 to 0.15 0 to 0.15 K ± 0.3 0.7 0.7 øD 12.5 16.0 L 14.0 17.0 P ± 0.2 4.4 6.7 S ± 0.1 6.0 5.8 I ± 0.1 4.7 5.5 T ± 0.1 2.0 2.0 U ± 0.1 2.2 3.0 W ± 0.1 1.2 1.4 M ± 0.1 0.95 1.0 CapXon_Ver. 004 – 01/07/2022 7 For further information please contact sales@capxon.org Document Number: DV series ALUMINUM ELECTROLYTIC CAPACITOR ▪ DV SERIES MULTIPLIER Kf for RIPPLE CURRENT vs. FREQUENCY CR (µF) / Frequency (Hz) 50/60 100/120 500 1k 10k 50k ~ 100k 1 ≤ CR ≤ 10 10 < CR ≤ 6800 0.47 0.52 0.59 0.65 0.76 0.8 0.85 0.89 0.97 0.97 1 1 PRECAUTIONS, GUIDELINES AND PACKAGING INFORMATION nless otherwise agreed in individual specifications, all products are subject to our “General recautions and Guidelines” as well as our “ ackaging nformation” lease refer to the following links in the table. General Precautions & Guidelines Packaging Information Vibration Test Profiles 3D Models Reliability Tests DISCLAIMER All product related data (e.g. specification, statements and general information) are subject to change without any notice. It is necessary that the customer observes all product related technical / application information and handling instructions. CapXon products are designed and manufactured according to severe quality and safety standards. Under no circumstance, CapXon warrants that any CapXon product is suitable for the purposes intended for your application, even CapXon knows the application. It is customer's duty and obligation to check and make sure that CapXon products are suitable for the purposes intended and select the correct and proper CapXon product. Customers are requested to perform a sufficient validation and reliability evaluation to assure needed safety level and reliability performance by suitable designs and to apply proper safeguards (e.g. redundancies, protective circuits). Particular operating conditions (ambient temperature, ripple current, voltage, thermal resistance, etc.) as well as storage, production or assembly may affect the performance and the lifetime of the capacitor. Please consult CapXon for lifetime estimation, failure mode considerations or worst-case scenarios according to the product technology, product tolerances / deviations or change of the characteristics of the capacitor due to shipment, storage, handling, production and usage. or aerospace or military application, life‐saving, life‐sustaining, safety critical applications or any application where failure may cause severe personal injury or death, please consult us before design‐in the capacitor in your application. Except for the written expressed warranties, CapXon does not impliedly, by assumption or whatever else, warrant, undertake, promise any other warranty or guaranty for any CapXon product. For further information, please visit our website www.capxongroup.com or contact CapXon directly. CapXon_Ver. 004 – 01/07/2022 8 For further information please contact sales@capxon.org Document Number: DV series
