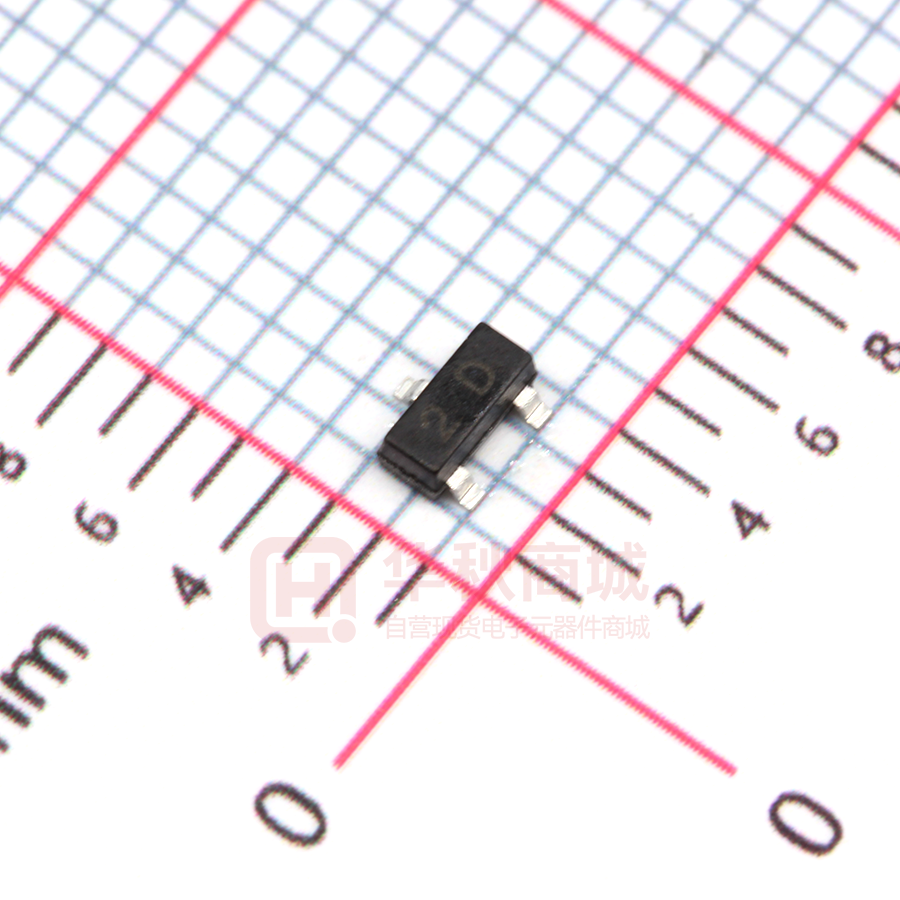

MMBTA92
PNP High Voltage Amplifier
1. BASE
2. EMITTER
3. COLLECTOR
FEATURES
SOT-23
A
z
Epitaxial planar die construction.
z
Complementary NPN type available
Min
Max
A
2.70
3.10
B
1.10
1.50
E
K
B
C
D
(MMBTA42).
Ideal for medium power amplification and switching.
G
APPLICATIONS
z
0.4 Typical
0.35
0.48
G
1.80
2.00
H
0.02
0.1
J
H
C
1.0 Typical
E
J
D
z
Dim
K
0.1 Typical
2.20
2.60
All Dimensions in mm
High voltage driver applications.
ORDERING INFORMATION
Type No.
Marking
Package Code
MMBTA92
2D
SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol
Parameter
Value
UNIT
VCBO
collector-base voltage
-300
V
VCEO
collector-emitter voltage
-300
V
VEBO
emitter-base voltage
-5
V
IC
collector current (DC)
-0.5
A
PC
Collector dissipation
0.35
W
Tj ,Tstg
junction and storage temperature
-55 to +150
°C
ht t p : //
Revision:20170701-P1
www.lgesemi .c o m
mail:lge@lgesemi.com
MMBTA92
PNP High Voltage Amplifier
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Symbol
Parameter
Test
conditions
MIN.
MAX.
UNIT
V(BR)CBO
Collector-base breakdown voltage
IC=-100μA,IE=0
-300
V(BR)CEO
Collector-emitter breakdown voltage
IC=-1mA,IB=0
-300
V(BR)EBO
Emitter-base breakdown voltage
IE=-100μA,IC=0
-5
ICBO
collector cut-off current
IE = 0; VCB = -200V
-
-0.25
μA
IEBO
emitter cut-off current
IC = 0; VEB = -3V
-
-0.1
μA
hFE
DC current gain
VCE = -10V; IC= -1mA
VCE = -10V;IC= -10mA
VCE = -10V;IC= -30mA
25
40
25
VCE(sat)
collector-emitter saturation voltage
IC = -20mA; IB = -2mA
-
-0.5
V
VBE(sat)
base-emitter saturation voltage
IC = -20mA; IB = -2mA
-
-0.9
V
Cob
Collector output capacitance
VCB=-20V,f=1.0MHz
-
6.0
pF
fT
transition frequency
IC = -10mA; VCE = -20V;
f = 100MHz
50
-
MHz
TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
ht t p : //
Revision:20170701-P1
www.lgesemi .c o m
mail:lge@lgesemi.com
MMBTA92
PNP High Voltage Amplifier
Device
Package
Shipping
MMBTA92
SOT-23
3000/Tape&Reel
ht t p : //
Revision:20170701-P1
www.lgesemi .c o m
mail:lge@lgesemi.com
