Nuvoton
SMBus GPIO Controller
NCT5605Y
Revision: 1.0
Date: Nov, 2009
NCT5605Y
NCT5605Y Datasheet Revision History
1
PAGES
DATES
VERSION
N.A.
Nov./09
1.0
WEB VERSION
MAIN CONTENTS
Initial Version for customer
- I -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
Table of Contents1.
GENERAL DESCRIPTION ......................................................................................................... 1
2.
FEATURES ................................................................................................................................. 1
2.1
General Features ........................................................................................................................1
2.2
Key Specifications .......................................................................................................................1
3.
PIN CONFIGURATION ............................................................................................................... 2
4.
PIN DESCRIPTION ..................................................................................................................... 3
5.
ARCHITECTURE DESCRIPTION .............................................................................................. 4
6.
5.1
Register 00h – GP1 input port register ......................................................................................4
5.2
Register 01h – GP1 output port register ....................................................................................4
5.3
Register 02h – GP1 Polarity Inversion register .........................................................................4
5.4
Register 03h – GP1 input/output configuration register ...........................................................4
5.5
Register 04h – GP1 output style register...................................................................................5
5.6
Register 05h – GP1 output mode register .................................................................................5
5.7
Register 06h – GP1 interrupt control register ............................................................................5
5.8
Register 07h – GP1 interrupt status register .............................................................................5
5.9
Register 08h – GP11-GP13 / LED multi-function configuration register .................................6
5.10
Register 09h – GP1 input latch data register ............................................................................6
5.11
Register 10h – GP2 input port register ......................................................................................6
5.12
Register 11h – GP2 output port register ....................................................................................6
5.13
Register 12h – GP2 Polarity Inversion register .........................................................................7
5.14
Register 13h – GP2 input/output configuration register ...........................................................7
5.15
Register 14h – GP2 output style register...................................................................................7
5.16
Register 15h – GP2 output mode register .................................................................................7
5.17
Register 16h – GP2 interrupt control register ............................................................................7
5.18
Register 17h – GP2 interrupt status register .............................................................................8
5.19
Register 20h – Chip ID (High byte; 95h)....................................................................................8
5.20
Register 21h – Chip ID (Low byte; 92h) ....................................................................................8
5.21
Register 22h – Global configuration register .............................................................................8
FUNCTION DESCRIPTIONS...................................................................................................... 9
6.1
6.2
Access Interface ..........................................................................................................................9
6.1.1
Write a data into NCT5605Y register ........................................................................ 9
6.1.2
Read a data from NCT5605Y register ...................................................................... 9
GPI/O Application Mode: ......................................................................................................... 10
- II -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
7.
6.2.1
GPO output............................................................................................................. 10
6.2.2
INT output ............................................................................................................... 10
6.2.3
GPI interrupt status................................................................................................. 10
DC AND AC SPECIFICATION .................................................................................................. 11
7.1
Absolute Maximum Ratings..................................................................................................... 11
7.2
Power Supply Current Consumption ...................................................................................... 11
7.3
DC Characteristics ................................................................................................................... 11
7.4
AC Characteristics.................................................................................................................... 13
8.
ORDERING INFORMATION..................................................................................................... 14
9.
TOP MARKING SPECIFICATION ............................................................................................ 14
10.
PACKAGE DIMENSION OUTLINE ........................................................................................... 15
- III -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
1. GENERAL DESCRIPTION
TM
The NCT5605Y is a general purpose input/output IC with SMBus which provides 14 GPI/O pins. It
TM
also can provide SMBus address setting pins to set the address during power- on reset or from
external reset.
NCT5605Y SMBusTM Address is:
0
0
1
1
A2
A1
A0
R/W
NCT5605Y also provides an interrupt to inform system that a transition occurs on general purpose
input pins. By NCT5605Y, flashing LED output and beep function are also supported.
2. FEATURES
2.1
General Features
SMBusTM Compliance with 3.3V Voltage Levels
14pins Flexible GPIO Support
Interrupt Notification Support for System Event Occurs
Support General Purpose Output Setting for Level or Pulse Mode
Support Interrupt Output Setting for Level or Pulse mode
Support Internal Power-on Reset or External RST# Pin Reset.
Support Flashing LED Output
Support PC Beep Output
Chip Power down mode support

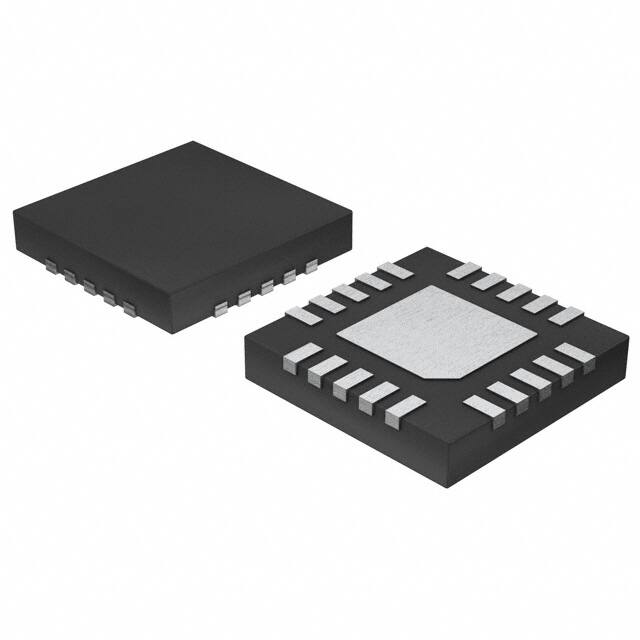

20-QFN Halogen free package (RoHS Compliable)
2.2
Key Specifications
Supply Voltage is 3.3V
Operating Supply Current is 150 uA typ.
Operating Temperature is from 0 °C to 70 °C
- 1 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
GP22
GP21
GP20
VSS
LED3/GP13
3. PIN CONFIGURATION
10
9
8
7
6
GP23 11
5 LED2/GP12
GP24 12
4 LED1/GP11
GP25 13
NCT5605Y
3 LED0/GP10
BEEP/GP14 14
2 SDAT
A2/GP15 15
1 SCLK
- 2 -
‧
3VDD
RST#
INT#
A0/GP17
A1/GP16
16 17 18 19 20
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
4. PIN DESCRIPTION
INts
TTL level Schmitt-trigger input pin
I/OD12ts
TTL level bi-directional pin open drain output with 12 mA sink capability and schmitttrigger level input
I/O12t
TTL level bi-directional pin bi-directional output with 12 mA source-sink capability
I/O(D)16t
I/O(D)12t
TTL level bi-directional pin bi-directional (or open drain) output with 16 mA (source-)
sink capability
TTL level bi-directional pin bi-directional (or open drain) output with 12 mA (source-)
sink capability
OD12
Open drain output pin with 12 mA sink capability
PIN
SYMBOL
I/O
FUNCTION
1
SCL
INts
2
SDA
I/OD12ts
SMBus bi-directional Data.
3
GP10/LED0
I/O(D)16t
General Purpose I/O. ; LED output
4
GP11/LED1
I/O(D)16t
General Purpose I/O. ; LED output
5
GP12/LED2
I/O(D)16t
General Purpose I/O. ; LED output
6
GP13/LED3
I/O(D)16t
General Purpose I/O. ; LED output
7
VSS
PWR
8
GP20
I/O(D)12t
General Purpose I/O.
9
GP21
I/O(D)12t
General Purpose I/O.
10
GP22
I/O(D)12t
General Purpose I/O.
11
GP23
I/O(D)12t
General Purpose I/O.
12
GP24
I/O(D)12t
General Purpose I/O.
13
GP25
I/O(D)12t
General Purpose I/O.
14
GP14/BEEP
I/O(D)16t
General Purpose I/O. ; BEEP output
15
GP15 / A2
I/O12t
SMBus Clock.
Power Pin.
General Purpose I/O.; Strapping pin for SMBus address bit
2, this pin is internal weak pull down during hardware
reset.
- 3 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
PIN
SYMBOL
I/O
FUNCTION
16
GP16 / A1
I/O12t
General Purpose I/O.; Strapping pin for SMBus address bit
1, this pin is internal weak pull down during hardware
reset.
17
GP17 / A0
I/O12t
General Purpose I/O.; Strapping pin for SMBus address bit
0, this pin is internal weak pull down during hardware
reset.
18
INT#
OD12
Auto-generated Interrupt signal when detecting a transition on
GP inputs.
19
RST#
INts
System reset signal input. Low level must be greater than
0.1uS.
20
3VDD
PWR
Power Pin.
5. ARCHITECTURE DESCRIPTION
5.1
Register 00h – GP1 input port register
BIT
7
6
5
4
3
2
1
0
R/W
RO
RO
RO
RO
RO
RO
RO
RO
*This register reflects the respective GPI1x pin level.
5.2
Register 01h – GP1 output port register
BIT
7
6
5
4
3
2
1
0
R/W
RW
RW
RW
RW
RW
RW
RW
RW
Default
0
0
0
0
0
0
0
0
5.3
Register 02h – GP1 Polarity Inversion register
BIT
7
6
5
4
3
2
1
0
R/W
RW
RW
RW
RW
RW
RW
RW
RW
Default
0
0
0
0
0
0
0
0
*Refer to Section 6.2.1 for respective GPO1x pin type implementation.
5.4
Register 03h – GP1 input/output configuration register
BIT
7
6
5
4
3
2
1
0
R/W
RW
RW
RW
RW
RW
RW
RW
RW
Default
1
1
1
1
1
1
1
1
*This register configures the respective GPIO1x pin as input mode (“1”; by default) or output mode (“0”).
- 4 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
5.5
Register 04h – GP1 output style register
BIT
7
6
5
4
3
2
1
0
R/W
RW
RW
RW
RW
RW
RW
RW
RW
Default
0
0
0
0
0
0
0
0
*This register configures the respective GPO1x pins as level (“0”; by default) or pulse (“1”) output style.
*Set output port register (CR01) to “0” before switch the output style to pulse mode.
5.6
Register 05h – GP1 output mode register
BIT
7
6
5
4
3
2
1
0
R/W
RFU
RW
RW
RW
RW
RW
RW
RW
Default
0
0
0
0
0
0
0
0
Bit4-Bit0: Configures the respective GPO1x output pads function as Open-drain (“0”; by default) or Pushpull (“1”) mode.
Bit6-5: GP14 / BEEP multi-function configuration register
=11, BEEP frequency = 4KHz; tone = 250 Hz.
=10, BEEP frequency = 2KHz; tone = 10 Hz.
=01, BEEP frequency = 1KHz / 500 Hz; tone= 1 Hz.
=00, BEEP function is disabled on GP14.
Bit7: Reserved for future use.
5.7
Register 06h – GP1 interrupt control register
BIT
7
6
5
4
3
2
1
0
R/W
RW
RW
RW
RW
RW
RW
RW
RW
Default
0
0
0
0
0
0
0
0
* This register configures the respective GPI1x pin interrupt control as disable (“0”; by default) or enable
(“1”).
*Clear interrupt status register (CR07) before set to enable.
5.8
Register 07h – GP1 interrupt status register
BIT
7
6
5
4
3
2
1
0
R/W
R/clr
R/clr
R/clr
R/clr
R/clr
R/clr
R/clr
R/clr
*The registers are read clear.
*Refer to Section 6.2.3 for implementation.
- 5 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
5.9
Register 08h – GP11-GP13 / LED multi-function configuration register
BIT
7
6
5
4
3
2
1
0
R/W
RW
RW
RW
RW
RW
RW
RW
RW
Default
0
0
0
0
0
0
0
0
Bit7-6: GP13 / LED multi-function configuration register
=11, GP13 functions LED output of 2Hz clock, 50% duty cycle.
=10, GP13 functions LED output of 1Hz clock, 50% duty cycle.
=01, GP13 functions LED output of 1/2 Hz clock, 50% duty cycle.
=00, LED function is disabled on GP13. (Default)
Bit5-4: GP12 / LED multi-function configuration register
=11, GP12 functions LED output of 2Hz clock, 50% duty cycle.
=10, GP12 functions LED output of 1Hz clock, 50% duty cycle.
=01, GP12 functions LED output of 1/2 Hz clock, 50% duty cycle.
=00, LED function is disabled on GP12. (Default)
Bit3-2: GP11 / LED multi-function configuration register
=11, GP11 functions LED output of 2Hz clock, 50% duty cycle.
=10, GP11 functions LED output of 1Hz clock, 50% duty cycle.
=01, GP11 functions LED output of 1/2 Hz clock, 50% duty cycle.
=00, LED function is disabled on GP11. (Default)
Bit1-0: GP10 / LED multi-function configuration register
=11, GP10 functions LED output of 2Hz clock, 50% duty cycle.
=10, GP10 functions LED output of 1Hz clock, 50% duty cycle.
=01, GP10 functions LED output of 1/2 Hz clock, 50% duty cycle.
=00, LED function is disabled on GP10. (Default)
5.10 Register 09h – GP1 input latch data register
BIT
7
6
5
4
3
2
1
0
R/W
RO
RO
RO
RO
RO
RO
RO
RO
Default
0
0
0
0
0
0
0
0
*This register reflects the latch value of GP1x pins during hardware reset.
5.11 Register 10h – GP2 input port register
BIT
7
R/W
6
NA
5
4
3
2
1
0
RO
RO
RO
RO
RO
RO
*This register reflects the respective GPI2x pin level.
5.12 Register 11h – GP2 output port register
BIT
R/W
Default
7
6
NA
5
4
3
2
1
0
RW
RW
RW
RW
RW
RW
0
0
0
0
0
0
- 6 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
5.13 Register 12h – GP2 Polarity Inversion register
BIT
7
R/W
6
NA
Default
5
4
3
2
1
0
RW
RW
RW
RW
RW
RW
0
0
0
0
0
0
*Refer to Section 6.2.1 for respective GPO2x pin type implementation.
5.14 Register 13h – GP2 input/output configuration register
BIT
7
R/W
6
NA
Default
5
4
3
2
1
0
RW
RW
RW
RW
RW
RW
1
1
1
1
1
1
*This register configures the respective GPIO2x pin as input mode (“1”; by default) or output mode (“0”).
5.15 Register 14h – GP2 output style register
BIT
7
R/W
6
NA
Default
5
4
3
2
1
0
RW
RW
RW
RW
RW
RW
0
0
0
0
0
0
*This register configures the respective GPO2x pins as level (“0”; by default) or pulse (“1”) output style.
*Set output port register (CR11) to “0” before switch the output style to pulse mode.
5.16 Register 15h – GP2 output mode register
BIT
7
R/W
6
NA
Default
5
4
3
2
1
0
RW
RW
RW
RW
RW
RW
0
0
0
0
0
0
*This register configures the respective GPO2x output pads function as Open-drain (“0”; by default) or
Push-pull (“1”) mode.
5.17 Register 16h – GP2 interrupt control register
BIT
R/W
Default
7
6
NA
5
4
3
2
1
0
RW
RW
RW
RW
RW
RW
0
0
0
0
0
0
* This register configures the respective GPI2x pin interrupt control as disable (“0”; by default) or enable
(“1”).
*Clear interrupt status register (CR17) before set to enable.
- 7 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
5.18 Register 17h – GP2 interrupt status register
BIT
7
R/W
6
NA
5
4
3
2
1
0
R/clr
R/clr
R/clr
R/clr
R/clr
R/clr
*The registers are read clear.
*Refer to Section 6.2.3 for implementation.
5.19 Register 20h – Chip ID (High byte; 95h)
BIT
7
6
5
4
3
2
1
0
R/W
RO
RO
RO
RO
RO
RO
RO
RO
Default
1
0
0
1
0
1
0/1
1/0
5.20 Register 21h – Chip ID (Low byte; 92h)
BIT
7
6
5
4
3
2
1
0
R/W
RO
RO
RO
RO
RO
RO
RO
RO
Default
1
0
0
1
0
0
0
1
5.21 Register 22h – Global configuration register
BIT
7
6
5
4
3
2
1
0
R/W
WO
RFU
RW
RW
RW
RW
RW
RW
Default
0
0
0
0
0
0
0
0
Bit7: Write “1” to issue a software reset.
Bit6: Reserved for future use.
Bit5: Low power enable bit. The internal clock generator will shutdown while the bit is set. In the lowpower mode, the functions of SMBus, LED, BEEP, and all signals configured as the pulse mode will
NOT work.
Bit4: Wake-up enable. If the bit is set, low-power enable bit (Bit-5) can be cleared whenever interrupt
event is triggered on GPI pin. To enable the interrupt control register (CR06,CR16) is necessary.
Bit3: Interrupt polarity bit. Refer to Section 6.2.2 for INT pin type implementation.
Bit2: This bit configures the INT signal output as level (“0”; by default) or pulse (“1”) style.
Bit1: GP2 registers mask enable. Set “1” will mask the RST# signal for all GP2 registers. (10h ~ 17h)
Bit0: GP1 registers mask enable. Set “1” will mask the RST# signal for all GP1 registers. (00h ~ 08h)
*Bit1 and Bit0 will not be reset by RST#.
- 8 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
6. FUNCTION DESCRIPTIONS
6.1
Access Interface
NCT5605Y provides a two-wired serial interface which is compliant with SMBus
Read Byte protocol.
6.1.1
Write a data into NCT5605Y register
6.1.2
Read a data from NCT5605Y register
- 9 -
TM
Write Byte and
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
6.2
6.2.1
GPI/O Application Mode:
GPO output
Take Reference Table for GPO Style and Polarity Function.
GPO OUTPUT
STYLE
OUTPUT PORT
REGISTER
OUTPUT VALUE AT PIN
0
1
0
1
0
1
1
0
0
Write 1
Active
1
Write 1
Active
POLARITY
0
Level
1
Pulse
WAVE
*The GPO Pulse Mode output waveform width is 0.5uS.
6.2.2
INT output
Take Reference Table for INT Output Mode and Polarity Function.
INT OUTPUT MODE
Level
Pulse
POLARITY
OUTPUT
0
0
1
1
0
Low Pulse
1
High Pulse
WAVE
*In Level mode, if INT is activated, it will be de-activated when interrupt status registers are read.
*In Pulse mode, interrupt will be activated again unless all enabled interrupt status registers are
read.
*The INT Pulse Mode output waveform width is 0.25uS.
6.2.3
GPI interrupt status
Once a transition occurs at GPI input pins, interrupt status registers (CR07, CR17) will be set. At the
mean time, if interrupt function is enable (CR06, CR16), the INT pin will generate an interrupt
waveform. Reading these interrupt status registers will self clear and reset interrupt. If an interrupt
occurs but never read the interrupt status registers, the interrupt will not be generated again.
- 10 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
7. DC AND AC SPECIFICATION
7.1
Absolute Maximum Ratings
PARAMETER
RATING
UNIT
Power Supply Voltage
3.3 10%
V
Input Voltage
3.3 10%
V
Operating Temperature
0 to +70
C
Storage Temperature
-55 to +150
C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability
of the device.
7.2
Power Supply Current Consumption
(Ta = 0 C to 70 C, VDD = 3.3V 10%, VSS = 0V)
PARAMETER
TYPICAL
UNIT
Normal Mode
150
uA
Power Down Mode
10
uA
Note: The Typical value is measured by whole GPIO pins output without load.
7.3
DC Characteristics
(Ta = 0 C to 70 C, VDD = 3.3V 10%, VSS = 0V)
INts - TTL level schmitt-trigger input pin
PARAMETER
SYM.
Input Low Voltage
VIL
Input High Voltage
VIH
Input High Leakage
ILIH
Input Low Leakage
ILIL
MIN.
TYP.
MAX.
UNIT
CONDITIONS
0.8
V
VDD = 3.3 V
V
VDD = 3.3 V
+10
A
VIN = VDD
-10
A
VIN = 0 V
2.0
I/OD12ts - TTL level bi-direction pin with 12mA sink capability and schmitt-trigger input
Input Low Voltage
VIL
Input High Voltage
VIH
Output Low Voltage
VOL
Input High Leakage
Input Low Leakage
0.8
V
VDD = 3.3 V
V
VDD = 3.3 V
0.4
V
IOL = 12 mA
ILIH
+10
A
VIN = VDD
ILIL
-10
A
VIN = 0 V
2.0
- 11 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
DC Characteristics , continued.
I/O12t - TTL level bi-direction pin with 12mA source-sink capability
Input Low Voltage
VIL
Input High Voltage
VIH
Output Low Voltage
VOL
Output High Voltage
VOH
Input High Leakage
ILIH
Input Low Leakage
ILIL
0.8
V
VDD = 3.3 V
V
VDD = 3.3 V
V
IOL = 12 mA
V
IOH = 12 mA
+15
A
VIN = 3.3 V
-15
A
VIN = 0 V
2.0
0.4
2.4
I/O(D)16t - TTL level bi-direction pin with 16mA source-sink capability
Input Low Voltage
VIL
Input High Voltage
VIH
Output Low Voltage
VOL
Output High Voltage
VOH
Input High Leakage
ILIH
Input Low Leakage
ILIL
0.8
V
VDD = 3.3 V
V
VDD = 3.3 V
V
IOL = 16 mA
V
IOH = 16 mA
+10
A
VIN = 3.3 V
-10
A
VIN = 0 V
2.0
0.4
2.4
I/O(D)12t - TTL level bi-direction pin with 12mA source-sink capability
Input Low Voltage
VIL
Input High Voltage
VIH
Output Low Voltage
VOL
Output High Voltage
VOH
Input High Leakage
ILIH
Input Low Leakage
ILIL
0.8
V
VDD = 3.3 V
V
VDD = 3.3 V
V
IOL = 12 mA
V
IOH = 12 mA
+10
A
VIN = 3.3 V
-10
A
VIN = 0 V
V
IOL = 12 mA
2.0
0.4
2.4
OD12 - open-drain output pin with 12mA sink capability
Output Low Voltage
VOL
0.4
- 12 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
7.4
AC Characteristics
Serial Bus Timing Diagram
t
t
SCL
t
R
F
SCL
t HD;ST A
t
t
SU;DAT
SU;STO
VALID DATA
SDA IN
t
HD;DAT
SDA OUT
Serial Bus Timing Diagram
Serial Bus Timing
PARAMETER
SYMBOL
-
MIN.
MAX.
UNIT
SCL clock period
t SCL
10
uS
Start condition hold time
tHD;STA
4.7
uS
Stop condition setup-up time
tSU;STO
4.7
uS
DATA to SCL setup time
tSU;DAT
120
nS
DATA to SCL hold time
tHD;DAT
5
nS
SCL and SDA rise time
tR
1.0
uS
SCL and SDA fall time
tF
300
nS
- 13 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
8. ORDERING INFORMATION
PART NUMBER
PACKAGE TYPE
PRODUCTION FLOW
NCT5605Y
20-QFN
Commercial, 0°C to +70°C
9. TOP MARKING SPECIFICATION
NCT5605Y
938TBUA
st
1 line: Nuvoton logo
nd
2 line: Part number: NCT5605Y
rd
3 line: Tracking code 938 T B UA
938: packages assembled in Year 09’, week 38
T: assembly house ID
B: the IC version
UA: Internal use code
- 14 -
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
10. PACKAGE DIMENSION OUTLINE
QFN 20L 4X4 MM^2, Pitch:0.50 MM
TOP VIEW
15
BOTTOM VIEW
11
16
11
10
10
6
6
15
16
20
20
1
5
5
- 15 -
1
Publication Release Date: Nov, 2009
Revision 1.0
NCT5605Y
Important Notice
Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any
malfunction or failure of which may cause loss of human life, bodily injury or severe property
damage. Such applications are deemed, “Insecure Usage”.
Insecure usage includes, but is not limited to: equipment for surgical implementation, atomic
energy control instruments, airplane or spaceship instruments, the control or operation of
dynamic, brake or safety systems designed for vehicular use, traffic signal instruments, all
types of safety devices, and other applications intended to support or sustain life.
All Insecure Usage shall be made at customer’s risk, and in the event that third parties lay
claims to Nuvoton as a result of customer’s Insecure Usage, customer shall indemnify the
damages and liabilities thus incurred by Nuvoton.
- 16 -
Publication Release Date: Nov, 2009
Revision 1.0
工商网监
湘ICP备2023018690号
