MR256A08B
FEATURES
•
•
•
•
•
•
•
•
•
32K x 8 MRAM
3.3 Volt power supply
Fast 35 ns read/write cycle
SRAM compatible timing
Native non-volatility
Unlimited read & write endurance
Data always non-volatile for >20 years at temperature
Commercial and industrial temperatures
All products meet MSL-3 moisture sensitivity level
RoHS-Compliant TSOP2 and BGA packages

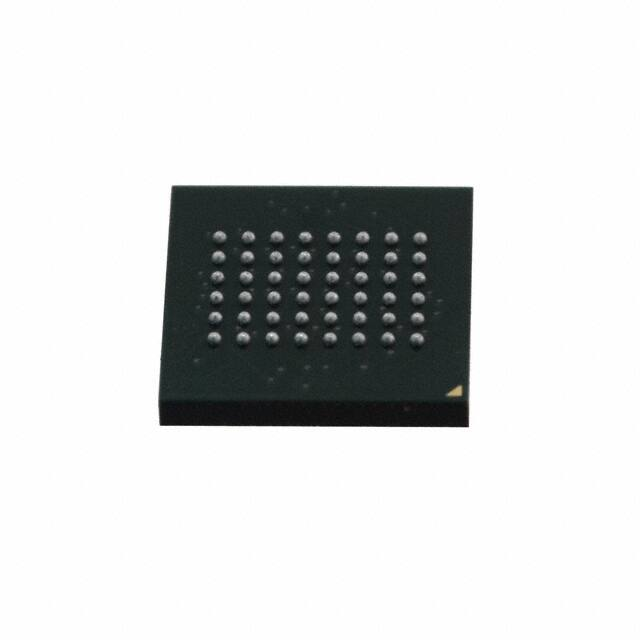

48-ball FBGA
BENEFITS
• One memory replaces FLASH, SRAM, EEPROM and MRAM
in system for simpler, more efficient design
• Improves reliability by replacing battery-backed SRAM
44-pin TSOP2
INTRODUCTION
The MR256A08B is a 262,144-bit magnetoresistive random access
memory (MRAM) device organized as 32,768 words of 8 bits. The
MR256A08B offers SRAM compatible 35ns read/write timing with unlimited endurance.
Data is always non-volatile for greater than 20-years. Data is automatically protected on
power loss by low-voltage inhibit circuitry to prevent writes with voltage out of specification.
The MR256A08B is the ideal memory solution for applications that must permanently store
and retrieve critical data and programs quickly.
The MR256A08B is available in a small footprint 400-mil, 44-lead plastic small-outline TSOP
type-2 package, or an 8 mm x 8 mm, 48-pin ball grid array (BGA) package. (The 32-SOIC
package options is obsolete and no longer available for new orders.) All package footprints
are compatible with similar low-power SRAM products and other non-volatile RAM products.
The MR256A08B provides highly reliable data storage over a wide range of temperatures.
The product is offered with commercial temperature (0 to +70 °C) and industrial temperature
(-40 to +85 °C) range options.
RoHS
Copyright © 2018 Everspin Technologies
1
MR256A08B Rev. 6.5 3/2018
MR256A08B
TABLE OF CONTENTS
FEATURES..............................................................................................................................................1
BENEFITS................................................................................................................................................1
INTRODUCTION....................................................................................................................................1
BLOCK DIAGRAM AND PIN ASSIGNMENTS........................................................................................4
Figure 1 – MR256A08B Block Diagram.................................................................................................................. 4
Table 1 – MR256A08B Pin Functions...................................................................................................................... 4
Figure 2 – Pin Diagrams for Available Packages (Top View) 1....................................................................... 5
Table 2 – Operating Modes........................................................................................................................................ 5
ELECTRICAL SPECIFICATIONS.............................................................................................................6
Absolute Maximum Ratings............................................................................................................6
Table 3 – Absolute Maximum Ratings.................................................................................................................... 6
OPERATING CONDITIONS....................................................................................................................7
Table 4 – Operating Conditions................................................................................................................................ 7
Power Up and Power Down Sequencing........................................................................................8
Figure 3 – Power Up and Power Down Sequencing Timing Diagram........................................................ 8
DC CHARACTERISTICS..........................................................................................................................9
Table 5 – DC Characteristics....................................................................................................................................... 9
Table 6 – Power Supply Characteristics...............................................................................................................10
TIMING SPECIFICATIONS.................................................................................................................. 11
Table 7 – Capacitance................................................................................................................................................11
Table 8 – AC Measurement Conditions...............................................................................................................11
Figure 4 – Output Load Test Low and High........................................................................................................11
Figure 5 – Output Load Test All Others................................................................................................................11
Read Mode..................................................................................................................................... 12
Table 9 – Read Cycle Timing....................................................................................................................................12
Copyright © 2018 Everspin Technologies
2
MR256A08B Rev. 6.5 3/2018
MR256A08B
TABLE OF CONTENTS (CONT’D)
Figure 6 – Read Cycle 1..............................................................................................................................................12
Figure 7 – Read Cycle 2..............................................................................................................................................13
Write Mode..................................................................................................................................... 14
Table 10 – Write Cycle Timing 1 (W Controlled)...............................................................................................14
Figure 8 – Write Cycle Timing 1 (W Controlled)...............................................................................................15
Table 11 – Write Cycle Timing 2 (E Controlled).................................................................................................16
Figure 9 – Write Cycle Timing 2 (E Controlled).................................................................................................17
ORDERING INFORMATION................................................................................................................ 18
Table 12 – Ordering Part Number System for Parallel I/O MRAM..............................................................18
Table 13 – MR256A08B Ordering Part Numbers 1...........................................................................................19
PACKAGE OUTLINE DRAWINGS........................................................................................................ 20
Figure 10 – 44-TSOP2 Package Outline...............................................................................................................20
Figure 11 – 48-BGA Package Outline....................................................................................................................21
Figure 12 – 32-SOIC Package Outline 1...............................................................................................................22
REVISION HISTORY............................................................................................................................ 23
HOW TO CONTACT US........................................................................................................................ 24
Copyright © 2018 Everspin Technologies
3
MR256A08B Rev. 6.5 3/2018
MR256A08B
BLOCK DIAGRAM AND PIN ASSIGNMENTS
Figure 1 – MR256A08B Block Diagram
G
A[14:0]
15
E
W
OUTPUT
ENABLE
BUFFER
OUTPUT ENABLE
7
ADDRESS
BUFFER
ROW
DECODER
8
CHIP
ENABLE
BUFFER
COLUMN
DECODER
8
SENSE
AMPS
8
OUTPUT
BUFFER
8
32K x 8 BIT
MEMORY
ARRAY
WRITE
ENABLE
BUFFER
8
FINAL
WRITE
DRIVERS
8
WRITE
DRIVER
8
DQ[7:0]
WRITE ENABLE
Table 1 – MR256A08B Pin Functions
Signal
Name
Function
A
E
W
G
DQ
VDD
Address Input
Chip Enable
Write Enable
Output Enable
Data I/O
Power Supply
VSS
Ground
DC
Do Not Connect
No Connection - Pin 2, 40, 41,43 (TSOP2); Ball C2, C5, D3, F2, F5, G1, G2, G6, H1, H6 (BGA); Pin 9,
24, 31(SOIC) Reserved For Future Expansion
NC
Copyright © 2018 Everspin Technologies
4
MR256A08B Rev. 6.5 3/2018
MR256A08B
Figure 2 – Pin Diagrams for Available Packages (Top View) 1
DC
NC
A
A
A
A
A
E
VDD
VSS
W
A
A
A
A
A
DC
DC
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
DC
1
32
VDD
A14
2
31
NC
A12
3
30
W
A7
4
29
A13
A6
5
28
A8
A5
6
27
A9
A4
7
26
A11
VSS
A3
8
25
G
VDD
NC
9
24
NC
A2
10
23
A10
A1
11
22
E
DC
NC
DC
NC
NC
A 14
A13
G
DC
VSS
VDD
A
A
A
DC
DC
A0
12
21
DQ7
DQ0
13
20
DQ6
DQ1
14
19
DQ5
DQ2
15
18
DQ4
VSS
16
17
DQ3
1
2
3
4
5
6
DC
G
A
A
A
DC
A
NC
DC
A
A
E
DC
B
DQ
NC
A
A
NC
DQ
C
VSS
DQ
NC
A
DQ
VDD
D
VDD
DQ
DC
A 14
DQ
VSS
E
DQ3
NC
VSS
A13
NC
DQ
F
NC
NC
A
VDD
W
NC
G
NC
A
A
A
A
NC
H
32 Pin SOIC 1
44 Pin TSOP2
48 Pin FBGA
Note:
1. The 32-SOIC package is obsolete and shown for legacy reference only. This package option is no longer
available for new orders.
Table 2 – Operating Modes
E1
G1
W1
Mode
H
X
X
Not selected
I ,I
Hi-Z
L
H
H
Output disabled
I
DDR
Hi-Z
L
L
H
Byte Read
I
DDR
DOut
L
X
L
Byte Write
I
DDW
Din
VDD Current
SB1
SB2
DQ[7:0] 2
Notes:
1. H = high, L = low, X = don’t care
2. Hi-Z = high impedance
Copyright © 2018 Everspin Technologies
5
MR256A08B Rev. 6.5 3/2018
MR256A08B
ELECTRICAL SPECIFICATIONS
Absolute Maximum Ratings
This device contains circuitry to protect the inputs against damage caused by high static voltages or
electric fields; however, it is advised that normal precautions be taken to avoid application of any voltage
greater than maximum rated voltages to these high-impedance (Hi-Z) circuits.
The device also contains protection against external magnetic fields. Precautions should be taken to avoid
application of any magnetic field more intense than the maximum field intensity specified in the maximum
ratings. 1
Table 3 – Absolute Maximum Ratings
Parameter
Symbol
VDD
Supply voltage 2
Value
Unit
-0.5 to 4.0
V
Voltage on an pin 2
VIN
-0.5 to VDD + 0.5
V
Output current per pin
IOUT
±20
mA
Package power dissipation 3
PD
0.600
W
-10 to 85
°C
Temperature under bias
MR256A08B (Commercial)
MR256A08BC (Industrial)
TBIAS
-45 to 95
Storage Temperature
Tstg
-55 to 150
°C
Lead temperature during solder (3 minute max)
TLead
260
°C
Maximum magnetic field during write
Hmax_write
2000
A/m
Maximum magnetic field during read or standby
Hmax_read
8000
A/m
Notes:
1. Permanent device damage may occur if absolute maximum ratings are exceeded. Functional operation should be restricted to recommended operating conditions. Exposure to excessive voltages
or magnetic fields could affect device reliability.
2. All voltages are referenced to VSS.
3. Power dissipation capability depends on package characteristics and use environment.
Copyright © 2018 Everspin Technologies
6
MR256A08B Rev. 6.5 3/2018
MR256A08B
OPERATING CONDITIONS
Table 4 – Operating Conditions
Parameter
Symbol
Min
Typical
Max
Unit
Power supply voltage
VDD
3.0 1
3.3
3.6
V
Write inhibit voltage
VWI
2.5
2.7
3.0 1
V
Input high voltage
VIH
2.2
-
VDD + 0.3 2
V
Input low voltage
VIL
-0.5 3
-
0.8
V
TA
0
70
°C
-40
85
Temperature under bias
MR256A08B (Commercial)
MR256A08BC (Industrial)
Notes:
1. There is a 2 ms startup time once VDD exceeds VDD,(min). See “Power Up and Power Down Sequencing Timing Diagram”.
2. VIH(max) = VDD + 0.3 VDC ; VIH(max) = VDD + 2.0 VAC (pulse width ≤ 10 ns) for I ≤ 20.0 mA.
3. VIL(min) = -0.5 VDC ; VIL(min) = -2.0 VAC (pulse width ≤ 10 ns) for I ≤ 20.0 mA.
Copyright © 2018 Everspin Technologies
7
MR256A08B Rev. 6.5 3/2018
MR256A08B
Power Up and Power Down Sequencing
The MRAM is protected from write operations whenever VDD is less than VWI. As soon as VDD exceeds VDD(min),
there is a startup time of 2 ms before read or write operations can start. This time allows memory power supplies to stabilize.
The E and W control signals should track VDD on power up to VDD- 0.2 V or VIH (whichever is lower) and remain
high for the startup time. In most systems, this means that these signals should be pulled up with a resistor
so that signal remains high if the driving signal is Hi-Z during power up. Any logic that drives E and W should
hold the signals high with a power-on reset signal for longer than the startup time.
During power loss or brownout where VDD goes below VWI, writes are protected and a startup time must be
observed when power returns above VDD(min).
Figure 3 – Power Up and Power Down Sequencing Timing Diagram
VWI
VDD
BROWNOUT or POWER LOSS
2 ms
STARTUP
READ/WRITE
INHIBITED
2 ms
RECOVER
NORMAL
OPERATION
READ/WRITE
INHIBITED
NORMAL
OPERATION
VIH
VIH
E
W
Copyright © 2018 Everspin Technologies
8
MR256A08B Rev. 6.5 3/2018
MR256A08B
DC CHARACTERISTICS
Table 5 – DC Characteristics
Parameter
Symbol
Min
Typical
Max
Unit
-
-
±1
μA
lkg(O)
-
-
±1
μA
V
-
-
0.4
V
Input leakage current
I
Output leakage current
I
lkg(I)
Output low voltage
(IOL = + 4 mA)
OL
(I = + 100 μA)
V + 0.2
OL
SS
Output high voltage
(IOL = - 4 mA)
(IOL = - 100 μA)
Copyright © 2018 Everspin Technologies
2.4
V
OH
-
-
V
VDD - 0.2
9
MR256A08B Rev. 6.5 3/2018
MR256A08B
Table 6 – Power Supply Characteristics
Parameter
Symbol
AC active supply current - read modes 1
(IOUT= 0 mA, VDD= max)
Typical
Max
Unit
I
25
30
mA
I
55
65
mA
55
75
6
7
6
8
5
6
5
7
DDR
AC active supply current - write modes 1
(VDD= max)
MR256A08B (Commercial)
MR256A08BC (Industrial)
DDW
AC standby current
(VDD= max, E = VIH)
no other restrictions on other inputs
MR256A08B (Commercial)
MR256A08BC (Industrial)
I
SB1
mA
CMOS standby current
(E ≥ VDD - 0.2 V and VIn ≤ VSS + 0.2 V or ≥ VDD - 0.2 V)
(VDD = max, f = 0 MHz)
MR256A08B (Commercial)
MR256A08BC (Industrial)
I
SB2
mA
Notes:
1. All active current measurements are measured with one address transition per cycle and at minimum cycle time.
Copyright © 2018 Everspin Technologies
10
MR256A08B Rev. 6.5 3/2018
MR256A08B
TIMING SPECIFICATIONS
Table 7 – Capacitance
Parameter 1
Symbol
Typical
Max
Unit
Address input capacitance
C
-
6
pF
Control input capacitance
C
In
-
6
pF
Input/Output capacitance
C
I/O
-
8
pF
Value
Unit
Logic input timing measurement reference level
1.5
V
Logic output timing measurement reference level
1.5
V
0 or 3.0
V
2
ns
In
Notes:
1. f = 1.0 MHz, dV = 3.0 V, TA = 25 °C, periodically sampled rather than 100% tested.
Table 8 – AC Measurement Conditions
Parameter
Logic input pulse levels
Input rise/fall time
Output load for low and high impedance parameters
See Figure 4
Output load for all other timing parameters
See Figure 5
Figure 4 – Output Load Test Low and High
ZD= 50 Ω
Output
RL = 50 Ω
VL = 1.5 V
Figure 5 – Output Load Test All Others
3.3 V
590 Ω
Output
5 pF
435 Ω
Copyright © 2018 Everspin Technologies
11
MR256A08B Rev. 6.5 3/2018
MR256A08B
Read Mode
Table 9 – Read Cycle Timing
Parameter 1
Symbol
Min
Max
Unit
Read cycle time
tAVAV
35
-
ns
Address access time
tAVQV
-
35
ns
Enable access time 2
tELQV
-
35
ns
Output enable access time
tGLQV
-
15
ns
Output hold from address change
tAXQX
3
-
ns
Enable low to output active 3
tELQX
3
-
ns
Output enable low to output active 3
tGLQX
0
-
ns
Enable high to output Hi-Z 3
tEHQZ
0
15
ns
Output enable high to output Hi-Z 3
tGHQZ
0
10
ns
Notes:
1. W is high for read cycle. Power supplies must be properly grounded and decoupled, and bus contention conditions must be
minimized or eliminated during read or write cycles.
2. Addresses valid before or at the same time E goes low.
3. This parameter is sampled and not 100% tested. Transition is measured ±200 mV from the steady-state voltage.
Figure 6 – Read Cycle 1
t AVAV
A (ADDRESS)
t AXQX
Q (DATA OUT)
Previous Data Valid
Data Valid
t AVQV
Copyright © 2018 Everspin Technologies
12
MR256A08B Rev. 6.5 3/2018
MR256A08B
Figure 7 – Read Cycle 2
t AVAV
A (ADDRESS)
t AVQV
E (CHIP ENABLE)
t ELQV
t EHQZ
t ELQX
G (OUTPUT ENABLE)
Q (DATA OUT)
Copyright © 2018 Everspin Technologies
t GHQZ
t GLQV
t GLQX
Data Valid
13
MR256A08B Rev. 6.5 3/2018
MR256A08B
Write Mode
Table 10 – Write Cycle Timing 1 (W Controlled)
Parameter 1
Symbol
Min
Max
Unit
Write cycle time 2
tAVAV
35
-
ns
Address set-up time
tAVWL
0
-
ns
Address valid to end of write (G high)
tAVWH
18
-
ns
Address valid to end of write (G low)
tAVWH
20
-
ns
Write pulse width (G high)
tWLWH
tWLEH
15
-
ns
Write pulse width (G low)
tWLWH
tWLEH
15
-
ns
Data valid to end of write
tDVWH
10
-
ns
Data hold time
tWHDX
0
-
ns
Write low to data Hi-Z 3
tWLQZ
0
12
ns
Write high to output active 3
tWHQX
3
-
ns
Write recovery time
tWHAX
12
-
ns
Notes:
1.
All writes occur during the overlap of E low and W low. Power supplies must be properly grounded and decoupled and bus
contention conditions must be minimized or eliminated during read and write cycles. If G goes low at the same time or
after W goes low, the output will remain in a high impedance state. After W or E has been brought high, the signal must remain in steady-state high for a minimum of 2 ns. The minimum time between E being asserted low in one cycle to E being
asserted low in a subsequent cycle is the same as the minimum cycle time allowed for the device.
2.
All write cycle timings are referenced from the last valid address to the first transition address.
3.
This parameter is sampled and not 100% tested. Transition is measured ±200 mV from the steady-state voltage. At any
given voltage or temperature, t
(max) < t
(min)
WLQZ
Copyright © 2018 Everspin Technologies
WHQX
14
MR256A08B Rev. 6.5 3/2018
MR256A08B
Figure 8 – Write Cycle Timing 1 (W Controlled)
t AVAV
A (ADDRESS)
t WHAX
t AVWH
E (CHIP ENABLE)
t WLEH
t WLWH
W (WRITE ENABLE)
t AVWL
t DVWH
D (DATA IN)
t WHDX
Data Valid
t WLQZ
Q (DATA OUT)
Hi-Z
Hi-Z
t WHQX
Copyright © 2018 Everspin Technologies
15
MR256A08B Rev. 6.5 3/2018
MR256A08B
Table 11 – Write Cycle Timing 2 (E Controlled)
Parameter 1
Symbol
Min
Max
Unit
Write cycle time 2
tAVAV
35
-
ns
Address set-up time
tAVEL
0
-
ns
Address valid to end of write (G high)
tAVEH
18
-
ns
Address valid to end of write (G low)
tAVEH
20
-
ns
Enable to end of write (G high)
tELEH
tELWH
15
-
ns
Enable to end of write (G low) 3
tELEH
tELWH
15
-
ns
Data valid to end of write
tDVEH
10
-
ns
Data hold time
tEHDX
0
-
ns
Write recovery time
tEHAX
12
-
ns
Notes:
1. All writes occur during the overlap of E low and W low. Power supplies must be properly grounded and decoupled and bus
contention conditions must be minimized or eliminated during read and write cycles. If G goes low at the same time or after
W goes low, the output will remain in a high impedance state. After W or E has been brought high, the signal must remain
in steady-state high for a minimum of 2 ns. The minimum time between E being asserted low in one cycle to E being asserted low in a subsequent cycle is the same as the minimum cycle time allowed for the device.
2. All write cycle timings are referenced from the last valid address to the first transition address.
3. If E goes low at the same time or after W goes low, the output will remain in a high-impedance state. If E goes high at the
same time or before W goes high, the output will remain in a high-impedance state.
Copyright © 2018 Everspin Technologies
16
MR256A08B Rev. 6.5 3/2018
MR256A08B
Figure 9 – Write Cycle Timing 2 (E Controlled)
t AVAV
A (ADDRESS)
t EHAX
t AVEH
t ELEH
E (CHIP ENABLE)
t AVEL
t ELWH
W (WRITE ENABLE)
t DVEH
D (DATA IN)
Data Valid
Hi-Z
Q (DATA OUT)
Copyright © 2018 Everspin Technologies
t EHDX
17
MR256A08B Rev. 6.5 3/2018
MR256A08B
ORDERING INFORMATION
Table 12 – Ordering Part Number System for Parallel I/O MRAM
MRAM
256 Kb
1 Mb
4 Mb
16 Mb
Example Ordering Part Number
MR
256
0
2
4
Async 3.3v
Type
A
I/O Width
08
Rev.
B
Temp Package Speed
C
MA
35
Packing
R
Grade
A
Async 3.3v Vdd and 1.8v Vddq
D
Async 3.3v Vdd and 1.8v Vddq with 2.7v min. Vdd
DL
8-bit
16-bit
Rev A
Rev B
Commercial
0 to 70°C
Industrial
-40 to 85°C
Extended
-40 to 105°C
AEC Q-100 Grade 1 -40 to 125°C
44-TSOP-2
48-FBGA
16-SOIC
32-SOIC
35 ns
45 ns
Tray
Tape and Reel
Engineering Samples
Customer Samples
Mass Production
Memory Density
MR
256
08
16
A
B
Blank
C
V
M
YS
MA
SC
SO
35
45
Blank
R
ES
Blank
Blank
Copyright © 2018 Everspin Technologies
18
MR256A08B Rev. 6.5 3/2018
MR256A08B
Table 13 – MR256A08B Ordering Part Numbers 1
Temp Grade
Temp
Package
Shipping
Tray
44-TSOP2
Commercial
0 to +70 °C
Tape and Reel
Tray
48-BGA
Tape and Reel
Tray
32-SOIC 1
Tape and Reel
Tray
44-TSOP2
Industrial
-40 to +85 °C
Tape and Reel
Tray
48-BGA
Tape and Reel
Tray
32-SOIC 1
Tape and Reel
Ordering Part Number
MR256A08BYS35
MR256A08BYS35R
MR256A08BMA35
MR256A08BMA35R
MR256A08BSO35 Obsolete
MR256A08BSO35R Obsolete
MR256A08BCYS35
MR256A08BCYS35R
MR256A08BCMA35
MR256A08BCMA35R
MR256A08BCSO35 Obsolete
MR256A08BCSO35R Obsolete
1 The 32-SOIC package option is obsolete and no longer available. See PCN02895 here.
Copyright © 2018 Everspin Technologies
19
MR256A08B Rev. 6.5 3/2018
MR256A08B
PACKAGE OUTLINE DRAWINGS
Figure 10 – 44-TSOP2 Package Outline
Not To Scale
1.
Dimensions and tolerances per ASME Y14.5M - 1994.
2.
Dimensions in Millimeters.
3.
Dimensions do not include mold protrusion.
4.
Dimension does not include DAM bar protrusions.
5.
DAM Bar protrusion shall not cause the lead width to
exceed 0.58.
44
Copyright © 2018 Everspin Technologies
20
MR256A08B Rev. 6.5 3/2018
MR256A08B
Figure 11 – 48-BGA Package Outline
TOP VIEW
0.41
0.31
BOTTOM VIEW
0.32
0.22
SIDE VIEW
Not To Scale
1.
Dimensions in Millimeters.
2.
Dimensions and tolerances per ASME Y14.5M - 1994.
3.
Maximum solder ball diameter measured parallel to DATUM A
4.
DATUM A, the seating plane is determined by the spherical crowns
of the solder balls.
5.
surface of package.
Copyright © 2018 Everspin Technologies
21
MR256A08B Rev. 6.5 3/2018
Figure 12 – 32-SOIC Package Outline 1
let
e
PIN 1 ID
32
17
so
J
1
Reference JEDEC MO-119
K
16
Ob
A
I
G
D
B
Unit
mm - Min
- Max
inch - Min
- Max
E
C
A
20.574
20.878
0.810
0.822
B
1.00
1.50
0.04
0.06
C
0.355
0.508
0.14
0.02
D
0.66
0.81
0.026
0.032
E
0.101
0.254
0.004
0.010
H
F
F
2.286
2.540
0.09
0.10
G
Radius
0.101
Radius
0.0040
H
0.533
1.041
0.021
0.041
I
0.152
0.304
0.006
0.012
J
7.416
7.594
0.292
0.299
K
10.287
10.642
0.405
0.419
Note:
1. The 32-SOIC package is obsolete and shown for legacy reference only. This package option is no longer
available for new orders.
Copyright © 2018 Everspin Technologies
22
MR256A08B Rev. 6.5 3/2018
MR256A08B
REVISION HISTORY
Revision Date
Description of Change
0
Sept 12, 2008
Initial Advance Information Release
1
Mar 25, 2009
Add Industrial and Automotive Temperature Options
2
August 16, 2011
Removed Automotive temperature options. Included SOIC package.
Revised formatting
3
October 28, 2011
Changed TSOP-II to TSOP2. Changed logo to new EST Logo. Revisions to
Available Parts, Table 4.1: Added Industrial Temp Grade option in SOIC
package. Deleted Tape & Reel pack option for all SOIC packaged parts.
4
Dec 9, 2011
Figure 2.1 cosmetic update. Figure 5.2 BGA package outline drawing
revised for package ball size. Revisions to ISB1, ISB2 and IDDW for Industrial Grade options in Table 2.4.
5
July 9, 2013
MR256A08BCSO35 removed Preliminary status. Now MP.
6
October 11, 2013
Added Tape and Reel shipping option for SOIC packaged products. Reformatted to current standards.
6.1
May 19, 2015
Revised Everspin contact information.
6.2
June 11, 2015
Corrected Japan Sales Office telephone number.
6.3
July 20, 2015
32-SOIC package options Not Recommended for New Designs.
6.4
October 17, 2015
32-SOIC package options are obsolete and no longer available.
6.5
March 23, 2018
Updated the Contact Us table
Copyright © 2018 Everspin Technologies
23
MR256A08B Rev. 6.5 3/2018
MR256A08B
HOW TO CONTACT US
How to Reach Us:
Everspin Technologies, Inc.
Home Page:
Information in this document is provided solely to enable system and
software implementers to use Everspin Technologies products. There
are no express or implied licenses granted hereunder to design or
fabricate any integrated circuit or circuits based on the information
in this document. Everspin Technologies reserves the right to make
changes without further notice to any products herein. Everspin makes
no warranty, representation or guarantee regarding the suitability of its
products for any particular purpose, nor does Everspin Technologies assume any liability arising out of the application or use of any product or
circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters,
which may be provided in Everspin Technologies data sheets and/
or specifications can and do vary in different applications and actual
performance may vary over time. All operating parameters including
“Typicals” must be validated for each customer application by customer’s technical experts. Everspin Technologies does not convey any
license under its patent rights nor the rights of others. Everspin Technologies products are not designed, intended, or authorized for use as
components in systems intended for surgical implant into the body, or
other applications intended to support or sustain life, or for any other
application in which the failure of the Everspin Technologies product
could create a situation where personal injury or death may occur.
Should Buyer purchase or use Everspin Technologies products for any
such unintended or unauthorized application, Buyer shall indemnify
and hold Everspin Technologies and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly
or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Everspin Technologies was negligent regarding the design or manufacture
of the part. Everspin™ and the Everspin logo are trademarks of Everspin
Technologies, Inc. All other product or service names are the property
of their respective owners.
www.everspin.com
World Wide Information Request
WW Headquarters - Chandler, AZ
5670 W. Chandler Blvd., Suite 100
Chandler, Arizona 85226
Tel: +1-877-480-MRAM (6726)
Local Tel: +1-480-347-1111
Fax: +1-480-347-1175
support@everspin.com
orders@everspin.com
sales@everspin.com
Europe, Middle East and Africa
Everspin Europe Support
support.europe@everspin.com
Japan
Everspin Japan Support
support.japan@everspin.com
Asia Pacific
Everspin Asia Support
support.asia@everspin.com
Copyright © Everspin Technologies, Inc. 2018
Filename:
EST00355_MR256A08B_Datasheet_Rev6.5032318
Copyright © 2018 Everspin Technologies
24
MR256A08B Rev. 6.5 3/2018
