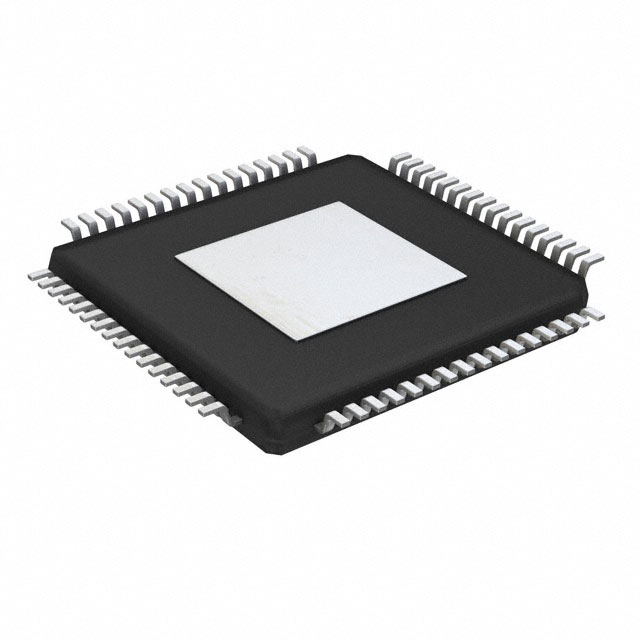

XL208-128-TQ64-C10

xCORE-200 XL/XLF General Purpose A new generation of high performance general-purpose multicore microcontrollers FEATURES Multicore compute with up to 1000MIPS (8 core) and 2000MIPS (16 core) performance. ResponseTM Hardware ports provide flexible, high-performance configurable I/O capability. Up to 512KB on-board memory for demanding applications. Embedded flash option – up to 2048KB on-board. Free software library support to implement your exact mix of peripherals. Easy to use with our free xTIMEcomposer Studio™ tools. The xCORE-200TM General Purpose family of devices (XL and XLF) extends the popular xCORETM architecture to provide increased performance, memory footprint and flexibility for the most demanding applications. xCORE-200 XL/XLF implements a dual-issue processor pipeline to boost peak compute performance up to 2000MIPS and 1000MMACS. Up to 512KB on-chip SRAM memory is available. Each member of the xCORE-200 family has an embedded flash option for applications. The flexible Hardware Response ports are bonded out to I/O pins as 1bit, 4bit, 8bit, 16bit and 32bit ports, and provide support for serialized and buffered data transfer. Up to 128 general purpose I/O are available for user configuration. xCORE-200 is supported by the advanced XMOS xTIMEcomposer StudioTM development environment. A wide range of microcontroller and application libraries are freely downloadable from www.xmos.com xCORE-200 General Purpose PRODUCT BRIEF  I/O pins xTIME scheduler Hardware response ports xCORE logical core xCORE logical core xCORE logical core xCORE logical core xCORE logical core xCORE logical core xCORE logical core xCORE logical core xCORE logical core xCORE logical core SRAM xCONNECT Switch Unlike conventional microcontrollers, xCORE-200 multicore microcontrollers execute multiple realtime tasks simultaneously. The xCORE-200 XL/XLF family includes devices with 8, 10, 12 and 16 cores. Each logical core can execute computational code, advanced DSP code, control software (including logic decisions and executing a state machine) or drive and sample data on the I/O ports. OTP PLL xCORE logical core xCORE logical core JTAG xCORE logical core xCORE logical core FLASH xCORE logical core xCORE logical core OTP SRAM The devices include xTIME scheduling hardware that performs functions similar to those of an RTOS, and hardware that connects the cores directly to I/O pins, ensuring fast processing and extremely low latency. The xTIME scheduler eliminates the use of interrupts and ensures deterministic operation. The on-chip SRAM can be accessed in a single cycle, reducing shared memory requirements by passing data directly between tasks executing on logical cores. Similarly the xCONNECT switch is a high-speed network allowing all cores to communicate with each other. xCORE-200 multicore microcontrollers include an area of one-time programmable memory with AES support to allow the implementation of secure boot functionality. ORDERING INFORMATION xCORE-200 XL/XLF devices are available in a range of resource densities, packages, performance and temperature grades depending on your needs. Package [GPIOs] Family Cores XL208 8 XL210 10 XL212 12 XL216 16 XL224 24 XL232 32 XLF208 8 XLF210 10 XLF212 12 XLF216 16 XLF224 24 XLF232 32 RAM (KB) 128 256 256 512 256 512 256 512 512 1024 512 1024 128 256 256 512 256 512 256 512 512 1024 512 1024 Flash (KB) TQ64 TQ128 FB236 - XL208-128-TQ64 [42] XL208-256-TQ64 [42] XL208-128-TQ128 [42] XL208-256-TQ128 [42] XL210-256-TQ128 [88] XL210-512-TQ128 [88] XL212-256-TQ128 [88] XL212-512-TQ128 [88] XL216-256-TQ128 [88] XL216-512-TQ128 [88] XL210-256-FB236 [128] XL210-512-FB236 [128] XL212-256-FB236 [128] XL212-512-FB236 [128] XL216-256-FB236 [128] XL216-512-FB236 [128] - XL224-512-FB374 [176] XL224-1024-FB374 [176] XL232-512-FB374 [176] XL232-1024-FB374 [176] 1024 2048 2048 2048 FB374 XLF208-128-TQ64 [42] XLF208-128-TQ128 [42] XLF208-256-TQ64 [42] XLF208-256-TQ128 [42] XLF210-256-TQ128 [88] XLF210-512-TQ128 [88] XLF212-256-TQ128 [88] XLF212-512-TQ128 [88] XLF216-256-TQ128 [88] XLF216-512-TQ128 [88] XLF210-256-FB236 [128] XLF210-512-FB236 [128] XLF212-256-FB236 [128] XLF212-512-FB236 [128] XLF216-256-FB236 [128] XLF216-512-FB236 [128] XLF224-512-FB374 [176] XLF224-1024-FB374 [176] XLF232-512-FB374 [176] XLF232-1024-FB374 [176] 2048 2048 For pricing and availability, please visit the XMOS website for a list of our distributors. www.xmos.com/distributors. © 2017 XMOS LTD Third party trademarks are hereby acknowledged. This is a preliminary product brief, contents are subject to change. XM-006787-PC | 2016-06-28
