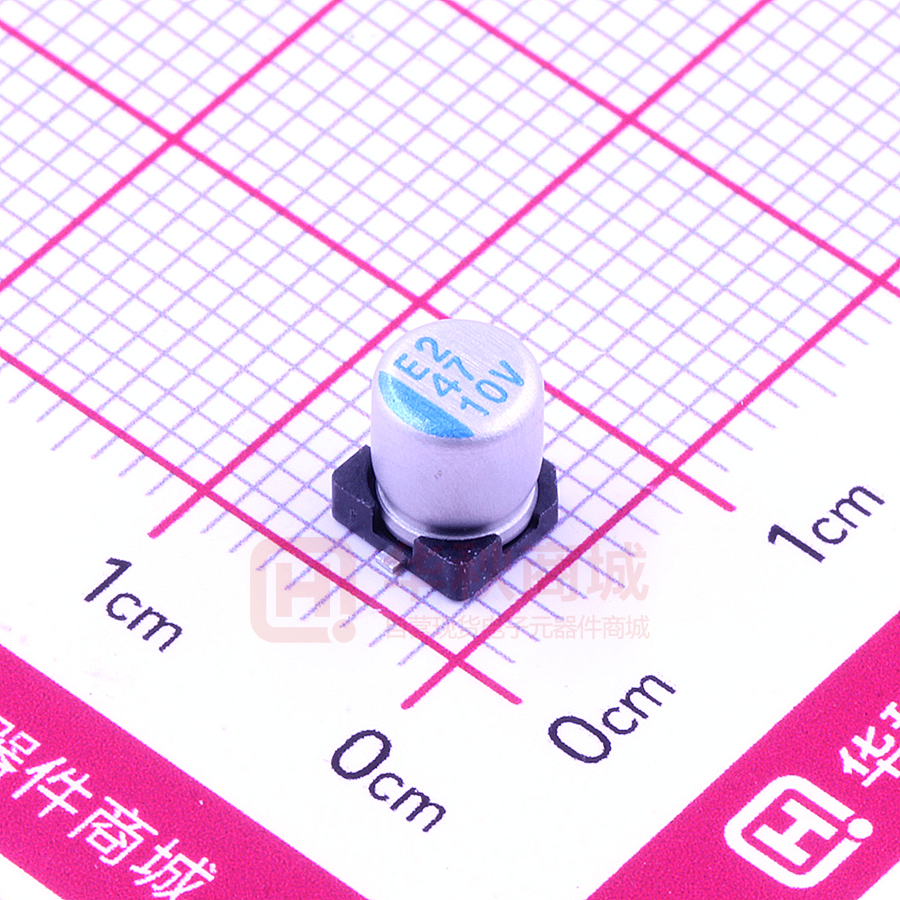

OV-470M1ATR-0506

Organic Conductive Polymer Capacitors OCV Series Features ‧105℃, 2,000 hours assured ‧Ultra low ESR, solid capacitors of SMD type ‧RoHS compliance Marking color: Blue Specifications Items Category Temperature Range Capacitance Tolerance Leakage Current (at 20℃)* Tanδ (at 120 Hz, 20℃) ESR (at 100k ~ 300k Hz, 20℃) Performance -55℃ ~ +105℃ ±20% (at 120 Hz, 20℃) Rated voltage applied, after 2 minutes at 20℃. See Standard Ratings See Standard Ratings See Standard Ratings Test Time 2,000 Hrs Capacitance Change Within ±20% of initial value Tanδ Less than 150% of specified value ESR Less than 150% of specified value Leakage Current Within specified value * The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied for 2,000 hours at 105℃. Endurance Moisture Resistance Test Time 1,000 Hrs Capacitance Change Within ±20% of initial value Tanδ Less than 150% of specified value ESR Less than 150% of specified value Leakage Current Within specified value * The above specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them at 60℃, 90 ~ 95% RH for 1,000 hours. Leakage current should be tested after voltage treatment*. Capacitance Change Tanδ ESR Leakage Current Resistance to Soldering Heat * (Please refer to page 26 for reflowsoldering conditions) Frequency (Hz) Multiplier Ripple Current and Frequency Multipliers Within ±10% of initial value Within specified value Within specified value Within specified value 120 ≦ f < 1k 1k ≦ f < 10k 10k ≦ f < 100k 100k≦ f < 500k 0.05 0.3 0.7 1.0 * For any doubt about measured values, measure the leakage current again after the following voltage treatment. Voltage treatment: DC rated voltage is applied to the capacitors for 2 hours at 105 ℃. Diagram of Dimensions Lead Spacing and Diameter φD Marking φD = 5 ~ 6.3 Negative polarity 36 A2 10 16V B C W P ± 0.2 5.7 ± 0.3 5.3 5.3 5.9 0.5 ~ 0.8 1.5 6.3 5.9 +0.1/-0.3 6.6 6.6 7.2 0.5 ~ 0.8 2.0 6.3 7.0 ± 0.2 6.6 6.6 7.2 0.5 ~ 0.8 2.0 8 6.7 ± 0.3 8.3 8.3 9.0 0.7 ~ 1.1 3.1 8 12.0 ± 0.5 8.3 8.3 9.0 0.7 ~ 1.1 3.1 10 7.7 ± 0.3 10.3 10.3 11.0 0.7 ~ 1.3 4.7 10 9.9 +0.1/-0.3 10.3 10.3 11.0 0.7 ~ 1.3 4.7 10 12.6 +0.1/-0.4 10.3 10.3 11.0 0.7 ~ 1.3 4.7 φD = 8 ~ 10 Date code Rated cap. Rated voltage & Series code Negative polarity A2 OCV 470 6.3V Unit: mm A 5 L Date code Series name Rated cap. Rated voltage All product specifications in the catalog are subject to change without notice. (Cat. 2022E2) Organic Conductive Polymer Capacitors Dimension: φD×L(mm) Ripple Current: mA/rms at 100k Hz, 105℃ Standard Ratings Rated Volt. (V) 2.5V (0E) Surge Voltage (V) 2.9 Capacitance (µF) 4.6 0.12 110 25 2,500 0.12 280 23 3,100 680 8 × 12 0.18 340 12 4,770 1,000 10 × 7.7 0.12 500 19 4,240 1,200 10 × 9.9 0.18 750 13 5,200 1,500 10 × 12.6 0.18 750 10 5,500 120 30 1,490 120 26 2,450 8 × 6.7 330 8 × 6.7 470 10 × 7.7 560 8 × 12 0.12 0.18 176 25 3,020 264 25 3,020 376 20 4,130 448 12 4,770 680 10 × 7.7 0.12 544 20 4,130 820 10 × 9.9 0.18 656 13 5,200 10 × 12.6 0.18 960 10 5,500 103 27 2,400 150 7.2 220 6.3 × 5.9 5 × 5.7 126 35 1,380 6.3 × 5.9 126 27 2,400 6.3 × 7 151 30 2,010 6.3 × 7 0.12 8 × 6.7 6.3 × 7 8 × 6.7 189 30 2,250 189 25 3,020 277 30 2,250 277 25 3,020 330 10 × 7.7 416 20 4,130 470 8 × 12 592 12 4,770 560 10 × 9.9 820 10 × 12.6 0.15 706 16 4,700 1,033 10 5,500 47 5 × 5.7 0.12 94 40 1,270 56 6.3 × 5.9 0.10 112 31 2,250 150 18.0 5 × 5.7 6.3 × 5.9 220 120 16V (1C) Rated R. C. (mA/rms at 100k Hz, 105℃) 8 × 6.7 100 12.0 ESR (mΩ/at 100k ~ 300k Hz, 20℃ max.) 6.3 × 5.9 82 10V (1A) LC (µA) 560 1,200 6.3V (0J) Tanδ (120 Hz, 20℃) 220 150 4V (0G) Size φD×L(mm) 330 8 × 6.7 0.10 300 27 2,800 8 × 12 0.15 660 14 4,420 10 × 7.7 0.10 660 24 3,770 470 10 × 9.9 0.15 940 18 4,400 560 10 × 12.6 0.15 1,120 12 5,300 22 5 × 5.7 0.12 70 45 1,210 47 6.3 × 5.9 0.10 150 50 1,650 82 8 × 6.7 0.10 262 30 2,700 8 × 12 0.15 576 16 4,360 10 × 7.7 0.10 576 26 3,430 220 10 × 9.9 0.15 704 20 4,200 330 10 × 12.6 0.15 792 14 5,050 820 10 × 12.6 0.12 2,624 18 4,200 180 All product specifications in the catalog are subject to change without notice. (Cat. 2022E2) 37 Organic Conductive Polymer Capacitors Dimension: φD×L(mm) Ripple Current: mA/rms at 100k Hz, 105℃ Standard Ratings Rated Volt. (V) Surge Voltage (V) 20V (1D) 23.0 Capacitance (µF) 22 6.3 × 5.9 47 8 × 6.7 82 100 35V (1V) 29.0 40.0 Tanδ (120 Hz, 20℃) LC (µA) ESR (mΩ/at 100k ~ 300k Hz, 20℃ max.) Rated R. C. (mA/rms at 100k Hz, 105℃) 1,650 88 50 188 45 2,000 10 × 7.7 328 40 2,500 8 × 12 400 24 3,320 10 × 9.9 150 25V (1E) Size φD×L(mm) 0.10 0.15 10 × 12.6 330 10 × 12.6 6.8 6.3 × 5.9 0.12 0.10 400 25 3,700 600 20 4,320 1,320 26 2,700 170 80 1,200 1,500 10 8 × 6.7 125 60 22 10 × 7.7 275 50 2,000 33 8 × 12 413 30 2,980 56 10 × 12.6 700 28 3,800 270 10 × 12.6 1,350 27 2,700 39 8 × 12 0.12 273 31 2,100 68 10 × 12.6 0.12 476 28 2,700 0.12 Part Numbering System OCV Series 470µF ±20% 6.3V Carrier Tape 8φ×12L OCV 471 M 0J TR - 0812 Series Name Capacitance Capacitance Tolerance Rated Voltage Package Type Terminal Type Case Size Pb-free and Coated Case Lead Wire and Case Type Note: For more details, please refer to “Part Numbering System (SMD Type)” on page 15. 38 All product specifications in the catalog are subject to change without notice. (Cat. 2022E2)
