Product data sheet
09 19 510 6829

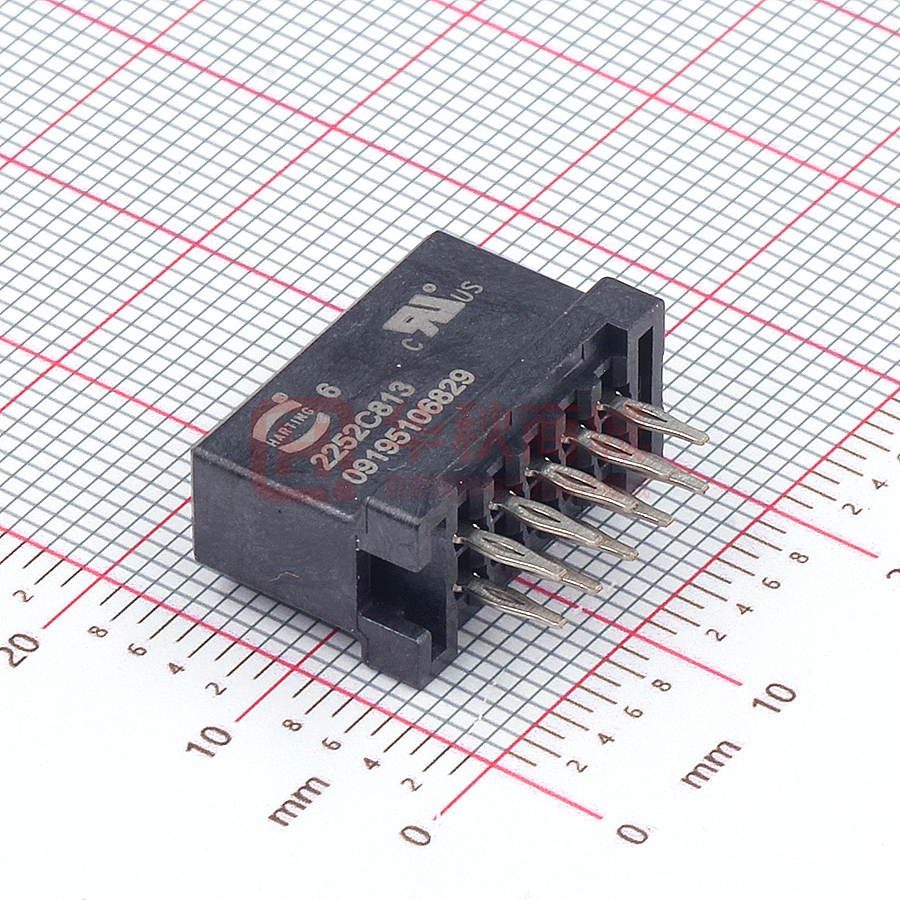

SEK mezz Fe 10P Press-in 4.5mm PL2
SEK mezz Fe 10P Press-in 4.5mm PL2
Part number
09 19 510 6829
Specification
SEK mezz Fe 10P Press-in 4.5mm PL2
HARTING eCatalogue
https://b2b.harting.com/09195106829
Image is for illustration purposes only. Please refer to product description.
Identification
Category
Connectors
Series
SEK Mezzanine
Element
Female connector
Description of the contact
Straight
Version
Termination method
Press-in termination
Connection type
PCB to PCB
Motherboard to daughtercard
Number of contacts
10
Termination length
4.5 mm
Technical characteristics
Contact rows
2
Contact spacing (termination side)
2.54 mm
Rated current
1 A
Insulation resistance
>109 Ω
Contact resistance
≤20 mΩ
Limiting temperature
-55 ... +125 °C
Insertion and withdrawal force
≤20 N
Performance level
2
Mating cycles
≥250
Test voltage Ur.m.s.
1 kV
Page 1 / 2 | Creation date 2022-04-29 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electronics GmbH | Marienwerderstraße 3 | 32339 Espelkamp | Germany
Phone +49 5772 47-97200 | electronics@HARTING.com | www.HARTING.com
Product data sheet
09 19 510 6829
SEK mezz Fe 10P Press-in 4.5mm PL2
Technical characteristics
Isolation group
IIIa (175 ≤ CTI < 400)
PCB thickness
1.6 mm +1.6
Material properties
Material (insert)
Liquid crystal polymer (LCP)
Colour (insert)
Black
Material (contacts)
Copper alloy
Surface (contacts)
Nickel plated Termination side
Au over Pd/Ni Mating side
Material flammability class acc. to UL 94
V-0
RoHS
compliant
ELV status
compliant
China RoHS
e
REACH Annex XVII substances
Not contained
REACH ANNEX XIV substances
Not contained
REACH SVHC substances
Not contained
California Proposition 65 substances
Not contained
Specifications and approvals
Specifications
IEC 60603-13
Commercial data
Packaging size
100
Net weight
3.07 g
Country of origin
China
European customs tariff number
85366990
eCl@ss
27460201 PCB connector (board connector)
