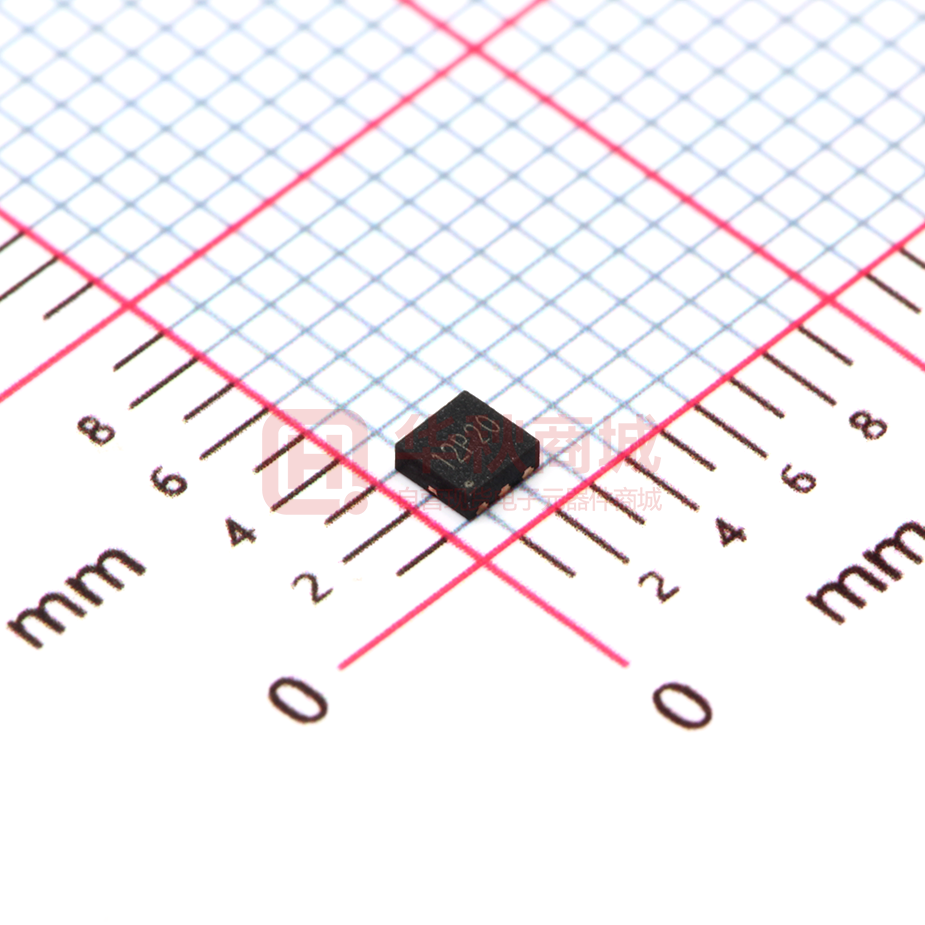

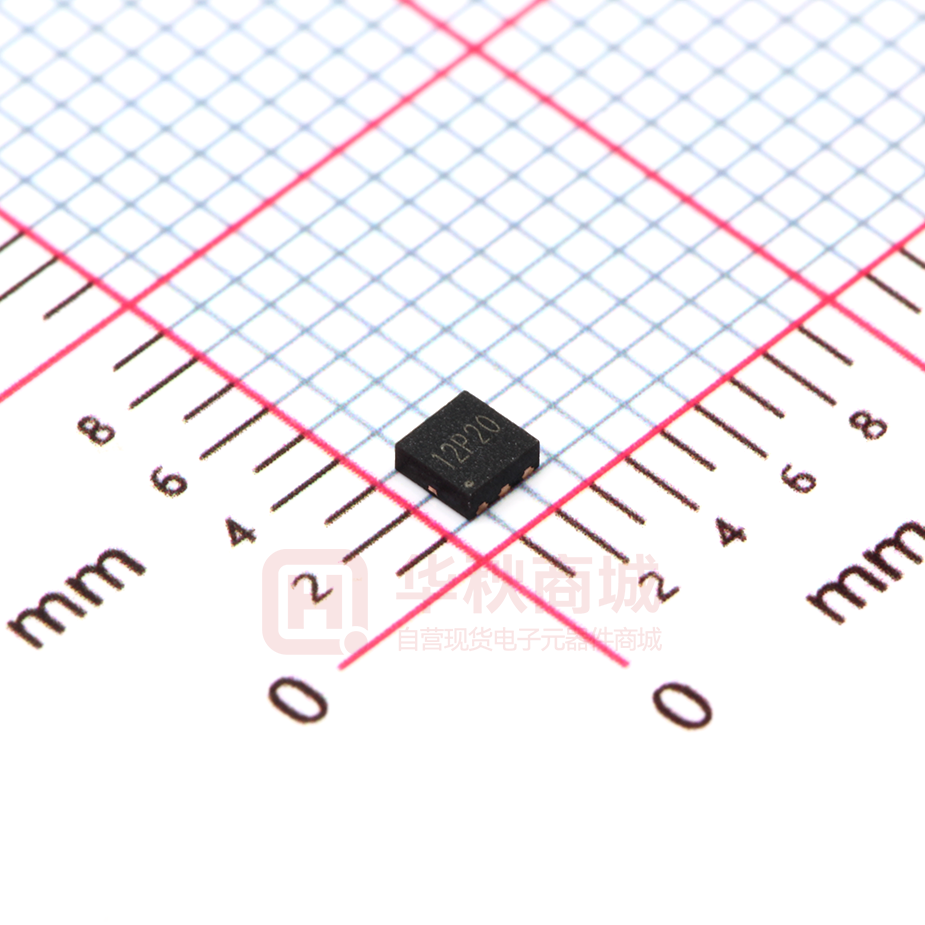

PJM12P20DF
P-Channel Enhancement Mode Power MOSFET
Features
DFN2x2-6L
1.D
⚫ Low gate charge and RDS(ON)
2.D 3.G
⚫ VDS= -20V,ID= -12A
RDS(on)< 22mΩ @VGS= -4.5V
S
D
PIN1
6.D 5.D 4.S
Marking Code: 12P20
Applications
Schematic Diagram
⚫ Load switch
1、2、5、6.Drain
⚫ PWM application
3.Gate
4.Source
Absolute Maximum Ratings
Ratings at 25℃ Case temperature unless otherwise specified.
Parameter
Symbol
Value
Unit
Drain-Source Voltage
-VDS
20
V
Gate-Source Voltage
VGS
±12
V
Drain Current-Continuous
-ID
12
A
Drain Current-Pulsed Note1
-IDM
48
A
Maximum Power Dissipation
PD
4.5
W
Junction Temperature
TJ
150
°C
TSTG
-55 to +150
°C
RθJC
27.8
°C/W
Storage Temperature Range
Thermal Characteristics
Thermal Resistance,Junction-to-Case Note2
www.pingjingsemi.com
Revision:2.0 Aug-2021
1/5
PJM12P20DF
P-Channel Enhancement Mode Power MOSFET
Electrical Characteristics
(Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test Condition
Min.
Typ.
Max.
Unit
Drain-Source Breakdown Voltage
-V(BR)DSS
VGS=0V,ID=-250μA
20
--
--
V
Zero Gate Voltage Drain Current
-IDSS
VDS=-20V,VGS=0V
--
--
1
μA
Gate-Body Leakage Current
IGSS
VGS=±12V,VDS=0V
--
--
±100
nA
Gate Threshold Voltage Note3
-VGS(th)
VDS=VGS,ID=-250μA
0.4
0.7
1
V
Drain-Source On-Resistance Note3
RDS(on)
VGS=-4.5V,ID=-10A
--
17
22
mΩ
VGS=-2.5V,ID=-5A
--
22
30
mΩ
VDS=-5V,ID=-6.7A
--
18
--
S
--
2000
--
pF
--
242
--
pF
Static Characteristics
Forward Transconductance Note3
gFS
Dynamic Characteristics
Input Capacitance
Ciss
Output Capacitance
Coss
Reverse Transfer Capacitance
Crss
--
231
--
pF
Turn-on Delay Time
td(on)
--
10
--
nS
Turn-on Rise Time
tr
VDS=-10V, ID=-12A
--
31
--
nS
Turn-off Delay Time
td(off)
VGEN=-4.5V,RG=2.5Ω
--
28
--
nS
VDS=-10V,VGS=0V,f=1MHz
Switching Characteristics
Turn-off Fall Time
tf
--
8
--
nS
Total Gate Charge
Qg
--
15.3
--
nC
Gate-Source Charge
Qgs
--
2.2
--
nC
Gate-Drain Charge
Qgd
--
4.4
--
nC
--
--
1.2
V
--
--
12
A
VDS=-10V,ID=-6A, VGS=-4.5V
Source-Drain Diode Characteristics
Diode Forward Voltage Note3
-VSD
Diode Forward Current Note2
-IS
VGS=0V,IS=-12A
Note: 1. Repetitive Rating: Pulse width limited by maximum junction temperature.
2. Surface Mounted on FR4 Board, t ≤ 10 sec.
3. Pulse Test: Pulse width≤300μs, duty cycle≤2%.
www.pingjingsemi.com
Revision:2.0 Aug-2021
2/5
PJM12P20DF
P-Channel Enhancement Mode Power MOSFET
-ID Drain Current (A)
50
4.5V
RDS(on) On-Resistance(mΩ)
Typical Characteristic Curves
3V
40
30
2V
2.5V
20
10
0
0
1.5V
1
2
3
4
5
27
24
VGS =-2.5V
20
16
12
VGS =-4.5V
8
4
0
0
2
4
40
25℃
125℃
20
10
0
0
0.5
1.0
1.5
Normalized On-Resistance
-ID Drain Current (A)
TA=-55℃
30
2.0
12
2.0
1.5
1.0
0.5
-100
-50
0
50
100
150
200
TJ Junction Temperature(℃)
104
1.3
C Capacitance (pF)
Normalized Breakdown Voltage(V)
10
2.5
-VGS Gate-Source Voltage (V)
1.2
1.1
1.0
0.9
0
-100
8
-ID Drain Current (A)
-VDS Drain-Source Voltage (V)
50
6
-50
0
50
100
150
TJ Junction Temperature(℃)
www.pingjingsemi.com
Revision:2.0 Aug-2021
200
Ciss
103
Coss
Crss
102
101
0
3
6
9
12
15
18
-VDS Drain-Source Voltage (V)
3/5
5
4
VDS =-6V
ID=-8A
3
2
1
0
0
5
10
15
20
25
30
Qg Gate Charge (nC)
www.pingjingsemi.com
Revision:2.0 Aug-2021
35
-IS Reverse Drain Current (A)
-VGS Gate-Source Voltage (V)
PJM12P20DF
P-Channel Enhancement Mode Power MOSFET
10
TJ=150℃
0.1
0.0
TJ=-50℃
TJ=-25℃
1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
-VSD Source-Drain Voltage (V)
4/5
PJM12P20DF
P-Channel Enhancement Mode Power MOSFET
Package Outline
DFN2x2-6L-0001
Dimensions in mm
2 ±0.05
0.65 BSC
PIN 1
0.9 ±0.1
0.3 ±0.1
0.25 +- 00..015
0.75±0.1
0.25±0.05
2± 0 .05
1±0.1
PIN1
0.27±0.07
BOTTOM VIEW
0.20 +-00..0052
0.75± 0 .05
TOP VIEW
0.02 +0.03
SIDE VIEW
Ordering Information
Device
Package
Shipping
PJM12P20DF
DFN2x2-6L
3,000PCS/Reel&7inches
www.pingjingsemi.com
Revision:2.0 Aug-2021
5/5
