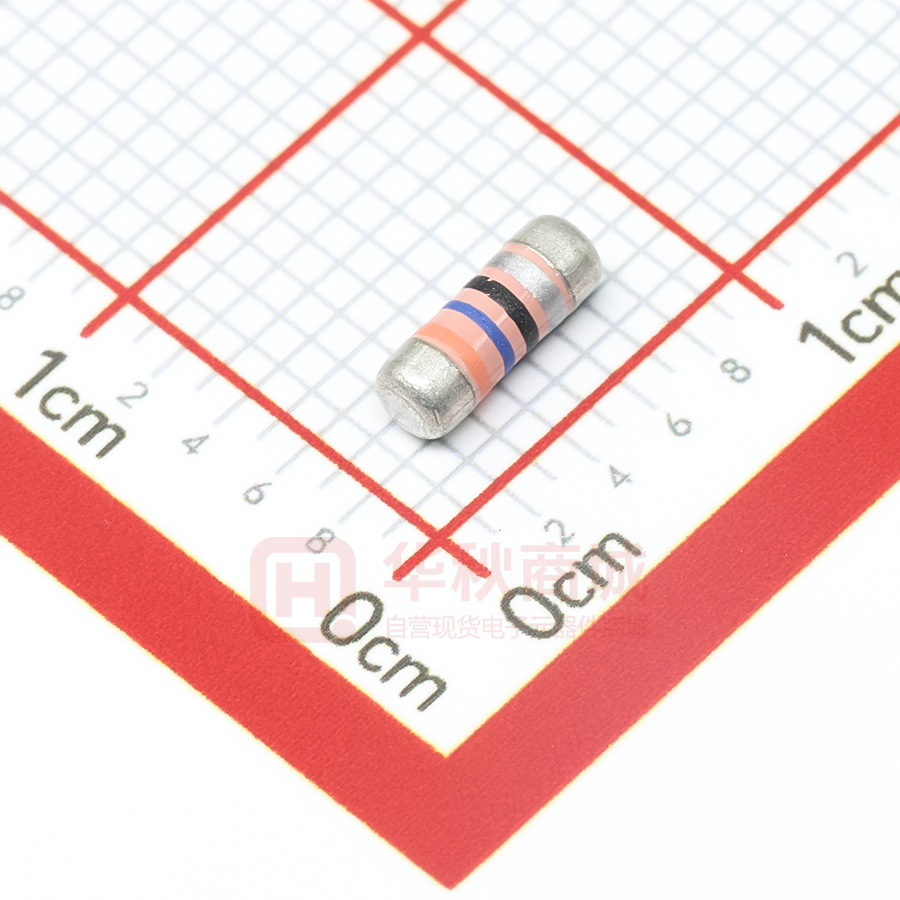

SRM101F3R60TKZTR2K0

SRM Surge Resistant MELF Resistor bility tion Relia • y t Innova ali n via w Qu o t-D Cos VDE REG.-Nr. A830 Specifications Per VDE • IEC 60115-1 D2 REG.-Nr. E932 • AEC-Q200 Rev.D SRM Features • AEC-Q200 Compliant • Anti-sulfuration test qualified B L • MELF packaging yet capable of high power handling D1 • Special conductive film enhances anti-surge capability. • Absorbs harmful surge which damages precious devices or components. • SMD-enabled alternative to carbon composition resistors • Approved to the safety requirement of VDE0860 under license number 40043961 (=IEC 60065 clause 14.2a & UL 1676) • Products meet RoHS requirements and do not contain substances of very high concern identified by European Chemicals Agency DIMENSIONS Body Length (L, mm) Type Cap Diameter (D1, mm) Body Diameter (D2, mm) Soldering Spot (B, mm) Net Weight Per 1000 pcs SRM204 3.52 ± 0.15 1.35 ± 0.1 D1+0.02/ -0.15 0.6 Min. 17 grams SRM204T 3.52 ± 0.15 1.35 ± 0.1 D1+0.02/ -0.15 0.6 Min. 17 grams SRM207 5.90 ± 0.20 2.20 ± 0.1 D1+0.02/ -0.2 1.0 Min. 66 grams SRM207P 5.90 ± 0.20 2.20 ± 0.1 D1+0.02/ -0.2 1.0 Min. 66 grams SRM101 5.90 ± 0.20 2.20 ± 0.1 D1+0.02/ -0.2 1.0 Min. 66 grams SRM101T 5.90 ± 0.20 2.20 ± 0.1 D1+0.02/ -0.2 1.0 Min. 66 grams SRM201 8.50 ± 0.50 3.00 ± 0.2 D1+0.05/ -0.35 1.3 Min. 186 grams SRM301 10.5 ± 0.50 4.00 ± 0.5 D1+0.05/ -0.45 1.6 Min. 446 grams GENERAL SPECIFICATIONS Type Power Rating ( at 70°C ) Maximum Working Voltage Maximum Permissible Surge Voltage Minimum Resistance Maximum Resistance Resistance Tolerance Available Resistance Values SRM204 1/4W 400V 2,000V 1Ω 1MΩ ±1%~±5% E-24/E-96 SRM204T 1/2W 450V 4,000V 1Ω 10MΩ ±1%~±5% E-24/E-96 SRM207 1/2W 600V 6,000V 1Ω 2M2Ω ±1%~±5% E-24/E-96 SRM207P 1/2W 600V 8,000 V 0.1Ω 2M2Ω ±1%~±5% E-24/E-96 SRM101 1W 600V 8,000 V 0.1Ω 2M2Ω ±1%~±5% E-24/E-96 SRM101T 1W 600V 10,000 V 0.1Ω 2M2Ω ±1%~±5% E-24/E-96 SRM201 2W 700V 9,000V 0.1Ω 2M2Ω ±1%~±5% E-24/E-96 SRM301 3W 800V 10,000V 0.1Ω 2M2Ω ±1%~±5% E-24/E-96 Special sizes, values, and specifications not listed available on special order. For resistance values outside the specified ranges, please contact us. 179 www.firstohm.com.tw general@firstohm.com.tw Revision: 15-AUG-2019 SRM Surge Resistant MELF Resistor bility tion Relia • y t Innova i al n via w o Qu t-D Cos PART NUMBER SRM204T F 16R2 TKZ TR3K0 Type Tolerance* Resistance TCR Packaging F(1%) G (2%) J (5%) 16.2Ω 4-character code containing 3 significant digits 1 letter multiplier 3-character code 5-character code TKZ = Default Product Temperature Coefficient. TR = Tape Reel OHM MULTIPLIER R=1 K = 103 M = 106 G = 109 Information of typical product temperature coefficient can be found in the Technical Summary section of the datasheet.** SRM Example: SRM204TF16R2TKZTR3K0 (pieces per reel) SRM204/SRM204T 3K0 = 3,000 6K0 = 6,000*** 10K = 10,000*** SRM207/SRM207P SRM101/SRM101T 2K0 = 2,000 6K0 = 6,000*** 10K = 10,000*** SRM201 2K5 = 2,500 SRM301 2K0 = 2,000 * Listed values may not be applicable across product types or to all resistance values. Please check with us before placing order. ** For the availabilities of non-default temperature coefficient, please check with us. Reference for TCR letter codes can be found in section (4) of Part Number Construction in the Appendices. *** upon request RATED LOAD POWER DERATING CURVE o AMBIENT TEMPERATURE ( C) TECHNICAL SUMMARY Characteristics Ranges & Limits Dielectric Withstanding Voltage, VAC or DC SRM204T SRM204/207/207P/101 SRM201/101T SRM301 Temperature Coefficient, PPM / °C* ±200, ±400, ±800, ±1200 Operating Temperature Range, °C -55 ~ +150 Insulation Resistance, MΩ >104 Tin Whisker (JESD201 Temperature Cycling & High Temp. /Humidity Storage), μm
