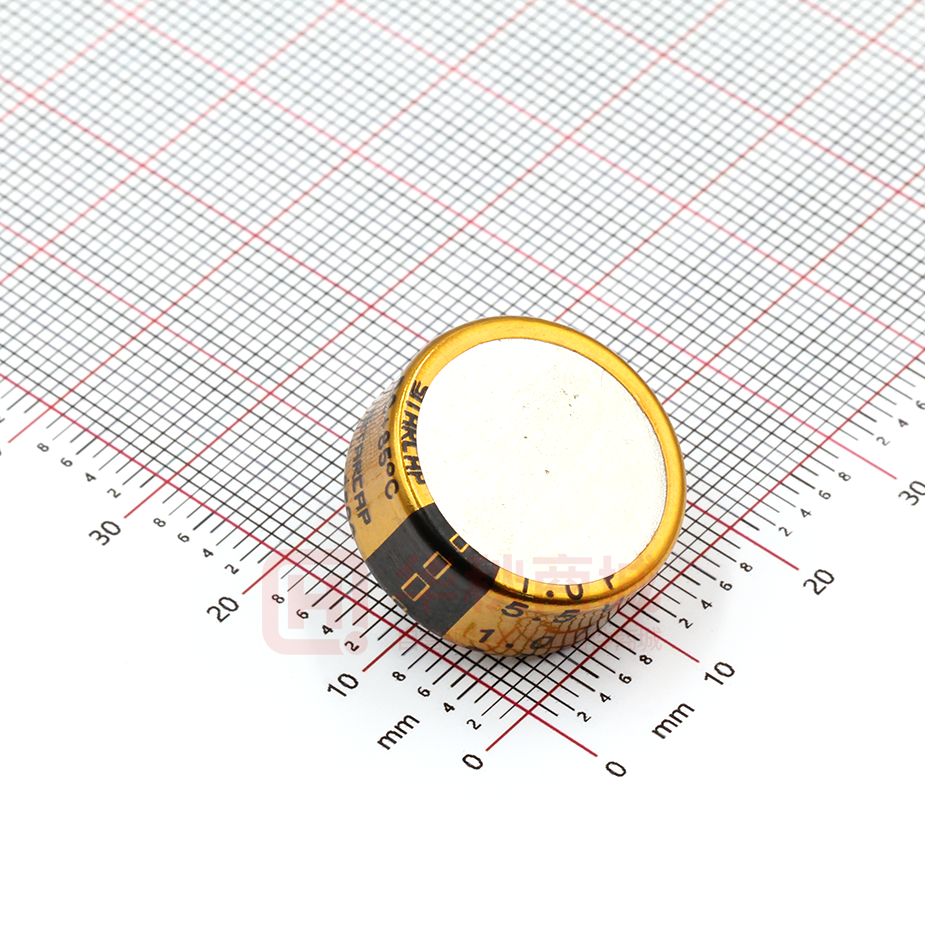

DCLT5R5105C

DCL series | Features | • Standard coin-type • Small-sized, large capacity • Wider temperature range(-25~70℃) than battery makes periodic change unnecessary | Applications | • Memory back-up for Video, Audio, Cameras, Camcorder, Telephones, Printer Car stereo, Computer, Notebook PC, Rice cooker, PLC, Set top box, Washing machine, DVD-RW, Home network etc. • Main power for Bicycle tail light, flash lights etc. V-TYPE H-TYPE C-TYPE | Specifications | Items Characteristics Rated working voltage 5.5VDC Operating temperature -25 to +70℃ Maximum surge voltage 6.3VDC Nominal Cap. range 1.0F / 1.5F Capacitance tolerance -20% to +80%(at 25℃) Low temperature(-25℃) characteristics Capacitance change : ≤ 50% of the initial value at +25℃ Internal resistance : Less than five times of the initial value at +25℃ After 1,000hours application of rated DC working voltage at +70℃, the capacitor shall meet the following limits. • Capacitance change : ±30% of the initial value • Internal resistance : Less than four times of the initial value Endurance After 1,000hours storage at +70℃ without load, the capacitor shall meet the specified limit for “Endurance” Shelf life | Dimensions in mm(not to scale) | H-TYPE V-TYPE C-TYPE 0,8±0,1 1,2±0,1 | Standard products | V type(mm) H type(mm) Part Number Operating Voltage (V) Capacitance (F) ESR (Ω, @1kHz) ΦD H P ΦD H DCL 5R5 105 5.5 1.0 ≤ 30 19.0 19.5 5.0 19.0 6.5 DCL 5R5 155 5.5 1.5 ≤ 30 19.0 19.5 5.0 19.0 6.5 P C type(mm) ΦD H P 20.0 21.5 7.5 5.0 20.0 21.5 7.5 5.0 Note : It is not allowed to go through reflow (IR, Atmosphere heating methods etc.) process E-mail : wx8367@126.com DCLT series | Features | • High temperature tolerance(-25~85℃) and highly reliable | Applications | • Memory back-up for Video, Audio, Cameras, Camcorder, Telephones, Printer, Car stereo, Computer, Notebook PC, Rice cooker, PLC, Set top box, Washing machine, DVD-RW, Home network etc. | Specifications | Items Characteristics Rated working voltage 5.5VDC Operating temperature -25 to +85℃ Nominal Cap. range 0.68 to 1.0F Capacitance tolerance -20% to +80%(at 25℃) Low temperature(-25℃) characteristics Capacitance change : ≤ 50% of the initial value at +25℃ Internal resistance : Less than five times of the initial value at +25℃ After 1,000hours application of rated DC working voltage at +85℃, the capacitor shall meet the following limits. • Capacitance change : ±30% of the initial value • Internal resistance : Less than four times of the initial value Endurance After 1,000hours storage at +85℃ without load, the capacitor shall meet the specified limit for “Life” Shelf life | Dimensions in mm(not to scale) | | Standard products | Part Number Operating Voltage (V) Capacitance (F) ESR (Ω, @1kHz) ΦD×H×P (mm) DCLT 5R5 474 5.5 0.47 50 Φ21.5×9.5×5.0 DCLT 5R5 684 5.5 0.68 50 Φ21.5×9.5×5.0 DCLT 5R5 105 5.5 1.0 30 Φ21.5×9.5×5.0 Note: It is not allowed to go through reflow (IR, Atmosphere heating methods etc.) process E-mail : wx8367@126.com DCLT series | Features | • High temperature tolerance(-25~85℃) and highly reliable | Applications | • Memory back-up for Video, Audio, Cameras, Camcorder, Telephones, Printer Car stereo, Computer, Notebook PC, Rice cooker, PLC, Set top box, Washing machine, DVD-RW, Home network etc. • Main power for Bicycle tail light, flash lights etc. Y-TYPE H-TYPE C-TYPE | Specifications | Items Characteristics Rated working voltage 3.6VDC Operating temperature -25 to +85℃ Maximum surge voltage 5.5VDC Nominal Cap. range 1.0F Capacitance tolerance Low temperature(-25℃) characteristics -20% to +80%(at 25℃) Capacitance change : ≤ 50% of the initial value at +25℃ Internal resistance : Less than five times of the initial value at +25℃ After 1,000hours application of rated DC working voltage at +85℃, the capacitor shall meet the following limits. • Capacitance change : ±30% of the initial value • Internal resistance : Less than four times of the initial value Endurance After 1,000hours storage at +85℃ without load, the capacitor shall meet the specified limit for “Endurance” Shelf life | Dimensions in mm(not to scale) | H-TYPE V-TYPE C-TYPE | Standard products | V type(mm) H type(mm) Part Number Operating Voltage (V) Capacitance (F) ESR (Ω, @1kHz) ΦD H P ΦD H DCLT 3R6 105 5.5 1.0 ≤ 30 19.0 19.5 5.0 19.0 6.5 P C type(mm) ΦD 20.0 21.5 H P 7.5 5.0 Note : It is not allowed to go through reflow (IR, Atmosphere heating methods etc.) process E-mail : wx8367@126.com DCLH series | Features | • High voltage tolerance(6.3V guaranteed) and highly reliable | Applications | • Memory back-up for Video, Audio, Cameras, Camcorder, Telephones, Printer, Car stereo, Computer, Notebook PC, Rice cooker, PLC, Set top box, Washing machine, DVD-RW, Home network etc. | Specifications | Items Characteristics Rated working voltage 6.3VDC Operating temperature -25 to +70℃ Nominal Cap. range 0.47 to 1.0F Capacitance tolerance -20% to +80%(at 25℃) Low temperature(-25℃) characteristics Capacitance change : ≤ 50% of the initial value at +25℃ Internal resistance : Less than five times of the initial value at +25℃ After 1,000hours application of rated DC working voltage at +70℃, the capacitor shall meet the following limits. • Capacitance change : ±30% of the initial value • Internal resistance : Less than four times of the initial value Endurance After 1,000hours storage at +70℃ without load, the capacitor shall meet the specified limit for “Life” Shelf life | Dimensions in mm(not to scale) | | Standard products | Part Number Operating Voltage (V) Capacitance (F) ESR (Ω, @1kHz) ΦD×H×P (mm) DCLH 6R3 474 6.3 0.47 50 Φ21.5×9.5×5.0 DCLH 6R3 684 6.3 0.68 50 Φ21.5×9.5×5.0 DCLH 6R3 105 6.3 1.0 30 Φ21.5×9.5×5.0 Note: It is not allowed to go through reflow (IR, Atmosphere heating methods etc.) process E-mail : wx8367@126.com
