IN-S128DATRG

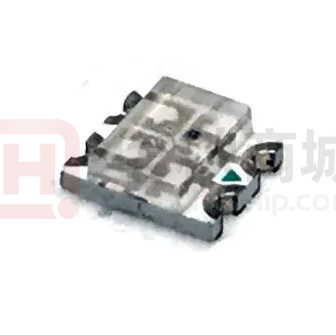

IN-S128DATRG Top View SMD LED 1210 PCB Type Features • 1210 1.1mm SMD LED • High Brightness • AlInGaP / InGaN Technology • Side View • High reliability • Clear Lens Description The IN-S128DATRG is a popular 1210 top view package with versatile design capabilities. It is a PCB type molding style LED which can be used in various applications. Recommended Solder Pattern Applications • Consumer Electronics • Wearables • Automobile After Market • Industrial Equipment Figure 1. IN-S128DATRG Solder Pattern Package Dimensions in mm Figure 2. IN-S128DATRG Package Dimensions Inolux Corporation Proprietary & Confidential May 12, 2017 Page 1 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Absolute Maximum Rating at 25oC (Note 1) Product Emission Color Pd (mW) IF (mA) IFP* (mA) Red 75 25 70 IN-S128DATRG Green 75 25 VR (V) TOP (oC) TST (oC) 5 -30~+85 -40~+90 100 Notes 1. Condition for IFP is pulse of 1/10 duty and 0.1msec width ESD Precaution ATTENTION: Electrostatic Discharge (ESD) protection The symbol above denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based chips is necessary even though they are relatively safe in the presence of low static-electric discharge. Parts built with AlInGaP, GaN, or/and InGaN based chips are STATIC SENSITIVE devices. ESD precaution must be taken during design and assembly. If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process. Please be advised that normal static precautions should be taken in the handling and assembly of this device to prevent damage or degradation which may be induced by electrostatic discharge (ESD). Electrical Characteristics T Product A IF Emission Color (mA) = 25°C (Note 1) VF(V) Viewing λ(nm) Angle I*V(mcd) typ. max λD λP △λ 2θ1/2 Typ. Red 20 2.2 2.6 622 630 20 130 140 Green 20 3.2 3.6 522 530 35 130 560 IN-S128DATRG Notes 1. Performance guaranteed only under conditions listed in above tables. Inolux Corporation Proprietary & Confidential May 12, 2017 Page 2 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Typical Characteristic Curves – YG, Y, A, R Inolux Corporation Proprietary & Confidential May 12, 2017 Page 3 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Typical Characteristic Curves – B, G, W Inolux Corporation Proprietary & Confidential May 12, 2017 Page 4 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Typical Characteristic Curves – Radiation Pattern Ordering Information Product Technology Test Current IF (mA) Luminous Intensity IV (mcd) (Typ.) Forward Voltage VF (V) (Typ.) Red AllnGaP 20 140 2.2 Green InGaN 20 560 3.2 Emission Color IN-S128DATRG Inolux Corporation Proprietary & Confidential Orderable Part Number IN-S128DATRG May 12, 2017 Page 5 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Label Specifications Inolux P/N: I N - S 1 Material Inolux SMD S = PCB Type 2 Package 8 D A Variation 128DA = 3.2 x 2.7 x 1.1mm Tri-Chip T R Orientation Current Lens T= Top Mount (Blank) = 20mA (Blank) = Clear G Color - X X X X Customized Stamp-off R=630nm G=530nm Lot No.: Z Internal Tracker Inolux Corporation Proprietary & Confidential 2 0 1 7 Year (2017, 2018, …..) 01 24 001 Month Date Serial May 12, 2017 Page 6 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Packaging Information: 3000pcs Per Reel Tape Dimension Unit: mm Tolerance: +/-0.10 mm Reel Dimension Unit: mm Tolerance: +/-0.15mm Inolux Corporation Proprietary & Confidential May 12, 2017 Page 7 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Packing Dimension 5 boxes per carton are available depending on shipment quantity. Specification Material Quantity Carrier tape Per EIA 481-1A specs Conductive black tape 3000pcs per reel Reel Per EIA 481-1A specs Conductive black Label IN standard Paper Packing bag 220x240mm Aluminum laminated bag/ no-zipper One reel per bag Carton IN standard Paper Non-specified Others: Each immediate box consists of 5 reels. The 5 reels may not necessarily have the same lot number or the same bin combinations of Iv, λD and Vf. Each reel has a label identifying its specification; the immediate box consists of a product label as well. Inolux Corporation Proprietary & Confidential May 12, 2017 Page 8 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Dry Pack All SMD optical devices are MOISTURE SENSITIVE. Avoid exposure to moisture at all times during transportation or storage. Every reel is packaged in a moisture protected anti-static bag. Each bag is properly sealed prior to shipment. Upon request, a humidity indicator will be included in the moisture protected anti-static bag prior to shipment. The packaging sequence is as follows: Reflow Soldering • Recommended tin glue specifications: melting temperature in the range of 178~192 OC • The recommended reflow soldering profile is as follows (temperatures indicated are as measured on the surface of the LED resin): Lead-free Solder Profile Inolux Corporation Proprietary & Confidential May 12, 2017 Page 9 www.inolux-corp.com IN-S128DATRG Top View SMD LED 1210 PCB Type Precautions • • • • • • Avoid exposure to moisture at all times during transportation or storage. Anti-Static precaution must be taken when handling GaN, InGaN, and AlInGaP products. It is suggested to connect the unit with a current limiting resistor of the proper size. Avoid applying a reverse voltage. Avoid operation beyond the limits as specified by the absolute maximum ratings. Avoid direct contact with the surface through which the LED emits light. If possible, assemble the unit in a clean room or dust-free environment. Reworking • • • Rework should be completed within 5 seconds under 260 OC. The iron tip must not come in contact with the copper foil. Twin-head type is preferred. Cleaning Following are cleaning procedures after soldering: • An alcohol-based solvent such as isopropyl alcohol (IPA) is recommended. • Temperature x Time should be 50oC x 30sec. or
