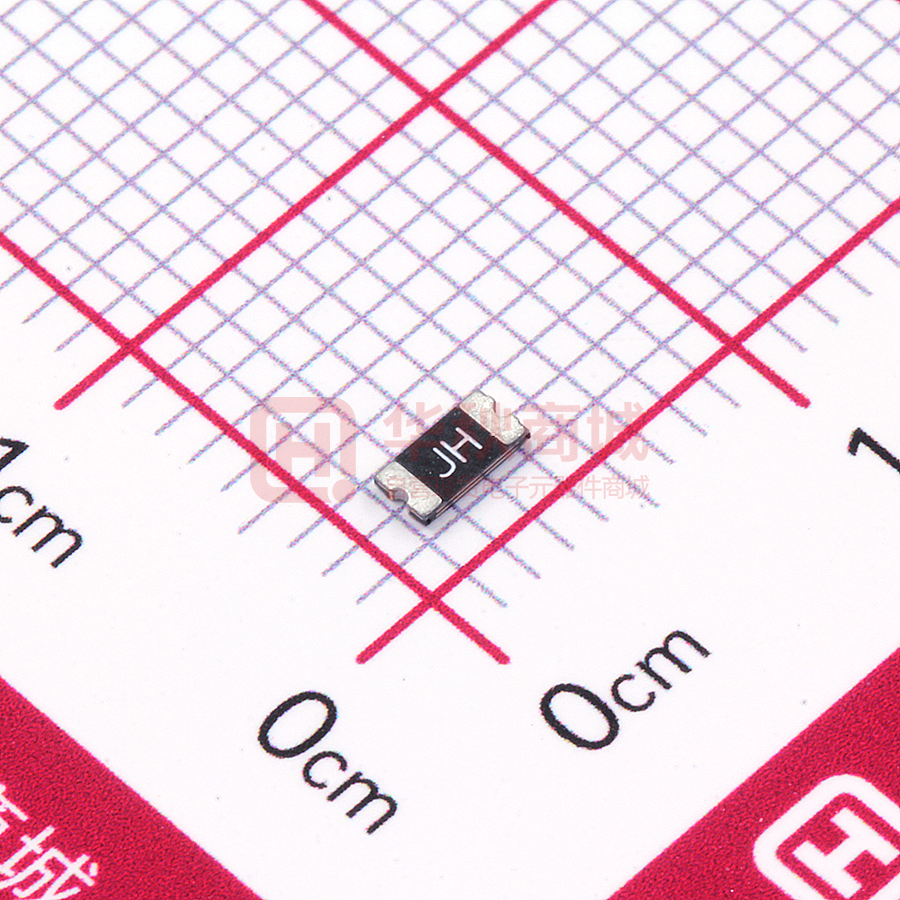

JK-NSMD100

ShenZhen JinRui Electronic Material Co.,Ltd JK-nSMD Series Surface Mountable PTC Resettable Fuse: JK-nSMD Series Features：       RoHS Compliant ＆ Halogen Free faster tripping, 1206 Dimension, Surface mountable, Solid state Operation Current: 0.05A~2.00A Maximum Voltage: 6V~60Vdc Operating Temperature：-40℃ TO 85℃ Agency recognition:UL、CSA、TUV Product Dimensions Terminal pad materials :Tin-Plated Nickle-copper Terminal pad solderability : Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. Pig.1 Unit ：mm Model Marking JK-nSMD005 A B C D E Min Max Min Max Min Max Min Min JZ 3.00 3.50 1.50 1.80 0.60 1.10 0.15 0.10 JK-nSMD010 JN 3.00 3.50 1.50 1.80 0.60 1.10 0.15 0.10 JK-nSMD010-33 JN 3.00 3.50 1.50 1.80 0.50 1.10 0.15 0.10 JK-nSMD012 JN 3.00 3.50 1.50 1.80 0.60 1.10 0.15 0.10 JK-nSMD016 JF 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 JK-nSMD020 JF 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 JK-nSMD025 JF 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 JK-nSMD030 JB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 JK-nSMD035 JB 3.00 3.50 1.50 1.80 0.40 0.90 0.15 0.10 JK-nSMD050 JG 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 1 of 7 ShenZhen JinRui Electronic Material Co.,Ltd Model Marking JK-nSMD050-13.2 A JK-nSMD Series B C D E Min Max Min Max Min Max Min Min JG 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 JK-nSMD050-16 JG 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 JK-nSMD050-24 JG 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 JK-nSMD075 JA 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 JK-nSMD075-13.2 JA 3.00 3.50 1.50 1.80 0.35 0.85 0.15 0.10 JK-nSMD075-16 JA 3.00 3.50 1.50 1.80 0.60 1.30 0.15 0.10 JK-nSMD100 JH 3.00 3.50 1.50 1.80 0.40 0.80 0.15 0.10 JK-nSMD100-13.2 JH 3.00 3.50 1.50 1.80 0.40 1.30 0.15 0.10 JK-nSMD100-16 JH 3.00 3.50 1.50 1.80 0.40 1.30 0.15 0.10 JK-nSMD110 JH 3.00 3.50 1.50 1.80 0.40 0.80 0.15 0.10 JK-nSMD150 JI 3.00 3.50 1.50 1.80 0.60 1.50 0.15 0.10 JK-nSMD200 JK 3.00 3.50 1.50 1.80 0.70 1.70 0.15 0.10 Thermal Derating Chart-IH（A） Model Maximum ambient operating temperatures（℃） -40 -20 0 25 40 50 60 70 85 JK-nSMD005 0.09 0.08 0.06 0.05 0.04 0.036 0.033 0.029 0.02 JK-nSMD010 0.18 0.16 0.12 0.1 0.08 0.072 0.066 0.058 0.04 JK-nSMD010-33 0.18 0.16 0.12 0.1 0.08 0.072 0.066 0.058 0.04 JK-nSMD012 0.216 0.192 0.144 0.12 0.096 0.086 0.079 0.070 0.048 JK-nSMD016 0.288 0.256 0.192 0.160 0.128 0.115 0.106 0.093 0.064 JK-nSMD020 0.31 0.26 0.22 0.20 0.18 0.16 0.15 0.13 0.07 JK-nSMD025 0.37 0.33 0.29 0.25 0.22 0.20 0.17 0.15 0.12 JK-nSMD030 0.444 0.396 0.348 0.30 0.264 0.24 0.204 0.18 0.144 JK-nSMD035 0.50 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.15 JK-nSMD050 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 JK-nSMD050-13.2 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 JK-nSMD050-16 0.71 0.64 0.57 0.50 0.42 0.39 0.35 0.31 0.25 JK-nSMD050-24 0.639 0.576 0.513 0.50 0.378 0.351 0.315 0.279 0.225 JK-nSMD075 1.14 1.01 0.88 0.75 0.65 0.59 0.54 0.49 0.41 JK-nSMD100 1.45 1.31 1.15 1.00 0.84 0.77 0.69 0.61 0.48 JK-nSMD100-13.2 1.305 1.179 1.035 1.00 0.756 0.693 0.621 0.549 0.432 JK-nSMD100-16 1.305 1.179 1.035 1.00 0.756 0.693 0.621 0.549 0.432 JK-nSMD110 1.595 1.441 1.265 1.10 0.924 0.847 0.759 0.671 0.528 nSMD150 2.18 1.94 1.72 1.50 1.28 1.17 1.06 0.96 0.77 nSMD200 2.60 2.44 2.35 2.00 1.78 1.67 1.50 1.45 1.10 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 2 of 7 ShenZhen JinRui Electronic Material Co.,Ltd JK-nSMD Series Electrical Characteristic Ihold Itrip @25°C @25°C Current Time Rimin R1max (A) (A) (A) (A) (Sec) () () 60.0 100 0.05 0.15 0.25 1.50 3.600 50.000 JK-nSMD010 60.0 100 0.10 0.25 0.5 1.00 1.600 15.000 JK-nSMD010-33 33.0 100 0.10 0.25 0.5 1.00 1.600 15.000 JK-nSMD012 30 100 0.12 0.29 1.00 0.20 1.350 10.00 JK-nSMD016 30 100 0.16 0.37 1.00 0.30 1.000 4.50 JK-nSMD020 24.0 100 0.20 0.46 8.0 0.08 0.350 3.500 JK-nSMD025 16.0 100 0.25 0.50 8.0 0.08 0.350 2.500 JK-nSMD030 16.0 100 0.30 0.65 8.0 0.10 0.250 2.00 JK-nSMD035 16.0 100 0.35 0.75 8.0 0.10 0.250 1.300 JK-nSMD050 6.0 100 0.50 1.00 8.0 0.10 0.150 0.700 JK-nSMD050-13.2 13.2 100 0.50 1.00 8.0 0.10 0.150 0.700 JK-nSMD050-16 16 100 0.50 1.00 8.0 0.10 0.150 0.750 JK-nSMD050-24 24 100 0.50 1.00 8.0 0.10 0.150 0.750 JK-nSMD075 6.0 100 0.75 1.50 8.0 0.20 0.090 0.500 JK-nSMD075-13.2 13.2 100 0.75 1.50 8.0 0.20 0.090 0.500 JK-nSMD075-16 16 100 0.75 1.50 8.0 0.20 0.090 0.500 JK-nSMD100 6.0 100 1.00 1.80 8.0 0.30 0.055 0.270 JK-nSMD100-13.2 13.2 100 1.00 1.80 8.0 0.30 0.055 0.270 JK-nSMD100-16 16 100 1.00 1.80 8.0 0.30 0.055 0.330 JK-nSMD110 8.0 100 1.10 1.80 8.0 0.30 0.050 0.230 JK-nSMD150 6.0 100 1.50 3.00 8.0 1.00 0.040 0.130 JK-nSMD200 6.0 100 2.00 3.50 8.0 1.0 0.018 0.080 Vmax Imax (Vdc) JK-nSMD005 Model Time to trip R25 Part Numbering System ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 3 of 7 ShenZhen JinRui Electronic Material Co.,Ltd JK-nSMD Series Test Procedures And Requirements Test Test Conditions Accept/Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤Rmax Time to Trip Specified current，Vmax，25℃ Tmaximum Time to Trip Hold Current 30min，at IH No trip Trip Cycle Life Vmax，Imax，100cycles No arcing or burning Trip Endurance Vmax，1 hours No arcing or burning Physical Characteristics and Environmental Specifications Physical Characteristics Terminal materials : Tin-Plated Nickle-copper Soldering Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. zone Environmental Specifications Test Conditions Resistance Change Passive aging 85℃,1000hours ±10% Humidity aging 85℃/85%RH.1000 hours ±5% Thermal shock MIL-STD-202,Method 107G Solvent Resistance MIL-STD-202,Method 215 no change Vibration ML-STD-883C,Test Condition A No chage +85℃/-40℃,20times -30% typical resistance change Electrical Specifications: Ihold = Hold Current. Maximum current device will not trip in 25°C still air. Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air. Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax). Pd=Maximum power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C. R1max = Maximum device resistance is measured one hour post reflow. ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 4 of 7 ShenZhen JinRui Electronic Material Co.,Ltd JK-nSMD Series Recommended pad layout (mm) Solder reflow conditions ● Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free. ● Devices are not designed to be wave soldered to the bottom side of the board. ● Recommended maximum paste thickness is 0.25mm (0.010inch). ● Devices can be cleaned using standard industry methods and solvents. ● Soldering temprature profile meets RoHs leadfree process. Notes: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 5 of 7 ShenZhen JinRui Electronic Material Co.,Ltd Tape Specification And JK-nSMD Series Reel Dimensions Coverning Specifications EIA 481-1(Unit:mm) W 8.15 +0.15/-0.3 P0 4.0 ± 0.10 P1 4.0± 0.10 P2 2.0 ± 0.05 A0 1.95 ± 0.10 B0 3.65 ± 0.10 D0 1.55± 0.05 F 3.50± 0.05 E1 1.75 ± 0.10 T 0.20± 0.10 Leader min. 390 Trailer min. 160 Reel Dimensions A 178±1.0 N 59±1 W1 8.5+1.0/-0.2 W2 12.0±1 Packaging Quantity Model Quantity Model Quantity JK-nSMD005 3500 JK-nSMD050-24 3500 JK-nSMD010 3500 JK-nSMD075 5000 JK-nSMD010-33 3500 JK-nSMD075-13.2 5000 JK-nSMD012 3500 JK-nSMD075-16 3500 JK-nSMD016 5000 JK-nSMD100 5000 JK-nSMD020 5000 JK-nSMD100-13.2 3500 JK-nSMD025 5000 JK-nSMD100-16 3500 JK-nSMD030 5000 JK-nSMD110 5000 JK-nSMD035 5000 JK-nSMD150 3500 JK-nSMD050 5000 JK-nSMD200 3500 JK-nSMD050-13.2 5000 JK-nSMD050-16 5000 ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 6 of 7 ShenZhen JinRui Electronic Material Co.,Ltd JK-nSMD Series Storage The maximum ambient temperature shall not exceed 38℃. Storage temperatures higher than 38℃ could result in the deformation of packaging materials. The maximum relative humidity recommended for storage is 60%. High humidity with high temperature can accelerate the oxidation of the solder plating on the termination and reduce the solderability of the components. Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be opened prior to use. The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present WARNING • Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. • PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. • Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. • Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. • Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space. • Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the performance of the devices.PPTC SMD can be cleaned by standard methods. • Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper board layouts or reflow profilecould negatively impact solderability performance of our devices. Notes： The specification is intended to present application,product and technical data to assist the user in selecting PPTC circuit production devices,However,users should imdependently evaluate and test the suitability of each product.JinRui makes on warranties as to the acduracy or completeness of the information and disclaims any liatility resulting form its use,JinRui’s only obligations are those im the JinRui Standard Rerms and Conditions of Sale and in no case will JinRui be liable for any incidental,imdirect,or consequential damages arising from the sale,resale,or misues of its products. Jinrui reserves the right to change of update, without notice, any information contained in this specification. ShenZhen JinRui Electronic Material Co.,Ltd TEL： 0755-26546327 29356619 FAX：0755-26546562 Web Site：http://www.jkpptc.com E-mail:customer@jkpptc.com Add：JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice！ Page 7 of 7
