Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
■ 引用标准 Reference standards
GB/T6346.14-2015/ UL60384-14/VDE0565-1/ CSA E60384-14
IEC60384-14 /EN60384-14/KC60384-14/KC60384-1
■ 结构 Structure
介质:(金属化)聚丙烯膜
封装:阻燃环氧树脂,符合 UL94 V-0
外壳:阻燃 PBT 塑壳,符合 UL94 V-0
Dielectric:(Metallized )Polypropylene film
Encapsulation: Flame retardant epoxy resin, conforming to UL94 V-0
Shell: Flame retardant PBT plastic shell, conforming to UL94 V-0
■
典型应用 Typical
Application
跨线、抑制突波、交流场合 EMI 滤波;电源开关等。如:灯具、电源等
Interlines, Surge suppression, Across-in-line as EMI filter;
Power switch etc. Such as: Lamps, Power Sources etc.
■
特点 Features
外观一致性好;有良好自愈性
抗湿性强;高耐温
长寿命,耐过电压优良
Good appearance consistency; Good self-healing property;
Good resistance to humidity; Can withstand high temperature;
Long lifetime; Good ability to withstand surge voltage.
■
符合 RoHS 及 REACH 环保标准 Compliance with RoHs &
■
电性能规范 Performance Specifications
气候类别 Climate category
阻燃等级
Passive flammability class
额定电压 Rated Voltage
容量误差
Capacitance Tolerance
REACH requirements.
40/110/56
B
275VAC(VDE,ENEC, KC); 300Vac (UL&CUL)
K: ±10%
容量范围
0.0022μF~4.7μF
Capacitance Range
Test Condition:
耐电压
No breakdown or electric arcing
Withstand Voltage
Terminal to terminal:4.3UR(Vdc),5S
Terminal to shell:2100VAC 60S
损耗角
≤0.0020
10KHZ
CR≤1.0μF
Test Condition : 20℃ 1V
Dissipation factor
≤0.0010
1KHZ
CR>1.0μF
绝缘电阻或时间常数
CR≤0.33μF IR≥15000MΩ
Insulation Resistance
CR>0.33μF IR≥5000S
最大脉冲爬升速率
Max. Pulse Rise Time
(dV / dt)
20℃, 1KHz, 1Vrms
Test Condition : 20℃
100V
P=7.5mm dV / dt = 800V/μs P=10mm
dV / dt = 500V/μs
P=15mm dV / dt = 400V/μs
P=22.5mm dV / dt = 200V/μs
P=27.5mm dV / dt = 150V/μs
1 min
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
■
电性能规范 Performance Specifications
稳态湿热
温度 Temp.:40±2℃
无可见损伤,标志清晰
Steady-state
Damp-heat Test
相对湿度 Humidity:93%RH
no visible damage,clear mark
绝缘电阻 IR:≥ 额定值的 50%
IR:≥ 50% of Rated value
持续时间 Duration Time:56 Days
容量变化(相对初始值):
Capacitance change:△C/C≤±5%
损耗角增加 Dissipation factor:
Rise ≤0.0080(10KHZ),CR≤1uF
Rise ≤0.0050(1KHZ),CR>1uF
绝缘电阻 Insulation Resistance
耐久性试验
温度 Temp.: +110℃,
Endurance Test
施加电压:1.25×额定电压(每小时
IR:≥ 50% of rated value
增加电压到 1000Vac,0.1 秒,1 次) 容量变化(相对初始值):△C/C≤±10%
Test Voltage:
Capacitance change: △C/C≤±10%
1.25 Times Rated Voltage(Rise
the voltage to 1000Vac for .01s
once per hours )
持续时间 Duration Time: 1000H
■
■
安规认证 Safety Certification
认证标志
额定电压
证书号码
引用标准
认证国家
Certification
Rated Voltage
Certificate No.
Reference standard
Certification Country
UL/CUL
300VAC
E319615
UL60384-14
CSA E60384-14
美国、加拿大
America / Canada
VDE
275VAC
40028812
EN60384-14
德国 Germany
ENEC
275VAC
40028812
EN60384-14
欧盟 Europe
CQC
275VAC
CQC09001035778
GB/T6346.14-2015
中国 China
KC
275VAC
SU030803(16001-16005)
KC60384-14
韩国 Korea
产品编码说明 Part No. Description:
15 位产品编码如下:
The Part No. Is total 15 digits, details as follow:
1
2
3
4
5
6
7
8
9
10
M
Digit 1-3
P
2
1
0
5
K
2
型号代码 Product Name Code
7
E
11
12
13
14
15
4
X
8
*
*
MP2= Class X2 Capacitors
Digit 4-6
标称容量 Rated Capacitance Value
For example : 105 = 10×105pF = 1.0F
Digit 7
容量偏差 Capacitance Tolerance
K=±10%
Digit 8-9
额定电压 Rated Voltage Code
27=275VAC
Digit 10-11 壳号 Plastic shell code
Digit 12
塑壳颜色 Plastic Shell Color
X = Yellow Color with LOGO on the shell top
Digit 13
线径代码 Line diameter code
6=0.6 8=0.8
Digit 14-15 成型或内部识别码 Forming Type or Internal Use
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
■
料号明细及尺寸 Part
No. List and Dimensions
成品编码
等级
电压
Part No.
Class
MP2103K27B1R5LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.05
X2
275VAC
0.01
10
4
9
7.5
0.5
MP2103K27C2R6LC
X2
275VAC
0.01
13
5
11
10
0.6
MP2103K27C2S6LC
X2
275VAC
0.01
13
5
11
10
0.6
MP2103K27C2X6LC
X2
275VAC
0.01
13
5
11
10
0.6
MP2104K27B2R6LC
X2
275VAC
0.1
10
5
11
7.5
0.6
MP2104K27C2S6LC
X2
275VAC
0.1
13
5
11
10
0.6
MP2104K27C2X6LC
X2
275VAC
0.1
13
5
11
10
0.6
MP2104K27C3R6LC
X2
275VAC
0.1
13
6
12
10
0.6
MP2104K27C3X6LC
X2
275VAC
0.1
13
6
12
10
0.6
MP2104K27D1R6LC
X2
275VAC
0.1
18
5
11
15
0.6
MP2104K27D2R8LC
X2
275VAC
0.1
18
6
12
15
0.8
MP2104K27D2X8LC
X2
275VAC
0.1
18
6
12
15
0.8
MP2105K27C5X6LC
X2
275VAC
1.0
13
7.8
13.8
10
0.6
MP2105K27D6X8LC
X2
275VAC
1.0
18
10
15.8
15
0.8
MP2105K27D8R8LC
X2
275VAC
1.0
18
11.2
19.2
15
0.8
MP2105K27D8X8LC
X2
275VAC
1.0
18
11.2
19.2
15
0.8
MP2105K27E2X8LC
X2
275VAC
1.0
26.5
7
16.5
22.5
0.8
MP2105K27E3R8LC
X2
275VAC
1.0
26.5
8.5
17
22.5
0.8
MP2105K27E3S8LC
X2
275VAC
1.0
26.5
8.5
17
22.5
0.8
MP2105K27E3X8LC
X2
275VAC
1.0
26.5
8.5
17
22.5
0.8
MP2105K27E4R8LC
X2
275VAC
1.0
26.5
10
19
22.5
0.8
MP2105K27E4X8LC
X2
275VAC
1.0
26.5
10
19
22.5
0.8
MP2105K27E5R8LC
X2
275VAC
1.0
26.5
11
20
22.5
0.8
MP2105K27E6R8LC
X2
275VAC
1.0
26
12
21.5
22.5
0.8
MP2105K27F1R8LC
X2
275VAC
1.0
31.5
10.8
19.5
27.5
0.8
MP2105K27F1S8LC
X2
275VAC
1.0
31.5
10.8
19.5
27.5
0.8
MP2105K27F1X8LC
X2
275VAC
1.0
31.5
10.8
19.5
27.5
0.8
MP2105K27F2R8LC
X2
275VAC
1.0
31.5
13
21.5
27.5
0.8
MP2123K27C2X6LC
X2
275VAC
0.012
13
5
11
10
0.6
MP2124K27C2X6LC
X2
275VAC
0.12
13
5
11
10
0.6
MP2124K27C3X6LC
X2
275VAC
0.12
13
6
12
10
0.6
MP2124K27D1X6LC
X2
275VAC
0.12
18
5
11
15
0.6
MP2124K27D2R8LC
X2
275VAC
0.12
18
6
12
15
0.8
说明 Note: “**”表示内部特征码
“**”=Internal use.
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
■
料号明细及尺寸 Part
No. List and Dimensions
成品编码
等级
电压
Part No.
Class
MP2124K27D2X8LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.5
X2
275VAC
0.12
18
6
12
15
0.8
MP2125K27D7X8LC
X2
275VAC
1.2
18
10.8
19
15
0.8
MP2125K27E2X8LC
X2
275VAC
1.2
26.5
7
16.5
22.5
0.8
MP2125K27E4X8LC
X2
275VAC
1.2
26.5
10
19
22.5
0.8
MP2125K27E6R8LC
X2
275VAC
1.2
26
12
21.5
22.5
0.8
MP2125K27E7X8LC
X2
275VAC
1.2
26.5
13
23
22.5
0.8
MP2125K27F1X8LC
X2
275VAC
1.2
31.5
10.8
19.5
27.5
0.8
MP2125K27F2X8LC
X2
275VAC
1.2
31.5
13
21.5
27.5
0.8
MP2153K27C2R6LC
X2
275VAC
0.015
13
5
11
10
0.6
MP2153K27C2X6LC
X2
275VAC
0.015
13
5
11
10
0.6
MP2154K27C2X6LC
X2
275VAC
0.15
13
5
11
10
0.6
MP2154K27C3R6LC
X2
275VAC
0.15
13
6
12
10
0.6
MP2154K27C3X6LC
X2
275VAC
0.15
13
6
12
10
0.6
MP2154K27D1X6LC
X2
275VAC
0.15
18
5
11
15
0.6
MP2154K27D2R8LC
X2
275VAC
0.15
18
6
12
15
0.8
MP2154K27D2X8LC
X2
275VAC
0.15
18
6
12
15
0.8
MP2154K27D3R8LC
X2
275VAC
0.15
18
7.5
13.5
15
0.8
MP2154K27D3S8LC
X2
275VAC
0.15
18
7.5
13.5
15
0.8
MP2154K27E1R8LC
X2
275VAC
0.15
26.5
6
15
22.5
0.8
MP2155K27D8X8LC
X2
275VAC
1.5
18
11.2
19.5
15
0.8
MP2155K27E3X8LC
X2
275VAC
1.5
26.5
8.5
17
22.5
0.8
MP2155K27E5X8LC
X2
275VAC
1.5
26.5
11
20
22.5
0.8
MP2155K27E6R8LC
X2
275VAC
1.5
26.5
12
21.5
22.5
0.8
MP2155K27E7X8LC
X2
275VAC
1.5
26.5
13
23
22.5
0.8
MP2155K27F1S8LC
X2
275VAC
1.5
31.5
10.8
19.5
27.5
0.8
MP2155K27F1X8LC
X2
275VAC
1.5
31.5
10.8
19.5
27.5
0.8
MP2155K27F2R8LC
X2
275VAC
1.5
31.5
13
21.6
27.5
0.8
MP2155K27F2X8LC
X2
275VAC
1.5
31.5
13
21.6
27.5
0.8
MP2155K27F3R8LC
X2
275VAC
1.5
31
14
25
27.5
0.8
MP2183K27C2X6LC
X2
275VAC
0.018
13
5
11
10
0.6
MP2184K27C3R6LC
X2
275VAC
0.18
13
6
12
10
0.6
MP2184K27C3X6LC
X2
275VAC
0.18
13
6
12
10
0.6
MP2184K27C5R6LC
X2
275VAC
0.18
13
7.8
13.8
10
0.6
说明 Note: “**”表示内部特征码
“**”=Internal use.
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
■
料号明细及尺寸 Part
No. List and Dimensions
成品编码
等级
电压
Part No.
Class
MP2184K27D1X6LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.5
X2
275VAC
0.18
18
5
11
15
0.6
MP2184K27D2R8LC
X2
275VAC
0.18
18
6
12
15
0.8
MP2184K27D2X8LC
X2
275VAC
0.18
18
6
12
15
0.8
MP2184K27D3X8LC
X2
275VAC
0.18
18
7.5
13.5
15
0.8
MP2185K27D8X8LC
X2
275VAC
1.8
18
11.2
19.2
15
0.8
MP2185K27E4X8LC
X2
275VAC
1.8
26.5
10
19
22.5
0.8
MP2185K27E6R8LC
X2
275VAC
1.8
26
12
21.5
22.5
0.8
MP2185K27E7X8LC
X2
275VAC
1.8
26.5
13
23
22.5
0.8
MP2185K27F1X8LC
X2
275VAC
1.8
31.5
10.8
19.5
27.5
0.8
MP2185K27F2X8LC
X2
275VAC
1.8
31.5
13
21.6
27.5
0.8
MP2205K27D8X8LC
X2
275VAC
2.0
18
11.2
19.2
15
0.8
MP2205K27E4X8LC
X2
275VAC
2.0
26.5
10
19
22.5
0.8
MP2205K27E7R8LC
X2
275VAC
2.0
26.5
13
23
22.5
0.8
MP2205K27E7X8LC
X2
275VAC
2.0
26.5
13
23
22.5
0.8
MP2205K27F1R8LC
X2
275VAC
2.0
31.5
10.8
19.5
27.5
0.8
MP2205K27F1X8LC
X2
275VAC
2.0
31.5
10.8
19.5
27.5
0.8
MP2205K27F2X8LC
X2
275VAC
2.0
31.5
13
21.6
27.5
0.8
MP2205K27F3R8LC
X2
275VAC
2.0
31
14
25
27.5
0.8
MP2222K27C2R6LC
X2
275VAC
0.0022
13
5
11
10
0.6
MP2222K27C2X6LC
X2
275VAC
0.0022
13
5
11
10
0.6
MP2223K27C1R6LC
X2
275VAC
0.022
13
4
9
10
0.6
MP2223K27C2R6LC
X2
275VAC
0.022
13
5
11
10
0.6
MP2223K27C2X6LC
X2
275VAC
0.022
13
5
11
10
0.6
MP2223K27D1R6LC
X2
275VAC
0.022
18
5
11
15
0.6
MP2224K27C3R6LC
X2
275VAC
0.22
13
6
12
10
0.6
MP2224K27C3S6LC
X2
275VAC
0.22
13
6
12
10
0.6
MP2224K27C3X6LC
X2
275VAC
0.22
13
6
12
10
0.6
MP2224K27C5R6LC
X2
275VAC
0.22
13
7.8
13.8
10
0.6
MP2224K27C5X6LC
X2
275VAC
0.22
13
7.8
13.8
10
0.6
MP2224K27D1X6LC
X2
275VAC
0.22
18
5
11
15
0.6
MP2224K27D2R890
X2
275VAC
0.22
18
6
12
15
0.8
MP2224K27D2X8LC
X2
275VAC
0.22
18
6
12
15
0.8
说明 Note: “**”表示内部特征码
■
料号明细及尺寸 Part
“**”=Internal use.
No. List and Dimensions
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
成品编码
等级
电压
Part No.
Class
MP2224K27D3R8LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.5
X2
275VAC
0.22
18
7.5
13.5
15
0.8
MP2224K27D3X8LC
X2
275VAC
0.22
18
7.5
13.5
15
0.8
MP2224K27D4R8LC
X2
275VAC
0.22
18
8.4
14.5
15
0.8
MP2224K27D4S8LC
X2
275VAC
0.22
18
8.4
14.5
15
0.8
MP2224K27D4X8LC
X2
275VAC
0.22
18
8.4
14.5
15
0.8
MP2224K27E1X8LC
X2
275VAC
0.22
26.5
6
15
22.5
0.8
MP2224K27E2R8LC
X2
275VAC
0.22
26.5
7
16.5
22.5
0.8
MP2225K27D8X8LC
X2
275VAC
2.2
18
11.2
19.5
15
0.8
MP2225K27E4X8LC
X2
275VAC
2.2
26.5
10
19
22.5
0.8
MP2225K27E7R8LC
X2
275VAC
2.2
26.5
13
23
22.5
0.8
MP2225K27E7X8LC
X2
275VAC
2.2
26.5
13
23
22.5
0.8
MP2225K27F1X8LC
X2
275VAC
2.2
31.5
10.8
19.5
27.5
0.8
MP2225K27F2R8LC
X2
275VAC
2.2
31.5
13
21.6
27.5
0.8
MP2225K27F2X8LC
X2
275VAC
2.2
31.5
13
21.6
27.5
0.8
MP2225K27F3R8LC
X2
275VAC
2.2
31
14
25
27.5
0.8
MP2225K27F3X8LC
X2
275VAC
2.2
31
14
25
27.5
0.8
MP2272K27C2X6LC
X2
275VAC
0.0027
13
5
11
10
0.6
MP2273K27C2X6LC
X2
275VAC
0.027
13
5
11
10
0.6
MP2274K27C5X6LC
X2
275VAC
0.27
13
7.8
13.8
10
0.6
MP2274K27D1X6LC
X2
275VAC
0.27
18
5
11
15
0.6
MP2274K27D2X8LC
X2
275VAC
0.27
18
6
12
15
0.8
MP2274K27D3X8LC
X2
275VAC
0.27
18
7.5
13.5
15
0.8
MP2274K27D4R8LC
X2
275VAC
0.27
18
8.4
14.5
15
0.8
MP2274K27D4X8LC
X2
275VAC
0.27
18
8.4
14.5
15
0.8
MP2275K27E5X8LC
X2
275VAC
2.7
26.5
11
20
22.5
0.8
MP2275K27F1X8LC
X2
275VAC
2.7
31.5
10.8
19.5
27.5
0.8
MP2275K27F4X8LC
X2
275VAC
2.7
31
16
25.5
27.5
0.8
MP2305K27E6X8LC
X2
275VAC
3.0
26
12
21.5
22.5
0.8
MP2305K27F2X8LC
X2
275VAC
3.0
31.5
13
21.6
27.5
0.8
MP2305K27F3R8LC
X2
275VAC
3.0
31
14
25
27.5
0.8
MP2305K27F3X8LC
X2
275VAC
3.0
31
14
25
27.5
0.8
MP2305K27F4X8LC
X2
275VAC
3.0
31
16
26.5
27.5
0.8
MP2332K27C2R6LC
X2
275VAC
0.0033
13
5
11
10
0.6
说明 Note: “**”表示内部特征码
■
料号明细及尺寸 Part
“**”=Internal use.
No. List and Dimensions
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
成品编码
等级
电压
Part No.
Class
MP2332K27C2X6LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.5
X2
275VAC
0.0033
13
5
11
10
0.6
MP2333K27C1R6LC
X2
275VAC
0.033
13
4
9
10
0.6
MP2333K27C2R6LC
X2
275VAC
0.033
13
5
11
10
0.6
MP2333K27C2X6LC
X2
275VAC
0.33
13
5
11
10
0.6
MP2334K27C5S6LC
X2
275VAC
0.33
13
7.8
13.8
10
0.6
MP2334K27C5X6LC
X2
275VAC
0.33
13
7.8
13.8
10
0.6
MP2334K27D2R8LC
X2
275VAC
0.33
18
6
12
15
0.8
MP2334K27D2X8LC
X2
275VAC
0.33
18
6
12
15
0.8
MP2334K27D3R8LC
X2
275VAC
0.33
18
7.5
13.5
15
0.8
MP2334K27D3X8LC
X2
275VAC
0.33
18
7.5
13.5
15
0.8
MP2334K27D4R8LC
X2
275VAC
0.33
18
8.4
14.5
15
0.8
MP2334K27D4S8LC
X2
275VAC
0.33
18
8.4
14.5
15
0.8
MP2334K27D6R8LC
X2
275VAC
0.33
18
10
15.8
15
0.8
MP2334K27D6X8LC
X2
275VAC
0.33
18
10
15.8
15
0.8
MP2334K27E1X8LC
X2
275VAC
0.33
26.5
6
15
22.5
0.8
MP2334K27E2R8LC
X2
275VAC
0.33
26.5
7
16.5
22.5
0.8
MP2334K27E2X8LC
X2
275VAC
0.33
26.5
7
16.5
22.5
0.8
MP2334K27E3R8LC
X2
275VAC
0.33
26.5
8.5
17
22.5
0.8
MP2335K27E7X8LC
X2
275VAC
3.3
26.5
13
23
22.5
0.8
MP2335K27F1X8LC
X2
275VAC
3.3
31.5
10.8
19.5
27.5
0.8
MP2335K27F3X8LC
X2
275VAC
3.3
31
14
25
27.5
0.8
MP2335K27F8R8LC
X2
275VAC
3.3
31.5
21
31
27.5
0.8
MP2392K27C2X6LC
X2
275VAC
0.0039
13
5
11
10
0.6
MP2393K27C2X6LC
X2
275VAC
0.039
13
5
11
10
0.6
MP2394K27C5X6LC
X2
275VAC
0.39
13
7.8
13.8
10
0.6
MP2394K27D2X8LC
X2
275VAC
0.39
18
6
12
15
0.8
MP2394K27D3R8LC
X2
275VAC
0.39
18
7.5
13.5
15
0.8
MP2394K27D3X8LC
X2
275VAC
0.39
18
7.5
13.5
15
0.8
MP2394K27D4X8LC
X2
275VAC
0.39
18
8.4
14.5
15
0.8
MP2394K27D5R8LC
X2
275VAC
0.39
18
9.5
15.5
15
0.8
MP2394K27D5X8LC
X2
275VAC
0.39
18
9.5
15.5
15
0.8
MP2394K27D6R8LC
X2
275VAC
0.39
18
10
15.8
15
0.8
MP2394K27E1X8LC
X2
275VAC
0.39
26.5
6
15
22.5
0.8
说明 Note: “**”表示内部特征码
■
料号明细及尺寸 Part
“**”=Internal use.
No. List and Dimensions
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
成品编码
等级
电压
Part No.
Class
MP2394K27E2X8LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.5
X2
275VAC
0.39
26.5
7
16.5
22.5
0.8
MP2394K27E4R8LC
X2
275VAC
0.39
26.5
10
19
22.5
0.8
MP2405K27F2X8LC
X2
275VAC
4.0
31.5
13
21.6
27.5
0.8
MP2405K27F4R8LC
X2
275VAC
4.0
31
16
25.5
27.5
0.8
MP2405K27F4X8LC
X2
275VAC
4.0
31
16
25.5
27.5
0.8
MP2472K27C2R6LC
X2
275VAC
0.0047
13
5
11
10
0.6
MP2472K27C2X6LC
X2
275VAC
0.0047
13
5
11
10
0.6
MP2473K27B2R6LC
X2
275VAC
0.047
10
5
11
7.5
0.6
MP2473K27C2R6LC
X2
275VAC
0.047
13
5
11
10
0.6
MP2473K27C2X6LC
X2
275VAC
0.047
13
5
11
10
0.6
MP2473K27C3R6LC
X2
275VAC
0.047
13
6
12
10
0.6
MP2473K27D1R6LC
X2
275VAC
0.047
18
5
11
15
0.6
MP2473K27D1X6LC
X2
275VAC
0.047
18
5
11
15
0.6
MP2473K27D3R8LC
X2
275VAC
0.047
18
7.5
13.5
15
0.8
MP2474K27C5X6LC
X2
275VAC
0.47
13
7.8
13.8
10
0.6

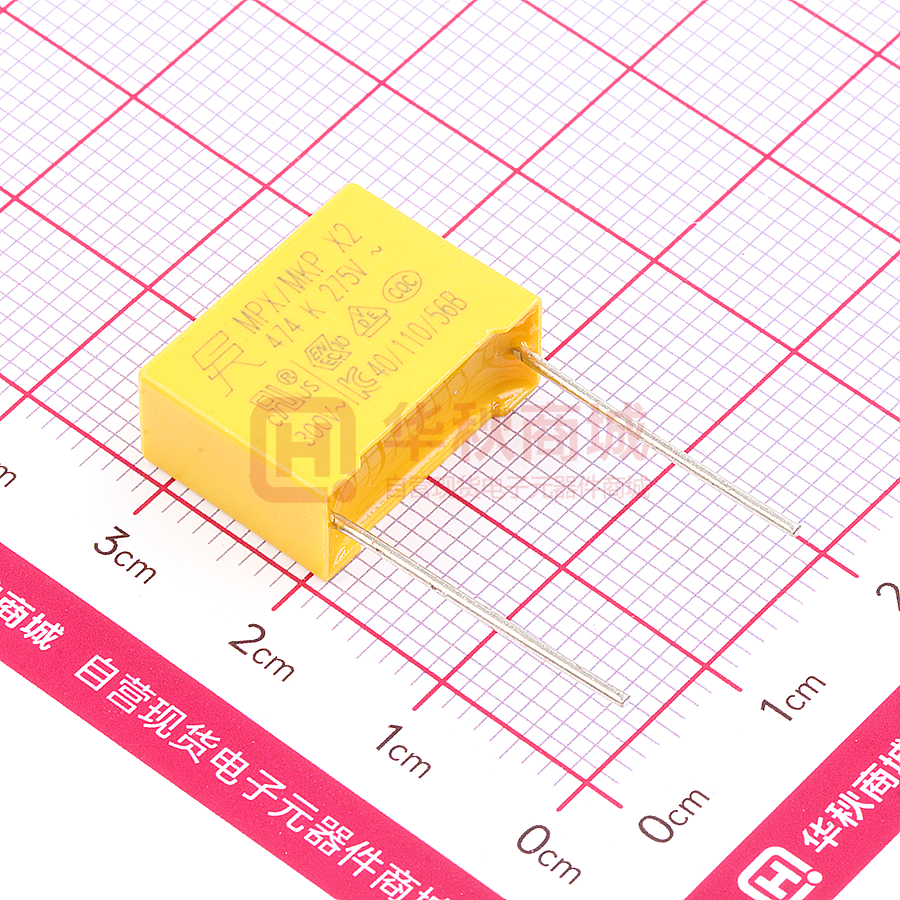

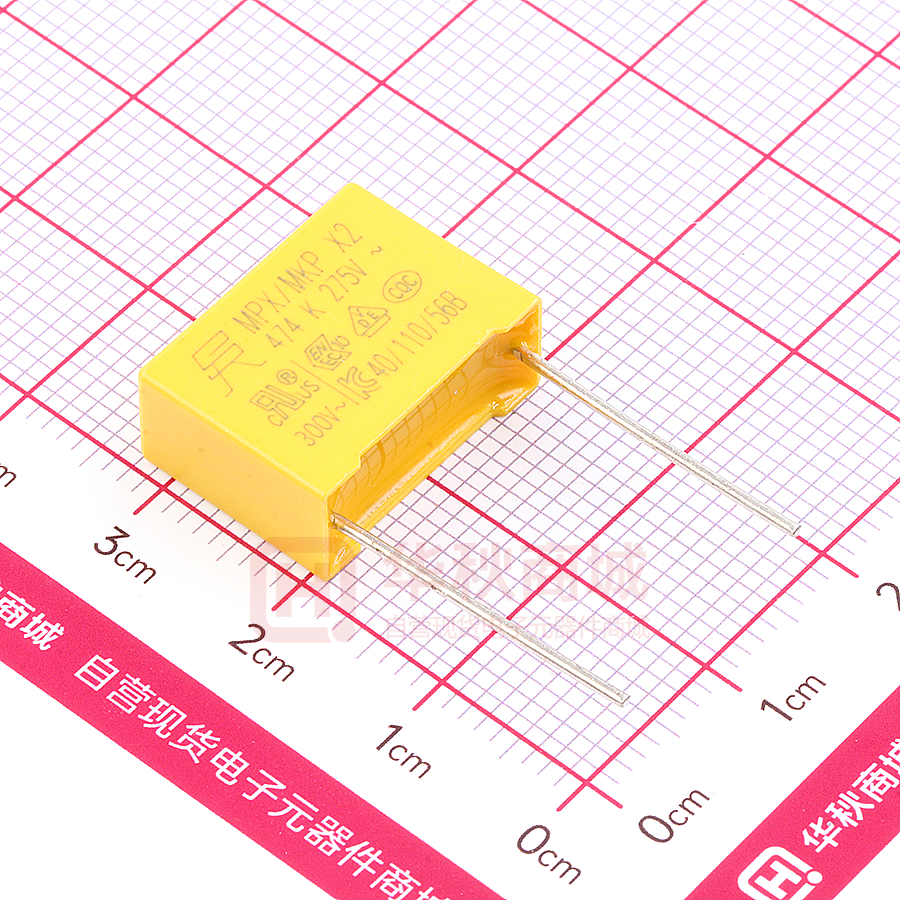

MP2474K27D3X8LC
X2
275VAC
0.47
18
7.5
13.5
15
0.8
MP2474K27D4R8LC
X2
275VAC
0.47
18
8.4
14.5
15
0.8
MP2474K27D4X8LC
X2
275VAC
0.47
18
8.4
14.5
15
0.8
MP2474K27D5R8LC
X2
275VAC
0.47
18
9.5
15.5
15
0.8
MP2474K27D6R8LC
X2
275VAC
0.47
18
10
15.8
15
0.8
MP2474K27D6S8LC
X2
275VAC
0.47
18
10
15.8
15
0.8
MP2474K27D6X8LC
X2
275VAC
0.47
18
10
15.8
15
0.8
MP2474K27E1X8LC
X2
275VAC
0.47
26.5
6
15
22.5
0.8
MP2474K27E2R8LC
X2
275VAC
0.47
26.5
7
16.5
22.5
0.8
MP2474K27E2X8LC
X2
275VAC
0.47
26.5
7
16.5
22.5
0.8
MP2474K27E4R8LC
X2
275VAC
0.47
26.5
10
19
22.5
0.8
MP2474K27F1R8LC
X2
275VAC
0.47
31.5
10.8
19.5
27.5
0.8
MP2475K27F3X8LC
X2
275VAC
4.7
31
14
25
27.5
0.8
MP2475K27F7R8LC
X2
275VAC
4.7
31.5
18
26
27.5
0.8
MP2475K27F8R8LC
X2
275VAC
4.7
31.5
21
31
27.5
0.8
MP2562K27C2X6LC
X2
275VAC
0.0056
13
5
11
10
0.6
MP2563K27C2X6LC
X2
275VAC
0.056
13
5
11
10
0.6
MP2563K27C3R6LC
X2
275VAC
0.056
13
6
12
10
0.6
说明 Note: “**”表示内部特征码
■
料号明细及尺寸 Part
“**”=Internal use.
No. List and Dimensions
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
成品编码
等级
电压
Part No.
Class
MP2563K27D1R6LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.5
X2
275VAC
0.056
18
5
11
15
0.6
MP2563K27D1X6LC
X2
275VAC
0.056
18
5
11
15
0.6
MP2564K27C5X6LC
X2
275VAC
0.56
13
7.8
13.8
10
0.6
MP2564K27D3X8LC
X2
275VAC
0.56
18
7.5
13.5
15
0.8
MP2564K27D5X8LC
X2
275VAC
0.56
18
9.5
15.5
15
0.8
MP2564K27D8X8LC
X2
275VAC
0.56
18
11.2
19.2
15
0.8
MP2564K27E1X8LC
X2
275VAC
0.56
26.5
6
15
22.5
0.8
MP2564K27E2X8LC
X2
275VAC
0.56
26.5
7
16.5
22.5
0.8
MP2564K27E3R8LC
X2
275VAC
0.56
26.5
8.5
17
22.5
0.8
MP2564K27E4R8LC
X2
275VAC
0.56
26.5
10
19
22.5
0.8
MP2682K27C2X6LC
X2
275VAC
0.0068
13
5
11
10
0.6
MP2683K27C2R6LC
X2
275VAC
0.068
13
5
11
10
0.6
MP2683K27C2X6LC
X2
275VAC
0.068
13
5
11
10
0.6
MP2683K27C3R6LC
X2
275VAC
0.068
13
6
12
10
0.6
MP2683K27D1R6LC
X2
275VAC
0.068
18
5
11
15
0.6
MP2683K27D1X6LC
X2
275VAC
0.068
18
5
11
15
0.6
MP2684K27C5X6LC
X2
275VAC
0.68
13
7.8
13.8
10
0.6
MP2684K27D4X8LC
X2
275VAC
0.68
18
8.4
14.5
15
0.8
MP2684K27D6X8LC
X2
275VAC
0.68
18
10
15.8
15
0.8
MP2684K27D8X8LC
X2
275VAC
0.68
18
11.2
19.5
15
0.8
MP2684K27E1X8LC
X2
275VAC
0.68
26.5
6
15
22.5
0.8
MP2684K27E2R8LC
X2
275VAC
0.68
26.5
7
16.5
22.5
0.8
MP2684K27E2X8LC
X2
275VAC
0.68
26.5
7
16.5
22.5
0.8
MP2684K27E3R8LC
X2
275VAC
0.68
26.5
8.5
17
22.5
0.8
MP2684K27E3X8LC
X2
275VAC
0.68
26.5
8.5
17
22.5
0.8
MP2684K27E4R8LC
X2
275VAC
0.68
26.5
10
19
22.5
0.8
MP2684K27E4S8LC
X2
275VAC
0.68
26.5
10
19
22.5
0.8
MP2684K27F1R8LC
X2
275VAC
0.68
31.5
10.8
19.5
27.5
0.8
MP2684K27F1X8LC
X2
275VAC
0.68
31.5
10.8
19.5
27.5
0.8
MP2822K27C2X6LC
X2
275VAC
0.0082
13
5
11
10
0.6
MP2823K27C2X6LC
X2
275VAC
0.082
13
5
11
10
0.6
MP2823K27C3R6LC
X2
275VAC
0.082
13
6
12
10
0.6
MP2823K27C3X6LC
X2
275VAC
0.082
13
6
12
10
0.6
说明 Note: “**”表示内部特征码
■
料号明细及尺寸 Part
“**”=Internal use.
No. List and Dimensions
Metallized Polypropylene Film Interference Suppression Capacitors
金属化聚丙烯膜抑制电磁电源干扰用电容器
(MPX/MKP X2 275VAC--MP2 Series/ MP2 系列)
成品编码
等级
电压
Part No.
Class
MP2823K27D1R6LC
尺寸 Dimension (mm)
容量
Voltage
Capacitance
(μF)
W±0.5
T±0.5
H±0.5
P±0.5
Φd±0.5
X2
275VAC
0.082
18
5
11
15
0.6
MP2823K27D1X6LC
X2
275VAC
0.082
18
5
11
15
0.6
MP2823K27D2R8LC
X2
275VAC
0.082
18
6
12
15
0.8
MP2823K27D2X8LC
X2
275VAC
0.082
18
6
12
15
0.8
MP2824K27C5X6LC
X2
275VAC
0.82
13
7.8
13.8
10
0.6
MP2824K27D6X8LC
X2
275VAC
0.82
18
10
15.8
15
0.8
MP2824K27D8X8LC
X2
275VAC
0.82
18
11.2
19.5
15
0.8
MP2824K27E1X8LC
X2
275VAC
0.82
26.5
6
15
22.5
0.8
MP2824K27E2X8LC
X2
275VAC
0.82
26.5
7
16.5
22.5
0.8
MP2824K27E4R8LC
X2
275VAC
0.82
26.5
10
19
22.5
0.8
MP2824K27E4X8LC
X2
275VAC
0.82
26.5
10
19
22.5
0.8
MP2824K27F1X8LC
X2
275VAC
0.82
31.5
10.8
19.5
27.5
0.8
说明 Note: “**”表示内部特征码
“**”=Internal use.
We can customize the capacitors according to customers special requirements.
很抱歉,暂时无法提供与“MP2474K27D3X8JF”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 10+0.44200
- 100+0.40300
- 500+0.36400
- 1000+0.32500
- 2000+0.29900
- 4000+0.29120
