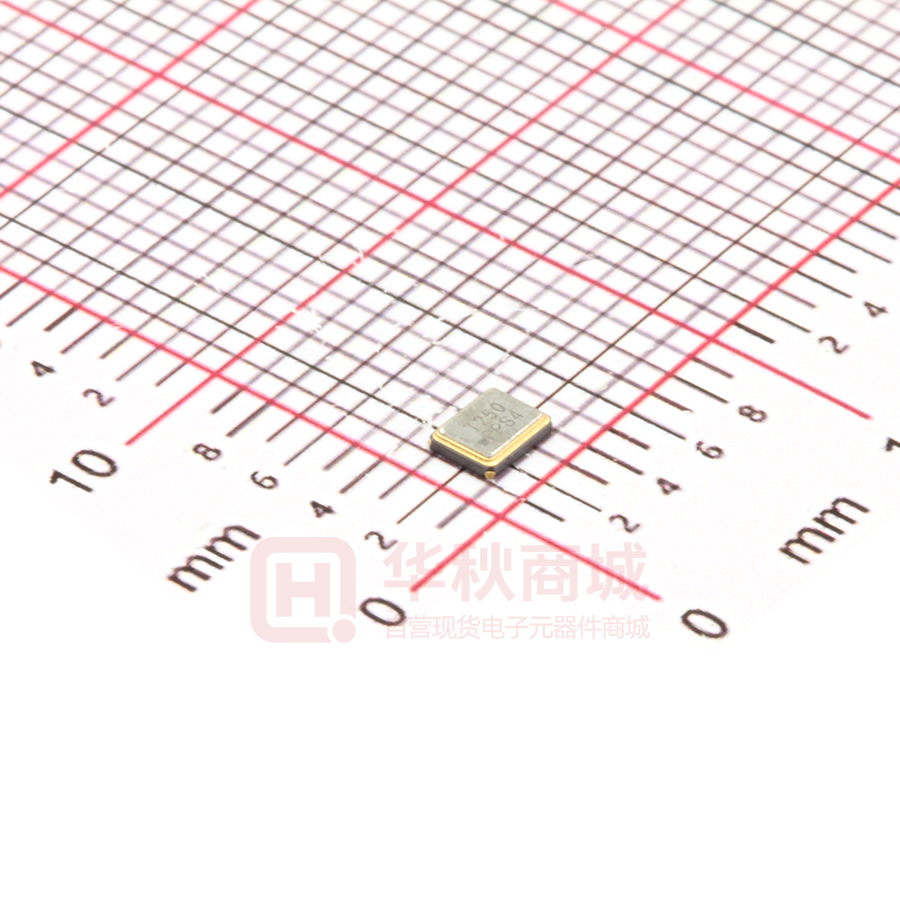

7M25000082

TXC CORPORATION www.txccorp.com SPECIFICATION FOR APPROVAL CUSTOMER : PRODUCT TYPE : SMD SEAM SEALING X'TAL 3.2×2.5 NOMINAL FREQ. : 25.000000MHz TXC P/N : 7M25000082 REVISION : A3 CUSTOMER P/N : PM / SALES : DATE : CUSTOMER SIGNATURE & Date (1) TXC requires one copy returned with signature and title of authorized individual that signifies acceptance of the attached specifications. (2) Orders received and accepted by TXC after return of signed copy of specification will be produced per these specifications. (3) Any changes to these specifications must be agreed upon by both parties and new revision of the Product Specification Sheet will be issued. (4) Any issuance of purchase order prior to consigning back the Approval page of "Specification Sheets" from customers will be regarded as the agreement on the contents of these specifications. MSL:Level 1 RoHS Compliant FMT-DOC024 Issue Date: 04.17'15 VER.G TXC CORPORATION www.txccorp.com PRODUCT SPECIFICATION SHEET PRODUCT TYPE : SMD SEAM SEALING X'TAL 3.2×2.5 NOMINAL FREQ. : 25.000000MHz TXC P/N : 7M25000082 REVISION : A3 PE/RD QA MFG Robin Huang Samson Xiong Jake Liu 13-Jun-16 13-Jun-16 13-Jun-16 NOTE: (1)The green product standard set by TXC is based upon the international standards. Related information is publicly described on the TXC's Website, and updated regularly. The document is compliant with the latest green product quality system directives at the time. (2)Revision "Sx" is for engineering samples only. PE/RD's approval required. (3)Revision "Ax" is production ready. PE, QA and MFG's approval required MSL:Level 1 RoHS Compliant FMT-DOC024 Issue Date: 04.17'15 VER.G TXC P/N： TXC CORPORATION Rev Revise page S1 N/A A1 N/A 7M25000082 Revise contents A3 PAGE： 1 Date Ref.No. Reviser Initial released 7-Aug-13 N/A Xiaoyan Jiang S Turn A 19-Feb-14 N/A Xiaoyan Jiang 21-Jan-16 ECR-16N012105 Xiaoyan Jiang 13-Jun-16 ECR-16N062900 Xiaoyan Jiang A2 3 Operating Temperature-40~+85℃ Change To-30~+85℃ Frequency Stability ±20ppm Change To ±10ppm A3 3 Frequency Tolerance ±20ppm Change To ±10ppm FMT-DOC024 REVISION： Issue Date: 04.17'15 VER.G TXC CORPORATION TXC P/N： 7M25000082 REVISION： A3 PAGE： 2 Spec Sheet Contents No. Content Page 1 ELECTRICAL SPECIFICATIONS P.3 2 FACTORY LOCATION P.3 3 DIMENSIONS P.4 4 MARKING P.4 5 SUGGESTED REFLOW PROFILE& MANUAL SOLDER CONDITION P.4 6 STRUCTURE ILLUSTRATION P.5 7 EMBOSS CARRIER TAPE & REEL P.6 8 PACKING P.7 9 RELIABILITY SPECIFICATIONS FMT-DOC024 P.8～9 Issue Date: 04.17'15 VER.G TXC P/N： TXC CORPORATION 7M25000082 REVISION： A3 PAGE： 3 ■ ELECTRICAL SPECIFICATIONS Standard atmospheric conditions Unless otherwise specified, the standard range of atmospheric conditions for making measurement and tests are as follow: Ambient temperature : 25±5℃ Relative humidity 40%~70% : If there is any doubt about the results, measurement shall be made within the following limits: Ambient temperature : 25±3℃ Relative humidity 40%~70% : Measure equipment Electrical characteristics measured by S&A250B or equivalent. Crystal cutting type The crystal is using AT CUT (thickness shear mode). Unit Weight: 0.018±0.001 g/pcs Parameters SYM. Electrical Spec. MIN TYPE MAX Notes UNITS FL 25.000000 MHz - - Fundamental - - CL 20 pF - 4 Frequency Tolerance - ±10 ppm at 25 ℃ ± 3 ℃ 5 Frequency Stability - ±10 ppm Over Operating Temp. Range (Reference 25 ℃) 6 Operating Temperature - 7 Aging - 1 Nominal Frequency 2 Oscillation Mode 3 Load Capacitance -30 ~ 85 ±2 - ℃ ppm 1st Year 8 Drive Level DL - 10 100 uW - 9 Effective Resistance Rr Rr - - 60 Ω - 10 Shunt Capacitance C0 C0 - - 3 pF - 11 Insulation Resistance - 500 - - MΩ 12 Storage Temperature Range - -40 ~ 85 ℃ at DC 100V - ■ FACTORY LOCATION TXC (NINGBO) CORPORATION NO.189 Huang Shan West Road, Beilun District, Ningbo Zhejiang China FMT-DOC024 Issue Date: 04.17'15 VER.G TXC P/N： TXC CORPORATION 7M25000082 A3 REVISION： ■ DIMENSIONS (Unit:mm) PAGE： 4 Unit:mm 0.70 ± 0.10 3.20 ± 0.10 GND 3 3 4 2.50 ± 0.10 4 1 GND 2 1 2 1.20±0.10 1 2 4 3 1.40 0.80 1.40 0.70±0.10 1.20 0.50 1.20 0.20 1.00±0.10 0.90±0.10 Internal View Connection Bottom View Suggested Layout *Coplanarity of solderable areas Camber 0.10 mm Max ■ MARKING 　 T□□□ TXC Logo Pin 1 Location ■ Frequency Code Ex. 25.000000 MHz = 250 □□□□ Lot Code Date Code Line Code Date Code: MONTH YEAR JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 2005 2009 2013 2017 A B C D E F G H J K L M 2006 2010 2014 2018 N P Q R S T U V W X Y Z 2007 2011 2015 2019 a b c d e f g h j k l m 2008 2012 2016 2020 n p q r s t u v w x y z *This date code will be cycled every four years (℃) ■ SUGGESTED REFLOW PROFILE Solder melting point :220±10 ℃, 60 sec. Min. Peak Temperature: 260 ± 5 ℃, 10 sec. Max. 10 sec 260 220 180 150 ■ SUGGESTED MANUAL SOLDER CONDITION Temperature: 350 ± 10 ℃ Time: 3 sec. Time (sec) 120 sec 60 sec Re-solder times: twice FMT-DOC024 Issue Date: 04.17'15 VER.G TXC CORPORATION TXC P/N： 7M25000082 REVISION： A3 PAGE： 5 ■ STRUCTURE ILLUSTRATION A-A' sectional drawing C-C' sectional drawing B-B' sectional drawing NO COMPONENTS MATERIALS FINISH/SPECIFICATIONS 1 Lid Kovar (Fe/Co/Ni) 2 Package Ceramic (AI2O3) + Kovar (Fe/Co/Ni)+ Ag/Cu - 3 PAD Au - Tungsten metalize + Ni plating + Au plating 4 Crystal blank SiO2 5 Conductive adhesive Resin+Ag - 6 Electrode Noble Metal - FMT-DOC024 - Issue Date: 04.17'15 VER.G TXC P/N： TXC CORPORATION 7M25000082 REVISION： A3 PAGE： 6 ■ EMBOSS CARRIER TAPE & REEL DIMENSIONS A 1.65±0.10 B C D E F G H 3.40±0.10 2.70±0.10 4.00±0.10 8.00±0.20 4.00±0.10 1.55±0.10 1.75±0.10 (UNIT：mm) REMARK : User direction of feed DIMENSIONS FMT-DOC024 L L1 W W1 178±1.00 13±0.50 11.5±0.20 8±0.10 (UNIT：mm) Issue Date: 04.17'15 VER.G TXC CORPORATION TXC P/N： 7M25000082 REVISION： A3 PAGE： 7 ■ PACKING Reel Quantity : 1. Reel X 6 (6 Reels) 2. Reel X 12 (12 Reels) 3. Reel X 25 (12 Reels + 13 Reels) 4. Reel X 50 ( 12 Reelsx2 + 13 Reelsx2 ) Label B Box Size: 1. L200 X W200 X H140mm 2. L200 X W200 X H250mm 3. L400 X W200 X H250mm 4. L400 X W400 X H280mm Tape Tape Label A Label B QA Pass (Label A) Size:100 X 100mm (Lable B) Size:80 X 40mm [STORAGE] 1.The storage time to be 1 year maximum. 2.Don't be caught in the rain. 3.The storage environment shall be 5℃ ~40℃ temperature and 30% ~ 75%RH humidity and free from the sun shine. 4.If customers have special requirements, we can paste labels according to it. FMT-DOC024 Issue Date: 04.17'15 VER.G TXC CORPORATION TXC P/N： 7M25000082 REVISION： A3 PAGE： 8 ■ RELIABILITY SPECIFICATIONS 1.Mechanical Endurance No. 1.1 Drop Test 1.2 Test Methods Test Item Mechanical Shock 150 cm height,3 times on concrete floor . A.C Device are shocked to half sine wave ( 1000 G ) three mutually perpendicular axes each 3 times. 0.5 ms duration time Vibration 1.3 Test Criteria Frequency range 10 ~ 2000 Hz Amplitude 1.52 mm/20G Sweep time 20 minutes Perpendicular axes each test time 4 Hrs Temperature 245 ℃ ± 5℃ Immersing depth 0.5 mm minimum Immersion time 5 ± 1 seconds Flux Rosin resin methyl alcohol A.C A.C (Total test time 12 Hrs) Solderability 1.4 E solvent ( 1 : 4 ) 2.Environmental Endurance No. 2.1 Test Item Resistance To Soldering Heat Test Methods Pre-heat temperature 125 ℃ Pre-heat time 60 ~ 120 sec. Test temperature 260 ± 5 ℃ Test time 10 ± 1 sec. Test Criteria B.C.D 2.2 High Temp. Storage + 125 ℃ ± 3 ℃ for 500 ± 12 Hrs B.C.D 2.3 Low Temp. Storage - 40 ℃ ± 3 ℃ for 500 ± 12 Hrs B.C.D Total 100 cycles of the following temperature cycle 2.4 Temperature cycle 2.5 High Temp＆Humidity 85℃ ± 3℃ , RH 85% , 500 Hrs FMT-DOC024 B.C.D B.C.D Issue Date: 04.17'15 VER.G TXC CORPORATION TXC P/N： 7M25000082 REVISION： A3 PAGE： 9 RELIABILITY SPECIFICATIONS Specifications A Frequency change: Within ±5ppm or in customer's specification. B Frequency change: Within ±10ppm or in customer's specification. C Equivalent series resistance(E.S.R) change: Within ±15% or 10Ω(larger value). D After conditioning , quartz crystal units shall be subjected to standard atmospheric conditions for 2 hour, and measured. E Minimum 95% of immersed terminal shall be covered with new uniform solder. Measurement condition Electrical characteristics measured by S&A250B or equivalent. FMT-DOC024 Issue Date: 04.17'15 VER.G
