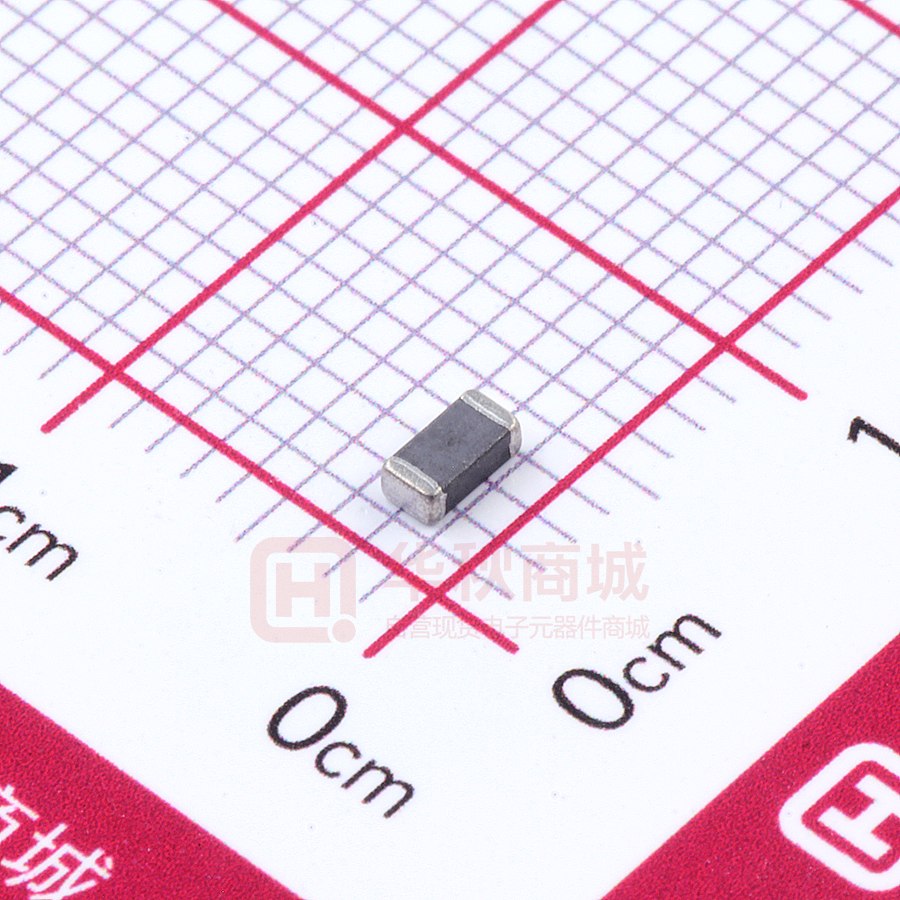

BBPY00321611500Y00

SMD Multilayer Ferrite Chip Beads Multilayer Ferrite Chip Beads Chilisin offers a wide range of multi-layered ferrite chip beads with various sizes, frequency characteristics, and impedance values for EMI solutions. These ferrite formulas are used to compose seven types of EMI suppression chip beads: BBSY, BBBK, BBSJ, BBGK, BBPY, BBUP, BBNQ, BBFY, BBFJ and BBHV series. Product Identification Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TYPE A B C D TYPE A B C 060303 0.60.03 0.300.03 0.30.03 0.150.05 060303 0.2 ~ 0.3 0.75 ~ 1.05 0.3 100505 1.00.10 0.500.10 0.50.10 0.250.10 100505 0.4 1.2 ~ 1.4 0.5 160805 1.60.15 0.800.15 0.50.15 0.30.2 160805 0.7 ~ 0.8 1.8 ~ 2.0 0.6 ~ 0.8 160808 1.60.15 0.800.15 0.80.15 0.30.2 160808 0.7 ~ 0.8 1.8 ~ 2.0 0.6 ~ 0.8 201209 2.00.20 1.250.20 0.90.20 0.50.3 201209 1.0 ~ 1.2 2.6 ~ 4.0 1.0 ~ 1.4 321611 3.20.20 1.600.20 1.10.20 0.50.3 321611 2.0 4.2 ~ 5.2 1.3 ~ 1.9 453215 4.50.25 3.200.20 1.50.20 0.50.3 453215 3.0 5.5 ~ 6.5 2.4 ：BBSY / BBSJ / BBNQ / BBPY ＊ Don’t apply narrower pattern than listed above to BBPY and BBUP ：BBSY / BBSJ / BBNQ / BBPY / BBUP / BBFY / BBFJ Narrow pattern might cause excessive heat or open circuit. ：BBUP ：BBBK / BBSJ / BBGK / BBPY / BBNQ / BBUP / BBHV ：BBBK / BBGK / BBPY / BBUP ：BBSY / BBBK / BBPY / BBUP ：BBPY / BBUP Dimension Conversion Code Dimension in mm (AxBxC) EIA 060303 0.6X0.3X0.3 0201 100505 1.0X0.5X0.5 0402 160805 1.6x0.8x0.5 0603 160808 1.6x0.8x0.8 0603 201209 2.0x1.2x0.9 0805 321611 3.2x1.6x.1.1 1206 453215 4.5x3.2x1.5 1812 SMD Multilayer Ferrite Chip Beads – BBPY Series Electrical Characteristics Impedance Test Frequency RDC Rated current (Ω±25%) (MHz) (Ω) Max (mA) Max BBPY00060303100Y00 10 100 0.050 1000 BBPY00060303220Y00 22 100 0.065 1000 BBPY00060303330Y00 33 100 0.090 750 BBPY00060303470Y00 47 100 0.120 500 BBPY00060303800Y00 80 100 0.180 500 BBPY00060303121Y00 120 100 0.230 450 BBPY00060303241Y00 240 100 0.400 350 BBPY00060303331Y00 330 100 0.500 300 Part Number Note: When ordering, please specify tolerance code. Tolerance : Y=±25%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Rate Current：Applied the current to coils, the temperature rise shall not be more than 30℃  Measure Equipment： Z：HP4291A RDC：HP4338B or CHEN HWA 502 Test Instruments：Agilent E4991A Impedance / Material Analyzer BBPY00060303220Y00 16 35 14 Z 12 10 8 X 6 4 30 Z 25 20 15 X 10 R 2 BBPY00060303330Y00 100 IMPECANCE(Ω) 40 IMPEDANCE(Ω) IMPEDANCE(Ω) BBPY00060303100Y00 18 5 1 10 100 Z 40 X 20 R 0 1 1000 60 R 0 0 80 FREQUENCY (MHz) RDC
