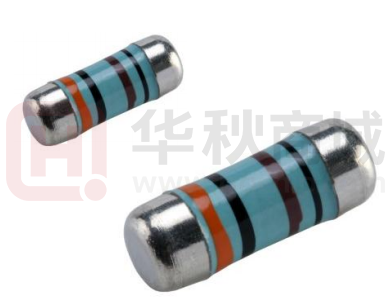

CSR0207FTDU2002

Data Sheet Customer: Product: Metal Film Precision Resistor-CSR Series Size: 0204/ 0207 Issued Date: 15-Jun-22 Edition: REV.D4 VIKING TECH CORPORATION 光頡科技股份有限公司 VIKING TECH CORPORATION KAOHSIUNG BRANCH 光頡科技股份有限公司高雄分公司 VIKING ELECTRONICS (WUXI) CO., LTD. 光頡電子(無錫)有限公司 No.70 Guangfu N. Rd., Hukou Township, Hsinchu County 303, Taiwan No.248-3, Sin-Sheng Rd., Cian-Jhen Dist., Kaohsiung, 806, Taiwan TEL:886-3-5972931 FAX:886-3-5972935•886-3-5973494 E-mail:sales@viking.com.tw TEL:886-7-8217999 FAX:886-7-8228229 E-mail:sales@viking.com.tw No.22 Xixia Road, Machinery & Industry Park, National Hi-Tech Industrial Development Zone of Wuxi, Wuxi, Jiangsu Province, China Zip Code:214028 TEL:86-510-85203339 FAX:86-510-85203667•86-510-85203977 E-mail:china@viking.com.tw Produced by (QC) Checked (QC) Approved by (QC) 15-Jun-22 15-Jun-22 15-Jun-22 Alice Hsiao Susan Huang Susan Huang Prepared by (Sales) Accepted by (Customer) 【CSR Series】 Metal Film Precision Resistor Metal Film Precision Resistor ■Features －Excellent overall stability －Tight tolerance down to ±0.1% －Extremely low TCR down to ±5 PPM/°C －High power rating up to 1 Watts ■Applications －Telecommunication －Medical Equipment －Measurement/Testing Equipment ■Construction & Dimension ■Derating Curve 100 90 Power ratio(%) 80 70 60 Except for 5ppm 50 40 5ppm 30 20 10  Insulation Coating  Electrode Cap  Trimming Line  Resistor Layer  Ceramic Rod  Marking 0 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 Ambient Temperature(℃) Type L (mm) L1 min. (mm) ΦD (mm) ΦD1 (mm) K (mm) Weight 1,000EA (g) CSR0204 3.50±0.2 1.7 1.40±0.15 D +0/-0.2 0.8±0.1 18.7 CSR0207 5.90±0.2 2.9 2.20±0.20 D +0/-0.2 1.3±0.1 80.9 ■Part Numbering CSR 0204 D T Product Dimensions Resistance Packaging Type (L×ΦD) Tolerance Code 0204: 3.5x1.4 0207: 5.9x2.2 B: ±0.1% C: ±0.25% D: ±0.5% F: ±1% J: ±5% T: 7” Taping Reel S:7” Taping Reel, Antistatic Tape※ W:13” Taping Reel M:13” Taping Reel, Antistatic Tape※ D V 1000 TCR Power Resistance (PPM/°C) Rating S: ±5 B: ±10 N: ±15 C: ±25 D: ±50 E: ±100 - : No Specified T: 1W U: 1/2W V: 1/4W G: 2/5W 0010: 1Ω 0100: 10Ω 1000: 100Ω 1001: 1KΩ 1004: 1MΩ R0R0: 0Ω R050: 0.05Ω R100: 0.1Ω 22R1: 22.1Ω ** Letter “R” is a decimal point. ※Packaging Code “S” & “M” only for 0204 size product, not include 0207 size product. www.viking.com.tw For detail questions, contact：sales@viking.com.tw 1 Edition: REV.D4 Revision: 15-Jun-2022 【CSR Series】 Metal Film Precision Resistor ■Soldering Condition (Ref. IPC/JEDEC J-STD-020 & J-STD-002) Reflow Profiles Profile Feature Pb-Free Assembly Preheat Min. Temperature (Tsmin) 150 °C Max Temperature (Tsmax) 200 °C Preheating time (ts) from (Tsmin to Tsmax) 60-120 seconds Ramp-up rate (TL to Tp) 3 °C/second max. Liquidous temperature (TL) 217 °C Time (tL) maintained above TL 60-150 seconds Min. Peak temperature (Tp min) 235°C Max. Peak temperature (Tp max) 260°C Time (tp) within 5 °C of the specified classification temperature (Tc) 30 seconds max. Ramp-down rate (Tp to TL) 6 °C/second max. Time 25 °C to peak temperature 8 minutes max. www.viking.com.tw For detail questions, contact：sales@viking.com.tw 2 Edition: REV.D4 Revision: 15-Jun-2022 【CSR Series】 Metal Film Precision Resistor ■Standard Electrical Specifications Item Type 0204 Power Rating at 70°C Operating Temp. Range Max. Operating Voltage Max. Overload Voltage -55 ~ +125C 200V 400V Resistance Range ±0.1% 200V ±0.5% ±1% 10Ω-332KΩ 1/4W -55 ~ +155C ±0.25% 10Ω-20KΩ 10Ω-300KΩ 10Ω-3.4MΩ 1Ω-3.4MΩ 10Ω-1MΩ 10Ω-1MΩ 400V - 0207 300V 600V 10Ω-332KΩ 1/2W -55 ~ +155C 300V ±10 ±15 ±25 ±50 ±100 - 10Ω-20KΩ 10Ω-300KΩ 10Ω-3.4MΩ 1Ω-3.4MΩ 10Ω-1MΩ 10Ω-1MΩ 600V ±5 1Ω-4.7MΩ 0.2Ω-10MΩ 0.1Ω-10MΩ 0Ω(
