SA10BM331A19R09XXX

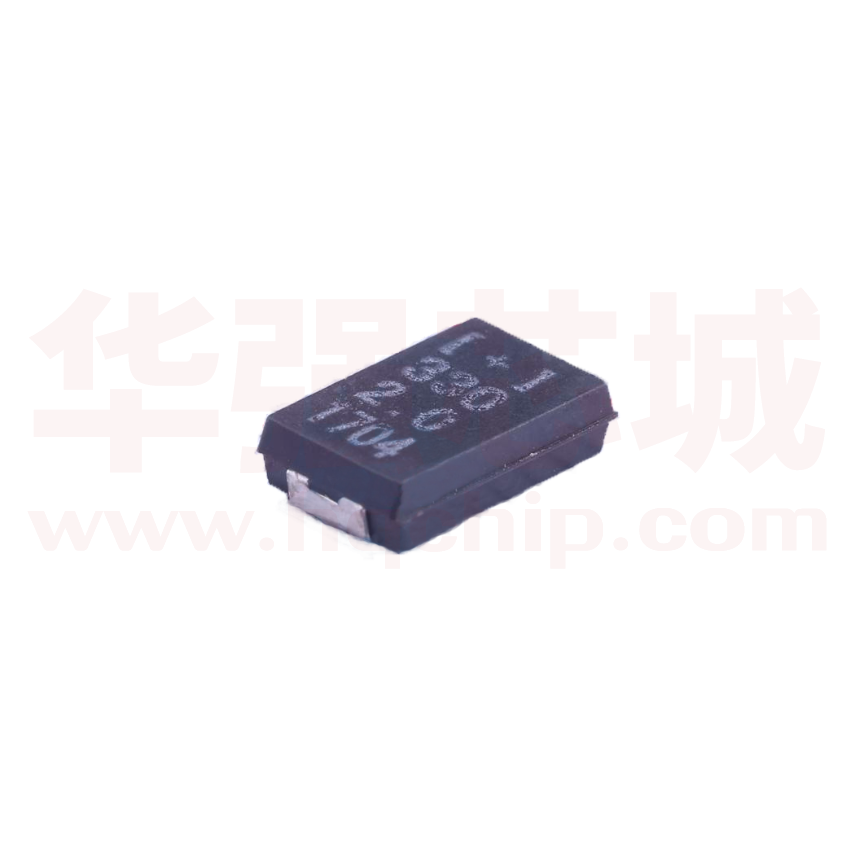

湖南艾华集团股份有限公司 HUNAN AIHUA GROUP CO., LTD Tel: (0737)6184466 Fax : (0737)6180493 Http://www.aihuaglobal.com 客户Customer：  日期Date：2017.10.26 承 认 书 SPECIFICATION 种 类：叠片式聚合物固体电容器 DESCRIPTION：Multi-layer Polymer Aluminum Solid Capacitors 艾华料号AISHI P/N： SA10BM331A19R09XXX 系 列 SERIES ： A1 产品尺寸 PRODUCT SIZE：7.3*4.3*1.9 编 号FILENUMBER: GRS-DC-1710039 批准 APPROVED BY 制作PREPARED BY 审核CHECKED BY 批准APPROVED BY File Description File number： Specification-A1 GRS-DC-1710039 制订/修订履历表Make/revised curriculum vitae 编号NO. 版本Version GRS-DC-1710039 CRS-2017-A/ 01 日期Date 内容Content 2017.10.26 Initial Release （ Release date Name 2017.10.26 Series Approval Sheet -A1 A1 Version STANDARD MANUAL A01 Page 1 File Description File number Specification-A1 GRS-DC-1710039 A1 Series   一. 概述Scope 此承认书使用于含有导电高分子聚合物的叠层固态电解电容（This acknowledgement is used for a laminated solid electrolytic capacitor containing a conductive polymer .） 二. 产品介绍Product Introduction ● 耐久性 :2000 hours at 105 ℃（endurance: 1000 hours at 105 ℃） ●低等效串联电阻（ Low ESR） ●RoHS无铅（RoHS Compliant and lead-free） ●推荐应用：系统主板，显示卡，小型充电器，智能电视等等 Recommended application: system motherboard, video card, small charger, smart TV etc. 三. 规格特性表Specification 序 号 (N O.) 1 艾华料号 AISHI P/N 额定工作电压 Voltage (V.DC) 电容量 Capacitance (120Hz,20℃) (μF) 尺寸 Size (L×W×Hmm) 运行温度范围Oper Temp range (ºС) 浪涌电压 Surge voltage(V.DC) SA10BM331A19R0 9XXX 2 330 7.3*4.3*1.9 -55～105 2.3 电容量公差 Capacitance Tolerance 阻抗 E.S.R (100KHz) (20º С)(mΩ) (max) 最大漏电流 Leakage current (25℃)(μA max) -20%~20% 9 132 纹波电流Ripple 损耗因数 D.F(%) Current (120Hz,20℃) (100KHz,20~105℃) (max) (mA.rms) 6 3500 寿命life(Hours) 2000 ※以上特性表根据不同规格而变化；The above characteristics changes according to different specifications. Release date Name 2017.10.26 Series Approval Sheet -A1 A1 Version STANDARD MANUAL A01 Page 2 File Description File number Specification-A1 GRS-DC-1710039 四. 电性能测试项目Electrical performance test project NO. 1 2 测试方法Test method 项目Item 判定标准Judging standard 标称电容量范围 Capacitance 测试频率Test frequency: (120Hz) Range 测试温度Test temperature：20℃, 测试电压Test voltage：+1Vr.m.s 测试电路：等效串联电阻 损耗因数 Test circuit: equivalent series resistance Dissipation 用LCR仪测量并参照规格特性表 [Measure by LCR meter and comply with specification] 用LCR仪测量并参照规格特性表 [Measure by LCR meter and comply with specification] Factor ( tan δ ) 3 直流漏电流 DC Leakage Current 串联电阻Series resistor:1000 ohm 电压: 额定电压;Voltage: Rated Voltage 充电后2分钟进行测量；Measuring after 2 minutes of application 如有疑问先按以下内容进行预测试 ；If there are any questions, the following contents are pretested. ・温度:室温；・Temperature: room temp. ・电压:额定电压 voltage :Rated Voltage ・串联电阻:1000 ohm；Series resistor:1000 ohm ・充电时间:30 min. Charging time:30 min. 4 等效串联电阻 ESR ・测试频率Test frequency: (100KHz±10%) ・测试温度Test temperature：20℃, ・测试电压Test voltage：+1Vr.m.s 5 纹波电流 ・测试频率Test frequency:100 KHz±10%； Ripple Current ・测试温度Test temperature:20 to 105℃ 6 耐浪涌电压 Surge voltage Name 2017.10.26 Series 用LCR仪测量并参照规格特性表 [Measure by LCR meter and comply with specification] 用纹波仪测量并参照规格特性表 [Measure by R.C. meter and comply with specification] 额定浪涌电压充电30 ± 5 秒后，在室温下放电5 ± 0.5分钟重复1000 次; 每次循环的时间为6 ± 0.5 分钟];测试温度为15℃-35℃。 After charging 30 + 5 seconds at the rated surge voltage, 5 + 0.5 minutes at room temperature is repeated 1000 times; The time of each cycle was 6 + 0.5 min, and the test temperature was 15 -35℃. Release date 用LC仪测量并参照规格特性表 [Measure by LCR meter and comply with specification] 漏电流≤规格值Leakage current ≤specified value; 容量变化率在±10%内; Capacity change rate was ±10% 损失角≤规格值 tanδ≤ specified value. Approval Sheet -A1 A1 STANDARD MANUAL Version A01 Page 3 File Description File number Specification-A1 GRS-DC-1710039 连接上页Connection page No. 项目Item 7 测试方法Test method 判定标准Judging standard 频率Frequency: 10 to 55Hz (1 minute interval/10→55→ 10Hz) ；整体偏移 振动试验 Specified amplitude 0.75mm 2小时/ Vibration Test 轴（共6小时）Duration : 2 hours / axial (Total 6 hours) 8 可焊性 Solderability 9 稳态湿热(恒稳 态) Resistance to damp heat(steady state) 容量在30分钟内测量，与初始值相比不应有较大 的差异，其改变在±5%以内; Compared with the initial value,capacity tested within 30 minutes should not have greater differences, range is within ±5%. ・温度Temperature ：235 ± 5 °C ・持续时间Duration:2 ± 0.5秒 ; 3D显微镜：至少95%的浸渍表面覆盖有新的焊料 3D microscope: at least 95% of surface area covered with new solder. ・温度Temperature : 60±2℃ ・相对湿度Relative humidity : 90% ~ 95%； ・持续时间Duration : 500 (-0/+24) hrs； ・使用电压：无负荷Applied voltage : without load 容量变化分电压别如下Capacity variation of the voltage is not as follows;； ・
