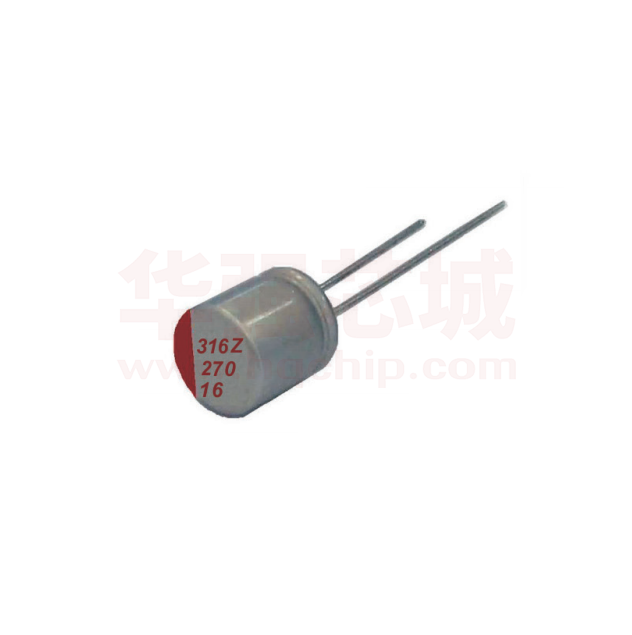

SPF1CM471F09O00R

CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS PF series Endurance: +105°C 3,000~5,000 hours Long life time Recommended Applications: System Board, Display Card, Small Charger and intelligent TV RoHS Compliant and lead-free SPECIFICATIONS Items Category Temperature Range -55~+105°C Rated Working Voltage Range 6.3~100 V dc Nominal Capacitance Range 4.7~5600µF Capacitance Tolerance ±20%(M) DC Leakage Current I≤0.2CV or 500μA, whichever is greater. Where, I:Max.leakage current (µA),C:Nominal capacitance (µF),V: Rated voltage (V) (at 20°C,120Hz) 6.3 Rated Voltage(V dc ) DissipationFactor (tanδ) 6.8 tanδ (max.) 7.5 10 16 0.08 ESR(100kHz,20°C) Value in characteristics table Temperature Characteristic (Impedance Ratio at 100kHz) Z(+105°C)/Z(+20°C)≤1.25 Z(-55°C)/Z(+20°C)≤1.25 63 80 0.12 (at 20°C after 2 minutes) 100 (at 20°C,120Hz) 0.15 After applying rated voltage for 3,000 to 5,000 hours at 105°C, the capacitors shall meet the following requirements. Endurance Appearance No significant damage Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤150% of the initial specified value ESR ≤150% of the initial specified value Leakage Current ≤The initial specified value After subjecting to 90~95%RH for 2,000 hours at 60°C without voltage applied, the capacitors shall meet the specified values for the Endurance characteristics listed above. Humidity Test After subjecting to 1,000 cycles each consisting of charge with the surge voltage specified at normal temperature for 30 seconds through a protective resistor and discharge for 5 minutes 30 seconds, the capacitors shall meet the following requirements. Surge Test Appearance No significant damage Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤150% of the initial specified value ESR ≤150% of the initial specified value Leakage Current ≤The initial specified value DIMENSIONS[mm] Ød ØD' F±0.5 L' 4min. 15min. ØD 5 5.5 6.3 8 10 Ød 0.5 0.5 0.5 0.6 0.6 F ØD' L' 2.0 2.5 2.5 3.5 5.0 Ø D-0.1~+0.5 L+1.0max. L-0.5~+1 PART NUMBERING SYSTEM S P F 1 C M 2 7 1 E 0 8 O 0 0 R A X X X Special code Marking code Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code 44 Conductive Polymer Radial Type Characteristics CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS PF series STANDARD RATINGS VDC (SV) Cap (µF) Size ΦDxL(mm) 220 270 5×7 5×7 5×8 6.3×5 6.3×8 5×9 5×10 5.5×9 6.3×7 6.3×8 6.3×7 6.3×8 5.5×9 6.3×9 5.5×9 8×9 6.3×9 8×9 6.3×10 8×9 8×11 8×11 8×11 10×12 10×10 8×14 10×12 10×14 10×17 10×18 5×7 5×7 5×8 5×9 5×9 6.3×7 6.3×8 6.3×9 6.3×9 6.3×11 8×11 5×7 5×8 5×9 6.3×8 5.5×9 6.3×8 6.3×9 6.3×10 8×9 5×7 5×8 5×9 6.3×7 5.5×9 5.5×9 6.3×8 6.3×9 6.3×10 8×9 8×11 5×7 5×7 5×7 5×7 5×7 5×7 5×7 5×9 6.3×8 6.3×8 6.3×8 8×9 6.3×8 330 390 470 560 680 820 6.3 (7.2) 1000 1200 1500 1800 2200 3300 4700 5600 220 270 330 390 6.8 (7.8) 470 560 680 820 1000 220 270 330 7 (8.1) 470 560 680 820 220 270 330 470 7.5 (8.6) 500 560 680 820 10 (11.5) 1200 47 56 68 82 100 120 150 220 270 330 390 ESR (mΩ,20°C,100kHz) (max.) 22 22 22 27 16 22 22 22 22 16 22 22 22 22 22 22 22 16 11 13 11 11 11 11 11 11 11 11 11 11 22 22 22 22 22 22 22 22 22 13 11 22 22 22 22 22 22 13 13 13 22 22 22 28 22 22 22 13 13 13 13 38 38 38 38 38 22 22 22 16 22 22 16 22 Rated ripple current (mArms/105°C,100kHz) Leakage Current (µA)(max.) Part Number 3100 3400 3600 2800 3600 3600 3800 3600 3500 3900 3700 4300 3800 4500 4300 4100 4500 4200 4600 4300 4600 4700 4800 4900 5000 5100 5200 5300 5400 5600 2970 3240 3420 3510 3690 3330 4050 4320 4410 4590 4635 2880 3060 3240 3420 3240 3600 3780 4050 4140 2790 2970 3150 2880 3195 3240 3510 3690 3960 4095 4320 1900 2000 2000 2100 2100 2200 2200 2500 2800 2700 2900 3000 3000 500 500 500 500 500 500 592 592 592 592 706 706 706 857 857 857 1033 1033 1260 1260 1260 1512 1890 1890 2268 2772 2772 4158 5000 5000 500 500 500 530 639 639 762 925 1115 1360 1360 500 500 500 658 658 784 952 1148 1148 500 500 500 705 705 750 840 1020 1230 1230 1800 500 500 500 500 500 500 500 500 500 540 660 660 780 SPF0JM221D07O00RAXXX SPF0JM271D07O00RAXXX SPF0JM331D08O00RAXXX SPF0JM331E05O00RAXXX SPF0JM331E08O00RAXXX SPF0JM391D09O00RAXXX SPF0JM471D10O00RAXXX SPF0JM471B09O00RAXXX SPF0JM471E07O00RAXXX SPF0JM471E08O00RAXXX SPF0JM561E07O00RAXXX SPF0JM561E08O00RAXXX SPF0JM561B09O00RAXXX SPF0JM681E09O00RAXXX SPF0JM681B09O00RAXXX SPF0JM681F09O00RAXXX SPF0JM821E09O00RAXXX SPF0JM821F09O00RAXXX SPF0JM102E10O00RAXXX SPF0JM102F09O00RAXXX SPF0JM102F11O00RAXXX SPF0JM122F11O00RAXXX SPF0JM152F11O00RAXXX SPF0JM152G12O00RAXXX SPF0JM182G10O00RAXXX SPF0JM222F14O00RAXXX SPF0JM222G12O00RAXXX SPF0JM332G14O00RAXXX SPF0JM472G17O00RAXXX SPF0JM562G18O00RAXXX SPF0CM221D07O00RAXXX SPF0CM271D07O00RAXXX SPF0CM331D08O00RAXXX SPF0CM391D09O00RAXXX SPF0CM471D09O00RAXXX SPF0CM471E07O00RAXXX SPF0CM561E08O00RAXXX SPF0CM681E09O00RAXXX SPF0CM821E09O00RAXXX SPF0CM102E11O00RAXXX SPF0CM102F11O00RAXXX SPF0QM221D07O00RAXXX SPF0QM271D08O00RAXXX SPF0QM331D09O00RAXXX SPF0QM471E08O00RAXXX SPF0QM471B09O00RAXXX SPF0QM561E08O00RAXXX SPF0QM681E09O00RAXXX SPF0QM821E10O00RAXXX SPF0QM821F09O00RAXXX SPF0AM221D07O00RAXXX SPF0AM271D08O00RAXXX SPF0AM331D09O00RAXXX SPF0AM471E07O00RAXXX SPF0AM471B09O00RAXXX SPF0AM501B09O00RAXXX SPF0AM561E08O00RAXXX SPF0AM681E09O00RAXXX SPF0AM821E10O00RAXXX SPF0AM821F09O00RAXXX SPF0AM122F11O00RAXXX SPF1AM470D07O00RAXXX SPF1AM560D07O00RAXXX SPF1AM680D07O00RAXXX SPF1AM820D07O00RAXXX SPF1AM101D07O00RAXXX SPF1AM121D07O00RAXXX SPF1AM151D07O00RAXXX SPF1AM221D09O00RAXXX SPF1AM221E08O00RAXXX SPF1AM271E08O00RAXXX SPF1AM331E08O00RAXXX SPF1AM331F09O00RAXXX SPF1AM391E08O00RAXXX 45 CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS PF series VDC (SV) Cap (µF) 470 560 10 (11.5) 680 820 1000 1200 1500 1800 2200 3300 330 470 12 (13.8) 680 820 1000 1200 1500 47 56 68 82 100 120 150 180 220 270 330 470 16 (18.4) 560 680 820 1000 1200 1500 1800 2200 20 (23.0) 33 39 47 56 68 82 100 120 150 220 270 330 Size ΦDxL(mm) ESR (mΩ,20°C,100kHz) (max.) 5.5×9 6.3×8 8×9 8×11 6.3×10 8×9 8×11 8×11 8×11 10×12 8×12 10×12 10×12 10×13 10×15 10×18 5.5×9 5.5×9 6.3×9 6.3×10 6.3×11 8×10 8×11 8×12 8×14 8×16 5×7 5×7 5×7 5×8 5×7 6.3×5 5×8 5×8 5×8 6.3×7 5×10 6.3×8 6.3×10 5.5×9 6.3×8 8×9 5.5×9 6.3×9 6.3×10 6.3×11 8×11 8×11 8×13 8×11 10×12 8×13 10×12 10×12 8×14 10×15 10×12 10×18 10×14 10×17 10×15 5×8 5×8 5×8 5×9 6.3×8 6.3×8 6.3×8 6.3×8 6.3×10 8×9 8×11 8×11 8×11 22 22 16 13 14 16 13 13 13 11 11 11 11 11 11 11 22 22 22 17 17 17 13 13 13 13 22 22 22 22 22 27 22 22 22 17 22 22 16 22 22 22 22 22 16 16 16 16 16 16 13 12 13 13 13 13 13 13 13 13 13 44 44 44 44 33 33 33 33 22 33 22 22 22 Rated ripple current (mArms/105°C,100kHz) 3000 3100 3100 5000 3200 3200 3500 3600 3700 4700 4000 4900 4900 5200 5400 5500 2790 2880 3105 3060 3240 3330 3420 3600 3960 4320 1800 1800 1900 1900 2000 1800 2100 2100 2200 2200 2300 2400 2600 2400 2500 2600 2600 2600 2700 2800 4100 2800 2800 3000 3200 3100 3400 3600 3200 3800 3700 4900 4800 5200 4900 1710 1755 1980 1890 1890 1935 1980 2070 2115 2205 2295 2430 2520 Leakage Current (µA)(max.) Part Number 940 940 940 940 1120 1120 1360 1640 2000 2000 2400 2400 3000 3600 4400 5000 792 1128 1128 1128 1632 1632 1968 2400 2880 3600 500 500 500 500 500 500 500 500 576 576 704 704 704 864 864 864 1056 1056 1056 1504 1504 1792 1792 2176 2176 2624 2624 3200 3200 3840 3840 4800 5000 5000 5000 500 500 500 500 500 500 500 500 600 880 880 1080 1320 SPF1AM471B09O00RAXXX SPF1AM471E08O00RAXXX SPF1AM471F09O00RAXXX SPF1AM471F11O00RAXXX SPF1AM561E10O00RAXXX SPF1AM561F09O00RAXXX SPF1AM681F11O00RAXXX SPF1AM821F11O00RAXXX SPF1AM102F11O00RAXXX SPF1AM102G12O00RAXXX SPF1AM122F12O00RAXXX SPF1AM122G12O00RAXXX SPF1AM152G12O00RAXXX SPF1AM182G13O00RAXXX SPF1AM222G15O00RAXXX SPF1AM332G18O00RAXXX SPF1TM331B09O00RAXXX SPF1TM471B09O00RAXXX SPF1TM471E09O00RAXXX SPF1TM471E10O00RAXXX SPF1TM681E11O00RAXXX SPF1TM681F10O00RAXXX SPF1TM821F11O00RAXXX SPF1TM102F12O00RAXXX SPF1TM122F14O00RAXXX SPF1TM152F16O00RAXXX SPF1CM470D07O00RAXXX SPF1CM560D07O00RAXXX SPF1CM680D07O00RAXXX SPF1CM820D08O00RAXXX SPF1CM101D07O00RAXXX SPF1CM101E05O00RAXXX SPF1CM121D08O00RAXXX SPF1CM151D08O00RAXXX SPF1CM181D08O00RAXXX SPF1CM181E07O00RAXXX SPF1CM221D10O00RAXXX SPF1CM221E08O00RAXXX SPF1CM221E10O00RAXXX SPF1CM271B09O00RAXXX SPF1CM271E08O00RAXXX SPF1CM271F09O00RAXXX SPF1CM331B09O00RAXXX SPF1CM331E09O00RAXXX SPF1CM331E10O00RAXXX SPF1CM471E11O00RAXXX SPF1CM471F11O00RAXXX SPF1CM561F11O00RAXXX SPF1CM561F13O00RAXXX SPF1CM681F11O00RAXXX SPF1CM681G12O00RAXXX SPF1CM821F13O00RAXXX SPF1CM821G12O00RAXXX SPF1CM102G12O00RAXXX SPF1CM102F14O00RAXXX SPF1CM122G15O00RAXXX SPF1CM122G12O00RAXXX SPF1CM152G18O00RAXXX SPF1CM182G14O00RAXXX SPF1CM222G17O00RAXXX SPF1CM222G15O00RAXXX SPF1DM330D08O00RAXXX SPF1DM390D08O00RAXXX SPF1DM470D08O00RAXXX SPF1DM560D09O00RAXXX SPF1DM680E08O00RAXXX SPF1DM820E08O00RAXXX SPF1DM101E08O00RAXXX SPF1DM121E08O00RAXXX SPF1DM151E10O00RAXXX SPF1DM221F09O00RAXXX SPF1DM221F11O00RAXXX SPF1DM271F11O00RAXXX SPF1DM331F11O00RAXXX 46 Conductive Polymer Radial Type STANDARD RATINGS CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS PF series STANDARD RATINGS VDC (SV) Size ΦDxL(mm) ESR (mΩ,20°C,100kHz) (max.) 15 22 33 47 56 10×12 10×13 10×15 10×12 10×18 10×18 5×9 5×8 5×9 5×9 6.3×7 6.3×8 6.3×10 8×11 6.3×8 6.3×10 8×9 8×11 8×11 8×11 10×12 10×12 8×11 10×15 10×18 8×16 10×18 5×8 5×8 5×8 5×9 5×9 5×9 6.3×7 6.3×7 6.3×7 6.3×7 6.3×8 6.3×10 8×11 6.3×10 6.3×10 8×11 10×12 10×12 10×12 10×13 10×16 10×18 10×18 5×8 6.3×7 5×8 5×8 6.3×7 6.3×7 6.3×8 6.3×8 22 22 22 22 22 22 66 66 66 66 33 33 22 22 33 22 33 22 22 22 22 22 22 22 22 22 22 66 66 66 110 55 55 55 55 55 55 55 44 44 44 44 44 33 33 33 22 22 22 22 66 38 77 77 44 44 38 38 68 100 120 150 220 270 330 440 470 4.7 6.8 10 33 39 6.3×10 8×11 8×11 10×12 10×12 10×13 10×15 10×18 10×18 6.3×8 6.3×8 6.3×5 6.3×8 6.3×8 33 33 33 33 33 22 22 22 22 66 66 66 33 33 Cap (µF) 470 20 (23.0) 680 820 1000 33 39 47 56 82 100 25 (28.8) 120 150 180 220 270 330 470 680 820 1000 4.7 10 15 22 33 39 47 56 68 82 35 (40.3) 100 120 150 220 270 330 470 680 820 1000 4.7 10 50 (57.5) 63 (72.5) Rated ripple current (mArms/105°C,100kHz) Leakage Current (µA)(max.) Part Number 2610 2790 2970 2700 3060 3510 1600 1700 1700 1800 1900 2200 2500 2700 2200 2500 2200 2700 2700 2700 2500 3600 2700 3800 4000 3200 4000 1500 1600 1600 1700 1800 1800 1800 1900 1900 2000 2100 2100 2300 2200 2200 2500 2600 2700 2700 2800 3000 3100 3300 1300 1600 1400 1400 1700 1800 1800 1900 1880 1880 2720 2720 3280 4000 500 500 500 500 500 500 500 500 600 750 900 1100 1350 1650 1650 2350 2350 3400 4100 4100 5000 500 500 500 500 500 500 500 500 500 574 700 700 700 840 1050 1540 1540 1890 2310 3290 4760 5000 5000 500 500 500 500 500 500 500 560 SPF1DM471G12O00RAXXX SPF1DM471G13O00RAXXX SPF1DM681G15O00RAXXX SPF1DM681G12O00RAXXX SPF1DM821G18O00RAXXX SPF1DM102G18O00RAXXX SPF1EM330D09O00RAXXX SPF1EM390D08O00RAXXX SPF1EM470D09O00RAXXX SPF1EM560D09O00RAXXX SPF1EM820E07O00RAXXX SPF1EM101E08O00RAXXX SPF1EM101E10O00RAXXX SPF1EM101F11O00RAXXX SPF1EM121E08O00RAXXX SPF1EM151E10O00RAXXX SPF1EM181F09O00RAXXX SPF1EM221F11O00RAXXX SPF1EM271F11O00RAXXX SPF1EM331F11O00RAXXX SPF1EM331G12O00RAXXX SPF1EM471G12O00RAXXX SPF1EM471F11O00RAXXX SPF1EM681G15O00RAXXX SPF1EM821G18O00RAXXX SPF1EM821F16O00RAXXX SPF1EM102G18O00RAXXX SPF1VM4R7D08O00RAXXX SPF1VM100D08O00RAXXX SPF1VM150D08O00RAXXX SPF1VM220D09O00RAXXX SPF1VM330D09O00RAXXX SPF1VM390D09O00RAXXX SPF1VM470E07O00RAXXX SPF1VM560E07O00RAXXX SPF1VM680E07O00RAXXX SPF1VM820E07O00RAXXX SPF1VM101E08O00RAXXX SPF1VM101E10O00RAXXX SPF1VM101F11O00RAXXX SPF1VM121E10O00RAXXX SPF1VM151E10O00RAXXX SPF1VM221F11O00RAXXX SPF1VM221G12O00RAXXX SPF1VM271G12O00RAXXX SPF1VM331G12O00RAXXX SPF1VM471G13O00RAXXX SPF1VM681G16O00RAXXX SPF1VM821G18O00RAXXX SPF1VM102G18O00RAXXX SPF1HM4R7D08O00RAXXX SPF1HM100E07O00RAXXX SPF1HM100D08O00RAXXX SPF1HM150D08O00RAXXX SPF1HM220E07O00RAXXX SPF1HM330E07O00RAXXX SPF1HM470E08O00RAXXX SPF1HM560E08O00RAXXX 1900 2000 2100 2200 2400 2600 2700 2700 2800 1400 1400 1400 1500 1500 680 1000 1200 1500 2200 2700 3300 4400 4700 500 500 500 500 500 SPF1HM680E10O00RAXXX SPF1HM101F11O00RAXXX SPF1HM121F11O00RAXXX SPF1HM151G12O00RAXXX SPF1HM221G12O00RAXXX SPF1HM271G13O00RAXXX SPF1HM331G15O00RAXXX SPF1HM441G18O00RAXXX SPF1HM471G18O00RAXXX SPF1JM4R7E08O00RAXXX SPF1JM6R8E08O00RAXXX SPF1JM100E05O00RAXXX SPF1JM330E08O00RAXXX SPF1JM390E08O00RAXXX 47 CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS PF series VDC (SV) 63 (72.5) 80 (92.0) 100 (115.0) Cap (µF) Size ΦDxL(mm) ESR (mΩ,20°C,100kHz) (max.) Rated ripple current (mArms/105°C,100kHz) Leakage Current (µA)(max.) Part Number 47 56 68 82 100 150 220 270 330 4.7 6.8 22 33 47 68 100 4.7 6.8 6.3×9 8×9 8×11 8×11 10×12 10×12 10×15 10×17 10×18 6.3×8 6.3×8 6.3×10 8×11 10×12 10×12 10×14 6.3×8 6.3×8 6.3×10 8×11 8×11 10×12 10×14 10×16 33 33 33 33 33 33 22 22 22 66 66 66 38 38 38 38 132 132 55 55 55 38 38 38 1700 1600 1800 1800 1900 2200 2300 2500 2600 1300 1300 1400 1500 1600 1700 1800 1200 1300 1300 1300 1300 1400 1400 1600 592 706 857 1033 1260 1890 2772 3402 4158 500 500 500 528 752 1088 1600 500 500 500 500 500 500 660 940 SPF1JM470E09O00RAXXX SPF1JM560F09O00RAXXX SPF1JM680F11O00RAXXX SPF1JM820F11O00RAXXX SPF1JM101G12O00RAXXX SPF1JM151G12O00RAXXX SPF1JM221G15O00RAXXX SPF1JM271G17O00RAXXX SPF1JM331G18O00RAXXX SPF1BM4R7E08O00RAXXX SPF1BM6R8E08O00RAXXX SPF1BM220E10O00RAXXX SPF1BM330F11O00RAXXX SPF1BM470G12O00RAXXX SPF1BM680G12O00RAXXX SPF1BM101G14O00RAXXX SPF1KM4R7E08O00RAXXX SPF1KM6R8E08O00RAXXX SPF1KM100E10O00RAXXX SPF1KM100F11O00RAXXX SPF1KM150F11O00RAXXX SPF1KM220G12O00RAXXX SPF1KM330G14O00RAXXX SPF1KM470G16O00RAXXX 10 15 22 33 47 ※ Specifications subject to change without notice. 48 Conductive Polymer Radial Type STANDARD RATINGS
