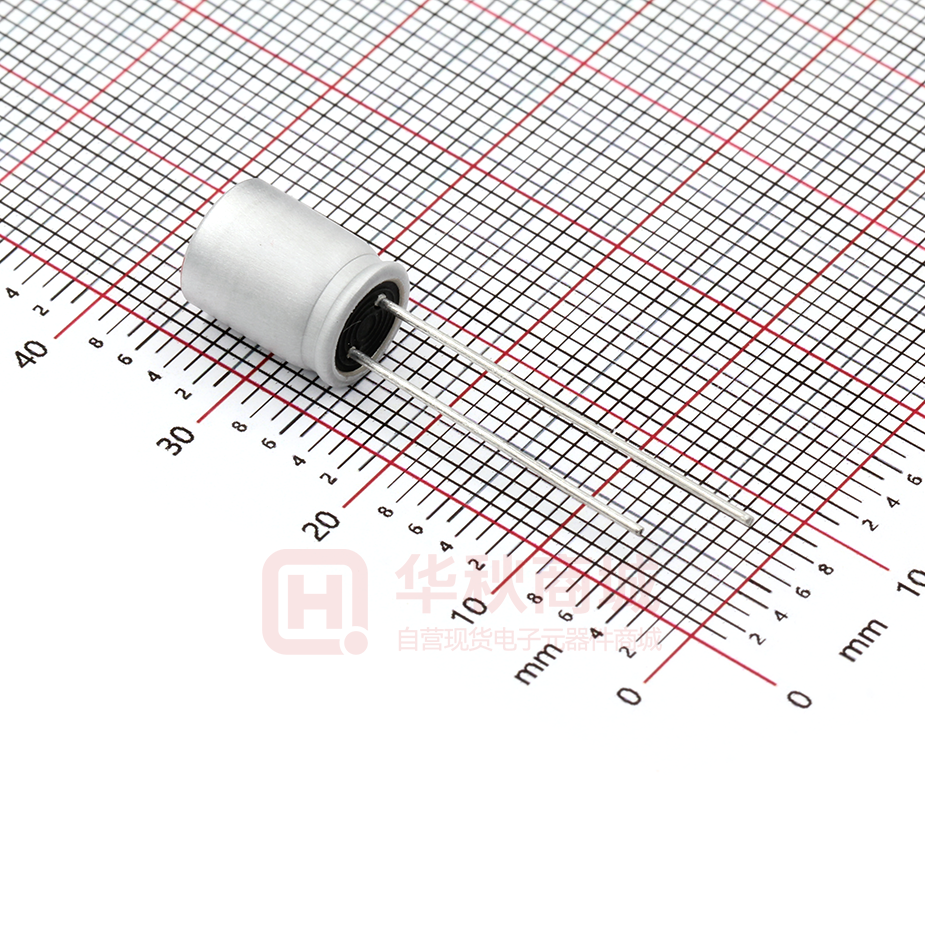

SPV1HM101F11O00RAXXX

CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS PV series Endurance: +125°C 2,000 hours High voltage Recommended Applications: System Board,Display Card,Small Charger,and intelligent TV RoHS Compliant and lead-free SPECIFICATIONS Items Category Temperature Range -55~+125°C Rated Working Voltage Range 35~100 V dc Nominal Capacitance Range 4.7~1000µF Capacitance Tolerance ±20%(M) DC Leakage Current I≤0.2CV or 500μA, whichever is greater. Where, I:Max.leakage current (µA),C:Nominal capacitance (µF),V: Rated voltage (V) (at 20°C,120Hz) Dissipation Factor (tanδ) 50 35 Rated Voltage(V dc ) tanδ (max.) 63 80 0.12 ESR(100kHz,20°C) Value in characteristics table Temperature Characteristic (Impedance Ratio at 100kHz) Z(+125°C)/Z(+20°C)≤1.25 Z(-55°C)/Z(+20°C)≤1.25 (at 20°C after 2 minutes) 100 0.15 (at 20°C,120Hz) After applying rated voltage for 2,000 hours at 125°C,the capacitors shall meet the following requirements. Endurance Appearance No significant damage Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤150% of the initial specified value ESR ≤150% of the initial specified value Leakage Current ≤The initial specified value After subjecting to 90%~95% RH for 2,000 hours at 60°C without voltage applied, the capacitors shall meet the specified values for the Endurance characteristics listed above. Humidity Test After subjecting to 1,000 cycles each consisting of charge with the surge voltage specified at normal temperature for 30 seconds through a protective resistor and discharge for 5 minutes 30 seconds, the capacitors shall meet the following requirements. Surge Test Appearance No significant damage Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤150% of the initial specified value ESR ≤150% of the initial specified value Leakage Current ≤The initial specified value DIMENSIONS[mm] Ød ØD' F±0.5 L' 4min. 15min. ØD 5 5.5 6.3 8 10 Ød 0.5 0.5 0.5 0.6 0.6 F ØD' L' 2.0 2.5 2.5 3.5 5.0 Ø D-0.1~+0.5 L+1.0max. L-0.5~+1 PART NUMBERING SYSTEM S P V 1 C M 4 7 1 F 1 1 O 0 0 R A X X X Special code Marking code Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code 32 Conductive Polymer Radial Type Characteristics CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS PV series STANDARD RATINGS VDC (SV) Cap (µF) Size ΦDxL(mm) ESR (mΩ,20°C,100kHz) (max.) Rated ripple current (mArms/125°C,100kHz) Leakage Current (µA)(max.) Part Number 4.7 10 15 22 33 39 47 56 68 82 5×8 5×8 5×8 5×9 5×9 5×9 6.3×7 6.3×7 6.3×7 6.3×7 6.3×8 6.3×10 8×11 6.3×10 6.3×10 8×11 10×12 10×12 10×12 10×13 10×14 10×16 10×18 10×18 5×8 6.3×7 5×8 5×8 6.3×7 6.3×7 6.3×8 6.3×8 6.3×10 8×11 8×9 10×12 10×12 10×13 10×15 10×18 10×18 6.3×8 6.3×8 6.3×5 6.3×8 6.3×8 8×11 8×11 10×12 10×12 10×13 10×15 10×17 10×18 6.3×8 6.3×8 6.3×10 8×11 10×12 10×12 10×14 6.3×8 6.3×8 6.3×10 8×11 8×11 10×12 10×14 10×16 90 90 90 150 75 75 75 75 75 75 75 60 60 60 60 60 45 45 45 30 30 30 30 30 90 52 105 105 60 60 52 52 45 45 60 45 45 30 30 30 30 90 90 90 45 45 45 45 45 45 30 30 30 30 90 90 90 52 52 52 52 180 180 75 75 75 52 52 52 500 500 500 500 600 600 600 600 600 600 700 700 700 700 700 800 800 900 900 900 900 1000 1000 1100 400 500 500 400 500 600 600 600 600 600 600 700 800 800 800 900 900 400 400 400 500 500 600 600 600 700 700 700 800 800 400 400 400 500 500 500 600 400 400 400 400 400 400 400 400 500 500 500 500 500 500 500 500 500 574 700 700 700 840 1050 1540 1540 1890 2310 3290 3920 4760 5000 5000 500 500 500 500 500 500 500 560 680 1000 1000 1500 2200 2700 3300 4400 4700 500 500 500 500 500 857 1033 1260 1890 2268 2772 3402 4158 500 500 500 528 752 1088 1600 500 500 500 500 500 500 660 940 SPV1VM4R7D08O00RAXXX SPV1VM100D08O00RAXXX SPV1VM150D08O00RAXXX SPV1VM220D09O00RAXXX SPV1VM330D09O00RAXXX SPV1VM390D09O00RAXXX SPV1VM470E07O00RAXXX SPV1VM560E07O00RAXXX SPV1VM680E07O00RAXXX SPV1VM820E07O00RAXXX SPV1VM101E08O00RAXXX SPV1VM101E10O00RAXXX SPV1VM101F11O00RAXXX SPV1VM121E10O00RAXXX SPV1VM151E10O00RAXXX SPV1VM221F11O00RAXXX SPV1VM221G12O00RAXXX SPV1VM271G12O00RAXXX SPV1VM331G12O00RAXXX SPV1VM471G13O00RAXXX SPV1VM561G14O00RAXXX SPV1VM681G16O00RAXXX SPV1VM821G18O00RAXXX SPV1VM102G18O00RAXXX SPV1HM4R7D08O00RAXXX SPV1HM100E07O00RAXXX SPV1HM100D08O00RAXXX SPV1HM150D08O00RAXXX SPV1HM220E07O00RAXXX SPV1HM330E07O00RAXXX SPV1HM470E08O00RAXXX SPV1HM560E08O00RAXXX SPV1HM680E10O00RAXXX SPV1HM101F11O00RAXXX SPV1HM101F09O00RAXXX SPV1HM151G12O00RAXXX SPV1HM221G12O00RAXXX SPV1HM271G13O00RAXXX SPV1HM331G15O00RAXXX SPV1HM441G18O00RAXXX SPV1HM471G18O00RAXXX SPV1JM4R7E08O00RAXXX SPV1JM6R8E08O00RAXXX SPV1JM100E05O00RAXXX SPV1JM330E08O00RAXXX SPV1JM390E08O00RAXXX SPV1JM680F11O00RAXXX SPV1JM820F11O00RAXXX SPV1JM101G12O00RAXXX SPV1JM151G12O00RAXXX SPV1JM181G13O00RAXXX SPV1JM221G15O00RAXXX SPV1JM271G17O00RAXXX SPV1JM331G18O00RAXXX SPV1BM4R7E08O00RAXXX SPV1BM6R8E08O00RAXXX SPV1BM220E10O00RAXXX SPV1BM330F11O00RAXXX SPV1BM470G12O00RAXXX SPV1BM680G12O00RAXXX SPV1BM101G14O00RAXXX SPV1KM4R7E08O00RAXXX SPV1KM6R8E08O00RAXXX SPV1KM100E10O00RAXXX SPV1KM100F11O00RAXXX SPV1KM150F11O00RAXXX SPV1KM220G12O00RAXXX SPV1KM330G14O00RAXXX SPV1KM470G16O00RAXXX 100 35 (40.3) 120 150 220 270 330 470 560 680 820 1000 4.7 10 50 (57.5) 15 22 33 47 56 68 100 63 (72.5) 80 (92.0) 100 (115.0) 150 220 270 330 440 470 4.7 6.8 10 33 39 68 82 100 150 180 220 270 330 4.7 6.8 22 33 47 68 100 4.7 6.8 10 15 22 33 47 ※ Specifications subject to change without notice. 33
