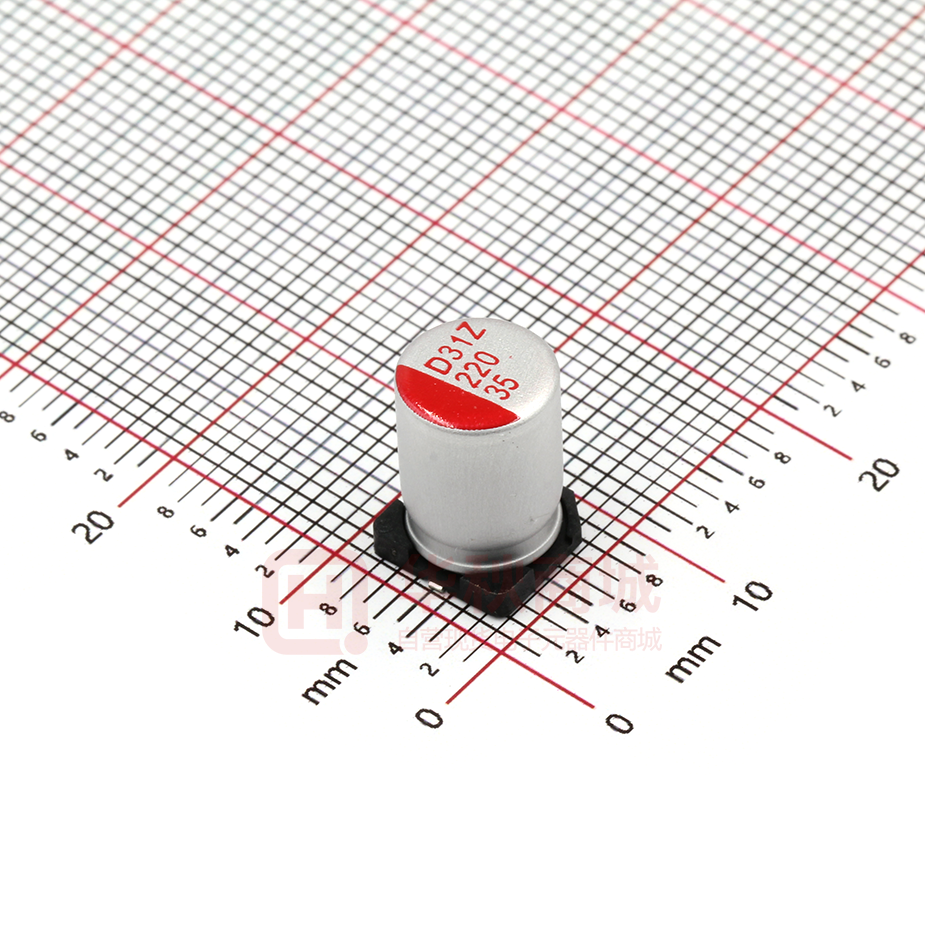

SVZ1VM221FBRE00RAXXX

客户Customer： 日期Date： 2021年6月30日 承 认 书 SPECIFICATION 种 类： 固态铝电解电容器 Description： Aluminum Solid Electrolytic Capacitors 艾华料号 AISHI P/N： SVZ1VM221FBRE00RAXXX 系 列 VZ SERIES： 规 格 尺 寸 ITEM： 35V220uF(Φ8*11.5) 客户料号 Customer P/N： / 编 CRS-FX-2106227 号No. ： 批准 Approved by 制作 Prepared by 审核 Checked by 段巧灵 叶军 技术部 技术部 客户确认Client Confirmed 批准 Approved by 审核 Checked by 批准 Approved by 夏静 技术部 Please return one copy with your authorized signature when you accept these specifications. Please note that no return within 6 months is considered to be approvable. 制订/修订履历表Make/revised curriculum vitae 编号NO. 版本Version 日期Date 内容Content CRS-FX-2106227 CRS-2021-VZ-01 2021-6-30 新建 Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 2 1.概述Scope 此承认书使用于含有导电高分子电解质的VZ系列固态电解电容 These specifications specify VZ series of the Aluminum Solid Capacitors with Conductive Polymer Electrolyte. 2.使用温度范围Operating Temperature Range （-55～105℃） 使用温度范围是指电容在额定电压下可以稳定运行的环境温度范围 Operating temperature range is the range of ambient temperature at which the capacitor can be operatedcontinuously at rated voltage. 3.特性Characteristics 除非另有说明，标准的测量和测试环境条件如下： Unless otherwise specified, the standard range of atmospheric conditions for making measurements and tests are as follows. 环境温度Ambient temperature ：15 to 35℃ 大气压力Air pressure：86kpa to 106kpa 若对结果有疑问，测试则按如下标准进行 If there may be doubt on the results, measurements shall be made within the following limits. 环境温度Ambient temperature ：20±2℃ 大气压力Air pressure：86kpa to 106kpa 4.额定电压、浪涌电压和额定温度Rated voltage, Surge voltage and Rated temperature 额定电压 Rated voltage(V) 额定温度 Rated temperature(℃) 浪涌电压 Surge voltage (V) 电压种类 Category voltage(V) 2.5 105 2.88 2.5 6.3 105 7.25 6.3 6.8 105 7.82 6.8 7 105 8.05 7 7.5 105 8.63 7.5 10 105 11.5 10 12 105 13.8 12 16 105 18.4 16 20 105 23 20 25 105 28.75 25 35 105 40.25 35 50 105 57.5 50 63 105 72.45 63 80 105 92 80 100 105 115 100 Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 3 5. 高低温阻抗Impedance at high and low temperature 阻抗Impedance at 100kHz at -55±3℃ or 105±2℃ 阻抗比Impedance ratio 性能Performance Z (-55℃) / Z (+20℃) ≤1.25 Z (105℃) / Z (+20℃) ≤1.25 6.1 电性能Electrical Characteristics 序号 No. 项目 Item 测试方法 Test method 6.1.1 额定工作电压 Rated voltage 6.1.2 电容量 Capacitance 6.1.3 损失角正切值 Dissipation Factor 性能 Performance DC: 2.5V～100V 测试频率Measuring frequency : 120Hz 测试电路Measuring circuit 等效串联电路Series equivalent circuit 测试电压Measuring voltage: 0.5Vrms or less 直流偏压DC bias voltage : +1.5~2.0VDC 参考特性表 Refer to characteristic table 参考特性表 Refer to characteristic table 6.1.4 等效串联电阻 ESR 参考特性表 测试频率Measuring frequency: 100kHz Refer to characteristic table 测试温度Measuring temperature: 20 ±2℃ 测量位置：a）不得超过导针焊点2mm a）Measuring point : 2mm max from the surface of a sealing resin on the lead wire b）应在最靠近端子伸出塑料平台的两端测量 b）ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform. 6.1.5 漏电流 Leakage current 直流漏电流在20℃，有串联1000±100Ω电阻的情况下以直流工作 参考特性表 Refer to characteristic table 电压且充电2min后测试 DC leakage current shall be measured after 2 minutes application of the DC rated working voltage through the1000 Ω resistor at 20℃ S1 A R + - V S2 CX Refer to characteristic table R : 1000±100Ω A :电流表 DC current meter S1 : 开关Switch S2 : 电流表保护开关 Switch for protect of current meter V:电压表 DC voltage meter CX : 测试电容Testing capacitor Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 4 6.2耐受能力Endurance Performance 序号 No. 项目 Item 测试方法 Test method 性能 Performance 6.2.1 负荷寿命试验 Load Life Test 电容在105±2℃,加载直流电2000小时后，需在室温下放置2小时 才可进行测试。 After 2000hours continuous application of DC rated working voltage at 105 ± 2℃,the measurements shall be measured after 2 hours exposed at room temperature. 容量变化：在初始值的±20%内 Capacitance change within ±20% of the initial value 损失角：小于规格值的150% tan δ ≤ 150% of the initial specified value. 等效串联电阻≤规格值的150% ESR ≤ 150% of the initial specified value. 漏电流≤0.2CV值或500μA中的任 一个较大值 Leakage current ≤the larger values between 0.2CV and 500uA. 外观：没有明显的损伤 Appearance:No significant damage 6.2.2 振动试验 Resistance to Vibration 依照JIS C 5102 8.2和 JIS C 5025 To comply with JIS C 5102 8.2 and JIS C 5025 频率：10到55Hz(1分钟间隔/10→55→10㎐) Frequency: 10 to 55Hz (1 minute interval/10→55→ 10Hz) 振幅：0.75mm(整体偏移1.5mm) Amplitude : 0.75mm ( Total excursion 1.5mm) 方向：X, Y, Z (3 轴) Direction : X , Y , Z (3 axes) 持续时间：2小时/轴（共6小时） Duration : 2 hours / axial (Total 6 hours) 容量在30分钟内测量，与初始值相 比不应有较大的差异，其改变在 ±5%以内 Capacitance value should not show drastic change compared to the initial capacitance when the value is measured within 30 minutes.Prior to the completion of exam, capacitance change should be within ±5% compared to the initial value after the exam 外观：导针不得断裂 Appearance:Don't lead wire broken 6.2.3 可焊性 Solder ability 温度：235 ± 5 °C Temperature : 235 ± 5 °C 持续时间：2 ± 0.5秒 Duration : 2 ± 0.5 seconds 焊料:25wt%的松香(JIS K5902)//乙醇(JIS K 8101) Flux:Rosin (JIS K5902)//Ethanol(JIS K8101); About 25 wt.% 至少95%的浸渍表面覆盖有新的焊 料 At least 95% of surface area of the dipped portion of the terminal shall be covered with new solder. Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 5 序号 No. 项目 Item 测试方法 Test method 性能 Performance 6.2.4 耐焊接热 Resistance to soldering heat (1)焊料浴方法Solder bath method 温度Temperature : 260 ±5°C 持续时间Duration : 10±1 seconds 一直到间距为1.0mm的情况下 Until a distance of 1.0mm from the case. (2)Soldering iron method : 温度Temperature : 400 ± 10 °C 持续时间Duration : 3+1/-0 seconds 容量变化在初始值的±5%内 Capacitance change: Within ± 5% of initial capacitance 损失角≤ 规格值的130% Tanδ≤130%of the initial specified value. 等效串联电阻≤ 规格值的130% ESR ≤ 130% of the initial specified value. 漏电流≤0.2CV值或500μA中的任一个 较大值 Leakage current ≤the larger values between 0.2CV and 500uA. 6.2.5 稳态湿热 (恒稳态) Resistance to damp heat (steady state) 温度Temperature : 60±2℃ 相对湿度Relative humidity : 90% ~ 95% 持续时间Duration : 2000 (-0/+48) hrs 使用电压：无负荷 Applied voltage : without load 电容变化在初始值的±20%内 Capacitance change within ±20% of initial value 损失角≤ 规格值的150% tan δ ≤ 150% of t he initial specified value. 等效串联电阻≤ 规格值的150% ESR ≤ 150% of the initial specified value. 漏电流≤0.2CV值或500μA中的任一个 较大值 Leakage current ≤the larger values between 0.2CV and 500uA. 6.2.6 快速变温 Rapid change of temperature 容量变化：在初始值的±10%内 Capacitance change : Within ±10% of the initial capacitance 损失角：小于或等于规格值 tanδ ≤ initial specified value. 漏电流≤0.2CV值或500μA中的任一个 较大值 Leakage current ≤the larger values between 0.2CV and 500uA. 使用电压：无负荷 Applied voltage : without load 循环次数：10次 Cycle number : 10 Cycles 测试图:Fig. 1Test diagram: Fig. 1 Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 6 序号 No. 6.2.7 项目 Item 测试方法 Test method 性能 Performance 浪涌电压 Surge voltage 额定浪涌电压充电30s后，在室温下放电5min30s。这一过程重 复1000 次，每一次循环的时间为6 min，测试温度为15℃-35 ℃。测试电路如下图所示： Rated surge voltage shall be applied (switch on) for 30 seconds and then shall be applied (switch off) with discharge for 5min30 seconds at room temperature . This cycle shall be repeated for 1000 cycles . Duration of one cycle is 6 minutes . Test temperature: 15℃-35℃ The test circuit is as follows: 漏电流≤0.2CV值或500μA中的任一个 较大值 Leakage current ≤the larger values between 0.2CV and 500uA. 容量改变在初始值的±20%内 Capacitance change Within±20% of the initial value 损失角≤规格值的150% tanδ≤150% of the initial value. 等效串联电阻≤规格值的150% ESR≤150% of the initial specified value. Test circuit ： V ：DC voltmeter R1：Protective resistor 1kΩ R2：Discharging resistor 1kΩ Cx：Capacitor under test（10pcs） 备注：若浪涌电压测试标准不能满足整机实际ON/OFF要求，请在样品阶段与我司RD确认，并将 具体测试要求反馈给我司，包括测试电压、浪涌电流、充放频率、循环次数、测试温度及性能表 现等。Remark：If the surge voltage test standard is inconsistent with the actual ON/OFF requirements of the machine, Please confirm with our RD at the sample stage.And feedback the specific test requirements to our company, including test voltage,surge current, charge and discharge frequency, cycle times, test temperature and performance, etc. 6.2.8 高温储存 High temperature storage 电容在105℃±2℃下放置1000小时后，需在室温下放置2小时 才可进行测试。 Capacitor is placed under 105 ℃± 2 ℃ after 1000 hours, should be placed at room temperature 2 hours can be tested. 容量变化：在初始值的±10%内 Capacitance change within ±10% of the initial value 损失角：小于规格值的150% tan δ ≤ 150% of the initial specified value. 等效串联电阻≤规格值的150% ESR ≤ 150% of the initial specified value. 漏电流≤0.2CV值或500μA中的任一个 较大值 Leakage current ≤the larger values between 0.2CV and 500uA. 备注 REMARKS 如果有任何疑问，在电压处理后测量漏电流。 电压：直流额定电压适用于电容器在105℃下120分钟。 需在室温下放置2小时才可进行测试 If any doubt arises, measure the leakage current after following voltage treatment. Voltage treatment : DC rated voltage are applied to the capacitors for 120 minutes at 105℃. The measurements should be measured after 2 hours exposed at room temperature。 Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 7 7.物料编码PART No. SYSTEM S VZ 1V M 221 FBR E00 R AXXX 特殊编码 Special code(7.9) 奈印编码Marking code(7.8) 成型方式编码Terminal code(7.7) 尺寸编码Size code(7.6) 电容量编码Capacitance Code(7.5) 电容公差Capacitance tolerance Code(7.4) 电压编码Voltage Code(7.3) 系列编码Series Code(7.2) 类别编码Category Code(7.1) 7.1 类别编码Category Code 编码Code S 类别编码Category Code 固态电容Solid Capacitor 7.2 系列编码Series Code 编码Code VZ 系列编码Series Code VZ 7.3 电压编码Voltage Code 编码Code 0E 0J 1C 1E 1V 1J 1K 电压编码VoltageCode(W.V) 2.5 6.3 16 25 35 63 100 7.4 电容公差Capacitance tolerance “M”代表 -20 % ～ +20 % -20 % ～~ “M”stands for +20 % 7.5 电容量编码Capacitance Code 编码Code 100 101 221 471 561 681 821 电容量Capacitance (uF ) 10 100 220 470 560 680 820 1200 D10 B09 E06 E09 E11 F09 FBR GCR K18 122 7.6 尺寸编码Size Code 编码Code 直径D (Φ) 5 5.5 6.3 6.3 6.3 8 高度H (mm) 10 9 6 9 11 9 8 10 11.5 12.5 13 18 7.7 成型方式编码 Terminal Code 编码Code 其他 Other D00 E00 贴片、散装SMD&Bulk 贴片、编带SMD&Taping 7.8 捺印编码Marking Code 编码Code 捺印Marking S R 天蓝Sky blue 红色Red 7.9 特殊编码 Special Code “AXXX” 代表正常品， “AXXX” stands for normal products. Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 8 8. 结构Construction 导针:固体镀锡铜包钢线 Lead wires : Solid tinned copper weld steel wire 导针端子：高纯铝 Al-boss : High pure aluminum 电解纸：马尼拉麻Paper : Manila hemp 铝箔（正极）：高纯铝Al-foil (Anode) : High pure aluminum 铝箔（负极）：碳箔、高纯铝 Al-foil (Cathode) : Carbon foil﹑High purity aluminum 镀膜铝壳：铝+镀膜（耐压600V以上）Coating AL-case:Aluminum+coating(Can withstandvoltage above 600V) 胶带：聚酯Tape : Polyester 胶粒：(树脂)压缩成型IIR-Rubber:Resin（Compression molding） 导针和圆柱端子通过焊接连接在一起 The lead wire and the Al-boss are welded together. 导针扁平端子与铝箔通过按压连接在一起 The Al-tab and the Al-foil are stitched to join together. 卷绕的素子外部以阴极箔包裹 The outer most Al-foil spiral of the element is cathode. 导电高分子用作电解质 Conductive polymer is used as the electrolyte. 9.尺寸图Outer dimensions (单位Unit:mm) 尺寸Outer dimensions (单位Unit:mm) 尺寸编码 Size Code ΦD (mm) ΦD(mm) Tolerance L' (mm) L'(mm) Tolerance A±0.2 (mm) B±0.2 (mm) C±0.2 (mm) P±0.2 (mm) W (mm) FBR 8 -0.1～+0.5 11.5 -0.3～+0.3 8.3 8.3 9 3.1 0.9±0.2 焊盘尺寸 Soldering pad dimensions (单位Unit:mm) 尺寸 Size a b c Φ6.3 Φ8 Φ10 2.1 2.8 4.3 3.5 4.2 4.4 1.6 1.9 1.9 10. 特性表格Characteristics Table 序 号 N o. 艾华料号 AISHI P/N 1 SVZ1VM221FBRE00RAXXX 额定 电容量 电容量 Nominal 工作电压 公差 Capacitanc Capacitanc Rated e Work e Voltage 120Hz,20℃ Tolerance (V.DC) (μF) (%) 35 220 -20～+20 尺寸 温度 Nominal Oper Case Temp Size D*L (℃) (mm) 105 等效 串联电阻 E.S.R 100KHz 20℃ (mΩmax) 8*11.5 最大漏电流 损失 寿命 Leakage D.F 纹波电流 Load current 120Hz, Ripple Current Life 20℃(μA max) 20℃ 100KHz,105℃ (Hours) (mA.rms) 2Minutes/W.V (%max) 30 1540 12 2400 2000 纹波电流频率系数Frequency coefficient for ripple current 频率Frequency 120Hz ≦ f ＜1 kHz 1 KHz ≦ f ＜10 kHz 10 KHz≦ f ＜100 kHz 100 KHz ≦ f ＜300 kHz 系数Coefficient 0.05 0.3 0.7 1 Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 9 11.捺印Marking 除非另有说明，捺印应该清晰地印在电容上 Unless otherwise specified. Capacitor shall be clearly marked on it body. 负极 Negative Polarity D01Z 701Z 220 100 35 50 D： 年编码Year code 01： 周编码Week code Z： 系列Series 2021年 VZ 额定电容Rated Capacitance 220 额定电压Rated voltage 35 印字油墨为红色The colour of marking ink is red. 年份代码 年份 2020 2021 2022 2023 2024 2025 2026 2027 代码 C D E F H J K N 年份 2028 2029 2030 2031 2032 2033 2034 2035 代码 P Q S T U V X Y 12. 匣盒带Box cassette (单位Unit:mm) 备注：K0不包含底厚 尺寸编码 Size Code D1 K0 P P1 P2 T W E F A0 B0 B1 D ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ± 0.05 ±0.3 ±0.1 ±0.1 ±0.2 ±0.1 ±0.1 ±0.1 FBR 1.50 12.00 16.00 4.00 2.00 0.50 24.00 1.75 11.50 8.70 8.70 9.90 2.00 Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 10 13. 包装Packing Bulk：Standard Direction of Unreeling Paper carrier reel or plastic carrier reel Zipper bag Aishi AISHI CAPACITORS P/N: b CUSTOMER P/N SIZE: MADE IN CHINA Q'TY a DATE 13.1 编带包装Tape Packing 编带Taping：标准Standard 分类Classification 标准Standard 产品尺寸 Product size D*L(mm) 承载卷轴 Carrier reel/ （pcs） 外包箱 Outer carton/（paper carrier reel） 390*225*390 (mm) 外包箱 Outer carton/（plastic carrier reel） 390*225*390 (mm) 6.3*4.5 1200 8 6.3*6 1000 6.3*9 800 产品尺寸 Product size D*L(mm) 承载卷轴 Carrier reel/ （pcs） 外包箱 Outer carton/（paper carrier reel） 390*225*390 (mm) 8*9.5 600 8*11.5 10*12.5 承载卷轴尺寸Carrier reel size/（mm） W1±1 W2±1.0 10 18 22 8 10 18 22 8 10 18 22 承载卷轴尺寸Carrier reel size/（mm） W1±1 W2±1.0 6 26 32 500 6 26 32 500 6 26 32 Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 11 14. 操作注意事项Operating Precautions 14.1 极性Polarity AishiCAP是具有正负极的固态铝电解电容，使用中不可反接，若接反，则电容会因为漏电流不断增大或短路而造成寿命缩短。 AishiCAP is a solid aluminum electrolytic capacitor with positive and negative electrodes. Do not reverse the polarity when using. If it is used with the polarities reversed, its life may shorten because of increasing leakage current or short circuit. 14.2禁止电路 Prohibited circuits 因为焊接及其它动作可造成电容的漏电流增加，AishiCAP不可使用在下列电路中： Since problems can be expected due to leakage current increasing during soldering and other processes, AishiCAP cannot be used in the following circuits 1)高阻抗电路1) High impedance circuits； 2)耦合电路2) Coupling circuits； 3)时限恒量电路3) Time constant circuits； 4)为提高耐电压而串联两个或多个电容于电路中 4) Connection of two or more capacitors in series for higher withstand voltage； 5)电路因漏电流过大而有坏的影响5)Circuits to get bad influence by big leakage current * 除漏电流的波动上升外，电容的使用条件如在承认书中规定的高温和低温，温热和耐受性条件都会影响电容量。若电容作为时限 恒量电容使用，因其对电容量的变动的敏感性，电容量的改变会造成影响。不要将其作为时限恒量电容使用，同时若因电压原因要 串联多个AishiCAP电容，请联系湖南艾华集团股份有限公司。 * In addition to the leakage current fluctuation above, the operational conditions such as characteristics at high and low temperature, damp heat and endurance stipulated in the specifications will affect the capacitance.The fluctuation of the capacitance may cause problem if it is used as a time constant capacitor, which is extremely sensitive to the fluctuation of the capacitance. Do not use it as a time constant capacitor.Additionally, please contact Hunan Aihua Group Co., Ltd. for usage of two or more AishiCAP in series for voltage proof. 14.3 电压Over voltage 电压若超过额定电压，即便只是一瞬间也可能造成短路 Over voltage exceeding the rated voltage may not be applied even for an instant as if may cause a short circuit. 14.4快速充放电Rapid charge and discharge 快速充放电是不适用的（为了维持高的可靠性）。若充放瞬间电流超过10A或10倍允许纹波电流超过10A，为防止快速的充放电造成 电容短路、漏电增大及容量衰减，电路中应加上一个保护电路用以分流过大的电流。 Rapid charging and discharging is unsuitable(for maintenance of high-proof reliability). If the instantaneous current of charging and discharging is more than 10A or 10 times of the allowable ripple current is more than 10A, in order to prevent the capacitor short ,leakage increase and capacity reduction caused by rapid charging and discharging, a protection circuit shall be added to the circuit to reduce the excessive current. 14.5焊接注意事项Considerations when soldering 焊接条件要在承认书的规定范围内。若没有遵守承认书的条件，则电容漏电流可能急剧增加，容量衰减。 The soldering conditions are to be within the range prescribed in specifications. If the specifications are not followed,there is a possibility of the cosmetic defection, the intensive increase of leakage current, and the capacitance reduction. 使用需知Things to be noted before mounting. (a) 已安装过的或加过电压的AishiCAP请勿再使用。经历了周期性电性能测试的AishiCAP不可再用。 (a) Do not reuse AishiCAP that have been assembled in a set and energized. Excluding AishiCAP that have been removed for measuring electrical characteristics during a periodic inspection, AishiCAP cannot be reused. Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 12 (b) AishiCAP贮藏一年时间后，漏电流可能会增大，使用前，请在105℃ ，额定电压及接有1 kΩ电阻的条件下充电2小时。 (b)Leakage current may increase when AishiCAP are stored for one year. In this case, apply rated voltage for 2 hours at 105℃ with load of 1 kΩ resistor. (c)Reflow soldering回流焊接 用于SMD系列Use flow soldering for SMD type 回流焊接Reflow soldering 焊接条件应该在下列范围内。 Soldering condition should be under the following ranges. 建议回流焊接条件 Recommended reflow soldering condition (d)Handling after soldering焊接后处理 在这之后，不要倾斜，弯曲或扭曲AishiCAP Do not tilt, bend or twist the AishiCAP after it 不可通过抓捏AishiCAP来移动印刷电路板Do not move the PCB with catching AishiCAP itself. 堆叠印刷电路板时确保AishiCAP没有碰触到其它电路板或部件 When stacking PCB make sure that the AishiCAP does not touch other PCB or components. 不可将AishiCAP与其它物品堆放Do not dump the AishiCAP with objects. 14.6使用AishiCAP于工业设备Use of AishiCAP for industrial equipments 为确保AishiCAP在工业设备上的可靠性，设计必须与之相符。 To ensure reliability when the AishiCAP is used in industrial equipments, design must allow for its 14.7使用AishiCAP于生命保障系统Use of AishiCAP for human life equipments 若使用于与人类生命有关的设备上（如空间设备、航空设备、原子设备等），请与湖南艾华集团股份有限公司详细咨询，不要使用没 有湖南艾华集团股份有限公司承认文件的AishiCAP。 In case of using in equipments regarding human life(e.g. Space equipment, aeronautic equipment and atomic equipment etc.), be sure to talk over the matter with Hunan Aihua Group Co., Ltd. Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 13 14.8贮存Storage 1)请将AishiCAP贮存于温度在5to 35℃之间，相对湿度在75%以下的没有阳光直射的环境中，如果可能可贮存于包裹中。(如果在35 到85℃，他应该少于三个月) 1)Store AishiCAP with the temperature range between 5to 35℃（If between 35 to 85℃, it should be less than three months）, and the relative humidity of 75% or less without direct sunshine and store AishiCAP in the package states if possible. 2)AishiCAP请在使用前再打开包装袋并且快速用完。 AishiCAP are recommended that you shall open the bag just before use and AishiCAP shall be used up. 3)不要在有水、盐水、油及凝结状况的地方贮存AishiCAP Never store AishiCAP in which it is directly exposed to water, brine, oil or in condensation status. 4)禁止在含有毒气体的区域放置AishiCAP（如：硫化氢、亚硫酸、亚硝酸、氯气、氨水等） Never store AishiCAP in any area filled with poisonous gases(including hydrogen sulfide, sulfurous acid, nitrous acid, chlorine and ammonia). 5)禁止在有紫外线或放射性辐射的区域放置AishiCAP。 Never store AishiCAP in any area to which ultraviolet and/or radial rays are radiated. 6）存储时间storage time 开封前：出货后一年内Before unseal : within 1 year after delivery 开封后：打开后1月内After seal : within 1 mouth from opening 存放时间超过3年的电解电容器应报废处理 If storage time more than three years,the products need to be discarded 14.9 清洗Cleaning 关于HCFC，可用高浓酒精，石油，匝烯，水和表面活性剂以及别的溶剂（单独或混合使用）浸泡，用超声波，煮沸，蒸发等方法按 制作者的建议清洗。更多详情请联系。 Concerning about HCFC, higher alcohol system, petroleum system, terpene system, water system with surface active agent and other solvents the washing way (separateness or combinations) by soak, ultrasonic wave, boil, vapor etc. is confirmed under the maker’s recommendation. Please contact us if you require further details. 14.10为AishiCAP设计电路的说明Notes on circuit designs for AishiCAP 14.10.1 执行Performance 在承认书中指定的额定性能范围内使用AishiCAP。 Use AishiCAP within the rating and performance ranges defined in this specifications. 14.10.2使用温度和纹波电流Operating temperature and ripple current 如果AishiCAP的使用温度超过了上限温度（105℃）或是有过载纹波电流通过，则有较大可能使寿命缩短，或漏电流增大，造成 AishiCAP失效。 If AishiCAP is used at a temperature higher than the upper category temperature(105℃), or excess ripple current flows through AishiCAP, there are high possibilities of life cycle reduction or leakage current increasing to cause AishiCAP defective. 14.10.3漏电流Leakage current 漏电流会因焊接条件而有些微的上升，加载直流电压可使电容自我修复，漏电流逐渐减小。 The leakage current of AishiCAP may increase slightly by soldering conditions.The application of DC voltage enables the capacitors to be repaired by itself and this leads the leakage current to be smaller gradually. 14.10.4使用电压Applied voltage 为了保证AishiCAP的可靠性，加载到AishiCAP上的电压最好小于其额定电压。直流加交流电压的峰值应小于额定电压。 For the reliability of AishiCAP, it is recommended that the voltage applied to AishiCAP should beless than the rated voltage. Peak value of the the dc and ac voltage should not exceed its rated voltage. Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 14 14.10.5失效模式Failure mode AishiCAP含有导电聚合物，其寿命的终止大部分是由于偶然失效模式，主要是短路。如果短路，AishiCAP将会因持续电流流过而过 热，然后铝壳会因内部压力的增加而脱离电容。 AishiCAP contains a conductive polymer. The life ends mostly due to random failure mode, mainly short circuit.In case of short circuit,AishiCAP can be overheated by continuous current flow, then case of AishiCAP would be removed by internal pressure increasing. 14.10.6变更提前通知Advance consultation for changing 如果承认书改变，我们会提前通知 It is conducted under an advance consultation with you if this specification is changed. Issued-date: Name 2021-6-30 File No Approval Sheet VZ Version STANDARD MANUAL 01 Page 15
