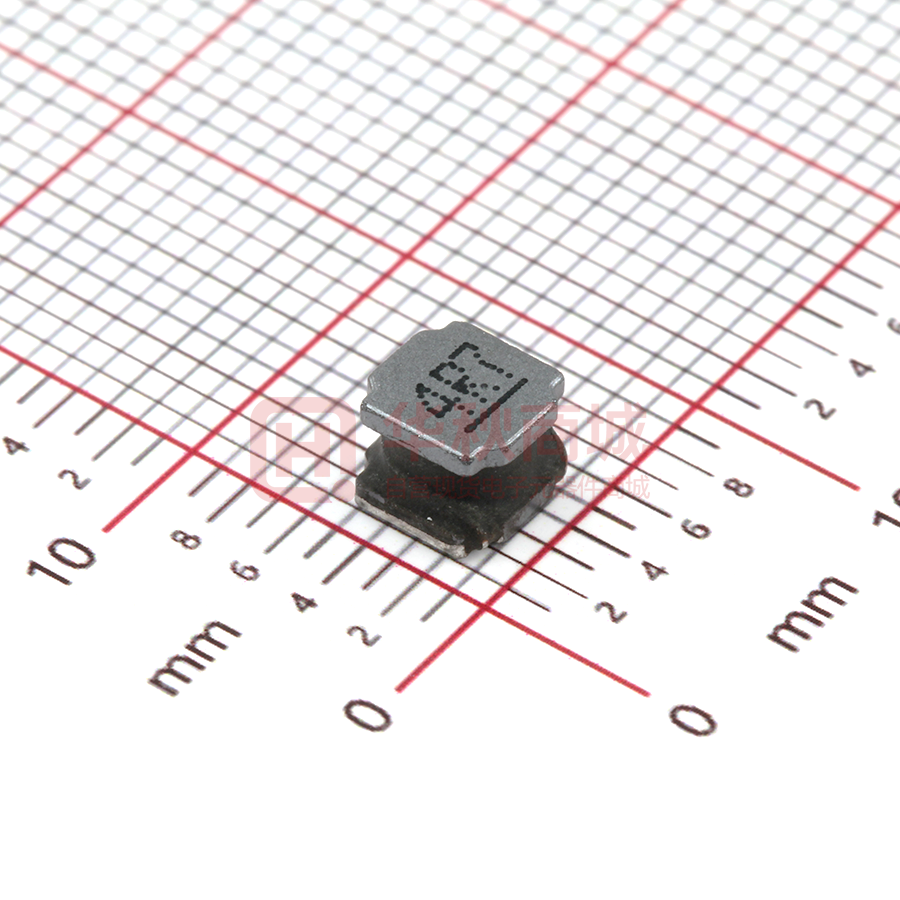

LVC505040-4R7M-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BWVC Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Sealed Power Inductors – LVC Series LVC Series LVC series, an automatic assembly constructed power inductor, is shielded with magnetic resin and suitable for portable DC-DC converter application. Features Applications      Smartphones, tablets and wearable devices  DSC, camcorders  AP Routers  STBs  LCD TVs, monitors and panels  Game consoles  DC/DC converters RoHS, Halogen Free and REACH Compliance Shielded with magnetic resin Various package size and wide inductance range Optimize electrical characteristics by using different ferrite core figures Product Identification Shape and Dimensions Recommended Pattern Figure 1 Dimensions in mm TYPE FIG A B C D H I J LVC201B10 1 2.0±0.25 1.6±0.25 1.00 Max 0.6 1.8 0.80 0.8 LVC201B12 1 2.0±0.25 1.6±0.25 1.2±0.05 0.6 1.8 0.80 0.8 LVC252A12 1 2.5±0.25 2.0±0.25 1.2±0.05 0.8 2.2 0.85 0.8 Sealed Power Inductors – LVC Series Shape and Dimensions Recommended Pattern Figure 2 Dimensions in mm TYPE FIG A B C D H I J LVC404018 2 4.0±0.20 4.0±0.20 1.9 Max 1.3 3.7 1.5 1.2 Shape and Dimensions Recommended Pattern Figure 3 Dimensions in mm TYPE FIG A B C D H I J LVC505040 3 5.0±0.20 5.0±0.20 4.0±0.2 1.5 4.2 1.6 2.0 LVC606028 3 6.0±0.20 6.0±0.20 2.8±0.2 1.9±0.3 5.7 1.8 2.6 6.0±0.20 4.5+0.2-0.30 1.8±0.3 5.7 2.0 2.4 LVC606045 3 6.0±0.20 Sealed Power Inductors – LVC Series – LVS252012 Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVC201B10-R24□-N 0.24 20, 30 LVC201B10-1R0□-N 1.0 20, 30 LVC201B10-1R5□-N 1.5 LVC201B10-2R2□-N LVC201B10-3R3□-N Test RDC Isat (A) Irms (A) (Ω) ±30% Typ. (Max) Typ. (Max) 1 0.026 3.20(2.80) 3.00(2.70) 1 0.095 1.86(1.67) 1.86(1.67) B 20, 30 1 0.140 1.64(1.47) 1.65(1.48) C 2.2 20, 30 1 0.190 1.30(1.17) 1.30(1.17) D 3.3 20, 30 1 0.295 0.96(0.86) 0.98(0.88) E LVC201B10-4R7□-N 4.7 20, 30 1 0.360 0.84(0.75) 0.90(0.81) F LVC201B10-6R8□-N 6.8 20, 30 1 0.640 0.66(0.59) 0.70(0.63) G LVC201B10-100□-N 10 20, 30 1 1.000 0.54(0.48) 0.56(0.50) H LVC201B10-150□-N 15 20, 30 1 1.500 0.39(0.35) 0.42(0.37) K LVC201B10-180□-N 18 20, 30 1 1.600 0.39(0.35) 0.41(0.36) J LVC201B10-220□-N 22 20, 30 1 1.700 0.38(0.34) 0.40(0.36) I Part Number Frequency (MHz) Marking M Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP4287A+Agilent HP16197A, 1MHz 200mV RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 25 80 100 220 150 6R8 70 2R2 3R3 1R0 20 60 50 15 △ T(℃ ) L(uH) 220 4R7 150 10 40 30 100 6R8 5 20 4R7 3R3 2R2 10 1R0 0 0 0 0.2 0.4 0.6 0.8 1 1.2 1.4 DC Current(A) 1.6 1.8 2 2.2 2.4 0 0.2 0.4 0.6 0.8 1 1.2 1.4 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1.6 1.8 2 2.2 2.4 Sealed Power Inductors – LVC Series – LVS252012 Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVC201B12-R50□-N 0.5 20, 30 LVC201B12-1R0□-N 1.0 20, 30 LVC201B12-2R2□-N 2.2 LVC201B12-3R3□-N LVC201B12-4R7□-N Test RDC Isat (A) Irms (A) (Ω) ±30% Typ. (Max) Typ. (Max) 1 0.051 2.60(2.34) 2.30(2.07) B 1 0.083 1.90(1.71) 1.80(1.62) C 20, 30 1 0.159 1.36(1.22) 1.34(1.20) E 3.3 20, 30 1 0.220 1.10(0.99) 1.06(0.95) F 4.7 20, 30 1 0.330 0.92(0.82) 0.90(0.81) G LVC201B12-100□-N 10 20, 30 1 0.580 0.62(0.55) 0.58(0.52) I LVC201B12-150□-N 15 20, 30 1 0.900 0.48(0.43) 0.45(0.40) J LVC201B12-220□-N 22 20, 30 1 1.400 0.40(0.36) 0.40(0.36) K Part Number Frequency (MHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP4287A+Agilent HP16197A, 1MHz 200mV RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 25 80 4R7 150 220 100 70 20 220 3R3 1R0 2R2 R50 15 △ T(℃ ) L(uH) 60 150 10 50 40 30 100 20 5 4R7 3R3 10 2R2 1R0 R50 0 0 0 0.5 1 1.5 2 DC Current(A) 2.5 3 3.5 0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 1.8 2 2.2 2.4 2.6 Sealed Power Inductors – LVC Series – LVS252012 Series Electrical Characteristics Part Number LVC252A12-R68□-N Inductance Tolerance (uH) (±%) 0.68 20, 30 Test Frequency (MHz) RDC Isat (A) Irms (A) (Ω) ±30% Typ. (Max) Typ. (Max) 0.035 2.80(2.52) 2.60(2.34) 1 Marking N Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP4287A+Agilent HP16197A, 1MHz 200mV RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Tem perature Change vs. DC Current Inductance vs. DC Current 1.0 90 80 0.8 R68 70 △ T( ℃ ) L(uH) 60 0.6 R68 0.4 50 40 30 0.2 20 10 0.0 0 0.5 1 1.5 2 2.5 DC Current(A) 3 3.5 4 0 0 0.5 1 1.5 2 2.5 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3 3.5 4 4.5 Sealed Power Inductors - LVC Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVC404018-1R2□-N 1.2 20, 30 LVC404018-4R7□-N 4.7 20, 30 LVC404018-6R8□-N 6.8 LVC404018-100□-N LVC404018-150□-N LVC404018-220□-N Part Number Test RDC Isat (A) Irms (A) (Ω) ±30% Typ. (Max) Typ. (Max) 100 0.027 3.70(3.30) 3.60(3.20) 1R2 100 0.077 2.00(1.80) 1.80(1.62) 4R7 20, 30 100 0.105 1.50(1.35) 1.35(1.21) 6R8 10 20, 30 100 0.160 1.40(1.26) 1.20(1.08) 100 15 20, 30 100 0.245 1.05(0.94) 0.95(0.85) 150 22 20, 30 100 0.335 0.90(0.81) 0.88(0.79) 220 Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP 4284A+Agilent HP 42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 70 24 22 60 20 220 220 18 4R7 150 100 6R8 1R2 50 △ T(℃ ) L(uH) 16 14 12 150 10 8 100 6 40 30 20 6R8 4 4R7 10 2 1R2 0 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 0 0.5 1 1.5 2 2.5 DC Current(A) DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3 3.5 4 4.5 Sealed Power Inductors - LVC Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVC505040-1R0□-N 1.0 20, 30 LVC505040-1R5□-N 1.5 20,30 LVC505040-2R2□-N 2.2 LVC505040-2R7□-N LVC505040-3R3□-N Test RDC Isat (A) Irms (A) (Ω) ±30% Typ. (Max) Typ. (Max) 100 0.012 8.8(7.92) 5.9(5.31) 1R0 100 0.014 7.9(7.11) 5.4(4.86) 1R5 20, 30 100 0.020 6.8(6.12) 4.5(4.05) 2R2 2.7 20, 30 100 0.026 6.0(5.40) 4.2(3.70) 2R7 3.3 20, 30 100 0.026 5.3(4.77) 4.2(3.78) 3R3 LVC505040-4R7□-N 4.7 20, 30 100 0.032 4.4(3.96) 3.2(2.88) 4R7 LVC505040-6R8□-N 6.8 20, 30 100 0.050 3.8(3.42) 3.0(2.70) 6R8 LVC505040-100□-N 10 20, 30 100 0.070 3.0(2.70) 2.3(2.07) 100 LVC505040-150□-N 15 20, 30 100 0.115 2.4(2.16) 1.8(1.62) 150 LVC505040-220□-N 22 20, 30 100 0.160 2.0(1.80) 1.6(1.44) 220 LVC505040-151□-N 150 20, 30 100 1.180 0.74(0.66) 0.58(0.52) 151 LVC505040-181□-N 180 20, 30 100 1.250 0.67(0.60) 0.54(0.48) 181 LVC505040-221□-N 220 20, 30 100 1.450 0.65(0.58) 0.50(0.45) 221 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP 4284A+Agilent HP 42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 22 70 20 100 220 150 60 18 6R8 4R7 220 16 3R3 2R2 1R5 1R0 50 △ T(℃ ) L(uH) 14 12 150 10 8 40 30 100 6 20 6R8 4R7 4 3R3 2R2 2 10 1R5 1R0 0 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 0.5 1 1.5 2 2.5 3 3.5 4 DC Current(A) DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 4.5 5 5.5 6 6.5 7 Sealed Power Inductors - LVC Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVC606028-3R3□-N 3.3 20, 30 LVC606028-100□-N 10 20, 30 LVC606028-150□-N 15 LVC606028-220□-N 22 Part Number Test RDC Isat (A) Irms (A) (Ω) ±30% Typ. (Max) Typ. (Max) 100 0.027 4.5(4.05) 4.0(3.60) 3R3 100 0.065 2.6(2.34) 2.5(2.25) 100 20, 30 100 0.093 2.1(1.89) 2.0(1.80) 150 20, 30 100 0.135 1.7(1.53) 1.65(1.48) 220 Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP 4284A+Agilent HP 42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 24 70 220 22 100 3R3 18 50 16 220 △ T( ℃ ) L(uH) 150 60 20 14 12 150 10 8 100 40 30 20 6 4 10 3R3 2 0 0 0 1 2 3 4 DC Current(A) 5 6 7 0 0.5 1 1.5 2 2.5 3 3.5 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 4 4.5 5 5.5 6 Sealed Power Inductors - LVC Series Electrical Characteristics Test Inductance Tolerance (uH) (±%) RDC Isat (A) Irms (A) (Ω) ±30% Typ. (Max) Typ. (Max) LVC606045-1R0□-N 1.0 20,30 100 LVC606045-1R5□-N 1.5 20,30 100 0.010 13(11.7) 7.3(6.57) 1R0 0.012 12(10.8) 6.6(5.94) LVC606045-2R2□-N 2.2 20, 30 1R5 100 0.018 9.5(8.55) 5.2(4.68) 2R2 LVC606045-3R3□-N 3.3 LVC606045-4R7□-N 4.7 20, 30 100 0.022 7.8(7.02) 4.4(3.96) 3R3 20, 30 100 0.030 6.8(6.12) 4.0(3.60) LVC606045-6R8□-N 4R7 6.8 20, 30 100 0.042 5.7(5.13) 3.3(2.97) 6R8 LVC606045-100□-N 10 20, 30 100 0.060 4.6(4.14) 2.6(2.34) 100 LVC606045-150□-N 15 20, 30 100 0.090 3.8(3.42) 2.2(1.98) 150 LVC606045-220□-N 22 20, 30 100 0.130 3.3(2.97) 1.9(1.71) 220 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment：  L：Agilent HP 4284A+Agilent HP 42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 22 90 20 80 18 220 70 16 220 100 60 14 150 △ T(℃ ) L(uH) 150 12 10 6R8 4R7 3R3 2R2 1R5 1R0 50 40 100 8 30 6 6R8 4 4R7 20 3R3 2 2R2 1R5 1R0 0 10 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 DC Current(A) DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Sealed Power Inductors – LVC Series Packaging Specifications Tape Dimensions Figure 1 Figure 2 Reel Dimensions Reel Dimensions Figure 1 Figure 2 Dimensions in mm Tape Dimensions TYPE Reel Dimensions Quantity Fig A0 B0 K0 D E F W P P0 P2 A B C D E PCS / Reel LVC201B10 1 1.90 2.20 1.15 1.55 1.75 3.5 8.1 4 4 2 180 60 13 14.4 8.4 2000 LVC201B12 1 1.90 2.20 1.30 1.55 1.75 3.5 8.1 4 4 2 180 60 13 14.4 8.4 2000 LVC252A12 1 2.40 2.70 1.35 1.55 1.75 3.5 8.1 4 4 2 180 60 13 14.4 8.4 2000 LVC404018 2 4.25 4.25 2.10 1.55 1.75 5.5 12 8 4 2 178 60 13 13.2 - 800 LVC505040 2 5.20 5.20 4.20 1.55 1.75 5.5 12 8 4 2 330 100 13 13.4 - 1500 LVC606028 2 6.25 6.25 3.00 1.55 1.75 7.5 16 12 4 2 330 100 13 16.0 - 1500 LVC606045 2 6.25 6.25 4.65 1.55 1.75 7.5 16 12 4 2 330 100 13 16.0 - 1000
