製品規格書
A2.0
SPECIFICATION FOR APPROVAL
產品編碼
測試設備
PDPTAT0810-221K
P/N
產品系列
測試頻率
插件工字电感
Series
客戶名稱
Chroma:3302/16502
TEST INSTRUMENT
1KHZ / 0.3V
TEST FREQUENCY
:
Customer
客戶編碼
:
Customer P/N
產品系列
Series
產品編碼
Supplly P/N
發版號
Version
承認日期
Endorsement Date
備註
插件工字电感
:
DIP Power Inductor
:
PDPTAT0810-221K
:
A2.0
:
2021-11-19
:
Note
客戶承認
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co. LTD
製作
APPROVED
審查
CHECKED
確認
PREPARED
Customer Approval
Ben
Yuki
Peter
客戶簽章
Page 1 / 7
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co., LTD
深圳市寶安區石岩三聯工業區B棟311
更多规格请访问谱罗德官方网站
下载或者扫描二维码通过微信小程序
获取
https://www.prodtech.cn/
修訂記錄
A2.0
REVISION RECORD
產品編碼
P/N
產品系列
Series
PDPTAT0810-221K
測試頻率
插件工字电感
Version
REVISON ITEM
A1.0
首次發行
測試設備
TEST INSTRUMENT
TEST FREQUENCY
BEFORE REVISON
Chroma:3302/16502
1KHZ / 0.3V
AFTER REVISON
DATE
2021-11-19
Page 2 / 7
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co., LTD
深圳市寶安區石岩三聯工業區B棟311
更多规格请访问谱罗德官方网站
下载或者扫描二维码通过微信小程序
获取
https://www.prodtech.cn/
電氣特性
A2.0
ELECTRICAL CHARACTERISTICS
測試設備
PDPTAT0810-221K
產品編碼
P/N
Chroma:3302/16502
TEST INSTRUMENT
產品系列
封裝尺寸
測試頻率
插件工字电感
Series
1KHZ / 0.3V
TEST FREQUENCY
(mm)
Dimension
A
B
C
D
E
封装尺寸
Dimension
9.5 Max
12 Max
10 Min
0.6 ± 0.05
5.2 Ref
MPQ
250pcs/袋裝
0810
編碼解釋
Code interpretation
PDPTAT
類別码
Category code
-
0810
尺寸系列
-
Dimension
221
感值
-
Inductance
K
精度
tolerance
電氣參數
Electrical Characteristics
產品編碼
P/N
PDPTAT0810221K
感值
Inductance
μH
220
@ 25 ℃ Ambient Temperture
溫升電流
飽和電流
精度
Irms
ISAT
tolerance
mA
mA
±
△T≈40℃
L0 drop≈30%
10%
600
1600
DCR
Ω
Typ
Max
0.34
0.38
©
规格参数基于环境温度25℃所得
All test Data is referenced to 25℃ ambient
©
加载温升电流(Irms)会使产品本体温度大约上升 40℃ (电感初始温度+上升温度=电感最终承受温度)
Typical Heat Rating DC Current would cause an approximately △T of 40℃
©
加载饱和电流(ISAT)会使感值下降大约 30%
Typical Saturation DC Current would cause Lo to drop approximately 30%
©
工作电流(IDC)取值于温升电流(Irms)与饱和电流(ISAT)二者最小值
IDC depends on the minimum value between Irms and ISAT
©
电感工作环境温度 : -25℃ ~ 105℃
Operating temperature range -25 °C to +105 °C
©
务必考虑最终产品设计,元器件布局,线路板走线,以及使用环境等过程中,电感本体最高温度不得超过105℃
The operating temperature of inductance do not exceed 105℃
©
参考产品开发设计实测尺寸,感值,DCR等数据,请参考规格书第5页
The Dimension,Inductance ,DCR test data is on page 5
©
产品注意事项请参阅规格书第6页
The announcements is on page 7
Page 3 / 7
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co., LTD
深圳市寶安區石岩三聯工業區B棟311
更多规格请访问谱罗德官方网站
下载或者扫描二维码通过微信小程序
获取
https://www.prodtech.cn/
特性
A2.0
CHARACTERISTICS
產品編碼
測試設備
PDPTAT0810-221K
P/N
產品系列
測試頻率
插件工字电感
Series
1KHZ / 0.3V
TEST FREQUENCY
電路結構

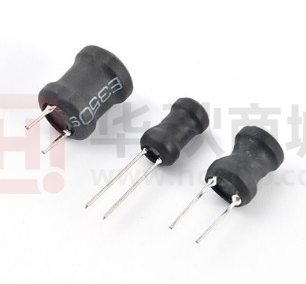

實物展示
Connections
◎
Chroma:3302/16502
TEST INSTRUMENT
电感内置一组线圈
Inductor Contents ONE (1) Set(s) of Coil
◎
电感使用不需要区分正负方向
DC/AC Currnet Shall Be Introduced By Any One of Two Pads
材料清單
Material List
②
③
④
①
⑤
NO.
①
②
③
④
⑤
結構
材料規格
Structure Name
套管/Cover Tube
銅線/Copper Wire
磁芯/Core
膠水/Varnish
電極/Electrode
材料製造商
Material Name
黑色套管/Black Cover Tube
2UEW 155℃
Materia Manufacturer
SHENZHEN XINGQI PLASTIC PRODUCTS CO.,LTD.
8x10鐵氧體磁芯/Ferrite Core 8x10
DONGGUAN FENGHE ELECTRIONICS CO.,LTD
E962
Sn-Cu0.7
ZHUHAI CHANGXIAN CHEMICAL
UL NO.
BOLUO XIN LONG ELECTRICIAN DATA CO LTD
CO,LTD
The high tin (huizhou) co., LTD
E209436
E229423
N.A
N.A
N.A
焊接溫度(推荐)
Recommended Soldering Temperature Graph
℃
A
B
C
D
E
260℃
230℃
10 Sec
150℃
60~240 Sec
Page 4 / 7
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co., LTD
深圳市寶安區石岩三聯工業區B棟311
更多规格请访问谱罗德官方网站
下载或者扫描二维码通过微信小程序
获取
https://www.prodtech.cn/
測試數據
A2.0
TEST REPORT
產品編碼
測試設備
PDPTAT0810-221K
P/N
產品系列
測試頻率
插件工字电感
Series
Chroma:3302/16502
TEST INSTRUMENT
1KHZ / 0.3V
TEST FREQUENCY
測試數據
Test Date
序號
尺寸測試數據
特性測試數據
Dimension Test Date
Characteristics Test Date
A
B
C
D
E
DCR
Lo
mm
mm
mm
mm
mm
ΩMax
uH±20%
mA
0.38
220.00
≈30%
9.5 Max
12 Max
10 Min
1
8.61
11.05
12.73
0.61
5.15
0.341
216
PASS
2
8.63
11.10
12.21
0.60
4.96
0.339
217
PASS
3
8.63
11.06
13.06
0.59
4.92
0.343
216
PASS
4
8.65
11.18
12.07
0.56
5.03
0.347
219
PASS
5
8.60
11.04
12.43
0.59
4.80
0.342
216
PASS
6
8.82
11.11
12.53
0.57
4.99
0.339
217
PASS
7
8.76
0.06
12.16
0.56
5.02
0.346
219
PASS
8
8.80
11.08
12.65
0.58
4.92
0.341
219
PASS
9
8.69
11.15
13.14
0.57
4.95
0.343
217
PASS
10
8.71
11.23
12.63
0.59
5.06
0.341
217
PASS
X
8.69
10.01
12.56
0.58
4.98
0.3422
217.3
R
0.22
11.17
1.07
0.05
0.35
0.008
3
0.6 ± 0.05 5.2 Ref
ISAT
所有测试数据基于环境温度25℃取得
All test Data is referenced to 25℃ ambient
Page 5 / 7
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co., LTD
深圳市寶安區石岩三聯工業區B棟311
更多规格请访问谱罗德官方网站
下载或者扫描二维码通过微信小程序
获取
https://www.prodtech.cn/
注意事項
使用本產品時,請注意以下事項
©
產品保存期限為12個月,保存條件:溫度5~40℃,濕度10~75%RH以內,超過保存期限可能會使
產品端子電極發生氧化。
©
請勿在極端環境下使用和保存(高鹽,強酸,強鹼,強輻射等)。
©
產品焊接前,請進行預熱;預熱溫度與焊接溫度之間溫差建議控制在150℃以內。
©
產品焊接後需重新拆卸焊接修正時,請遵循規格書規定的條件範圍;過高的加熱溫度以及反復的拆
卸可能會導致產品失效。
©
產品請勿接觸清洗劑,酒精等液體,這會侵蝕產品本體,從而導致產品失效。
©
產品焊接到線路板後,請注意不可因線路板整體變形或局部變形而施加給電感剩餘應力,這可能
會導致電感發生破裂,脫落,以致失效。
©
產品通電後溫度會隨電流的增大而上升,設計時請務必考慮留有餘量。
©
過高的靜電會對產品產生永久性損害,請注意靜電防護。
©
產品通電過程請勿觸摸產品任何部位,防止觸電。
©
本產品作為磁性產品,設計時請務必考慮周邊元器件與本產品可能產生的相互影響。
©
本產品適用於一般電子設備,如:AV設備,通信設備,家電產品,娛樂設備,電腦設備,個人設備,辦公設
備,計測設備,工業機器人等。且該一般電子設備需在常規的操作和使用方法環境下使用。
對於需要高度安全性和可靠性的,或者因本產品失效造成設備故障,誤操作,運轉不良等危及到人的生命身體
及財產安全,以及對社會產生較大不良影響的特殊用途,設計使用前務必同本公司溝通,設計使用者如在未取
得我司書面同意狀況下使用造成任何後果,我司不予承擔。特殊用途包含但不限定如下清單:
1 軍用設備
8 關係到國防安全的設備
2 運輸設備(汽車,軌道交通產品,船舶等)
9 其他被認定為特殊用途的設備
3 航空,航太設備
4 發電控制設備
5 核動力相關設備
6 爆炸引燃控制設備
7 交通控制設備
Page 6 / 7
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co., LTD
深圳市寶安區石岩三聯工業區B棟311
更多规格请访问谱罗德官方网站
下载或者扫描二维码通过微信小程序
获取
https://www.prodtech.cn/
ANNOUNCEMENTS
Please read this before using the product.
©
The product storage life is 12 months,Storage Temperature:TEMP.5~40℃;RH10%~75%. Please use the
product within the warranty period
©
Do not use or store in locations where there are conditions such as gas corrosion
(salt, acid, alkali, radiation etc.).
©
Before soldering, be sure to preheat components:The preheating temperature should be set so that
The temperature difference between the solder temperature and chip temperaturedoes not exceed 150°C.
©
Soldering corrections after mounting should be within the range of the conditions determined
in the specifications.If overheated, a short circuit, performance deterioration, or lifespan
shortening may occur. Repeated disassembly may invalidate the inductance
©
The cleaning agent can not be used for these products. This may corrode the inductor
©
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not
given to the chip due to the overall distortion of the printed circuit board and
partial distortion such as at screw tightening portions.
©
Self heating (Rated Current or Irms) occurs when the power is turned ON, so the tolerance should be
sufficient for the set thermal design.
©
Too high static electricity will cause permanent damage to the product, please pay attention to
electrostatic protection.
©
As a magnetic product, the design must consider the possible interaction between peripheral components and
the product.
©
The products listed on this catalog are intended for use in general electronic equipment (AV equipment,
telecommunications equipment, home appliances, amusement equipment, computer equipment, personal
equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use
condition.
The products are not designed or warranted to meet the requirements of the applications listed below,
whose performance and/or quality require a more stringent level of safety or reliability, or whose
failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements
exceeding the range or conditions set forth in the each catalog, please contact us. Otherwise, our
company will not bear the serious consequences caused by product quality problems
1 Military equipment
8 Medical equipment
2 Transportation equipment (cars, trains, ships, etc.)
9
Other applications that are notconsidered
general-purpose applications
3 Aerospace/aviation equipment
4 Power-generation control equipment
5 Atomic energy-related equipment
6 Explosive ignition control equipment
7 Transportation control equipment
Page 7 / 7
譜羅德電子科技(深圳)有限公司
PROD Electronic Technology (Shenzhen) Co., LTD
深圳市寶安區石岩三聯工業區B棟311
更多规格请访问谱罗德官方网站
下载或者扫描二维码通过微信小程序
获取
https://www.prodtech.cn/
