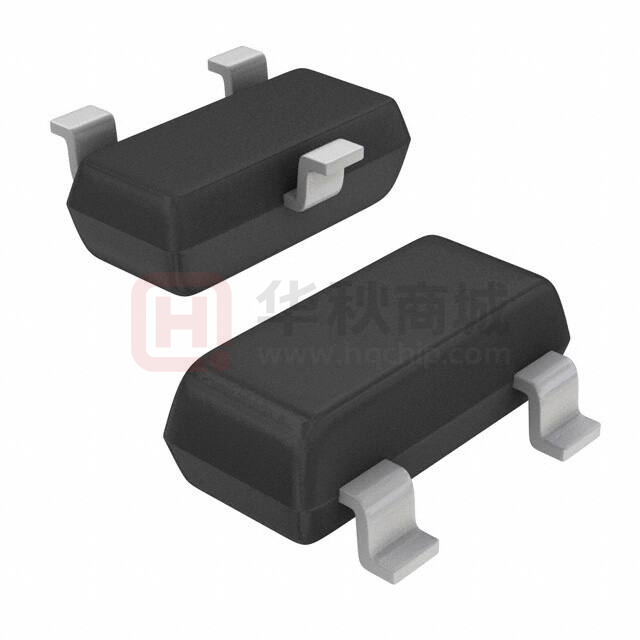

S9014 SOT-23 Plastic-Encapsulate Transistors S9014 TRANSISTOR (NPN) SOT-23 FEATURES z Complementary to S9015 1. BASE MARKING: J6 2. EMITTER 3. COLLECTOR MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage 50 V VCEO Collector-Emitter Voltage 45 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 100 mA PC Collector Power Dissipation 200 mW Thermal Resistance From Junction To Ambient 625 ℃/W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55～+150 ℃ RΘJA ELECTRICAL CHARACTERISTICS (Ta= 25℃ unless otherwise specified) Parameter Symbol ol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=100μA, IE=0 50 V Collector-emitter breakdown voltage V(BR)CEO IC=1mA,IB=0 45 V Emitter-base breakdown voltage V(BR)EBO IE=100μA,IC=0 5 V Collector cut-off current ICBO VCB=50V, IE=0 0.1 μA Collector cut-off current ICEO VCE=35V, IB=0 1 μA Emitter cut-off current IEBO VEB=3V, IC=0 0.1 μA DC current gain hFE VCE=5V, IC=1mA 200 1000 Collector-emitter saturation voltage VCE(sat) IC=100mA, IB=5mA 0.3 V Base-emitter saturation voltage VBE(sat) IC=100mA, IB=5mA 1 V Transition frequency fT 150 VCE=5V, IC=10mA f=30MHz MHz CLASSIFICATION OF hFE Rank L H Range 200-450 450-1000 http://www.microdiode.com Rev:2024A1 Page :1 S9014 Typical Characteristics hFE Static Characteristic 8 COMMON EMITTER Ta=25℃ Ta=100℃ 18uA Ta=25℃ hFE 16uA DC CURRENT GAIN (mA) 20uA 6 IC COLLECTOR CURRENT —— IC 1000 14uA 4 12uA 10uA 8uA 2 6uA 100 4uA COMMON EMITTER VCE= 5V IB=2uA 0 0 2 6 COLLECTOR-EMITTER VOLTAGE VCEsat —— VCE 10 0.1 8 10 COLLECTOR CURRENT IC VBEsat 1 —— IC 100 (mA) IC 2 1 0.1 Ta=25℃ BASE-EMITTER SATURATION VOLTAGE VBEsat (V) COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (V) 1 (V) Ta=100℃ Ta=25℃ Ta=100℃ β=20 β=20 0.01 0.1 1 10 COLLECTOR CURRENT IC IC 10 COLLECTOR CURRENT fT IC 100 (mA) —— IC (MHz) 1000 (mA) fT Ta=100℃ 10 TRANSITION FREQUENCY IC 1 (mA) —— VBE 100 COLLECTOR CURRENT 0.1 0.1 100 Ta=25℃ 1 COMMON EMITTER VCE= 5V 0.1 0.0 0.3 0.6 0.9 100 10 COMMON EMITTER VCE=5V Ta=25℃ 1 0.1 1.2 1 BASE-EMMITER VOLTAGE VBE (V) Cob/ Cib —— 10 COLLECTOR CURRENT VCB/ VEB PC 250 100 —— 100 (mA) IC Ta f=1MHz IE=0/IC=0 COLLECTOR POWER DISSIPATION PC (mW) 10 CAPACITANCE C (pF) Ta=25 ℃ Cib Cob 1 0.1 0.1 200 150 100 50 0 1 REVERSE VOLTAGE http://www.microdiode.com 10 VR (V) 20 0 25 50 75 AMBIENT TEMPERATURE Rev:2024A1 100 Ta 125 150 (℃ ) Page :2 S9014 Outlitne Drawing SOT-23 Package Outline Dimensions e Suggested Pad Layout 0.037 0.95 0.037 0.95 L L1 E E1 Symbol A A1 b c D E E1 e L L1 θ Dimensions In Millimeters Min Typ Max 0.90 1.40 0.10 0.00 0.30 0.50 0.20 0.08 2.80 2.90 3.10 1.20 1.60 2.80 2.25 1.80 1.90 2.00 0.10 0.50 0.4 0° 0.55 10° Note: 1. Controlling dimension:in/millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purposes only. 0.079 2.0 0.035 0.9 0.031 0.8 http://www.microdiode.com inches mm Rev:2024A1 Page :3 S9014 SOT-23 Tape and Reel Packaging Description: SOT-23 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). 3000 pcs http://www.microdiode.com 7 Inch 45,000 pcs 203×203×195 180,000 pcs 438×438×220 Rev:2024A1 Page :4
