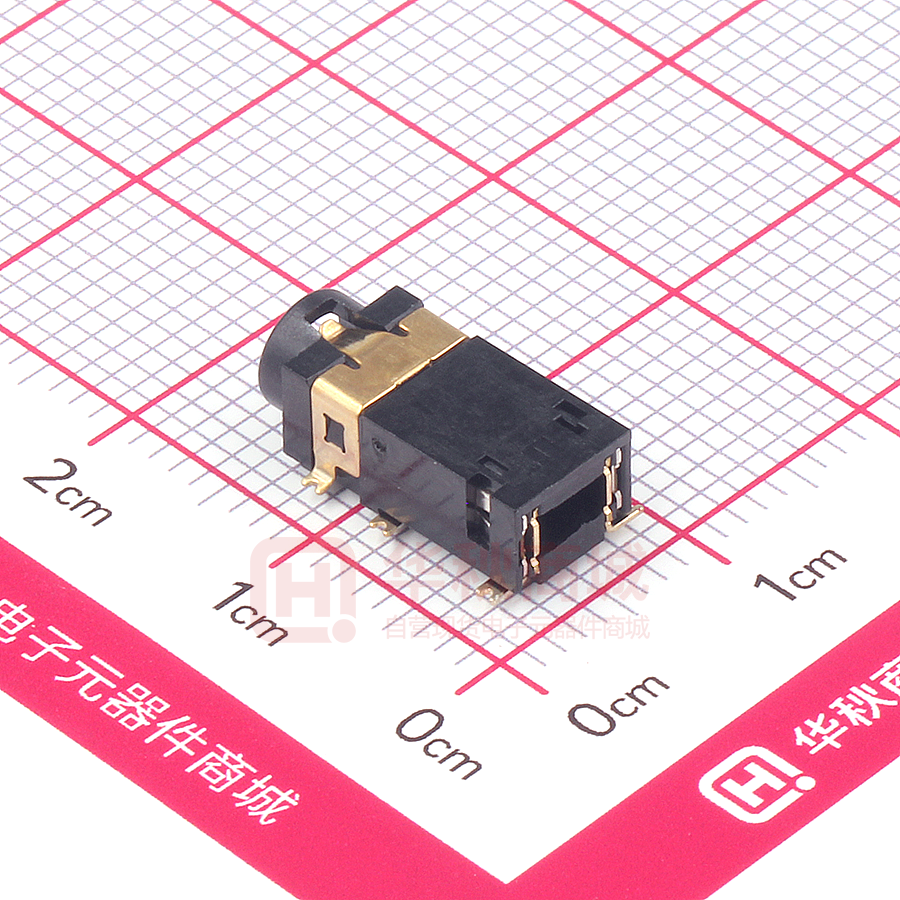

PJ-342-2C

www.Sofng.com C Operation:SMT/3.5&贴片式音頻插座/带开关功能 ONNECTORS LTEM NO.:PJ-342-2C (L14.0× L14.0×W6.4× W6.4×H4.5mm 3.5-PHONE-JACK) 贴片安装 SMT Technical parameter ╲ LEVEL A[better product] ╲ PROJECT Contact Rating Electrical Initial Contact Resistance Properties Insulation Resistance Withstand Voltage B[average product] 侧向導入 LATERAL 25mA, 24V DC 30mΩ max. 100MΩ min.500V DC 50mΩ max. 精密部品 NICETY Skey/PD：100MΩ min.300V DC 500V AC for 1 minute 350 V AC for 1 minut There No Load 6,000 Cycles 5,000 Cycles Rated Load 5,000 Cycles 4,000 Cycles 可靠 STABILIZE Durable Performance Sterage temp. -25℃～+75℃(Operating Temp: ) 適合環保 RoHS Unit:mm 6POLE PLUG Insertion Direction △ SOFNG ELECTRONIC TECHNOLOGY Co., LTD CIRCUIT BOARD SIZE (Vertical view) Operating Force Inward 5.0N～10.0N(grams) Exiting 5.0N～10.0N(grams) △ Insertion Direction Pin Definition Material declaration No. NAME Type Description ① 接觸端子#1 1 C5191R-H (t=0.20mm)磷铜[银基] ② 接觸端子#2 1 C5191R-H (t=0.20mm)磷铜[银基] ③ 接觸端子#3 1 C5191R-H (t=0.20mm)磷铜[银基] ④ 接觸端子#4 1 C5191R-H (t=0.20mm)磷铜[银基] ⑤ 接觸端子#5 1 C5191R-H (t=0.20mm)磷铜[银基] ⑥ 接觸端子#6 1 C5191R-H (t=0.20mm)磷铜[银基] ⑦ 基座 1 PA9T (Black)耐热塑胶 REEL 本品不屬於危害性廢棄物,須丟棄時可以委託 回收商予以回收再生處理。 Products do not belong to · OUTER BOX REEL IN BOX CUSHION 運送時本產品不要直接與水、酸鹼性化學物質 接觸,或放置於含有以上氣體環境中,並且需要 注記 NOTICE 注意會有滑落、側翻的危險發生；運輸過程中 1.碩方公司擁有最終解釋權；The company reserves the right of final interpretation； 不能有碰撞或者擠壓,須保證溫度與濕度適中 2.文件禁止外洩、轉載；Leaked and reproduced prohibited； [常溫 25℃,濕度在 50℃以內],不可導致材料變 3.未經授權修改無效。Modify is invalid. 形或氧化。
