IKH0203000

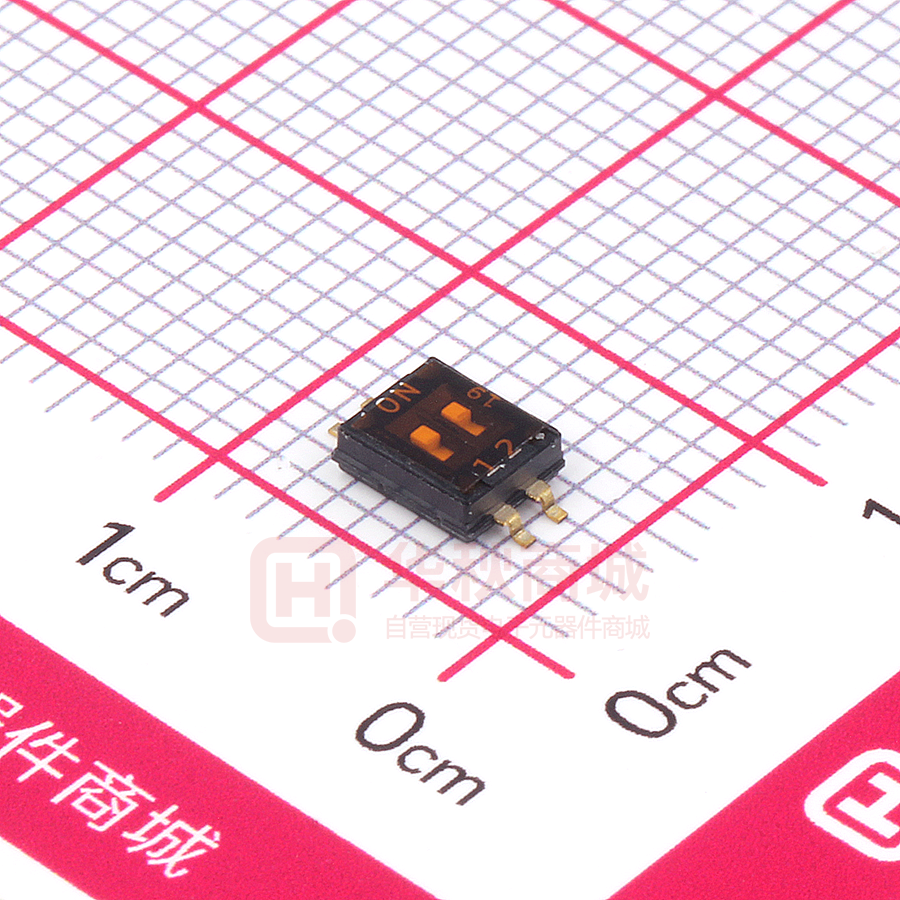

PANEL PCB SWITCHES H -IK 2 80 -1 IKH series SW Surface mount • half pitch • dual in line switches DISTINCTIVE FEATURES 1.27 mm (.050) terminal to terminal pitch Overall height from PCB : 1.6 mm (.063) only Very small PCB space requirement Self-cleaning wiping contacts ENVIRONMENTAL SPECIFICATIONS • Operating temperature : -20 °C to +70 °C (-4 °F to +158 °F) • Storage temperature : -40 °C to +85 °C (-40 °F to +185 °F) ELECTRICAL SPECIFICATIONS • Max. current/voltage rating : - switching : 25 mA 24 VDC - non switching : 100 mA 50 VDC • Initial contact resistance : 100 mΩ max. • Insulation resistance : 100 MΩ min. at 500 VDC • Dielectric strength : 300 Vca min. • Electrical life : 1,000 cycles • Travel : 0.60 mm (.024) MATERIALS • Case and cover : high temperature thermoplastic UL 94-V0, black • Actuator : high temperature thermoplastic UL 94-V0, white • Contacts : phosphor bronze, gold plated, over nickel barrier • Terminals : tin plated • Tape seal : polyimide The company reserves the right to change specifications without notice. 1 4.50 (.060) 1.50 Surface mount • half pitch • dual in line switches (.177) PCB LAYOUT 0.60 (.004) PAS 1.27 (.024) (.050) PITCH 6.70 0.40 IC tubes 6 54 pcs 1,000 pcs PAS 1.27 (.050) PITCH ON 1 2 3 4 5 6 7 8 8 40 pcs 10 33 pcs 0.76 (0.30) 7.40 75 pcs (.291) 125 pcs 4 1.27x(P-1) (.050x(P-1)) 4.90 2 A (.242) Tape and reel (.264) 6.15 Number of ways (.016) (.193) 0.10 PACKAGING CIKH0803000 TAPE AND REEL FICHIER:CIKH0803000 Echelle:1.43 Unrolling direction 12.00 (.472) le 11/04/02 L ON 1 2 3 4 5 6 7 8 Ø100.00 mini (3.937 DIA MIN) ø330.00 Maxi CIKHB (12.992 DIA MAX) PCB SWITCHES IKH series 3.00 (.118) Ø13.00 0.25 (.511 DIA .009) FICHIER:CIKHB Echelle:1 Number of ways Tape dim. “L” CIKHR 2 12 (.472) le 11/04/02 A Reel dim. “A” 12.40 (.488) 4 16 (.629) 16.40 (.646) 6 16 (.629) 16.40 (.646) 8 24 (.944) 24.40 (.960) 10 FICHIER:CIKHR 24 (.944) 24.40 (.960) Echelle:1 le 11/04/02 2 Surface mount • half pitch • dual in line switches BUILD YOUR PART NUMBER IKH NUMBER OF WAYS MODEL TYPE TAPE SEAL 02 Two way 030 SMT IC tubes 00 04 Four way 040 SMT tape and reel 06 Six way 08 Eight way 10 Ten way Top tape seal TAPE 1.50 Dimension “A” 2 3.77 (.148) 4 6.31 (.248) 0.40 6 8.85 (.348) (.016) 8 11.39 (.448) 10 13.93 (.548) 0.60 (.004) PAS 1.27 (.024) (.050) PITCH A 6.70 (.264) 1.27x(P-1) (.050x(P-1)) PAS 1.27 7.40 0.76 (0.30) (.291) 6.15 ON 1 2 3 4 5 6 7 8 4.90 (.050) PITCH (.193) 0.10 Number of ways 4.50 (.177) (.242) DIMENSIONS (.060) SERIES Supplied with all poles in “ON” position. Switches without tape seal : on request - Long terminal : on request. CIKH0803000 3 PANEL PCB SWITCHES IKH series
