561288GWA3DY1027

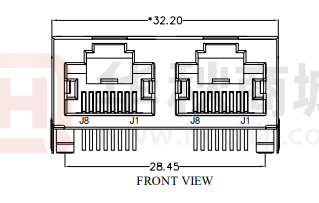

1 3 4 5 6 REACH & RoHS COMPLIANT 7 REV. ECN / DESCRIPTION A0 A1 NEW MODIFY MODEL STRUCTURE 8 BY DATE MQ.QU MQ.QU 2017.09.23 2018.06.06 MATERIAL: HOUSING: PA46,UL94V-0,BLACK. TERMINAL: PHOSPHOR BRONZE Ø=0.46MM,0.6U" GOLD PLATING. SHIELD: C2680,T=0.20MM,20 MIN NICKEL PLATING ON ALL AREA. G J8 J1 F J8 J1 FRONT VIEW E 7 8 5 6 3 1 4 2 7 8 RIGHT SIDE VIEW 5 6 3 4 MACHANICAL: DURABILITY: 750 CYCLES MIN,12.5MM/MINUTE. INSERTION FORCE: 2.2KG.F MAX. RETENTION STRENGTH : 7.7KG.F BETWEEN JACK AND PLUG. OPERATING TEMPERATURE: -40℃～+85℃. STORAGE TEMPERATURE: -40°C~+85°C. ALL CRITICAL DIMENSIONS WITH "*" ELECTRICAL: VOLTAGE: 125 VOLTS AC. CURRENT RATING : 1.5AMP. DIELECTRIC STRENGTH: 1000 VAC RMS 50HZ OR 60HZ,1MIN. INSULATION RESISTANCE: 500 MEGA OHMS MIN. INITIAL AFTER 500V DC FOR 1 MINUTE. CONTACT RESISTANCE: SINGLE TERMINAL 30 MILLIOHMS MAX. INITIAL 50 MILLIOHMS MAX. AFTER DURABILITY TEST. 1 2 8 6 7 4 5 2 3 8 1 6 7 4 5 PCB SIDE TO PHY BOTTOM VIEW D 2 3 1 C 1 J1 2 3 4 5 J2 J3 J4 J5 6 7 J6 J7 8 J8 H G F E D CABLE SIDE H 2 C RECOMMENDED PCB LAYOUT VIEWED FROM COMPONENT SIDE B A B 深圳市威尔杰电子有限公司 1 2 3 TITLE: RJ45 1*2 56 带屏蔽 PART NO.: 561288GWA3DY1027 REMARK: 4 UNITS SIZE MM[INCH] A4 REV SACLE A1 1:1 SHEET 1/1 5 APPROVED BY: JP.Gong x±0.35 .x±0.30 .xx±0.25 .xxx±0.10 6 x°±3.0° .x°±2.0° .xx°±1.5° .xxx°±1.0° 7 CHECKED BY: TW.Xu A DESIGND BY: MQ.Qu 8
