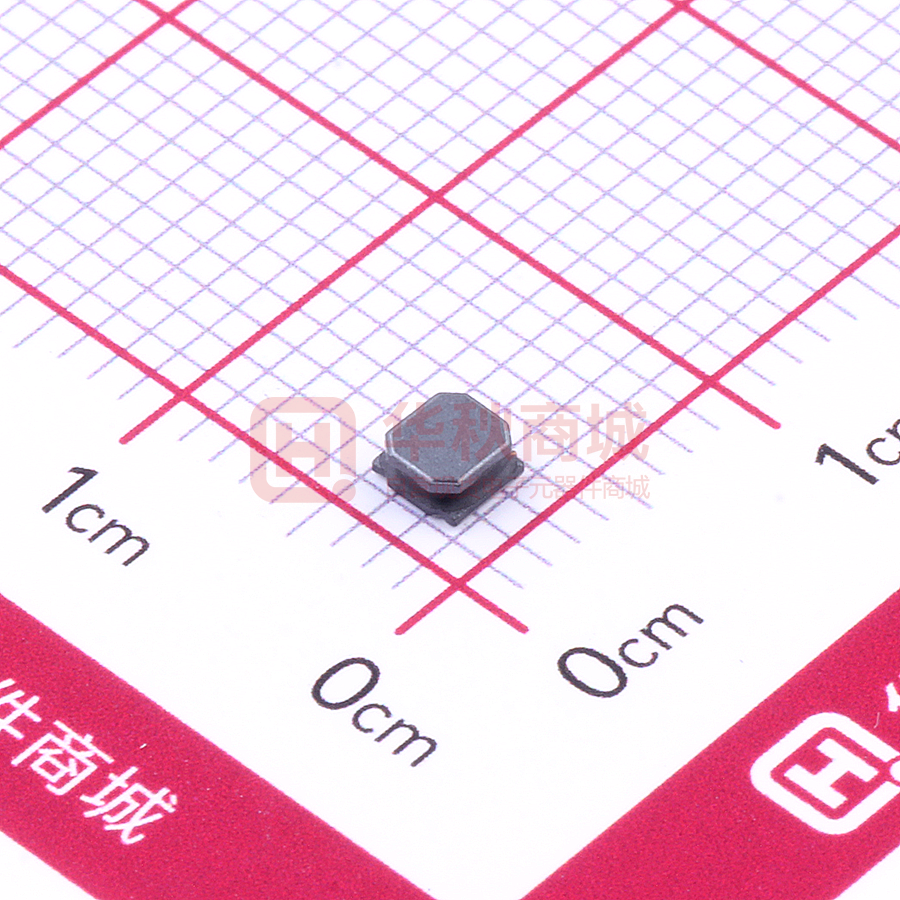

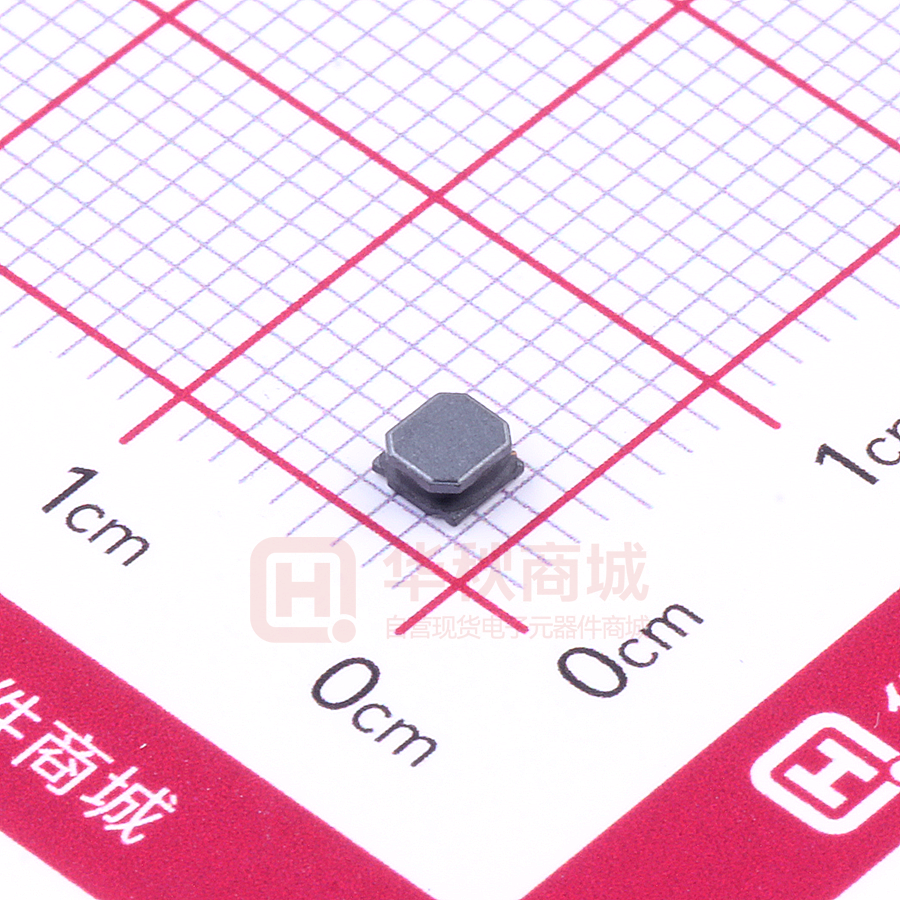

MPIT3015-4R7M-LF

CUSTOMER: DATE: APPROVAL SPECIFICATION PRODUCT NAME: SMD power inductor CUSTOMER PART NO.: OUR PART NO.: MPIT3015 Series RECEPTION THE SPECIFICATION HAS BEEN ACCEPTED. DATE： ： COMPANY： ： CFMD CHKD RCVD MANUFACTURING NAME 深圳市麦捷微电子科技股份有限公司 SHENZHEN MICROGATE TECHNOLOGY CO.，LTD Address: Yuxing road, Golf Street, Guanlan Town Bao’an District Shenzhen P.R.C Postcode :518110 TEL：86-755-28085000 FAX：86-755-28085605 CFMD. CHKD. DSGD. 目录 CATALOG 规格书版本控制 Component SPEC Version Record……………………………….. .. .. 2 1 适用范围 Scope． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 2 品名构成 Product Identification． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 3 3 形状、 ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 形状、尺寸和材料 Appearance, Dimensions and Material． 4 测试条件 Testing Conditions． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 4 5 电气特性 Electrical Characteristics． ．． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 4 6 工作条件 Condition of work． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 5 7 信赖性试验 Reliable Performance． ．． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 8 焊接条件 Recommended Soldering Conditions． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 8 9 包装 Packaging． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 9 5-7 10 产品外观检查标准 Visual inspection standard of product． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 10 11 存贮条件 Products Storage． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 10 深圳市麦捷微电子科技股份有限公司 地址：深圳市宝安区观澜镇高尔夫大道裕新路 电话(Tel)：0755-28085000 传真(Fax)：0755-28085605 邮编(Postcode)：518110 Component SPEC Version Record Rev. Effective Date Changed Contents Change Reasons Approved By 01 Dec. 10.2010 New released / Charles 2 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 1. Scope This specification applies to the MPIT3015 series of SMD power inductor. 2. Product Identification MPIT ① 3015 – ② 6R8 ③ M - LF ④ ⑤
Product Symbol (T type SMD power inductor)  Product dimensions (3.0×3.0×1.5mm)  Inductance Value： (4R7: 4.7uH 100: 10uH; 101: 100uH)  Induc tance Tolerance：(M: ±20% ; N: ±30%)  Lead free product. E A D E 3. Construction 3.1 Shape and dimensions Recommended Land Pattern Model MPIT3015 A 3.00±0.20 B 3.00±0.20 Dimensions in mm C D E 1.50 Max. 1.50±0.20 0.75±0.20 f 1.50Typ. g 3.10 Typ. h 2.70 Typ. 3.2 Material List No. 1 2 3 4 Item Ferrite Core Wire Terminal Electrode Magnetic Glue Material Ni-Zn Ferrite Enameled Copper Wire Ag/Ni/Sn/Cu Epoxy resin and magnetic powder 4.Testing Conditions Unless otherwise specified Temperature : Ordinary Temperature ( 5 to 35℃) Humidity : Ordinary Humidity (25 to 85% RH) Atmospheric Pressure : 86 to 106 kPa In case of doubt Temperature : 20±2℃ Humidity : 60 to 75% RH Atmospheric Pressure : 86 to 106 kPa 3 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 5. Electrical Characteristics And Test Instruments 2 MPIT3015-1R0N-LF DCR (Ω) ±30% 0.030 Isat (A) 2.32 Irms (A) 2.35 MPIT3015-1R2N-LF 1.2±30% 0.040 2.50 1.95 111 MPIT3015-1R5N-LF 1.5±30% 0.050 2.30 1.70 100 MPIT3015-1R8M-LF 1.8±20% 0.050 1.75 1.70 93 MPIT3015-2R2M-LF Customer Part No. SRF (MHz) 152 2.2±20% 0.060 1.65 1.60 86 MPIT3015-2R7M-LF 2.7±20% 0.075 1.52 1.43 64 MPIT3015-3R3M-LF 3.3±20% 0.080 1.35 1.40 68 MPIT3015-3R6M-LF 3.6±20% 0.105 1.30 1.20 60 MPIT3015-4R3M-LF 4.3±20% 0.115 1.20 1.14 52 MPIT3015-4R7M-LF 4.7±20% 0.120 1.20 1.20 46 MPIT3015-5R1M-LF 5.1±20% 0.125 1.08 1.09 48 MPIT3015-6R8M-LF 6.8±20% 0.160 0.90 0.90 39 MPIT3015-100M-LF 10±20% 0.230 0.75 0.77 41 MPIT3015-120M-LF 12±20% 0.315 0.70 0.69 31 MPIT3015-150M-LF 15±20% 0.350 0.70 0.65 30 MPIT3015-180M-LF 18±20% 0.430 0.56 0.59 24 MPIT3015-220M-LF 22±20% 0.460 0.55 0.57 23 MPIT3015-270M-LF 27±20% 0.670 0.48 0.47 22 MPIT3015-330M-LF 33±20% 0.795 0.44 0.44 20 MPIT3015-390M-LF 39±20% 0.995 0.41 0.39 15 MPIT3015-430M-LF 43±20% 1.060 0.37 0.37 15 MPIT3015-470M-LF 47±20% 1.095 0.35 0.36 14 MPIT3015-560M-LF 56±20% 1.280 0.33 0.34 13 MPIT3015-620M-LF 62±20% 1.430 0.33 0.32 13 MPIT3015-680M-LF 68±20% 2.460 0.29 0.24 11 T-I characteristic curve L-I characteristic curve 100 60 27µH 50 10µH Indictance（uH） 70 2.2µH 40 30 20 10 0 27µH Inductance(µH) 80 Temperature rise ( ℃) Temperature rise（℃） 1 Inductance (uH) 1.0±30% Microgate Part No. 10 10µH 1 2.2µH 0 0.0 0.5 1.0 1.5 DC.Current (A) 2.0 2.5 3.0 0.01 0.1 DC. Current(A) 1 10 DC.Current（A） DC.Current（A） Test instruments and remarks * CHROMA 3302 meter for L and DCR. /CHROMA 3302 and 1320 meter for IDC. * L test condition: 100KHz&1V at 20℃ambient; * Rated current:Isat or Irms,whichever is smaller: 1 :Isat: direct current at which the inductance drops approximate 30% from its value without current; 2 :Irms: direct current when the temperature of the product rise (△T =40°C) from 20°C ambient. 4 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 6. Condition of work 1. The part normal work be allowed ambient temperature: -25℃ ~ +85℃. 2 .The part must be allowed high temperature: +125℃. 3. The part normal work be allowed temperature dependent: 40℃ 4. Ambient temperature of the part is allowed storage temperature: -25℃ ~ +85℃. 5. Storage life: half a year 6 .The part be allowed work ambient frequency: 0.1MHz ~ 1MHz 7. Reliability and Test Condition Item Required Characteristics Test Method/Condition Temperature: 125±2℃ Time : 1000 hours Tested not less than 1 hours, nor more than 2 hours at room temperature. High temperature resistance 125℃ ℃ 1000H Temperature : -40±2℃ Time : 1000 hours Tested not less than 1 hour, nor more than 2 hours at room temperature. Low temperature resistance 1. No case deformation or change in appearance. 2. |∆L|/L≤10% 1000H -40℃ 1. 2. 3. Exposure : Temperature:60±2℃, Humidity : 93±3% RH Time : 1000 hours. Tested while the specimens are still in the chamber. Tested not less than 1 hour, nor more than 2 hours at room temperature. Humidity test 1000H 5 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 Item Required Characteristics Test Method/Condition First -40℃ for T time, last 125℃ T time as 1 cycle. Go through 100 cycles. 1. Thermal test shock 2. No case deformation or change in appearance. |∆L|/L≤10% 125℃ 30 min. 30 min. Ambient Temperature -40℃ 30 min. 20sec. (max.) Solderability test Terminal area must have 90% min. solder coverage. Heat endurance of reflow soldering Dip pads in flux then dip in solder pot at 245±5℃ for 0.1mm. NG. AQL=0.65 l L l >L/6 or w >W/6, NG. H 11.Products Storage ⑴ Storage period Products which inspected in MICROGATE over 6 months ago should be examined and used, which can be confirmed with inspection No. marked on the container. Solderability should be checked if this period is exceeded. ⑵ Storage conditions Products should be storage in the warehouse on the following conditions: Temperature: -10 ~+ 40℃ Humidity : Less than 80% relative and humidity No rapid change on temperature and humidity ⑶ Don’t keep products in corrosive gases such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderability. ⑷ Products should be storage on the palette for the prevention of the influence from humidity, dust and so on. ⑸ Products should be storage in the warehouse without heat shock, vibration, direct sunlight and so on. ⑹ Products should be storage under the airtight packaged condition. 10 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110
