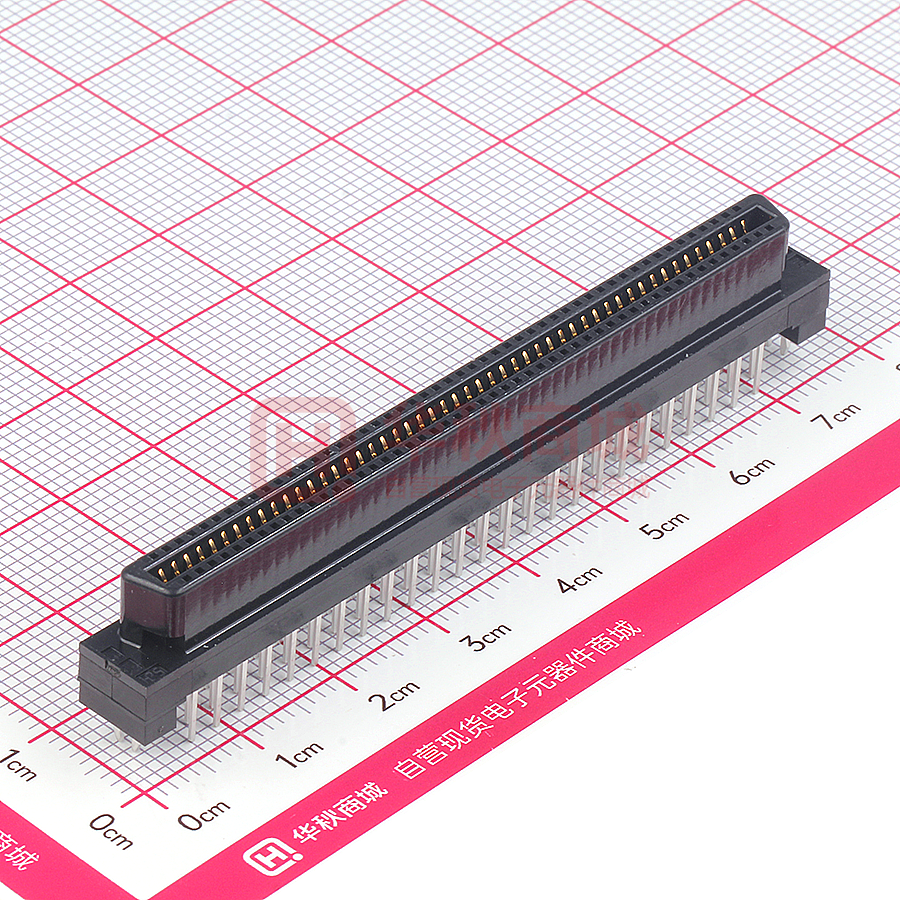

FX2CA2-100S-1.27DSAL(71)

1.27mm Pitch Multi-function Two Piece Connector FX2 Series Stacking connection (Stack height : 12~16mm) 12mm~16mm Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Horizontal Connection Vertical Connection 25mm ■Features 1. Various connection with various product line 2. Easy One-Touch Operation The ribbon cable connection type allows easy one-touch operation with either single hand. Stacking connection Vertical type Cable connection Through hole type SMT type Through hole type SMT type Insersion and Extraction (1) Pick internal locks with thumb and the index finger. Through hole type SMT type Through hole type Cable only Horizontal type SMT type (2) With unique and preferable click feeling, the cable and connector can be inserted or withdrawed. Vertical type Through hole type SMT type Cable only Cable connection (For insertion, the operation proceeds from procedure (2) to (1).) 2022.11 1 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector 3. Board to board type q Flux swell prevention 4. Board to cable type q Complete lock with easy operation The straight through hole type takes the complete flux tight action from the board back side at solder dipping. The type is prepared, corresponding to whether or not cleaning is required. Employing the inner lock system, complete lock and eject actions can be performed with easy operation. w Applicable cable The applicable cable is the AWG#28 flat cable (7/0.127mm), and the jacket size is 0.9±0.1mm. w Stack height 12mm to 16mm The board stack height can be set to every 1mm unit up to 12 to 16mm. 5. SMT type Strength security with metaltab e Mis-insertion preventive mechanism The right angle type is equipped with metaltab to secure soldering strength, and constructed so as to fix by screws. The straight type can choose whether or not metaltab are required. The mating area is designed in a mechanism so as to prevent mis-insertion, and complete countermeasures have been taken against wrenching. ■Applications Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Computers, peripheral equipments, various machines etc. ■Product Specifications Current rating 0.5A Rating Operating Temperature Range -55ç to +85ç (Note 1) Storage Temperature Range -10ç to +60ç (Note 2) Voltage rating 125V AC Operating Humidity Range 40 to 80% Item Storage Humidity Range 40 to 70% Specification (Note 2) Condition 1. Insulation Resistance 1000Mø min 250V DC 2. Withstanding Voltage No flashover or insulation breakdown. 300V AC/1 minute 3. Contact Resistance 45mø max. 100mA 4. Vibration No electrical discontinuity of 1μs or more Frequency : 10 to 55Hz, single amplitude of 0.75mm, 2 hours in each of the 3 directions. 5. Humidity (Steady state) Contact resistance : 55mø max. Insulation resistance : 100Mø min. 96 hours at temperature of 40ç and humidity of 90% to 95% Contact resistance : 55mø max. 6. Temperature Cycle (-55ç : 30 minutes→15 to 35ç : 2 to 3 minutes → Insulation resistance : 100Mø min. (-85ç : 30 minutes→15 to 35ç : 2 to 3 minutes) 5 cycles No damage, cracks, or parts looseness. 7. Durability (Mating/un-mating) Contact resistance : 55mø max. 500 cycles SMT Type 8. Resistance to soldering heat No deformation of components affecting performance. DIP Type Reflow : At the recommended temperature profile Manual soldering : 360ç for 5 seconds Solder bath : 260ç for 10 seconds Manual soldering : 360ç for 5 seconds Note 1 : Includes temperature rise caused by current flow. Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation. Note 3 : Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and specifications for a specific part number shown. ■Material Parts Insulator Contact Material Finish Dip type Polyamid Socket PBT/Polyamid SMT type PPS Receptacle Black UL94V-0 Light brown Phosphor bronze Socket Header ________ Selective gold plated Phosphor bronze or brass ■Stacking Variation Receptacle Header Dip type SMT type 2 Remark FX2C-*P-1.27DSA(L) FX2CA-*P-1.27DSA(L) FX2CA1-*P-1.27DSA(L) FX2CA2-*P-1.27DSA(L) FX2-*P-1.27SV(L) Unit:mm Dip type SMT type FX2C-*S-1.27DSA(L) FX2C2-*S-1.27DSA(L) FX2-*S-1.27SV(L) FX2CA-*S-1.27DSA(L) FX2CA2-*S-1.27DSA(L) 12.0 14.0 12.2 13.0 14.0 12.1 15.0 16.0 14.1 13.2 14.2 12.3 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Ordering Information ●Board to Board Receptacle FX2 CA 2 - * S - 1.27 DSA L Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. q w e r t y u i q Series Name : FX2 r Number of contacts : 20, 32, 40, 52, 60, 68, 80, 100, 120 w Blank : Right angle type t Connector type : S : Receptacle C : Straight non-cleaning type y Contact pitch : 1.27mm CA : Straight cleaning type u Contact type e Product height variation (DSA only) DS DSA : Straight type Blank : Standard product 2 : Right angle type i L : Board prefixed pin : +2mm ●Board to Board Header FX2 CA 1 - * P - 1.27 DSA L q w e r t y u i q Series Name : FX2 r Number of contacts : 20, 32, 40, 52, 60, 68, 80, 100, 120 w None : Right angle type t Connector type : P : header C : Straight non-cleaning type y Contact pitch : 1.27mm CA : Straight cleaning type u Contact type : e Product height variation (DSA only) DS DSA : Straight type Blank : Standard product 1 : +1mm 2 : +2mm : Right angle type i L : Board prefixed pin Note 1. C and CA take complete countermeasures against flux. Note 2. Cleaning type : the liquid escape hole is added at dip cleaning. Note 3. No-cleaning type : no liquid escape hole is added at dip cleaning. ●Board to Cable Socket FX2 BA - * S A - 1.27 R q w e r t y u q Series Name : FX2 r S : Socket wB : Lock cable type t A : Contact material: phosphor bronze : No lock cable type y Contact pitch : 1.27mm BA e Number of contacts : 20, 32, 40, 52, 60, 68, 80, 100 u R : Insulation displacement 3 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ●Board to Cable Header FX2 BA - * P A - 1.27 DSA L q w e r BA y u i t None : Contact material: phosphor bronze q Series Name : FX2 wB t A : Lock straight no cleaning type : Contact material: brass : Lock right angle type y Contact pitch : 1.27mm : Lock straight cleaning type u Contact type : e Number of contacts : 20, 32, 40, 52, 60, 68, 80, 100 DS r Connector type : P : header : Right angle type DSA : Straight type i L : Board prefixed pin Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Note 1. Cleaning type : The liquid escape hole is added at dip cleaning. Note 2. No cleaning type : No liquid escape hole is added at dip cleaning. Note 3. Straight 20 and 32 contact types use phosphor bronze for contact material. ●Straight SMT Type FX2 - * P - 1.27 SV L q w e r t y r Contact pitch : 1.27mm q Series Name : FX2 w Number of contacts : 20, 32, 40, 52, 60, 68, 80, 100, 120 t Contact type : e Connector type : P : Header SV : Straight SMT type y L : Board prefixed pin S : Receptacle ●Header Right Angle SMT Type FX2 A - * P - 0.635 SH q e r t y q Series Name : FX2 r Connector type : P : Header w Blank : With boss t Mounting area pitch : 0.635mm A : Without boss e Number of contacts : 20, 40, 52, 60, 80 4 w y Contact type SH : Right angle SMT type FX2 Series●1.27mm Pitch Multi-function Two Piece Connector BFX2 Functional Flow Chart Board to Board Cable Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Header Side Receptacle and Socket Side FX2-*P-1.27DS (L) Right angle type FX2-*S-1.27DS (L) Right angle type FX2(A)-*P-0.635SH Right angle type SMT type FX2C-*S-1.27DS (L) Straight type No cleaning type, flux tight FX2C-*P-1.27DSA (L) Straight type No cleaning type, flux tight FX2C-*S-1.27DS (L) Straight type Cleaning type, flux tight FX2CA-*P-1.27DSA (L) Straight type Cleaning type, flux tight FX2CA-*S-1.27DSV (L) Straight type SMT type FX2-*P-1.27DSA (L) Straight type SMT type FX2BA-*SA-1.27R No lock cable type 5 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector BFX2 Functional Flow Chart Board to Board Cable Type Header Side Receptacle and Socket Side Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. FX2B-*PA-1.27DS (L) Lock right angle type FX2B-*PA-1.27DSA(L) Lock straight type No cleaning type, flux tight FX2BA-*PA-1.27DSA(L) Lock straight type Cleaning type, flux tight 6 FX2BA-*SA-1.27R Lock cable type FX2 Series●1.27mm Pitch Multi-function Two Piece Connector BThrough hole Type Application Pattern FX2-*P-1.27DS(L) Header Stacking height B 12 14 Receptacle FX2C(A) -*S A FX2CA-*P 18.5 12 FX2CA1-*P 13 15 FX2C(A)2-*S 20.5 14 FX2CA2-*P 14 16 Header Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Receptacle FX2CA-*S FX2CA2-*S Receptacle Receptacle FX2-*P-1.27DS(L) FX2-*S-1.27DS(L) Header A B FX2C(A) -*P 18.5 12 FX2C(A)1-*P 19.5 13 FX2C(A)2-*P 20.5 14 Header FX2-*P-1.27DS(L) FX2B(A)-*SA-1.27R FX2B(A)-*SA-1.27R FX2B(A)-*P(A)-1.27DSA(L) FX2B-*PA-1.27DS(L) 7 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. BSMT Type Application Pattern 8 FX2-*P-1.27SV(L) FX2-*S-1.27SV(L) FX2-*S-1.27SV(L) FX2C(A)-*P-1.27DSA(L) FX2-*P-1.27SV(L) FX2-*S-1.27SV(L) FX2C(A)-*S-1.27-DSA(L) FX2C(A)1-*P-1.27DSA(L) FX2-*P-1.27SV(L) FX2-*S-1.27SV(L) FX2C(A)2-*S-1.27DSA(L) FX2C(A)2-*P-1.27DSA(L) FX2-*P-1.27SV(L) FX2-*S-1.27SV(L) FX2-*S-1.27DS(L) FX2-*P-1.27DS(L) FX2 Series●1.27mm Pitch Multi-function Two Piece Connector BSMT Type Application Pattern FX2(A)-*P-0.635SH Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Receptacle FX2(A)-*P-0.635SH A FX2C(A) 14.7 FX2C(A)2 16.7 FX2C(A•2)-*S-1.27DSA(L) FX2-*S-1.27SV(L) FX2(A)-*P-0.635SH FX2(A)-*P-0.635SH FX2-*S-1.27DS(L) FX2BA-*SA-1.27R 9 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Receptacle No Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm 10 Part No. HRS No. FX2C-020S-1.27DSA(71) 572-2401-7 71 FX2C-020S-1.27DSAL(71) 572-2451-5 71 FX2C-032S-1.27DSA(71) 572-2402-0 71 FX2C-032S-1.27DSAL(71) 572-2452-8 71 FX2C-040S-1.27DSA(71) 572-2403-2 71 FX2C-040S-1.27DSAL(71) 572-2453-0 71 FX2C-052S-1.27DSA(71) 572-2404-5 71 FX2C-052S-1.27DSAL(71) 572-2454-3 71 FX2C-060S-1.27DSA(71) 572-2405-8 71 FX2C-060S-1.27DSAL(71) 572-2455-6 71 FX2C-068S-1.27DSA(71) 572-2406-0 71 FX2C-068S-1.27DSAL(71) 572-2456-9 71 FX2C-080S-1.27DSA(71) 572-2407-3 71 FX2C-080S-1.27DSAL(71) 572-2457-1 71 FX2C-100S-1.27DSA(71) 572-2408-6 71 FX2C-100S-1.27DSAL(71) 572-2458-4 71 FX2C-120S-1.27DSA(71) 572-2409-9 71 FX2C-120S-1.27DSAL(71) 572-2459-7 71 No. of Contacts A B C 20 22.75 11.43 17.63 32 30.37 19.05 25.25 40 35.45 24.13 30.33 52 43.07 31.75 37.95 60 48.15 36.83 43.03 68 53.23 41.91 48.11 80 60.85 49.53 55.73 100 73.55 62.23 68.43 120 86.25 74.93 81.13 D ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Receptacle Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm Part No. HRS No. FX2CA-020S-1.27DSA(71) 572-2501-1 71 FX2CA-020S-1.27DSAL(71) 572-2551-0 71 FX2CA-032S-1.27DSA(71) 572-2502-4 71 FX2CA-032S-1.27DSAL(71) 572-2552-2 71 FX2CA-040S-1.27DSA(71) 572-2503-7 71 FX2CA-040S-1.27DSAL(71) 572-2553-5 71 FX2CA-052S-1.27DSA(71) 572-2504-0 71 FX2CA-052S-1.27DSAL(71) 572-2554-8 71 FX2CA-060S-1.27DSA(71) 572-2505-2 71 FX2CA-060S-1.27DSAL(71) 572-2555-0 71 FX2CA-068S-1.27DSA(71) 572-2506-5 71 FX2CA-068S-1.27DSAL(71) 572-2556-3 71 FX2CA-080S-1.27DSA(71) 572-2507-8 71 FX2CA-080S-1.27DSAL(71) 572-2557-6 71 FX2CA-100S-1.27DSA(71) 572-2508-0 71 FX2CA-100S-1.27DSAL(71) 572-2558-9 71 FX2CA-120S-1.27DSA(71) 572-2509-3 71 FX2CA-120S-1.27DSAL(71) 572-2559-1 71 No. of Contacts A B C 20 22.75 11.43 17.63 32 30.37 19.05 25.25 40 35.45 24.13 30.33 52 43.07 31.75 37.95 60 48.15 36.83 43.03 68 53.23 41.91 48.11 80 60.85 49.53 55.73 100 73.55 62.23 68.43 120 86.25 74.93 81.13 D ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ YES 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 11 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Receptacle No Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm 12 Part No. HRS No. FX2C2-020S-1.27DSA(71) 572-2421-4 71 FX2C2-020S-1.27DSAL(71) 572-2471-2 71 FX2C2-032S-1.27DSA(71) 572-2422-7 71 FX2C2-032S-1.27DSAL(71) 572-2472-5 71 FX2C2-040S-1.27DSA(71) 572-2423-0 71 FX2C2-040S-1.27DSAL(71) 572-2473-8 71 FX2C2-052S-1.27DSA(71) 572-2424-2 71 FX2C2-052S-1.27DSAL(71) 572-2474-0 71 FX2C2-060S-1.27DSA(71) 572-2425-5 71 FX2C2-060S-1.27DSAL(71) 572-2475-3 71 FX2C2-068S-1.27DSA(71) 572-2426-8 71 FX2C2-068S-1.27DSAL(71) 572-2476-6 71 FX2C2-080S-1.27DSA(71) 572-2427-0 71 FX2C2-080S-1.27DSAL(71) 572-2477-9 71 FX2C2-100S-1.27DSA(71) 572-2428-3 71 FX2C2-100S-1.27DSAL(71) 572-2478-1 71 FX2C2-120S-1.27DSA(71) 572-2429-6 71 FX2C2-120S-1.27DSAL(71) 572-2479-4 71 No. of Contacts A B C 20 22.75 11.43 17.63 32 30.37 19.05 25.25 40 35.45 24.13 30.33 52 43.07 31.75 37.95 60 48.15 36.83 43.03 68 53.23 41.91 48.11 80 60.85 49.53 55.73 100 73.55 62.23 68.43 120 86.25 74.93 81.13 D ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Receptacle Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm Part No. HRS No. FX2CA2-020S-1.27DSA(71) 572-2521-9 71 FX2CA2-020S-1.27DSAL(71) 572-2571-7 71 FX2CA2-032S-1.27DSA(71) 572-2522-1 71 FX2CA2-032S-1.27DSAL(71) 572-2572-0 71 FX2CA2-040S-1.27DSA(71) 572-2523-4 71 FX2CA2-040S-1.27DSAL(71) 572-2573-2 71 FX2CA2-052S-1.27DSA(71) 572-2524-7 71 FX2CA2-052S-1.27DSAL(71) 572-2574-5 71 FX2CA2-060S-1.27DSA(71) 572-2525-0 71 FX2CA2-060S-1.27DSAL(71) 572-2575-8 71 FX2CA2-068S-1.27DSA(71) 572-2526-2 71 FX2CA2-068S-1.27DSAL(71) 572-2576-0 71 FX2CA2-080S-1.27DSA(71) 572-2527-5 71 FX2CA2-080S-1.27DSAL(71) 572-2577-3 71 FX2CA2-100S-1.27DSA(71) 572-2528-8 71 FX2CA2-100S-1.27DSAL(71) 572-2578-6 71 FX2CA2-120S-1.27DSA(71) 572-2529-0 71 FX2CA2-120S-1.27DSAL(71) 572-2579-9 71 No. of Contacts A B C 20 22.75 11.43 17.63 32 30.37 19.05 25.25 40 35.45 24.13 30.33 52 43.07 31.75 37.95 60 48.15 36.83 43.03 68 53.23 41.91 48.11 80 60.85 49.53 55.73 100 73.55 62.23 68.43 120 86.25 74.93 81.13 D ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ YES 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 13 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Receptacle Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Right Angle Type BPCB mounting pattern Unit : mm 14 Part No. HRS No. FX2-020S-1.27DS(71) 572-2701-0 71 FX2-020S-1.27DSL(71) 572-2751-9 71 FX2-032S-1.27DS(71) 572-2702-3 71 FX2-032S-1.27DSL(71) 572-2752-1 71 FX2-040S-1.27DS(71) 572-2703-6 71 FX2-040S-1.27DSL(71) 572-2753-4 71 FX2-052S-1.27DS(71) 572-2704-9 71 FX2-052S-1.27DSL(71) 572-2754-7 71 FX2-060S-1.27DS(71) 572-2705-1 71 FX2-060S-1.27DSL(71) 572-2755-0 71 FX2-068S-1.27DS(71) 572-2706-4 71 FX2-068S-1.27DSL(71) 572-2756-2 71 FX2-080S-1.27DS(71) 572-2707-7 71 FX2-080S-1.27DSL(71) 572-2757-5 71 FX2-100S-1.27DS(71) 572-2708-0 71 FX2-100S-1.27DSL(71) 572-2758-8 71 FX2-120S-1.27DS(71) 572-2709-2 71 FX2-120S-1.27DSL(71) 572-2759-0 71 No. of Contacts A B C D 20 22.75 11.43 17.63 18.05 32 30.37 19.05 25.25 25.67 40 35.45 24.13 30.33 30.75 52 43.07 31.75 37.95 38.37 60 48.15 36.83 43.03 43.45 68 53.23 41.91 48.11 48.53 80 60.85 49.53 55.73 56.15 100 73.55 62.23 68.43 68.85 120 86.25 74.93 81.13 81.55 D YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Right Angle Type BPCB mounting pattern Unit : mm Part No. HRS No. FX2-020P-1.27DS(71) 572-2601-6 71 FX2-020P-1.27DSL(71) 572-2651-4 71 FX2-032P-1.27DS(71) 572-2602-9 71 FX2-032P-1.27DSL(71) 572-2652-7 71 FX2-040P-1.27DS(71) 572-2603-1 71 FX2-040P-1.27DSL(71) 572-2653-0 71 FX2-052P-1.27DS(71) 572-2604-4 71 FX2-052P-1.27DSL(71) 572-2654-2 71 FX2-060P-1.27DS(71) 572-2605-7 71 FX2-060P-1.27DSL(71) 572-2655-5 71 FX2-068P-1.27DS(71) 572-2606-0 71 FX2-068P-1.27DSL(71) 572-2656-8 71 FX2-080P-1.27DS(71) 572-2607-2 71 FX2-080P-1.27DSL(71) 572-2657-0 71 FX2-100P-1.27DS(71) 572-2608-5 71 FX2-100P-1.27DSL(71) 572-2658-3 71 FX2-120P-1.27DS(71) 572-2609-8 71 FX2-120P-1.27DSL(71) 572-2659-6 71 No. of Contacts A B C 20 22.75 11.43 18.05 32 30.37 19.05 25.67 40 35.45 24.13 30.75 52 43.07 31.75 38.37 60 48.15 36.83 43.45 68 53.23 41.91 48.53 80 60.85 49.53 56.15 100 73.55 62.23 68.85 120 86.25 74.93 81.55 RoHS YES 15 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header No Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm 16 Part No. HRS No. FX2C-020P-1.27DSA(71) 572-2201-8 71 FX2C-020P-1.27DSAL(71) 572-2251-6 71 FX2C-032P-1.27DSA(71) 572-2202-0 71 FX2C-032P-1.27DSAL(71) 572-2252-9 71 FX2C-040P-1.27DSA(71) 572-2203-3 71 FX2C-040P-1.27DSAL(71) 572-2253-1 71 FX2C-052P-1.27DSA(71) 572-2204-6 71 FX2C-052P-1.27DSAL(71) 572-2254-4 71 FX2C-060P-1.27DSA(71) 572-2205-9 71 FX2C-060P-1.27DSAL(71) 572-2255-7 71 FX2C-068P-1.27DSA(71) 572-2206-1 71 FX2C-068P-1.27DSAL(71) 572-2256-0 71 FX2C-080P-1.27DSA(71) 572-2207-4 71 FX2C-080P-1.27DSAL(71) 572-2257-2 71 FX2C-100P-1.27DSA(71) 572-2208-7 71 FX2C-100P-1.27DSAL(71) 572-2258-5 71 FX2C-120P-1.27DSA(71) 572-2209-0 71 FX2C-120P-1.27DSAL(71) 572-2259-8 71 No. of Contacts A B 20 22.75 11.43 32 30.37 19.05 40 35.45 24.13 52 43.07 31.75 60 48.15 36.83 68 53.23 41.91 80 60.85 49.53 100 73.55 62.23 120 86.25 74.93 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm Part No. HRS No. FX2CA-020P-1.27DSA(71) 572-2301-2 71 FX2CA-020P-1.27DSAL(71) 572-2351-0 71 FX2CA-032P-1.27DSA(71) 572-2302-5 71 FX2CA-032P-1.27DSAL(71) 572-2352-3 71 FX2CA-040P-1.27DSA(71) 572-2303-8 71 FX2CA-040P-1.27DSAL(71) 572-2353-6 71 FX2CA-052P-1.27DSA(71) 572-2304-0 71 FX2CA-052P-1.27DSAL(71) 572-2354-9 71 FX2CA-060P-1.27DSA(71) 572-2305-3 71 FX2CA-060P-1.27DSAL(71) 572-2355-1 71 FX2CA-068P-1.27DSA(71) 572-2306-6 71 FX2CA-068P-1.27DSAL(71) 572-2356-4 71 FX2CA-080P-1.27DSA(71) 572-2307-9 71 FX2CA-080P-1.27DSAL(71) 572-2357-7 71 FX2CA-100P-1.27DSA(71) 572-2308-1 71 FX2CA-100P-1.27DSAL(71) 572-2358-0 71 FX2CA-120P-1.27DSA(71) 572-2309-4 71 FX2CA-120P-1.27DSAL(71) 572-2359-2 71 No. of Contacts A B 20 22.75 11.43 32 30.37 19.05 40 35.45 24.13 52 43.07 31.75 60 48.15 36.83 68 53.23 41.91 80 60.85 49.53 100 73.55 62.23 120 86.25 74.93 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ YES 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 17 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header No Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm 18 Part No. HRS No. FX2C1-020P-1.27DSA(71) 572-2211-1 71 FX2C1-020P-1.27DSAL(71) 572-2261-0 71 FX2C1-032P-1.27DSA(71) 572-2212-4 71 FX2C1-032P-1.27DSAL(71) 572-2262-2 71 FX2C1-040P-1.27DSA(71) 572-2213-7 71 FX2C1-040P-1.27DSAL(71) 572-2263-5 71 FX2C1-052P-1.27DSA(71) 572-2214-0 71 FX2C1-052P-1.27DSAL(71) 572-2264-8 71 FX2C1-060P-1.27DSA(71) 572-2215-2 71 FX2C1-060P-1.27DSAL(71) 572-2265-0 71 FX2C1-068P-1.27DSA(71) 572-2216-5 71 FX2C1-068P-1.27DSAL(71) 572-2266-3 71 FX2C1-080P-1.27DSA(71) 572-2217-8 71 FX2C1-080P-1.27DSAL(71) 572-2267-6 71 FX2C1-100P-1.27DSA(71) 572-2218-0 71 FX2C1-100P-1.27DSAL(71) 572-2268-9 71 FX2C1-120P-1.27DSA(71) 572-2219-3 71 FX2C1-120P-1.27DSAL(71) 572-2269-1 71 No. of Contacts A B 20 22.75 11.43 32 30.37 19.05 40 35.45 24.13 52 43.07 31.75 60 48.15 36.83 68 53.23 41.91 80 60.85 49.53 100 73.55 62.23 120 86.25 74.93 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm Part No. HRS No. FX2CA1-020P-1.27DSA(71) 572-2311-6 71 FX2CA1-020P-1.27DSAL(71) 572-2361-4 71 FX2CA1-032P-1.27DSA(71) 572-2312-9 71 FX2CA1-032P-1.27DSAL(71) 572-2362-7 71 FX2CA1-040P-1.27DSA(71) 572-2313-1 71 FX2CA1-040P-1.27DSAL(71) 572-2363-0 71 FX2CA1-052P-1.27DSA(71) 572-2314-4 71 FX2CA1-052P-1.27DSAL(71) 572-2364-2 71 FX2CA1-060P-1.27DSA(71) 572-2315-7 71 FX2CA1-060P-1.27DSAL(71) 572-2365-5 71 FX2CA1-068P-1.27DSA(71) 572-2316-0 71 FX2CA1-068P-1.27DSAL(71) 572-2366-8 71 FX2CA1-080P-1.27DSA(71) 572-2317-2 71 FX2CA1-080P-1.27DSAL(71) 572-2367-0 71 FX2CA1-100P-1.27DSA(71) 572-2318-5 71 FX2CA1-100P-1.27DSAL(71) 572-2368-3 71 FX2CA1-120P-1.27DSA(71) 572-2319-8 71 FX2CA1-120P-1.27DSAL(71) 572-2369-6 71 No. of Contacts A B 20 22.75 11.43 32 30.37 19.05 40 35.45 24.13 52 43.07 31.75 60 48.15 36.83 68 53.23 41.91 80 60.85 49.53 100 73.55 62.23 120 86.25 74.93 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ YES 49.53 ________ 57.15 ________ 69.85 ________ 82.55 19 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header No Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm 20 Part No. HRS No. FX2C2-020P-1.27DSA(71) 572-2221-5 71 FX2C2-020P-1.27DSAL(71) 572-2271-3 71 FX2C2-032P-1.27DSA(71) 572-2222-8 71 FX2C2-032P-1.27DSAL(71) 572-2272-6 71 FX2C2-040P-1.27DSA(71) 572-2223-0 71 FX2C2-040P-1.27DSAL(71) 572-2273-9 71 FX2C2-052P-1.27DSA(71) 572-2224-3 71 FX2C2-052P-1.27DSAL(71) 572-2274-1 71 FX2C2-060P-1.27DSA(71) 572-2225-6 71 FX2C2-060P-1.27DSAL(71) 572-2275-4 71 FX2C2-068P-1.27DSA(71) 572-2226-9 71 FX2C2-068P-1.27DSAL(71) 572-2276-7 71 FX2C2-080P-1.27DSA(71) 572-2227-1 71 FX2C2-080P-1.27DSAL(71) 572-2277-0 71 FX2C2-100P-1.27DSA(71) 572-2228-4 71 FX2C2-100P-1.27DSAL(71) 572-2278-2 71 FX2C2-120P-1.27DSA(71) 572-2229-7 71 FX2C2-120P-1.27DSAL(71) 572-2279-5 71 No. of Contacts A B 20 22.75 11.43 32 30.37 19.05 40 35.45 24.13 52 43.07 31.75 60 48.15 36.83 68 53.23 41.91 80 60.85 49.53 100 73.55 62.23 120 86.25 74.93 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ 49.53 ________ 57.15 ________ 69.85 ________ 82.55 YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type BPCB mounting pattern Unit : mm Part No. HRS No. FX2CA2-020P-1.27DSA(71) 572-2321-0 71 FX2CA2-020P-1.27DSAL(71) 572-2371-8 71 FX2CA2-032P-1.27DSA(71) 572-2322-2 71 FX2CA2-032P-1.27DSAL(71) 572-2372-0 71 FX2CA2-040P-1.27DSA(71) 572-2323-5 71 FX2CA2-040P-1.27DSAL(71) 572-2373-3 71 FX2CA2-052P-1.27DSA(71) 572-2324-8 71 FX2CA2-052P-1.27DSAL(71) 572-2374-6 71 FX2CA2-060P-1.27DSA(71) 572-2325-0 71 FX2CA2-060P-1.27DSAL(71) 572-2375-9 71 FX2CA2-068P-1.27DSA(71) 572-2326-3 71 FX2CA2-068P-1.27DSAL(71) 572-2376-1 71 FX2CA2-080P-1.27DSA(71) 572-2327-6 71 FX2CA2-080P-1.27DSAL(71) 572-2377-4 71 FX2CA2-100P-1.27DSA(71) 572-2328-9 71 FX2CA2-100P-1.27DSAL(71) 572-2378-7 71 FX2CA2-120P-1.27DSA(71) 572-2329-1 71 FX2CA2-120P-1.27DSAL(71) 572-2379-0 71 No. of Contacts A B 20 22.75 11.43 32 30.37 19.05 40 35.45 24.13 52 43.07 31.75 60 48.15 36.83 68 53.23 41.91 80 60.85 49.53 100 73.55 62.23 120 86.25 74.93 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ YES 49.53 ________ 57.15 ________ 69.85 ________ 82.55 21 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Receptacle SMT Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type Note 1 : The 120 contacts type differs in the style. Note 2 : The connector positioning bosses are constructed to press fit into the board with light force. When mounting on the board, press the connector lightly from the top and check that the positioning bosses are securely inserted in the board holes and that the connector leads are engaged in the board. The recommended boss hole for use with automatic mounting is illustrated in fig. 1. BPCB mounting pattern 1.75±0.05 N ot e 2 5) 87 2.1±0.05 0. (R 4- FIG.1 Unit : mm 22 Part No. HRS No. FX2-020S-1.27SV(71) 572-2101-3 71 FX2-020S-1.27SVL(71) 572-2151-1 71 FX2-032S-1.27SV(71) 572-2102-6 71 FX2-032S-1.27SVL(71) 572-2152-4 71 FX2-040S-1.27SV(71) 572-2103-9 71 FX2-040S-1.27SVL(71) 572-2153-7 71 FX2-052S-1.27SV(71) 572-2104-1 71 FX2-052S-1.27SVL(71) 572-2154-0 71 FX2-060S-1.27SV(71) 572-2105-4 71 FX2-060S-1.27SVL(71) 572-2155-2 71 FX2-068S-1.27SV(71) 572-2106-7 71 FX2-068S-1.27SVL(71) 572-2156-5 71 FX2-080S-1.27SV(71) 572-2107-0 71 FX2-080S-1.27SVL(71) 572-2157-8 71 FX2-100S-1.27SV(71) 572-2108-2 71 FX2-100S-1.27SVL(71) 572-2158-0 71 FX2-120S-1.27SV(71) 572-2109-5 71 FX2-120S-1.27SVL(71) 572-2159-3 71 No. of Contacts A B C D 20 22.75 11.43 17.63 16.51 32 30.37 19.05 25.25 24.13 40 35.45 24.13 30.33 29.21 52 43.07 31.75 37.95 36.83 60 48.15 36.83 43.03 41.91 68 53.23 41.91 48.11 46.99 80 60.85 49.53 55.73 54.61 100 73.55 62.23 68.43 67.31 120 86.25 74.93 81.13 80.01 E ________ F ________ 25.75 ________ 21.15 ________ 33.37 ________ 28.77 ________ 38.45 ________ 33.85 ________ 46.07 ________ 41.47 ________ 51.15 ________ 46.55 ________ 56.23 ________ 51.63 ________ 63.85 ________ 59.25 ________ 76.55 ________ 71.95 ________ 89.25 84.65 RoHS YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header SMT Type Note : The connector positioning bosses are constructed to press fit into the board with light force. When mounting on the board, press the connector lightly from the top and check that the positioning bosses are securely inserted in the board holes and that the connector leads are engaged in the board. The recommended boss hole for use with automatic mounting is illustrated in fig. 1. BPCB mounting pattern 1.75±0.05 N ot e 2.1±0.05 5) 87 0. (R 4- Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type FIG.1 Unit : mm Part No. HRS No. FX2-020P-1.27SV(71) 572-2001-9 71 FX2-020P-1.27SVL(71) 572-2051-7 71 FX2-032P-1.27SV(71) 572-2002-1 71 FX2-032P-1.27SVL(71) 572-2052-0 71 FX2-040P-1.27SV(71) 572-2003-4 71 FX2-040P-1.27SVL(71) 572-2053-2 71 FX2-052P-1.27SV(71) 572-2004-7 71 FX2-052P-1.27SVL(71) 572-2054-5 71 FX2-060P-1.27SV(71) 572-2005-0 71 FX2-060P-1.27SVL(71) 572-2055-8 71 FX2-068P-1.27SV(71) 572-2006-2 71 FX2-068P-1.27SVL(71) 572-2056-0 71 FX2-080P-1.27SV(71) 572-2007-5 71 FX2-080P-1.27SVL(71) 572-2057-3 71 FX2-100P-1.27SV(71) 572-2008-8 71 FX2-100P-1.27SVL(71) 572-2058-6 71 FX2-120P-1.27SV(71) 572-2009-0 71 FX2-120P-1.27SVL(71) 572-2059-9 71 No. of Contacts A B C 20 22.75 11.43 16.51 32 30.37 19.05 24.13 40 35.45 24.13 29.21 52 43.07 31.75 36.83 60 48.15 36.83 41.91 68 53.23 41.91 46.99 80 60.85 49.53 54.61 100 73.55 62.23 67.31 120 86.25 74.93 80.01 D ________ E ________ 25.75 ________ 21.15 ________ 33.37 ________ 28.77 ________ 38.45 ________ 33.85 ________ 46.07 ________ 41.47 ________ 51.15 ________ 46.55 ________ 56.23 ________ 51.63 ________ 63.85 ________ 59.25 ________ 76.55 ________ 71.95 ________ 89.25 84.65 RoHS YES 23 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header SMT Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Right Angle Type Note : The FX2A type does not have bosses as shown in the illustration. BPCB mounting Pattern BRecommended Screw Clamp Use M2 screw for fixture. Recommended torque is 0.15(N•m). Unit : mm 24 Part No. HRS No. FX2-20P-0.635SH (71) 572-2761-2 71 FX2A-20P-0.635SH (71) 572-2771-6 71 FX2-40P-0.635SH (71) 572-2763-8 71 FX2A-40P-0.635SH (71) 572-2773-1 71 FX2-52P-0.635SH (71) 572-2764-0 71 FX2A-52P-0.635SH (71) 572-2774-4 71 FX2-60P-0.635SH (71) 572-2765-3 71 FX2A-60P-0.635SH (71) 572-2775-7 71 FX2-80P-0.635SH (71) 572-2767-9 71 FX2A-80P-0.635SH (71) 572-2777-2 71 No. of Contacts A B C D E F G 20 22.75 12.065 18.05 6.85 ________ 8.85 ________ 15.7 ________ 21.15 40 35.45 24.765 30.75 13.2 ________ 15.2 ________ 28.4 ________ 33.85 52 43.07 32.385 38.37 17.01 ________ 19.01 ________ 36.02 ________ 41.47 60 48.15 37.465 43.45 19.55 ________ 21.55 ________ 41.1 ________ 46.55 80 60.85 50.165 56.15 25.9 ________ 27.9 ________ 53.8 ________ 59.25 RoHS YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Socket Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Lock Cable Type Combination View Unit : mm Part No. HRS No. No. of Contacts A FX2B-020SA-1.27R 572-0621-2 20 27.83 FX2B-032SA-1.27R 572-0622-5 32 35.45 FX2B-040SA-1.27R 572-0623-8 40 40.53 FX2B-052SA-1.27R 572-0624-0 52 48.15 FX2B-060SA-1.27R 572-0625-3 60 53.23 FX2B-068SA-1.27R 572-0629-4 68 58.31 FX2B-080SA-1.27R 572-0630-3 80 65.93 FX2B-100SA-1.27R 572-0628-1 100 78.63 HRS No. No. of Contacts A FX2BA-020SA-1.27R 572-0671-0 20 18.05 FX2BA-032SA-1.27R 572-0672-3 32 25.67 FX2BA-040SA-1.27R 572-0673-6 40 30.75 FX2BA-052SA-1.27R 572-0674-9 52 38.37 FX2BA-060SA-1.27R 572-0675-1 60 43.45 FX2BA-068SA-1.27R 572-0676-4 68 48.53 FX2BA-080SA-1.27R 572-0677-7 80 56.15 FX2BA-100SA-1.27R 572-0678-0 100 68.85 RoHS YES ●Unlock Cable Type Combination View Part No. Unit : mm RoHS YES BConnection Tool Type Part No. HRS No. Guide plate FX2B(A)-GPA 550-0212-6 Connection press Hi-Flex connection press 550-0082-2 Note : HRS6 cable cutter FC601 isn't required for FX2B(A) connection. (Connected without convex-concave cutting.) 25 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Right Angle Type for Lock BPCB mounting pattern Unit : mm Part No. 26 HRS No. FX2B-020PA-1.27DS(71) 572-0721-7 71 FX2B-020PA-1.27DSL(71) 572-0771-5 71 FX2B-032PA-1.27DS(71) 572-0722-0 71 FX2B-032PA-1.27DSL(71) 572-0772-8 71 FX2B-040PA-1.27DS(71) 572-0723-2 71 FX2B-040PA-1.27DSL(71) 572-0773-0 71 FX2B-052PA-1.27DS(71) 572-0724-5 71 FX2B-052PA-1.27DSL(71) 572-0774-3 71 FX2B-060PA-1.27DS(71) 572-0725-8 71 FX2B-060PA-1.27DSL(71) 572-0775-6 71 FX2B-068PA-1.27DS(71) 572-0726-0 71 FX2B-068PA-1.27DSL(71) 572-0776-9 71 FX2B-080PA-1.27DS(71) 572-0727-3 71 FX2B-080PA-1.27DSL(71) 572-0777-1 71 FX2B-100PA-1.27DS(71) 572-0728-6 71 FX2B-100PA-1.27DSL(71) 572-0778-4 71 No. of Contacts A B C 20 30.33 11.43 18.05 32 37.95 19.05 25.67 40 43.03 24.13 30.75 52 50.65 31.75 38.37 60 55.73 36.83 43.45 68 60.81 41.91 48.53 80 68.43 49.53 56.15 100 81.13 62.23 68.85 RoHS YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header No Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type for Lock BPCB mounting pattern Unit : mm Part No. HRS No. FX2B-020P-1.27DSA(71) 572-0801-4 71 FX2B-020P-1.27DSAL(71) 572-0851-2 71 FX2B-032P-1.27DSA(71) 572-0802-7 71 FX2B-032P-1.27DSAL(71) 572-0852-5 71 FX2B-040PA-1.27DSA(71) 572-0823-7 71 FX2B-040PA-1.27DSAL(71) 572-0873-5 71 FX2B-052PA-1.27DSA(71) 572-0824-0 71 FX2B-052PA-1.27DSAL(71) 572-0874-8 71 FX2B-060PA-1.27DSA(71) 572-0825-2 71 FX2B-060PA-1.27DSAL(71) 572-0875-0 71 FX2B-068PA-1.27DSA(71) 572-0826-5 71 FX2B-068PA-1.27DSAL(71) 572-0876-3 71 FX2B-080PA-1.27DSA(71) 572-0827-8 71 FX2B-080PA-1.27DSAL(71) 572-0877-6 71 FX2B-100PA-1.27DSA(71) 572-0828-0 71 FX2B-100PA-1.27DSAL(71) 572-0878-9 71 No. of Contacts A B 20 30.33 11.43 32 37.95 19.05 40 43.03 24.13 52 50.65 31.75 60 55.73 36.83 68 60.81 41.91 80 68.43 49.53 100 81.13 62.23 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ YES 44.45 ________ 49.53 ________ 57.15 ________ 69.85 27 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector ■Header Cleaning Type Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Straight Type for Lock BPCB mounting pattern Unit : mm Part No. 28 HRS No. FX2BA-020P-1.27DSA(71) 572-0901-9 71 FX2BA-020P-1.27DSAL(71) 572-0951-7 71 FX2BA-032P-1.27DSA(71) 572-0902-1 71 FX2BA-032P-1.27DSAL(71) 572-0952-0 71 FX2BA-040PA-1.27DSA(71) 572-0923-1 71 FX2BA-040PA-1.27DSAL(71) 572-0973-0 71 FX2BA-052PA-1.27DSA(71) 572-0924-4 71 FX2BA-052PA-1.27DSAL(71) 572-0974-2 71 FX2BA-060PA-1.27DSA(71) 572-0925-7 71 FX2BA-060PA-1.27DSAL(71) 572-0975-5 71 FX2BA-068PA-1.27DSA(71) 572-0926-0 71 FX2BA-068PA-1.27DSAL(71) 572-0976-8 71 FX2BA-080PA-1.27DSA(71) 572-0927-2 71 FX2BA-080PA-1.27DSAL(71) 572-0977-0 71 FX2BA-100PA-1.27DSA(71) 572-0928-5 71 FX2BA-100PA-1.27DSAL(71) 572-0978-3 71 No. of Contacts A B 20 30.33 11.43 32 37.95 19.05 40 43.03 24.13 52 50.65 31.75 60 55.73 36.83 68 60.81 41.91 80 68.43 49.53 100 81.13 62.23 C ________ RoHS 19.05 ________ 26.67 ________ 31.75 ________ 39.37 ________ 44.45 ________ 49.53 ________ 57.15 ________ 69.85 YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector FX2M6 Series ■Ordering Imformation FX2M6 A - 60 P - 1.27 DSA L 1 2 3 4 5 6 7 Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 1 Series Name : FX2M6 2 Type No. :A 3 Number of contacts : 60 4 Contact Style P : Header S : Receptacle 5 Contact pitch : 1.27mm 6 DSA : Straight type 7 L : Board prefixed pin BStacking Variation Unit : mm Receptacle FX2C-60S Header -1.27DSA FX2C2-60S FX2M6B-60S -1.27DSA -1.27DSAL FX2C-60P -1.27DSA 12 14 28.2 FX2C1-60P -1.27DSA 13 15 29.2 *2 FX2C2-60P -1.27DSA 14 16 30.2 *2 FX2M6B-60P -1.27DSAL 28.4 *1 30.4 *1 44 FX2M6A-60P -1.27DSAL 34.4 *1 36.4 *1 50 Note 1. Mate the male and female connectors to meet the allowable clearance within 1.0mm. However, set it within 0.4mm in combination *1. Note 2. In case of combination *2, 0.6mm clearance occurs on the mating side, but no problem. Note 3. After the board is mounted, fix the board by screws. 29 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Header BPCB mounting pattern Unit : mm 30 Part No. HRS No. A FX2M6A-60P-1.27DSAL(71) 572-1036-8 71 30.9 FX2M6B-60P-1.27DSAL(71) 572-1041-8 71 24.9 RoHS YES FX2 Series●1.27mm Pitch Multi-function Two Piece Connector Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Receptacle BPCB mounting pattern Unit : mm Part No. HRS No. A RoHS FX2M6B-60S-1.27DSAL(71) 572-1042-0 71 19.1 YES 31 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector BConnection Circuit Diagram Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Type A, B Connection to Cable 1 A1 B2 bn 1 ······ 1 bn ······ B1 ······ an an ······ A2 Connection to Cable 2 An a1 Bn b1 Type A, A Connection to Cable 1 32 Connection to Cable 2 A2 b2 B2 a2 ······ a1 ······ B1 ······ b1 ······ A1 An bn Bn an n= Number of Contacts 2 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector BConnecter Use Hand book 1. Selecting connector 1 The FX2 series is the perfect flux tight connector for the straight type in the soldering process, but it depends on the soldering process whether non-cleaning type (FX2C-*, FX2B-*) or cleaning type (FX2CA-*, FX2BA-*) should be selected. Please be sure to clean the right angle type (FX2-*, FX2B-*) connector. To clean the connector, please be sure to use detergent, containing no contaminant. 2 To use the socket cable type, if a vibration or shock load is applied to the cable, select the lock type. In addition, if a load is applied to the cable, please be sure to use the cable clamp. 2. Prefixed Process to Board Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. If the prefixed process is required for mounting the board, please use the prefixed pin type. (Applicable board thickness t = 1.6±0.1) Note : In order to prevent the dip post breakage in the connector installation to the board, please insert the board in parallel to the connector so that the prefixed pin may be forcibly pushed in, after the dip post is guided to the board through-hole. 3. Mating Side Tolerance Clearance (Example) FX2C-*P-1.27DSA and FX2C-*S-1.27DSA Set the tolerance clearance within 1mm to mate the male and female connectors. (Except for the lock cable type) 4. Cautions: for Using Lock Cable Type 1 When the connector is mated, insert the connector by the end so as not to make a clearance. 2 When the connector is inserted or extracted, please insert or extract the connector after the both lock levers are laid inside. If the connector is inserted or extracted with either lock lever laid, the connector may be broken. 3 please do not open the lock lever outside. 33 FX2 Series●1.27mm Pitch Multi-function Two Piece Connector 5. SMT Type Connector Mounting Temperature Profile (Reference) ●IR Reflow HRS test conditions Test boardGlass epoxy 110mm∞40mm∞1.6mm thick Solder method (MAX 250ç) 260 96.5%Sn/ 3%Ag/ 0.5%Cu 240 220ç 220 Temperature (ç) Jan.1.2023 Copyright 2023 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Metal mask : 0.2mm thick (Straight) Reflow cycles : 2 cycles 200ç 200 0.15mm thick(Right angle) 180 160 140 : Reflow Solder composition : Paste, The temperature profile is based on the above conditions. 150ç In individual applications the actual temperature may vary, depending on solder paste type, volume/thickness and board size/thickness. Consult your solder paste and equipment manufacturer for specific 0 recommendations. (90 to 120 sec.) Preheating(150 to 200ç) (MAX 60sec.) Soldering Time (220çmin) Time (sec.) * In regard to the straight type, please contact Hirose Electric about the recommended open area ratio when using a 0.15mm metal mask. 6. SMT Type Connector mated height As shown in the application pattern, the mated height of the male/female connector doesn't contain the solder paste thickness. Thus, after the connector installation in the board, consider that the mated height will be widened in proportion to the solder paste thickness. 34 The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use. The contents of this catalog are current as of date of 11/2022. Contents are subject to change without notice for the purpose of improvements.
