承
认
书
APPROVAL SHEET
客 户 名 称:
天河星供应链
Customer

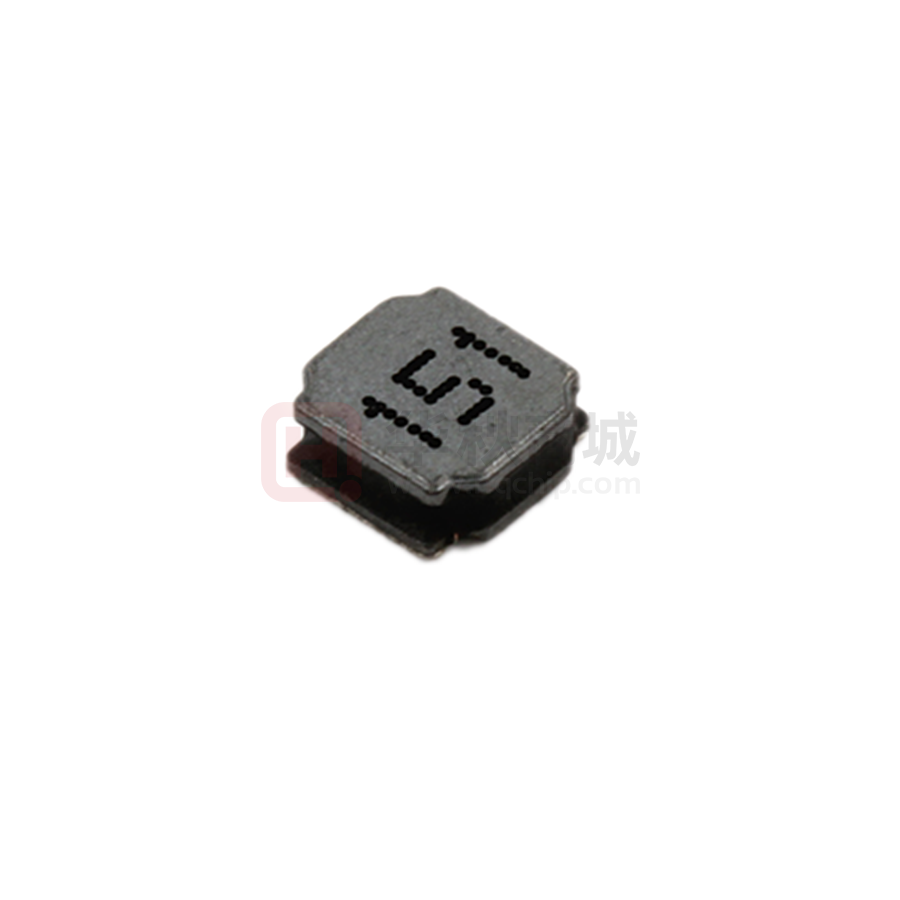

功率电感器
Power Inductor
产 品 名 称:
Part Name
产 品 规 格:
PRS4018-220MTR90
Specification
版 本 号:
16.01
Version No.
日
期:
2017-2-16
DATE
制造
客户
Manufacturer
Customer
拟制
审核
确认
检验
审核
批准
Draft by
Checked by
Approve by
Check by
Checked by
Approval by
黎剑燕
冯东梅
徐建平
序号
No
目
录
TABLE OF CONTENTS
1
履历表 Resume
2
结构及尺寸 Structure And Dimensions
3
型号规格表示办法 How To Order
4
电气性能 Performance Specification
5
可靠性 Reliability Data
6
包装 Package
7
环保情况说明 Environmental Protection Statement
8
推荐使用的焊接曲线 Recommended soldering profile
9
清洗 Cleaning
10
贮存方法 Storage Methods
11
使用注意事项 Precautions For Use
Page 1 of 10
1. 履历表 Resume
版本
Version No.
16.01
修 改 明 细
Modify Details
首次发行 Initial issue
日期
Date
2017-2-16
Page 2 of 10
B
J
I
单位 Unit:mm
I
G
F
A
Marking
F
2. 结构及尺寸 Structure And Dimensions
C
H
E
RECOMMENDED
LAND PATTERNS
顶部印字 Marking:1.0µH→1R0,10µH→100,100µH→101,1000µH→102
A
B
C
E
typical
F
typical
G
typical
H
typical
I
typical
J
typical
4.0±0.2
4.0±0.2
1.80MAX
3.4
1.2
1.6
3.6
1.4
1.6
结构图 Structural drawing:
③
②
①
No.
部位 Component
材料 Material
①
磁芯 Core
镍锌铁氧体磁芯 Ni-Zn ferrite core
②
线圈 Winding
漆包线 Enamelled Wire
③
保护层 Shield
导磁胶
magnetic glue
④
电极 Electrode
底层—银 Substrate—Ag
镀 层 — 镍 层 -- 锡 层 Base
plating—Ni-Sn
表 层 焊 锡 — 锡 / 铜 Surface
solder—Sn/Cu
④
3. 型号规格表示办法 How To Order
PRS
4018
①
②
-
1R0
□
T
③
④
⑤
□□□
⑥
①
②
③
④
⑤
⑥
产品代号,Product symbol
尺寸规格,Dimension
电感量标称值,Inductance
电感量公差代码,Tolerance code, N ±30%,M ±20%,K ±10%
包装代码,T-编带卷盘;B-散装,Packing code: T-Tape & reel;B-Bulk
标准代码,空缺-标准品,标示-定制品,
Standard code, Vacant-Standard product, Indicate-custom product
Page 3 of 10
4. 电气性能 Performance Specification
客户料号
Customers
Part No.
风华型号 Fenghua
Part No.
PRS4018-220MTR90
电感量
Inductance(µH)
中心值
Normal
公差
Tolerance
22
±20%
直流电阻
RDC(Ω)
±30%
饱和电
流
Isat
(A)
温升电
流
Irms
(A)
印字
Marking
0.360
0.90
0.72
220
测试仪器 Test equipment:Inductance\RDC---HP4263B or equivalent, Isat\Irms--- Microtest 6379 & 6220 or equivalent.
Ls 测试频率/电压 Ls Test frequency/Voltage:100kHz/500mV;
Isat:指使电感量比初始值下降约 30%的电流值,
Irms: 指使电感器表面温度上升 40℃的电流值(参考周围环境温度 20℃)
。
Isat: DC current at which the inductance drops approximate 30% from its value without current;
Irms: The DC current is inductor surface temperature to rise by 40℃ ( Reference ambient temperature 20℃).
l 特性曲线图 Characteristic Curve
Page 4 of 10
5. 可靠性 Reliability Data
序号
No.
项目
Items
要求
Requirements
试验方法及备注
Test Methods and Remarks
-40℃~+125℃
包括自身发热的上升温度
Including self-heating temperature rise.
≥100MΩ
在电感器线圈和磁芯之间施加
100 V±15 V 直流电压保持 60 s± 2 s。
100 V±15 V DC between inductor coil
and core for 60 seconds.
电极面 90%以上覆盖新的焊料。
90% or more of electrode area
shall be coated by new solder.
在 245 ℃±5 ℃ 熔 融 的 焊 锡
(96.5Sn/3.0Ag/0.5Cu)中浸 5 s±1 s。
Dip pads in flux and dip in solder pot
(96.5Sn/3.0Ag/0.5Cu) at
245 ℃±5 ℃ for (5±1) seconds.
工作温度范围
1
2
3
Operating
Temperature Range
绝缘电阻
Insulation Resistance
可焊性
Solderability
耐焊接热
4
Resistance to
Soldering Heat
外观无可见机械损伤;
电感量变化率:±10%以内。
No visible mechanical damage.
Inductance change: Within ±10%
元件的端子与本体结合无松动、无
5
端子强度
Adhesion of terminal
electrode
脱落。
Strong bond between the pad
and the core, without come off
PC board.
6
7
温度特性
Temperature
characteristic
恒定湿热
Static Humidity
电 感 量 变 化 率 Pc-b,Pc-d 不 超 过
±20%。
Inductance change Pc-b,Pc-d:
Within ±20%
在 260 ℃±5 ℃ 熔 融 的 焊 锡
(96.5Sn/3.0Ag/0.5Cu)中浸 10 s±1 s。
Dip pads in flux and dip in solder pot
(96.5Sn/3.0Ag/0.5Cu) at
260℃±5 ℃ for (10±1) seconds.
将电感器用 260 ℃±5 ℃,20 s±5 s 焊在
带有 0.3 mm 厚锡膏的基板上,然后用冶
具垂直电极面方向加压
10 N,10 s ±1 s。
Inductors shall be subjected to
260 ℃ ±5 ℃ for 20 s±5 s Soldering
in the base whit 0.3mm solder. And
then aplomb electrode way plus tax
10 N for 10± 1s seconds.
a:+20 ℃ (30~45) min →
b: -40 ℃ (30~45) min →
c: +20 ℃ (30~45) min →
d: +85 ℃ (30~45) min →
e: +20 ℃ (30~45) min
Pc -b =
Lb − Lc
Ld − Lc
×100% ; Pc -d =
×100%
Lc
Lc
外观无可见机械损伤;电感量变化 将电感器放置在于湿度(93±3)%RH,温
度 40 ℃±2 ℃的环境中存放 96 h±2 h,
率:±10%以内。
在室温下放置 2 小时后、48 小时内测试。
No visible mechanical damage. Inductors shall be subjected to
Inductance change: Within ±10% (93±3)%RH . at 40 ℃±2 ℃ for 96 h±2
h .Inductors are to be tested after
having air dried for 2 hours.
Page 5 of 10
(续上表 Continue on the table)
序号
No.
8
项目
Items
气候顺序
Climate order
要求
Requirements
试验方法及备注
Test Methods and Remarks
外观无可见机械损伤;电感量变化
率:±10%以内。
No visible mechanical damage.
Inductance change: Within ±10%
1.高温:GB/T 2423.2-2008 试验方法 Bb,温度
+125 ℃± 2 ℃,时间 96 h±2 h;
2.交变湿热-第一个循环:
GB/T 2423.4-2008 试验方法Db:
温度25 ℃→ +55 ℃,循环1次,按24小时循环;
3.低温:GB/T 2423.1-2008,低温试验方法Ab,
-40 ℃ ±2 ℃,时间96 h±2 h;
4.交变湿热 –其余的循环
GB/T 2423.4-2008 试验方法Db:
温度 25 ℃→ +55 ℃,循环 1 次,按 24 小时循环;
在室温下放置 2 小时后、48 小时内测试。
1. High temperature: According to GB / T
2423.2-2008 Standard Test Method Bb,
temperature is 125 ℃± 2 ℃ and keep 96±2
hours.
2. Alternating hot and humid (The first cycle):
According to GB / T 2423.4-2008 Standard
Test Method Db, the temperature cycle shall
be placed at 25℃ and 55℃ for 24h.
3. .Low temperature: According to GB / T
2423.1-2008 Standard Test Method Ab,
temperature is -40±2 ℃ and keep 96±2
hours.
4. Alternating hot and humid (Other cycles):
According to GB / T 2423.4-2008 Standard
Test Method Db, the temperature cycle shall
be placed at 25℃ and 55℃ for 24h.
Inductors are to be tested after having air dried
for 2 hours.
9
温度变化
Thermal
shock
耐久性
10
(寿命)
Life
外观无可见机械损伤;电感量变化
率:±10%以内。
No visible mechanical damage.
Inductance change: Within ±10%
外观无可见机械损伤;电感量变化
率:±10%以内。
No visible mechanical damage.
Inductance change: Within ±10%
Page 6 of 10
(-40±3) ℃,时间(30±3) min ↔
(85℃±2) ℃/(30±3) min,转换时间(2~3) min,循环
5次;
在室温下放置 2 小时后、48 小时内测试。
The test sample shall be placed at (-40±3)℃
and (85±2)℃ for (30±3) min, different
temperature conversion time is 2~3 minutes.
The temperature cycle shall be repeated 5
cycles.
温度 85 ℃±2℃,时间 1000 h±24 h,施加额定电
流,在室温下放置 2 小时后、48 小时内测试。
Inductors shall be store at 85±2℃ for 1000
hours with rated current applied.
Inductors shall be tested after four hours at
room temperature.
6. 包装 Package
6.1 载带尺寸 Tape Dimension(单位:毫米 Unit:mm)
P0
T
B0
W
F
D
E
P2
D1
P
A0
K0
W
A0
B0
D
D1
E
F
K0
P0
P2
P
T
12±0.5
4.3±0.3
4.3±0.3
1.5±0.3
1.5MIN
1.75±0.3
5.5±0.3
2.1±0.3
4.0±0.3
2.0±0.3
8.0±0.3
0.30±0.10
a
b
6R8
6R8
6R8
6R8
6R8
6R8
6R8
6R8
6.2 供料方向 Direction of feed(单位:毫米 Unit:mm)
c
Direstion of feed
供料方向
D
底部视图
A
B
C
D
a
b
c
330
typ.
100
typ.
13
typ.
12.4
typ.
空带
blank portions
装元件
chip cavity
引带
leader
6.3 包装数量 Packing quantity
卷盘 REEL
纸盒 BOX
(PCS)
(PCS)
3,000
15,000
中号纸箱
Medium Carton(PCS)
(Size: 35.8*35.8*20cm)
大号纸箱
Large Carton(PCS)
(Size: 35.8*35.8*29.5cm)
30,000
45,000
6.4 剥离力要求 Peeling required
① F 力大小 F force:20~100g;
② 面带剥离速度 Peeling speed:300mm/min±10%;
③ 面带剥离角度 Peeling angle:165°~180°。
Page 7 of 10
7. 环保情况说明 Environmental Protection Statement
RoHS 指令:本公司产品符合 RoHS 指令。
Response to RoHS directive:Our products are RoHS compliance.
8. 推荐使用的焊接曲线 Recommended soldering profile
本产品建议使用回流焊接法。
Applicable soldering process to the products is reflow soldering.
8.1 焊接材料 Soldering Materials
⑴焊料:Sn-3.0Ag-0.5Cu
⑵助焊剂:使用松香基助焊剂,禁止使用卤化物含量超过 0.2wt%的强酸性助焊剂和水溶
性助焊剂。
⑴Solder: Sn-3.0Ag-0.5Cu
⑵Flux: Use rosin-based flux, but not strongly acidic flux (with chlorine exceeding 0.2
wt%). Do not use water-soluble flux.
8.2 焊接曲线 Soldering Profile
⑴ 回流焊接曲线 Reflow Soldering Profile
8.3 烙铁焊接 Soldering Iron
使用烙铁进行返修时要求在 150℃下预热至少 1 分钟,不能直接用焊头接触磁体,返
修焊接条件如下:
①烙铁头温度:350℃;②烙铁输出功率:≤30W;③烙铁头直径:≤1.0mm;④焊接时间:
