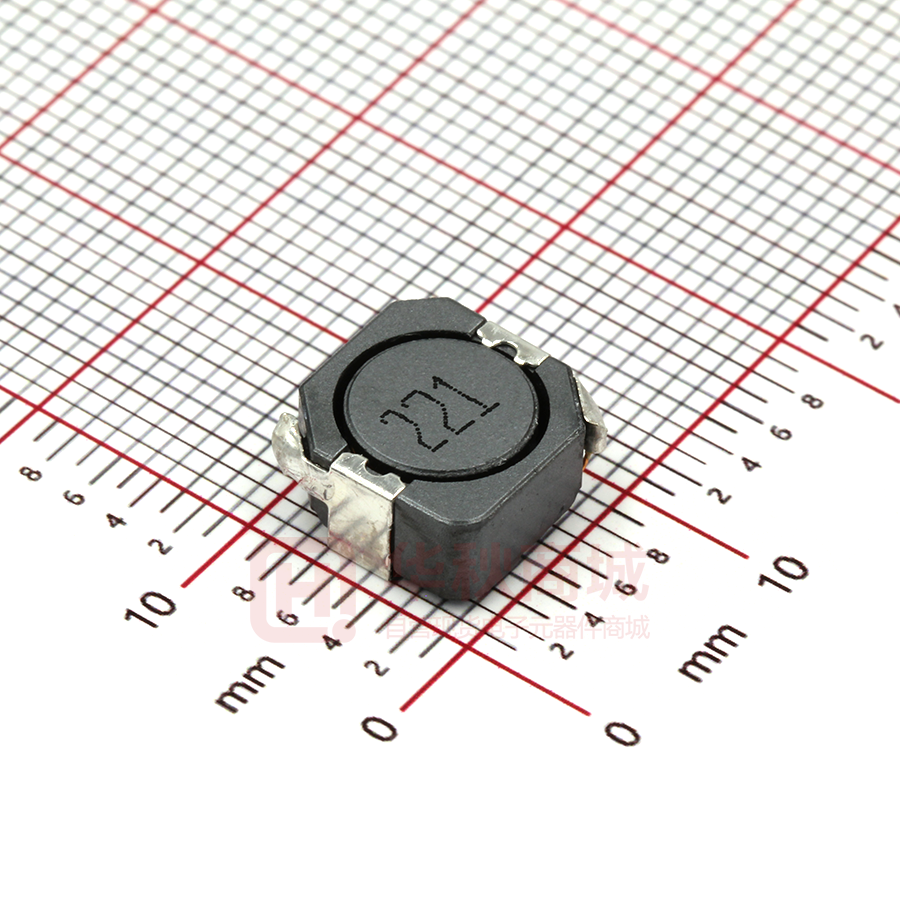

SCDS105R-221M-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BPSC Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series SCDS Series Features Applications  RoHS, Halogen Free and REACH Compliance  Magnetic shielded  Various package size and wide inductance range       AP Routers STBs LCD TVs and monitors Game consoles LED lightings DC/DC converters     T : Packaging: Tape and Reel HP : High Power LD : Low DCR CEC Internal No.: S: Base type terminals Product Identification SCDS SCDS3D16 SCDS2D11/2D14/2D18LD/ 2D18HP Shape and Dimensions Recommended Pattern Dimension in mm TYPE Dimensions in mm A +0 B +0 C +0 SCDS2D11 3.2 3.2 SCDS2D14 3.2+0 3.2+0 1.55+0 SCDS2D18LD SCDS2D18HP +0 3.2 +0 3.2 +0 3.2 +0 3.2 1.2 +0 2.0 +0 2.0 D E F +0 4.5 3.3 2.1 4.5+0 3.3 2.1 +0 3.3 2.1 4.5 +0 4.5 3.3 2.1 G A B C D 1.0 SCDS2D11 TYPE 1.3 1.7 1.3 4.3 1.0 SCDS2D14 1.3 1.7 1.3 4.3 1.0 SCDS2D18LD 1.3 1.7 1.3 4.3 1.0 SCDS2D18HP 1.3 1.7 1.3 4.3 SMD Shielded Power Inductors - SCDS Series SCDS3D11/3D11HP Shape and Dimensions Recommended Pattern Dimension in mm Dimensions in mm A B C D E F G A B C D SCDS3D11 4+0 4+0 1.2+0 5.2+0 4.4 2.8 1.1 SCDS3D11 1.4 2.4 1.5 5.2 SCDS3D11HP 4+0 4+0 1.2+0 5.2+0 4.4 2.8 1.1 SCDS3D11HP 1.4 2.4 1.5 5.2 TYPE TYPE SCDS 3D16T-XXX-S1-N Shape and Dimensions Recommended Pattern Dimensions in mm TYPE SCDS3D16 A +0 4 Dimension in mm B +0 4 C D +0 1.8 5.2 E +0 F 4.4Typ +0 1.4 G TYPE A B C D 1.1Typ SCDS3D16 1.4 2.4 1.5 5.2 SCDS3D28/3D28LD Shape and Dimensions Recommended Pattern Dimension in mm TYPE Dimensions in mm A +0 B +0 C D E F +0 TYPE A B C D SCDS3D28 4 4 3 4.4 2.8 1.1 SCDS3D28 1.4 2.4 1.5 5.2 SCDS3D28LD 4+0 4+0 3+0 4.4 2.8 1.1 SCDS3D28LD 1.4 2.4 1.5 5.2 SMD Shielded Power Inductors - SCDS Series Standard Specifications Stamp RDC (mΩ) Max Inductance (H) SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS 2D11 2D14 2D18LD 2D18HP 3D11 3D11HP 3D16 3D28 3D28LD 40 45 R47 0.47 R60 0.6 40 1R0 1.0 1R2 1.2 1R5 1.5 1R7 1.7 1R8 1.8 2R2 2.2 2R7 2.7 3R3 3.3 123 125 3R9 3.9 160 138 4R1 4.1 4R7 4.7 5R6 5.6 6R3 6.3 6R8 6.8 8R2 8.2 100 10 120 12 150 15 180 18 220 22 270 27 330 33 460 822 390 39 600 942 470 47 660 560 56 325 680 68 470 59 82 68 63 44 104 52 143 72 182 85 72.1 234 105 88.3 44 75 98 94 41 60 54 86 78 140 106 78 169 170 169 123 188 135 160 260 213 106 195 281 400 294 950 377 204 180 245 220 345 394 600 180 320 650 170 119 210 240 413 276 585 372 653 468 888 540 1010 210 145 295 213 95 100 115 125 430 335 675 481 726 145 175 215 225 599 305 820 82 101 100 540 121 120 151 150 880 181 180 1130 221 220 1270 2750 610 755 Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30% , N = +40-20%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated Current：DC current that will cause L drop approximately 35% over its nominal value or DC current cause the temperature rising  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： approximately △t=40℃, whichever is lower Test Freq L：SCDS 2D11/ 2D14/ 2D18LP/2D18HP/3D11/3D11HP/3D28/3D28LD (100kHz/ 1V), SCDS 3D16 (100kHz/ 0.1V) L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Rated Current： HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series Standard Specifications Stamp Rated Current (A) Inductance (H) SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS 2D11 2D14 2D18LD 2D18HP 3D11 3D11HP 3D16 3D28 3D28LD 1.60 2.80 R47 0.47 2.00 R60 0.6 1R0 1.0 1R2 1.2 1R5 1.5 1R7 1.7 1R8 1.8 2R2 2.2 2R7 2.7 3R3 3.3 0.60 1.20 3R9 3.9 0.60 1.10 4R1 4.1 4R7 4.7 5R6 5.6 6R3 6.3 6R8 6.8 8R2 8.2 100 10 120 12 150 15 180 18 220 22 270 27 330 33 0.24 0.15 390 39 0.22 0.14 470 47 0.20 560 56 0.20 680 68 0.185 2.90 2.00 0.90 1.80 1.90 1.85 1.55 1.60 1.20 1.25 1.10 2.00 1.00 0.90 1.65 1.85 1.65 0.78 1.50 0.85 1.60 1.35 0.53 0.75 1.45 0.63 1.20 1.00 0.50 1.00 0.40 0.95 0.80 1.05 0.44 0.85 0.52 1.00 0.80 0.35 0.70 0.34 0.85 0.32 0.43 0.85 0.62 0.25 0.35 0.70 0.16 0.30 0.50 0.73 1.24 0.55 0.28 0.80 0.25 0.64 0.23 0.58 0.21 0.52 0.19 0.45 0.55 1.05 0.45 0.90 0.40 0.76 0.50 0.45 0.40 0.35 0.17 0.33 0.29 0.32 0.58 0.28 0.25 0.48 0.23 820 82 101 100 0.172 121 120 0.136 151 150 0.124 181 180 0.119 221 220 0.116 0.13 Tolerance Of Inductors  SCDS 2D11 1.5 ~ 22uH ± 30%  SCDS3D11 2.7 ~ 39 uH ± 30%  SCDS 2D14 0.47 ~ 12H ± 30%  SCDS3D11HP 0.6 ~ 22 uH ± 30%  SCDS 2D18LD 2.2 ~ 47H ± 30%  SCDS3D16 1.0 ~ 100 uH ± 30%  SCDS 2D18HP 1.5 ~ 22H ± 30%  SCDS3D28 1.0 ~ 47 uH ± 30%  SCDS3D28LD 10 ~ 220 uH ± 30%  Tolerance： M = ±20% , T = ±30% , N = +40 -20% Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 0.160 SMD Shielded Power Inductors - SCDS Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL SCDS 2D11 3.35 3.35 1.4 1.55 1.75 12 8 4 2 178 60 13 13.2 1000 SCDS 2D14 3.35 3.35 1.7 1.55 1.75 12 8 4 2 178 60 13 13.2 1000 SCDS 2D18 3.5 3.5 2.1 1.55 1.75 12 8 4 2 178 60 13 13.2 1000 SCDS 3D11 4.2 4.2 1.5 1.55 1.75 12 8 4 2 178 60 13 13.2 1000 SCDS 3D16 4.1 4.1 2.0 1.5 1.75 12 8 4 2 178 60 13 13.2 1000 SCDS 3D28 4.2 4.2 3.2 1.55 1.75 12 8 4 2 178 60 13 13.2 500 SMD Shielded Power Inductors - SCDS Series SCDS Series Features Applications  RoHS, Halogen Free and REACH Compliance  Magnetic shielded  Various package size and wide inductance range       AP Routers STBs LCD TVs and monitors Game consoles LED lightings DC/DC converters Product Identification  T : Packaging: Tape and Reel  CEC Internal No.: S: Base type terminals SCDS 3D16T-XXXX-S-N Shape and Dimensions Recommended Pattern Dimensions in mm TYPE SCDS3D16 Dimension in mm A B C D E TYPE A B C D 4+0 4+0 1.8+0 5.2 +0 1.0 SCDS3D16 4.6 1.6 1.4 4.6 SCDS 4D18 ~ 6D38 Shape and Dimensions Recommended Pattern Dimension in TYPE mm Dimension in A B C +0 E TYPE A B C +0 1.9 1.5 5.3 1.9 1.5 5.3 D SCDS4D18 4.7 ± 0.3 4.7 ± 0.3 2.0 6.9 1.5 SCDS4D18 SCDS4D28 4.7 ± 0.3 4.7 ± 0.3 3.0+0 6.9+0 1.5 SCDS4D28 +0 +0 mm SCDS4D40 4.7 ± 0.3 4.7 ± 0.3 6.9 1.5 SCDS4D40 1.9 1.5 5.3 SCDS5D18 5.7 ± 0.3 5.7 ± 0.3 2.0+0 8.2+0 2.0 SCDS5D18 2.15 2.0 6.3 5.7 ± 0.3 5.7 ± 0.3 +0 +0 2.0 SCDS5D28 2.15 2.0 6.3 +0 9.5 2.0 SCDS6D28 2.65 2.0 7.3 9.5+0 2.0 SCDS6D38 2.65 2.0 7.3 SCDS5D28 SCDS6D28 SCDS6D38 6.7 ± 0.3 6.7 ± 0.3 7+0 7+0 4 3.0 +0 3.0 4+0 8.2 SMD Shielded Power Inductors - SCDS Series SMD Shielded Power Inductors - SCDS Series Standard Specifications Stamp Inductance (H) RDC (mΩ) Max Rated Current (A) SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS SCDS 3D16 4D18 4D28 4D40 45 5D18 5D28 6D28 38 15 24 6D38 3D16 4D18 4D28 4D40 1.72 5D18 5D28 6D28 2.80 3.50 3.50 2.50 3.00 3.40 2.60 3.00 1R0 1.0 1R2 1.2 1R5 1.5 1R8 1.8 2R0 2.0 2R2 2.2 2R5 2.5 2R6 2.6 2R7 2.7 3R0 3.0 3R3 3.3 85 3R6 3.6 90 3R9 3.9 4R1 4.1 4R2 4.2 31 2.20 4R3 4.3 41 2.5Typ 4R7 4.7 38 31 22 5R0 5.0 38 31 24 5R3 5.3 38 5R4 5.4 5R6 5.6 6R0 6.0 6R2 6.2 6R3 6.3 6R8 6.8 7R3 7.3 7R4 7.4 8R2 8.2 8R6 8.6 8R7 8.7 8R9 8.9 100 10 120 12 150 15 180 18 220 22 270 330 390 23.6 52 2.56 60 70 38 75 15 19.5 1.55 27.5 31.3 1.50 1.35 29.0 72 45 22 48 2.20 2.10 18 35 18 1.20 1.32 2.04 2.50 4.6 1.90 18 43.3 110 49.2 2.40 20 33 56 24 24 27 25 20 1.10 1.28 1.60 1.04 1.57 0.88 1.44 3.60 3.4 1.90 2.40 3.00 2.10 3.00 64.8 27 2.60 57 162 72.0 44 76 1.95 0.90 0.84 1.32 2.8 170 1.60 1.90 2.40 3.10 1.90 2.40 2.90 1.90 76 1.60 100.9 27 0.80 1.17 2.50 35 96 45 51 2.25 27 180 170 200 1.40 1.80 2.40 2.50 1.35 1.65 2.15 2.30 0.78 108.9 46 100 50 50 31 0.73 0.76 1.12 2.6 54 2.10 31 245 117.5 2.30 53 0.68 1.04 1.60 58 1.85 34 2.20 116 210 280 128.3 320 131.6 360 149.0 400 166.0 430 480 235.0 27 620 570 33 675 694 39 470 65 65 38 153 76 70 53 196 103 84 57 210 110 95 92 290 122 128 96 261.0 330 175 142 331.3 386 189 165 800 383.7 520 212 210 47 950 587.0 595 250 560 56 1080 624.5 665 680 68 1300 699.0 820 82 914.8 101 100 1020 121 120 151 150 181 180 221 220 331 1700 2000 150 1.25 124 295 210 270 0.55 0.61 1.00 0.56 0.84 1.20 1.30 1.70 2.00 1.10 1.20 1.55 0.50 0.76 1.70 0.97 1.10 1.40 0.48 0.72 1.60 0.85 1.00 1.32 0.40 0.41 0.70 1.50 0.80 0.90 1.20 1.30 109 0.35 0.35 124 0.32 0.32 0.58 0.75 0.85 1.05 1.20 0.56 0.65 0.75 0.97 138 1.10 0.30 0.50 0.57 0.70 0.86 238 1.00 150 0.28 0.48 0.54 0.62 0.80 305 0.95 277 202 0.26 0.41 0.50 0.58 0.73 0.85 840 978 355 304 234 0.24 0.35 0.43 0.52 0.65 0.75 463 390 324 0.32 0.41 0.46 0.60 1200 0.70 520 535 358 0.29 0.36 0.42 0.54 0.65 0.45 0.18 0.20 1270 2840 1350 0.15 1050 2000 1200 330 3400 391 390 3560 471 470 2500 561 560 3200 681 680 5200 1.8 1.6 1.4 0.27 1540 5500 3.50 0.95 155 105 3.80 2.60 22 105 6D38 0.24 0.22 0.29 0.20 0.28 1700 0.19 0.19 1800 0.18 0.18 0.08 0.15 1800 0.12 0.10 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 0.22 SMD Shielded Power Inductors - SCDS Series Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30% , N = +40-20%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated Current：DC current that will cause L drop approximately 35% over its nominal value or DC current cause the temperature rising approximately △t=40℃, whichever is lower  Measure Equipment： Test Freq L：SCDS 3D16(100kHz/ 0.1V) , 4D28/ 4D40 (100kHz/ 1V) , SCDS 5D18/ 5D28/ 6D28/ 6D38 (10kHz/ 1V) SCDS 4D18: 1.0~8.2H (7.96MHz/ 1V), 10~150H (100kHz/ 1V) L：Agilent/ E4980 or HP4284A RDC：Chroma 16502 Rated Current： HP4284+42841A or WK3260B+WK3265B Tolerance Of Inductors  SCDS 3D16 1.5 ~ 220H ± 30%  SCDS 5D18 1.0 ~ 100H ± 30%  SCDS 4D18 1.0 ~ 150H ± 30%  SCDS 5D28 1.0 ~ 560H ± 30%  SCDS 4D28 1.2 ~ 680H ± 30%  SCDS 6D28 1.0 ~ 100H ± 30%  SCDS 4D40 2.2 ~ 22H ± 30%  SCDS 6D38 2.2 ~ 560uH ± 30%  Tolerance： M = ±20% , T = ±30% , N = +40-20% Packaging Specifications Tape Dimensions Reel Dimensions Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL SCDS 3D16 4.1 4.1 2.0 1.5 1.75 12 8 4 2 178 60 13 13.2 1000 SCDS 4D18 5.3 5.3 2.4 1.5 1.75 12 8 4 2 330 100 13 13.4 2000 SCDS 4D28 5.3 5.3 3.4 1.5 1.75 12 8 4 2 330 100 13 13.4 2000 SCDS 4D40 5.35 5.35 4.1 1.55 1.75 12 8 4 2 330 100 13 13.4 1000 SCDS 5D18 6.2 6.2 2.2 1.5 1.75 16 12 4 2 330 100 13 13.4 2000 SCDS 5D28 6.2 6.2 3.2 1.5 1.75 16 12 4 2 330 100 13 13.4 2000 SCDS 6D28 7.25 7.25 3.35 1.55 1.75 16 12 4 2 330 100 13 16.0 1500 SCDS 6D38 7.1 7.1 4.1 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL SCDS 3D16 4.1 4.1 2.0 1.5 1.75 12 8 4 2 178 60 13 13.2 1000 SCDS 4D18 5.3 5.3 2.4 1.5 1.75 12 8 4 2 330 100 13 13.4 2000 SCDS 4D28 5.3 5.3 3.4 1.5 1.75 12 8 4 2 330 100 13 13.4 2000 SCDS 4D40 5.35 5.35 4.1 1.55 1.75 12 8 4 2 330 100 13 13.4 1000 SCDS 5D18 6.2 6.2 2.2 1.55 1.75 16 12 4 2 330 100 13 13.4 1500 SCDS 5D28 6.2 6.2 3.1 1.55 1.75 16 12 4 2 330 100 13 17.4 1500 SCDS 6D28 7.25 7.25 3.35 1.55 1.75 16 12 4 2 330 100 13 17.4 1500 SCDS 6D38 7.1 7.1 4.1 1.55 1.75 16 12 4 2 330 100 13 17.4 1000 SMD Shielded Power Inductors - SCDS Series SCDS Series Features Applications  RoHS, Halogen Free and REACH Compliance  Magnetic shielded  Various package size and wide inductance range       AP Routers STBs LCD TVs and monitors Game consoles LED lightings DC/DC converters Product Identification  T : Packaging: Tape and Reel SCDS 73/ 74 Shape and Dimensions Recommended Pattern Dimension in mm Dimension in mm TYPE A B C D TYPE A B C SCDS73 7.3±0.2 7.3±0.2 3.4+0 1.8 SCDS73 8.4 4.4 2.2 SCDS74 7.3±0.2 7.3±0.2 4.5+0 1.8 SCDS74 8.4 4.4 2.2 SCDS 103R/ 104R/ 105R Shape and Dimensions Recommended Pattern Dimensions in mm TYPE Dimension in mm A B +0 SCDS103R 10.3 +0 SCDS104R 10.3 +0 SCDS105R 10.3 C +0 10.5 +0 10.5 +0 10.5 +0 3.1 +0 4 +0 5.1 D E F 1.2 7.7 3.0 1.2 7.7 3.0 1.2 7.7 3.0 TYPE A B C +0 SCDS103R 1.6 7.3 3.2 +0 SCDS104R 1.6 7.3 3.2 +0 SCDS105R 1.6 7.3 3.2 G 13.5 13.5 13.5 SMD Shielded Power Inductors - SCDS Series SCDS 124/125/127 Shape and Dimensions Recommended Pattern Dimensions in mm TYPE A B 12.5 +0 SCDS125 12.5 +0 SCDS127 12.5+0 SCDS124 Dimensions in mm C +0 12.5 +0 E TYPE A B C 5 7.6 SCDS124 13 7 5.4 12.5 +0 6 5 7.6 SCDS125 13 7 5.4 12.5+0 8+0 5 7.6 SCDS127 13 7 5.4 +0 4.5 D SMD Shielded Power Inductors - SCDS Series Standard Specifications RDC (mΩ) Max Stamp Inductance (H) R80 1R0 0.8 1.0 1R2 1R5 1.2 1.5 30 20 8.1 5.8 7.0 8.0 1R8 2R2 1.8 2.2 30 25 25 9.5 10.5 11 11.5 2R4 2R5 2.4 2.5 2R7 3R3 2.7 3.3 3R5 3R8 3.5 3.8 3R9 4R7 3.9 4.7 5R2 5R6 5.2 5.6 6R1 6R4 6.1 6.4 6R8 7R0 6.8 7.0 7R6 8R2 7.6 8.2 100 120 10 12 72 98 49 58 150 180 15 18 130 140 81 91 220 270 22 27 190 210 110 150 330 390 33 39 240 320 170 230 470 560 47 56 360 470 260 350 680 820 68 82 520 690 101 121 100 120 151 181 SCDS 73 SCDS 74 SCDS 103R SCDS 104R SCDS 105R SCDS 124 SCDS 125 SCDS 127 4.3 7.5 11.5 10.5 40 30 35 13 10.4 15 15 13.5 13.5 13 35 30 18 12.3 15 18 18 15.8 22 27 17.6 18 60 45 35 27 27 18 23 20.0 33 20 59 35 26 33 28 38 25 27 21.6 24.3 91 50 70 41 46 50 57 30 34 27.0 39.2 73 90 61 69 66 80 36 51 43.2 45.9 202 93 128 84 106 97 132 57 68 64.8 72.9 299 128 213 130 149 150 190 75 110 100 110 380 430 213 280 201 227 220 260 120 140 140 160 790 890 610 660 304 253 303 308 380 160 170 220 250 150 180 1270 1450 880 980 506 370 419 530 620 230 290 280 350 201 221 200 220 1650 1170 756 756 500 700 400 390 271 331 270 330 2310 2620 1640 1860 1090 672 812 876 990 460 510 560 640 391 471 390 470 2940 4180 2850 3010 1600 953 1289 690 770 700 980 561 681 560 680 4670 5730 3620 4630 1430 1599 860 1200 1070 1460 821 102 820 1000 6540 9440 5200 6000 1768 1989 1340 1530 1640 1820 20.0 2100 Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T=±30% , N = +40-20%  Operating temperature range－40℃～105℃(Including self - temperature rise)   Isat for Inductance drop 35% from its value without current Measure Equipment： L：Agilent/ E4980 or HP4284A (under 1MHz), HP4285A (over 1MHz) RDC：Chroma 16502 Rated Current：HP4284+42841A or WK3260B+WK3265B Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 25 SMD Shielded Power Inductors - SCDS Series Standard Specifications Isat (A) Stamp Inductance (H) R80 1R0 0.8 1.0 1R2 1R5 1.2 1.5 4.00 5.00 10. 10.5 9.80 9.50 1R8 2R2 1.8 2.2 4.00 4.00 3.50 8.5 7.5 9.25 8.00 2R4 2R5 2.4 2.5 2R7 3R3 2.7 3.3 3R5 3R8 3.5 3.8 3R9 4R7 3.9 4.7 5R2 5R6 5.2 5.6 6R1 6R4 6.1 6.4 6R8 7R0 6.8 7.0 7R6 8R2 7.6 8.2 100 120 10 12 1.68 1.52 1.84 1.71 150 180 15 18 1.33 1.20 1.47 1.31 220 270 22 27 1.07 0.96 1.23 1.12 330 390 33 39 0.91 0.77 0.96 0.91 470 560 47 56 0.76 0.68 0.88 0.75 680 820 68 82 0.61 0.57 101 121 100 120 151 181 SCDS 73 SCDS 74 SCDS 103R SCDS 104R SCDS 105R SCDS 124 SCDS 125 SCDS 127 13.5 11 8.00 7.5 3.70 3.50 3.50 6.0 7.8 6.50 8.00 7.50 7.50 6.0 3.00 4.65 5.7 6.40 6.50 5.70 7.60 6.80 5.5 5.0 6.60 5.8 2.00 2.50 3.84 5.0 4.8 5.40 4.90 6.20 4.5 4.85 3.18 4.4 4.45 4.00 4.50 4.00 4.00 3.50 5.40 4.90 2.60 3.6 3.5 3.60 3.20 3.20 3.10 3.30 3.00 4.50 3.90 2.9 2.5 2.95 2.70 2.90 2.80 2.80 2.30 3.60 3.40 1.74 2.3 2.1 2.50 2.30 2.70 2.10 2.10 2.00 3.00 2.75 1.43 2.1 1.6 2.00 1.90 1.90 1.80 1.80 1.70 2.50 2.35 0.69 0.61 1.5 1.35 1.65 1.50 1.50 1.30 1.50 1.40 2.10 1.95 0.50 0.49 0.60 0.52 1.35 1.35 1.28 1.20 1.10 1.30 1.10 1.70 1.60 150 180 0.43 0.39 0.46 0.42 1.15 1.12 1.04 0.95 0.85 1.00 0.90 1.42 1.30 201 221 200 220 0.35 0.36 0.92 0.92 0.94 0.80 0.80 1.16 271 331 270 330 0.32 0.28 0.34 0.32 0.70 0.84 0.75 0.60 0.50 0.75 0.68 1.06 0.95 391 471 390 470 0.26 0.24 0.29 0.26 0.50 0.70 0.60 0.65 0.58 0.88 0.79 561 681 560 680 0.22 0.19 0.23 0.22 0.54 0.52 0.54 0.48 0.73 0.67 821 102 820 1000 0.18 0.16 0.20 0.18 0.50 0.48 0.43 0.40 0.60 0.55 5.90 0.40 Tolerance Of Inductors 1.5 ~ 1000uH ± 20%  SCDS 73  SCDS 124 3.3 ~ 330uH ±20%  SCDS 74 1.5 ~ 1000uH ± 20%  SCDS 125 3.3 ~ 1000uH ± 20%  SCDS 103R 4.7~47uH ± 30% 1.2 ~ 7.6uH +40-20%  SCDS 104R 1.0 ~ 470uH ± 30%  SCDS 105R 0.8 ~ 1000uH ± 30%  SCDS 127  SCDS 127  5.00 10 ~ 1000uH ± 20%  Tolerance： M = ±20% , T = ±30% , N = +40-20% Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series Curves of SCDS Series Test Instruments：HP4294 Impedance / Material Analyzer SCDS73 SCDS74 Test Instruments：HP4294 Impedance / Material Analyzer SCDS104R SCDS124 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series SCDS125 SCDS127 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL SCDS 73 7.6 7.6 3.6 1.55 1.75 16 12 4 2 330 100 13 16.0 1600 SCDS 74 7.6 7.6 5.0 1.55 1.75 16 12 4 2 330 100 13 16.0 1000 SCDS 103R 10.6 10.75 4.2 1.55 1.75 24 16 4 2 300 100 13 24.4 1000 SCDS 104R 10.6 10.75 4.2 1.5 1.75 24 16 4 2 330 100 13 24.4 1000 SCDS 105R 10.6 10.6 5.0 1.5 1.75 24 16 4 2 330 100 13 24.4 500 SCDS 124 13.0 12.8 5.1 1.55 1.75 24 16 4 2 330 100 13 24.4 500 SCDS 125 12.6 12.6 6.7 1.55 1.75 24 16 4 2 330 100 13 24.4 600 SCDS 127 12.6 12.6 8.7 1.55 1.75 24 16 4 2 330 100 13 24.4 500 SMD Shielded Power Inductors - SCDS Series SCDS Series Features Applications  RoHS, Halogen Free and REACH Compliance  Magnetic shielded  Various package size and wide inductance range       AP Routers STBs LCD TVs and monitors Game consoles LED lightings DC/DC converters Product Identification  T : Packaging: Tape and Reel Shapes and Dimensions Recommended Pattern Dimension in mm Dimension in mm TYPE A B C D E TYPE A B C D SCDS8D43 8.3+0 8.3+0 4.5+0 2.5 6.3 SCDS8D43 10.1 6.1 2.0 2.8 SMD Shielded Power Inductors – SCDS Series Electrical Characteristics Part Number Inductance Test Frequency Tolerance RDC Rated Current (H) (kHz) (±%) (mΩ) Max (A) SCDS8D43T-3R3□-N 3.3 100 30 19 5.7 SCDS8D43T-4R7□-N 4.7 100 30 22 5.6 SCDS8D43T-6R8□-N 6.8 100 30 25 4.4 SCDS8D43T-100□-N 10 100 30 36 4.0 SCDS8D43T-150□-N 15 100 30 53 2.9 SCDS8D43T-220□-N 22 100 30 75 2.4 SCDS8D43T-470□-N 47 100 30 150 1.8 SCDS8D43T-680□-N 68 100 30 240 1.5 SCDS8D43T-101□-N 100 100 30 353 1.1 Note: When ordering, please specify tolerance code. Tolerance: T=±30%  Operating temperature range－30℃～100℃(Including self - temperature rise)  Rated current for Inductance drop 35% from its value with current  Measure Equipment： L：HP4284A 100kHz/ 1V RDC：Chroma 16502 Rated current：HP4284+42841A Packaging Specifications Tape Dimensions Reel Dimensions Dimensions in mm TYPE SCDS 8D43 Tape Dimensions Reel Dimensions Quantity A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL 8.4 9.9 4.8 1.55 1.75 24 12 4 2 330 100 13 24.4 1000 Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Shielded Power Inductors - SCDS Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm TYPE SCDS 8D43 Tape Dimensions Reel Dimensions Quantity A0 B0 K0 D E W P P0 P2 A B C D PCS / REEL 8.4 9.9 4.8 1.55 1.75 24 12 4 2 330 100 13 24.4 1000
