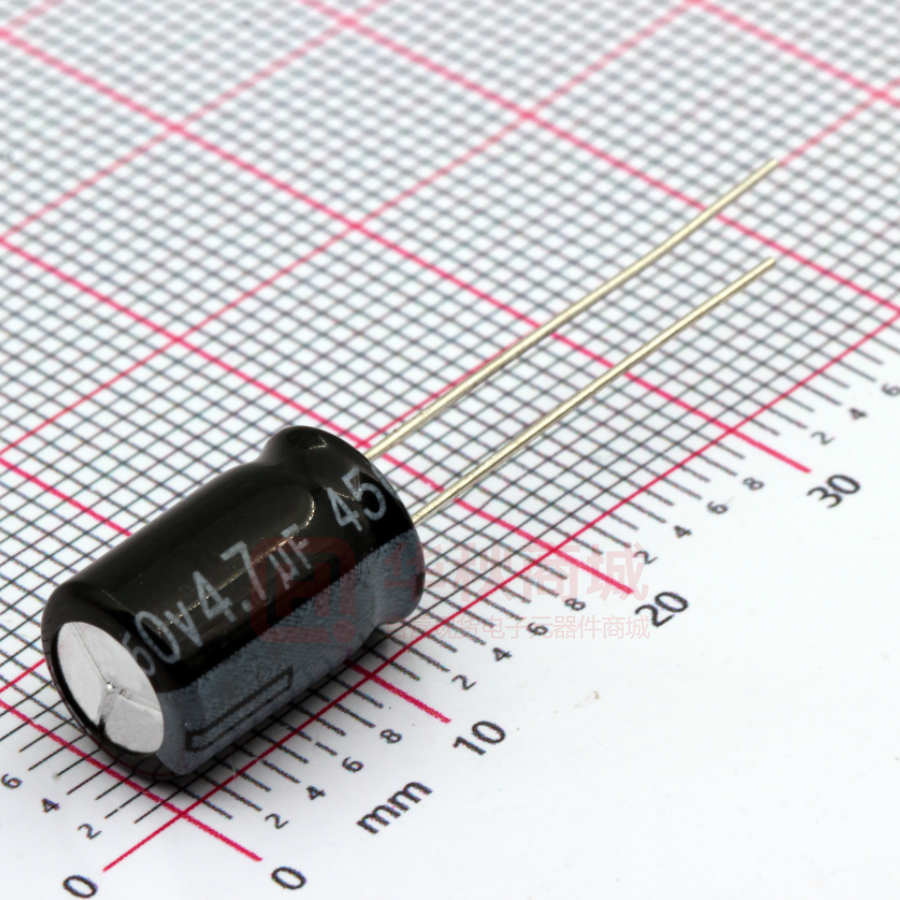

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS CD11GM series Endurance: +105°C 3,000 hours CD11GM 105 C 1808 Economical type, miniaturized RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C Rated Voltage Range 160~450 V dc Capacitance Tolerance ±20%(M) (at 20°C,120Hz) 160~400 V dc 450 V dc I≤0.02CV+25μA I≤0.03CV+25μA Leakage Current Where, I:Max.leakage current (μA),C:Nominal capacitance (μF), V: Rated voltage (V) (at 20°C after 2 minutes) Rated Voltage(V dc ) 160 200 250 400 450 tanδ (max.) 0.15 0.15 0.15 0.20 0.20 Rated Voltage(V dc ) 160 200 250 400 450 Z(-25°C)/Z(+20°C) 3 3 3 5 6 Z(-40°C)/Z(+20°C) 6 6 6 6 9 Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) (at 20°C,120Hz) (at 120Hz) The specifications listed below shall be met when the capacitors are restored to 20°C after DC voltage plus rated ripple current is applied for 3,000 hours at 105°C, the peak voltage shall not exceed the rated voltage. Endurance Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20°C after leaving them under no load at 105°C for 1,000 hours. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤500% of the initial specified value DIMENSIONS[mm] Sleeve(Black) Ød ØD' F±0.5 L' 4min. 15min. ( Ø 6.3~ Ø 16) ØD 6.3 Ød 0.5 F ØD' L' 2.5 8 0.5 0.6 3.5 10 12.5 13 16 0.6 0.6 0.6 0.8 5.0 5.0 5.0 7.5 Ø D+0.5max. L+2max. PART NUMBERING SYSTEM E GM 2G M 3R3 F12 O- - T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Rated voltage(Vdc) 160~450 120 1k 10k 100k 0.50 0.80 0.90 1.00 121 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS CD11GM series STANDARD RATINGS(Rated ripple current: mArms/105°C 100kHz) Cap (µF) Part
Number WV (Vdc) Cap (µF) Size ΦD×L(mm) Rated ripple current Part
Number 6.3×9 80 EGM2EM4R7E09OT 6.3×12 85 EGM2EM4R7E12OT 8×9 85 EGM2EM4R7F09OT 8×9 92 EGM2EM6R8F09OT 8×12 96 EGM2EM6R8F12OT 8×9 96 EGM2EM8R2F09OT 8×12 100 EGM2EM8R2F12OT 8×12 150 EGM2EM100F12OT 10×9 150 EGM2EM100G09OT 15 8×16 195 EGM2EM150F16OT 22 10×16 280 EGM2EM220G16OT 10×20 360 EGM2EM330G20OT 12.5×16 360 EGM2EM330W16OT 12.5×16 430 EGM2EM470W16OT 12.5×20 455 EGM2EM470W20OT 1 6.3×9 35 EGM2GM010E09OT EGM2CM101W20OT 1.5 6.3×9 40 EGM2GM1R5E09OT 52 EGM2DM4R7E09OT 1.8 6.3×12 49 EGM2GM1R8E12OT 6.3×12 62 EGM2DM5R6E12OT 6.3×12 60 EGM2GM2R2E12OT 6.3×12 76 EGM2DM6R8E12OT 8×9 60 EGM2GM2R2F09OT 8×9 90 EGM2DM8R2F09OT 8×9 70 EGM2GM3R3F09OT 8×12 95 EGM2DM8R2F12OT 8×12 75 EGM2GM3R3F12OT 8×9 130 EGM2DM100F09OT 8×9 88 EGM2GM4R7F09OT 8×12 145 EGM2DM100F12OT 8×12 95 EGM2GM4R7F12OT 8×12 170 EGM2DM150F12OT 8×12 117 EGM2GM6R8F12OT 8×16 185 EGM2DM150F16OT 8×16 130 EGM2GM6R8F16OT 22 8×16 255 EGM2DM220F16OT 10×12 130 EGM2GM6R8G12OT 33 10×16 330 EGM2DM330G16OT 8×16 170 EGM2GM100F16OT 47 10×20 420 EGM2DM470G20OT 10×12 170 EGM2GM100G12OT 56 12.5×20 500 EGM2DM560W20OT 10×16 195 EGM2GM100G16OT 15 10×16 230 EGM2GM150G16OT 22 12.5×20 345 EGM2GM220W20OT 33 13×20 445 EGM2GM330K20OT 47 16×25 650 EGM2GM470L25OT 2.2 8×9 65 EGM2WM2R2F09OT 3.3 8×12 85 EGM2WM3R3F12OT 4.7 8×12 105 EGM2WM4R7F12OT 6.8 10×12 140 EGM2WM6R8G12OT 10 10×16 205 EGM2WM100G16OT 15 10×20 265 EGM2WM150G20OT 22 12.5×20 360 EGM2WM220W20OT 33 16×20 500 EGM2WM330L20OT 47 16×25 665 EGM2WM470L25OT 6.3×7 52 EGM2CM4R7E07OT 5.6 6.3×9 58 EGM2CM5R6E09OT 6.8 6.3×12 70 EGM2CM6R8E12OT 8.2 6.3×12 100 EGM2CM8R2E12OT 6.3×12 135 EGM2CM100E12OT 8×9 135 EGM2CM100F09OT 8×12 145 EGM2CM100F12OT 8×9 155 EGM2CM150F09OT 8×12 162 EGM2CM150F12OT 8×12 220 EGM2CM220F12OT 10×12 260 EGM2CM220G12OT 10×16 320 EGM2CM330G16OT 10×16 365 EGM2CM470G16OT 10×20 400 EGM2CM470G20OT 56 10×20 450 EGM2CM560G20OT 68 10×20 500 EGM2CM680G20OT 100 12.5×20 650 4.7 6.3×9 5.6 6.8 15 22 33 47 8.2 200(2D) Rated ripple current 4.7 10 160(2C) Size ΦD×L(mm) 10 15 4.7 6.8 8.2 250(2E) 10 33 47 2.2 3.3 4.7 400(2G) 6.8 10 450(2W) Radial Type WV (Vdc) 122
