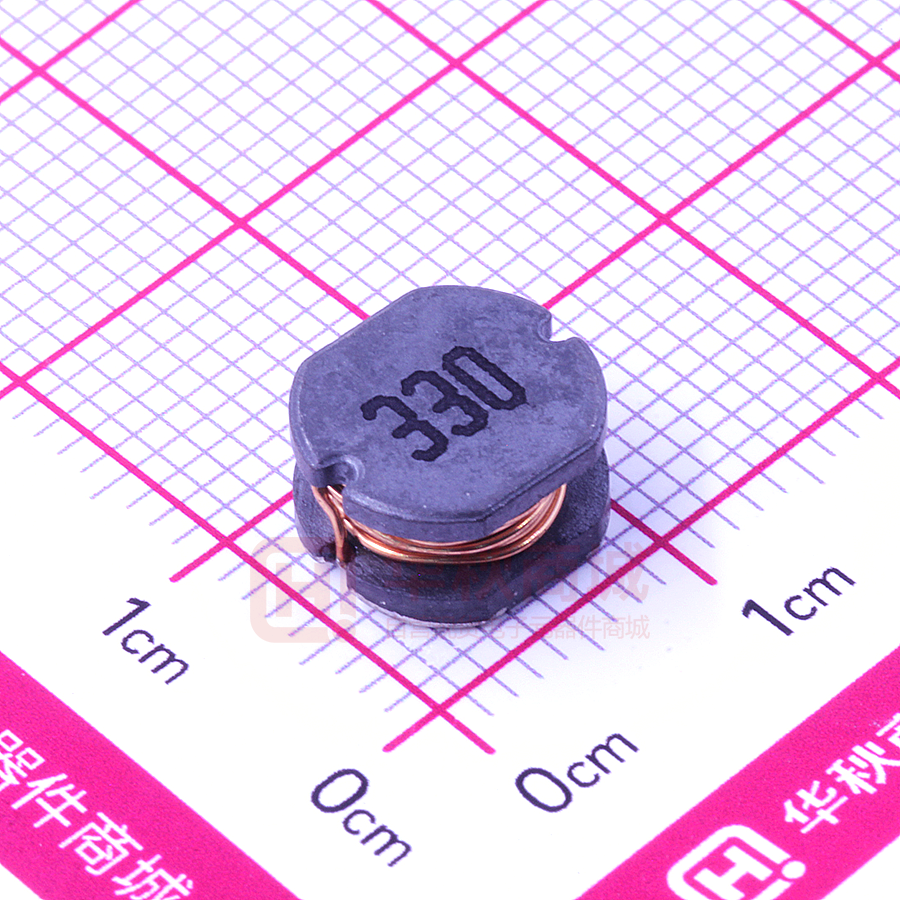

SLF1005-330MTT

厂商：
SUNLTECH(顺磁)
封装：
IND_10X9MM_SM
描述：
功率电感 33µH ±20% IND_10X9MM_SM 5.40mm 10.00 x 9.00mm 120mΩ 1.50 A

数据手册：

下载SLF1005-330MTT.pdf

立即购买

详情介绍
数据手册
价格&库存

SLF1005-330MTT 数据手册

SLF Series Drum Core Surface Mount Unshielded Power Inductors ◆ Features Pb 1. Excellent solderability and high heat resistance. 2. Excellent terminal strength construction. 3. Packed in embossed carrier tape and can be used by automatic mounting machine. ◆ Applications Power supply for VCR,OA equipment ,LCD television set notebook, DC to DC converters, DC to AC inverters etc. ◆ Shape & Dimensions ◆ Lead Free Part Numbering SLF 0403 (1) (2) 100 (3) M T T (4) (5) (6) (1) Series Type (2) Dimension A X C (3) Inductance 2R2=2.2μH ：： (4) (5) (6) ； 100=10μH；101=100μH Inductance Tolerance：K=±10%, M=±20% Company Code Packaging ： packed in embossed carrier tape Series SLF0301 Item SLF0302 SLF0403 SLF0502 SLF0503 SLF0504 SLF0703 SLF0705 SLF1004 SLF1005 A (mm) 3.5±0.3 3.5±0.3 4.5±0.3 5.8±0.3 5.8±0.3 5.8±0.3 7.8±0.3 7.8±0.3 10.0±0.3 10.0±0.3 B (mm) 3.0±0.3 3.0±0.3 4.0±0.3 5.2±0.3 5.2±0.3 5.2±0.3 7.0±0.3 7.0±0.3 9.0±0.3 9.0±0.3 C (mm) 1.1±0.3 2.1±0.3 3.2±0.3 2.0±0.3 3.0±0.3 4.5±0.3 3.5±0.3 5.0±0.3 4.0±0.3 5.4±0.3 D (mm) 1.0 Typ 1.0 Typ 1.2 Typ. 1.5 Typ. 1.5 Typ. 1.5 Typ. 2.1 Typ. 2.1 Typ. 2.9 Typ. 2.9 Typ. ◆ Material Item Material a. Core Ferrite DR Core b. Wire Enamelled Copper wire c.Terminal Ag+Sn+SnPb Rev.02 Page 1 of 11 www.Sunltech.com SLF Series ◆ Note (1) Inductance is measured by LCR-meter 4284A/4286A (HP) or equivalent. (2) Inductance test condition: SLF0301/0302L/0502:100KHz/1.0V, SLF0302/0403/0503/0504/0703/0705/1004/1005: 1.0 H~8.2H:7.96MHz/0.5V, 10.0 H~82.0 H:2.52MTTHz/0.5V,More than 100.0 H at 1.0KHz/1.0V. (3) DC Resistance is measured by HP4338B Milliohms Meter or equivalent. (4) Rated current is measured by LCR-meter 3260B (WK) & DC Bias 3265B(WK) at 1.0KHz/1.0V. (5) Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or μ μ μ μ coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C). ℃ ℃ (6) Operating temperature -55 ~ +125 . (7) All test data is referenced to 25 ambient. ℃ ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF0301-1R0MTT 1.00±20% 0.083 1.40 SLF0301-1R2MTT 1.20±20% 0.099 1.24 SLF0301-1R5MTT 1.50±20% 0.128 1.06 SLF0301-1R8MTT 1.80±20% 0.145 0.96 SLF0301-2R2MTT 2.20±20% 0.190 0.88 SLF0301-2R7MTT 2.70±20% 0.225 0.80 SLF0301-3R3MTT 3.30±20% 0.270 0.79 SLF0301-3R9MTT 3.90±20% 0.321 0.68 SLF0301-4R7MTT 4.70±20% 0.376 0.66 SLF0301-5R6MTT 5.60±20% 0.393 0.61 SLF0301-6R8MTT 6.80±20% 0.485 0.56 SLF0301-8R2MTT 8.20±20% 0.628 0.50 SLF0301-100MTT 10.0±20% 0.809 0.45 SLF0301-120MTT 12.0±20% 0.901 0.40 SLF0301-150MTT 15.0±20% 1.063 0.37 SLF0301-180MTT 18.0±20% 1.231 0.34 SLF0301-220MTT 22.0±20% 1.750 0.31 SLF0301-270MTT 27.0±20% 2.110 0.28 SLF0301-330MTT 33.0±20% 2.888 0.24 SLF0301-390MTT 39.0±20% 3.100 0.23 SLF0301-470MTT 47.0±20% 3.513 0.21 SLF0301-560MTT 56.0±20% 3.950 0.20 SLF0301-680MTT 68.0±20% 5.688 0.18 SLF0301-820MTT 82.0±20% 6.575 0.15 SLF0301-101KTT 100.0±10% 7.700 0.14 Part Number SLF0301 Series: Rev.02 Page 2 of 11 www.Sunltech.com SLF Series ◆ Specification Part Number SLF0302 Series: SLF0302-1R0MTT SLF0302-1R4MTT SLF0302-1R8MTT SLF0302-2R2MTT SLF0302-2R7MTT SLF0302-3R3MTT SLF0302-3R9MTT SLF0302-4R7MTT SLF0302-5R6MTT SLF0302-6R8MTT SLF0302-8R2MTT SLF0302-100MTT SLF0302-120MTT SLF0302-150MTT SLF0302-180MTT SLF0302-220MTT SLF0302-270MTT SLF0302-330MTT SLF0302-390MTT SLF0302-470MTT SLF0302-560MTT SLF0302-680MTT SLF0302-820MTT SLF0302-101KTT SLF0302-121KTT SLF0302-151KTT SLF0302-181KTT SLF0302-221KTT SLF0302-271KTT SLF0302-331KTT SLF0302-391KTT SLF0302-471KTT Rev.02 Inductance (μH) DCR (Ω) max. IDC (A) max. 1.0±20% 0.040 1.50 0.050 1.50 0.060 0.80 0.080 0.75 0.100 0.75 0.150 0.60 0.200 0.50 0.200 0.50 0.230 0.45 0.250 0.40 0.300 0.40 0.350 0.35 0.400 0.35 0.500 0.30 0.550 0.30 0.600 0.30 0.700 0.30 1.000 0.25 1.200 0.25 1.500 0.20 1.800 0.20 2.000 0.18 2.500 0.16 3.000 0.15 3.500 0.14 4.000 0.13 5.000 0.12 5.500 0.10 6.000 0.10 7.000 0.10 8.000 0.10 12.000 0.09 1.4±20% 1.8±20% 2.2±20% 2.7±20% 3.3±20% 3.9±20% 4.7±20% 5.6±20% 6.8±20% 8.2±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 39±20% 47±20% 56±20% 68±20% 82±20% 100±10% 120±10% 150± 10% 180±10% 220±10% 270±10% 330± 10% 390±10% 470± 10% Page 3 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF0403-1R0MTT 1.00±20% 0.033 3.80 SLF0403-1R4MTT 1.40±20% 0.038 3.30 SLF0403-1R8MTT 1.80±20% 0.042 2.91 SLF0403-2R2MTT 2.20±20% 0.047 2.60 SLF0403-2R7MTT 2.70±20% 0.052 2.43 SLF0403-3R3MTT 3.30±20% 0.058 2.15 SLF0403-3R9MTT 3.90±20% 0.076 1.98 SLF0403-4R7MTT 4.70±20% 0.094 1.70 SLF0403-5R6MTT 5.60±20% 0.101 1.60 SLF0403-6R8MTT 6.80±20% 0.117 1.41 SLF0403-8R2MTT 8.20±20% 0.132 1.26 SLF0403-100MTT 10.0±20% 0.182 1.15 SLF0403-120MTT 12.0±20% 0.210 1.05 SLF0403-150MTT 15.0±20% 0.235 0.92 SLF0403-180MTT 18.0±20% 0.338 0.84 SLF0403-220MTT 22.0±20% 0.378 0.76 SLF0403-270MTT 27.0±20% 0.522 0.71 SLF0403-330MTT 33.0±20% 0.540 0.64 SLF0403-390MTT 39.0±20% 0.587 0.59 SLF0403-470MTT 47.0±20% 0.844 0.54 SLF0403-560MTT 56.0±20% 0.937 0.50 SLF0403-680MTT 68.0±20% 1.117 0.46 SLF0403-820MTT 82.0±20% 1.345 0.45 SLF0403-101KTT 100.0±10% 1.520 0.44 SLF0403-121KTT 120.0±10% 1.800 0.43 SLF0403-151KTT 150.0±10% 2.000 0.42 SLF0403-181KTT 180.0±10% 3.200 0.38 SLF0403-221KTT 220.0±10% 3.400 0.36 SLF0403-271KTT 270.0±10% 3.900 0.34 SLF0403-331KTT 330.0±10% 5.300 0.28 SLF0403-391KTT 390.0±10% 5.900 0.24 SLF0403-471KTT 470.0±10% 6.800 0.21 SLF0403-561KTT 560.0±10% 8.500 0.20 SLF0403-681KTT 680.0±10% 10.000 0.18 SLF0403-821KTT 820.0±10% 13.400 0.15 SLF0403-102KTT 1000.0±10% 15.600 0.14 Part Number SLF0403 Series: Rev.02 Page 4 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF0502-1R0MTT 1.00±20% 0.045 4.50 SLF0502-1R2MTT 1.20±20% 0.050 4.20 SLF0502-1R5MTT 1.50±20% 0.060 4.00 SLF0502-1R8MTT 1.80±20% 0.065 3.70 SLF0502-2R2MTT 2.20±20% 0.070 3.50 SLF0502-2R7MTT 2.70±20% 0.080 3.20 SLF0502-3R3MTT 3.30±20% 0.100 2.70 SLF0502-3R9MTT 3.90±20% 0.120 2.40 SLF0502-4R7MTT 4.70±20% 0.140 2.00 SLF0502-5R6MTT 5.60±20% 0.150 1.80 SLF0502-6R8MTT 6.80±20% 0.160 1.50 SLF0502-8R2MTT 8.20±20% 0.170 1.40 SLF0502-100MTT 10.0±20% 0.200 1.30 SLF0502-120MTT 12.0±20% 0.230 1.10 SLF0502-150MTT 15.0±20% 0.250 1.05 SLF0502-180MTT 18.0±20% 0.300 1.00 SLF0502-220MTT 22.0±20% 0.350 0.90 SLF0502-270MTT 27.0±20% 0.400 0.85 SLF0502-330MTT 33.0±20% 0.500 0.75 SLF0502-390MTT 39.0±20% 0.550 0.70 SLF0502-470MTT 47.0±20% 0.650 0.60 SLF0502-560MTT 56.0±20% 0.750 0.55 SLF0502-680MTT 68.0±20% 0.950 0.50 SLF0502-820MTT 82.0±20% 1.200 0.45 SLF0502-101KTT 100.0±10% 1.400 0.40 SLF0502-121KTT 120.0±10% 1.750 0.35 SLF0502-151KTT 150.0±10% 2.000 0.25 SLF0502-181KTT 180.0±10% 2.600 0.22 SLF0502-221KTT 220.0±10% 3.000 0.20 SLF0502-271KTT 270.0±10% 3.700 0.18 SLF0502-331KTT 330.0±10% 4.300 0.17 SLF0502-391KTT 390.0±10% 6.000 0.16 SLF0502-471KTT 470.0±10% 6.700 0.15 SLF0502-561KTT 560.0±10% 8.150 0.14 SLF0502-681KTT 680.0±10% 8.980 0.13 SLF0502-821KTT 820.0±10% 11.240 0.12 SLF0502-102KTT SLF0502-122KTT 1000.0±10% 1200.0±10% 15.250 16.750 0.11 0.10 Part Number SLF0502 Series: Rev.02 Page 5 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF0503-1R0MTT 1.00±20% 0.030 4.50 SLF0503-1R2MTT 1.20±20% 0.030 4.20 SLF0503-1R5MTT 1.50±20% 0.030 4.10 SLF0503-1R8MTT 1.80±20% 0.030 3.70 SLF0503-2R2MTT 2.20±20% 0.030 3.50 SLF0503-2R7MTT 2.70±20% 0.040 3.20 SLF0503-3R3MTT 3.30±20% 0.050 2.80 Part Number SLF0503 Series: Rev.02 SLF0503-3R9MTT 3.90±20% 0.060 2.60 SLF0503-4R7MTT 4.70±20% 0.070 2.50 SLF0503-5R6MTT 5.60±20% 0.080 2.40 SLF0503-6R8MTT 6.80±20% 0.090 2.20 SLF0503-8R2MTT 8.20±20% 0.100 2.00 SLF0503-100MTT 10.0±20% 0.120 1.80 SLF0503-120MTT 12.0±20% 0.130 1.75 SLF0503-150MTT 15.0±20% 0.150 1.70 SLF0503-180MTT 18.0±20% 0.180 1.60 SLF0503-220MTT 22.0±20% 0.220 1.50 SLF0503-270MTT 27.0±20% 0.240 1.40 SLF0503-330MTT 33.0±20% 0.300 1.10 SLF0503-390MTT 39.0±20% 0.400 1.00 SLF0503-470MTT 47.0±20% 0.430 0.90 SLF0503-560MTT 56.0±20% 0.500 0.85 SLF0503-680MTT 68.0±20% 0.600 0.80 SLF0503-820MTT 82.0±20% 0.800 0.65 SLF0503-101KTT 100.0±10% 0.900 0.60 SLF0503-121KTT 120.0±10% 1.000 0.58 SLF0503-151KTT 150.0±10% 1.300 0.43 SLF0503-181KTT 180.0±10% 1.500 0.41 SLF0503-221KTT 220.0±10% 2.000 0.38 SLF0503-271KTT 270.0±10% 2.500 0.35 SLF0503-331KTT 330.0±10% 3.200 0.28 SLF0503-391KTT 390.0±10% 3.500 0.26 SLF0503-471KTT 470.0±10% 4.200 0.20 SLF0503-561KTT 560.0±10% 4.500 0.19 SLF0503-681KTT 680.0±10% 6.000 0.18 SLF0503-821KTT 820.0±10% 6.500 0.15 SLF0503-102KTT 1000.0±10% 8.000 0.13 SLF0503-122KTT 1200.0±10% 12.500 0.12 Page 6 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF0504-1R0MTT 1.00±20% 0.015 5.900 SLF0504-1R2MTT 1.20±20% 0.020 5.200 SLF0504-1R5MTT 1.50±20% 0.025 4.700 Part Number SLF0504 Series: Rev.02 SLF0504-1R8MTT 1.80±20% 0.030 4.000 SLF0504-2R2MTT 2.20±20% 0.035 3.800 SLF0504-2R7MTT 2.70±20% 0.040 3.400 SLF0504-3R3MTT 3.30±20% 0.045 3.300 SLF0504-3R9MTT 3.90±20% 0.050 2.900 SLF0504-4R7MTT 4.70±20% 0.060 2.800 SLF0504-5R6MTT 5.60±20% 0.070 2.400 SLF0504-6R8MTT 6.80±20% 0.080 2.100 SLF0504-8R2MTT 8.20±20% 0.090 2.000 SLF0504-100MTT 10.0±20% 0.100 1.440 SLF0504-120MTT 12.0±20% 0.120 1.400 SLF0504-150MTT 15.0±20% 0.140 1.300 SLF0504-180MTT 18.0±20% 0.150 1.230 SLF0504-220MTT 22.0±20% 0.180 1.110 SLF0504-270MTT 27.0±20% 0.200 0.970 SLF0504-330MTT 33.0±20% 0.230 0.880 SLF0504-390MTT 39.0±20% 0.320 0.800 SLF0504-470MTT 47.0±20% 0.370 0.720 SLF0504-560MTT 56.0±20% 0.420 0.680 SLF0504-680MTT 68.0±20% 0.460 0.610 SLF0504-820MTT 82.0±20% 0.600 0.580 SLF0504-101MTT 100.0±20% 0.700 0.520 SLF0504-121MTT 120.0±20% 0.930 0.480 SLF0504-151MTT 150.0±20% 1.100 0.400 SLF0504-181MTT 180.0±20% 1.380 0.380 SLF0504-221MTT 220.0±20% 1.570 0.350 SLF0504-271KTT 270.0±10% 1.650 0.320 SLF0504-331KTT 330.0±10% 1.700 0.280 SLF0504-391KTT 390.0±10% 1.800 0.260 SLF0504-471KTT 470.0±10% 2.300 0.230 SLF0504-561KTT 560.0±10% 2.500 0.200 SLF0504-681KTT 680.0±10% 3.000 0.190 SLF0504-821KTT 820.0±10% 4.500 0.160 SLF0504-102KTT 1000.0±10% 4.800 0.140 Page 7 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF0703-1R0MTT SLF0703-1R2MTT 1.00±20% 1.20±20% 0.030 0.040 8.85 7.85 SLF0703-1R5MTT SLF0703-1R8MTT 1.50±20% 1.80±20% 0.050 0.050 6.96 5.46 SLF0703-2R2MTT SLF0703-2R7MTT 2.20±20% 2.70±20% 0.050 0.060 4.88 4.32 SLF0703-3R3MTT SLF0703-3R9MTT 3.30±20% 3.90±20% 0.060 0.060 3.71 3.70 SLF0703-4R7MTT SLF0703-5R6MTT 4.70±20% 5.60±20% 0.070 0.070 3.52 2.86 SLF0703-6R8MTT SLF0703-8R2MTT 6.80±20% 8.20±20% 0.080 0.080 2.55 2.44 SLF0703-100MTT SLF0703-120MTT 10.0±20% 12.0±20% 0.080 0.090 1.44 1.39 SLF0703-150MTT SLF0703-180MTT 15.0±20% 18.0±20% 0.100 0.110 1.24 1.12 SLF0703-220MTT SLF0703-270MTT 22.0±20% 27.0±20% 0.130 0.150 1.07 0.94 SLF0703-330MTT SLF0703-390MTT 33.0±20% 39.0±20% 0.170 0.220 0.85 0.74 SLF0703-470MTT SLF0703-560MTT 47.0±20% 56.0±20% 0.250 0.280 0.68 0.64 SLF0703-680MTT SLF0703-820MTT 68.0±20% 82.0±20% 0.330 0.410 0.59 0.54 SLF0703-101KTT SLF0703-121KTT 100.0±10% 120.0±10% 0.480 0.540 0.51 0.49 SLF0703-151KTT SLF0703-181KTT 150.0±10% 180.0±10% 0.750 1.020 0.40 0.36 SLF0703-221KTT SLF0703-271KTT 220.0±10% 270.0±10% 1.200 1.310 0.31 0.29 SLF0703-331KTT SLF0703-391KTT 330.0±10% 390.0±10% 1.500 1.800 0.28 0.26 SLF0703-471KTT SLF0703-561KTT 470.0±10% 560.0±10% 1.950 2.300 0.23 0.21 SLF0703-681KTT SLF0703-821KTT 680.0±10% 820.0±10% 2.700 3.200 0.13 0.11 SLF0703-102KTT 1000.0±10% 3.800 0.08 Part Number SLF0703 Series: Rev.02 Page 8 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF0705-1R0MTT SLF0705-1R2MTT 1.00±20% 1.20±20% 0.030 0.030 11.25 9.87 SLF0705-1R5MTT SLF0705-1R8MTT 1.50±20% 1.80±20% 0.040 0.040 8.35 7.12 SLF0705-2R2MTT SLF0705-2R7MTT 2.20±20% 2.70±20% 0.050 0.060 6.52 6.06 SLF0705-3R3MTT SLF0705-3R9MTT 3.30±20% 3.90±20% 0.060 0.060 5.26 4.68 SLF0705-4R7MTT SLF0705-5R6MTT 4.70±20% 5.60±20% 0.070 0.070 4.54 4.25 SLF0705-6R8MTT SLF0705-8R2MTT 6.80±20% 8.20±20% 0.070 0.070 3.45 3.10 SLF0705-100MTT SLF0705-120MTT 10.0±20% 12.0±20% 0.070 0.080 2.30 2.00 SLF0705-150MTT SLF0705-180MTT 15.0±20% 18.0±20% 0.090 0.100 1.80 1.60 SLF0705-220MTT SLF0705-270MTT 22.0±20% 27.0±20% 0.110 0.120 1.50 1.30 SLF0705-330MTT SLF0705-390MTT 33.0±20% 39.0±20% 0.130 0.160 1.20 1.10 SLF0705-470MTT SLF0705-560MTT 47.0±20% 56.0±20% 0.180 0.240 1.10 0.94 SLF0705-680MTT SLF0705-820MTT 68.0±20% 82.0±20% 0.280 0.370 0.85 0.78 SLF0705-101KTT SLF0705-121KTT 100.0±10% 120.0±10% 0.430 0.470 0.72 0.66 SLF0705-151KTT SLF0705-181KTT 150.0±10% 180.0±10% 0.640 0.710 0.58 0.51 SLF0705-221KTT SLF0705-271KTT 220.0±10% 270.0± 10% 0.960 1.110 0.49 0.42 SLF0705-331KTT SLF0705-391KTT 330.0±10% 390.0±10% 1.260 1.770 0.40 0.36 SLF0705-471KTT SLF0705-561KTT 470.0±10% 560.0±10% 1.960 2.000 0.34 0.33 SLF0705-681KTT SLF0705-821KTT 680.0±10% 820.0±10% 2.200 2.900 0.32 0.25 SLF0705-102KTT 1000.0±10% 3.900 0.20 Part Number SLF0705 Series: Rev.02 Page 9 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF1004-1R0MTT 1.00±20% 0.020 12.25 SLF1004-1R5MTT 1.50±20% 0.030 9.86 SLF1004-2R2MTT 2.20±20% 0.030 7.48 SLF1004-3R3MTT 3.30±20% 0.040 6.21 SLF1004-4R7MTT 4.70±20% 0.040 5.43 SLF1004-6R8MTT 6.80±20% 0.053 4.56 SLF1004-100MTT 10.0±20% 0.053 2.38 SLF1004-120MTT 12.0±20% 0.061 2.13 SLF1004-150MTT 15.0±20% 0.070 1.87 SLF1004-180MTT 18.0±20% 0.081 1.73 SLF1004-220MTT 22.0±20% 0.088 1.60 SLF1004-270MTT 27.0±20% 0.100 1.44 SLF1004-330MTT 33.0±20% 0.120 1.26 SLF1004-390MTT 39.0±20% 0.151 1.20 SLF1004-470MTT 47.0±20% 0.170 1.10 SLF1004-560MTT 56.0±20% 0.199 1.01 SLF1004-680MTT 68.0±20% 0.223 0.91 SLF1004-820MTT 82.0±20% 0.252 0.85 SLF1004-101KTT 100.0±10% 0.344 0.74 SLF1004-121KTT 120.0±10% 0.396 0.69 SLF1004-151KTT 150.0±10% 0.544 0.61 SLF1004-181KTT 180.0±10% 0.621 0.56 SLF1004-221KTT 220.0±10% 0.721 0.53 SLF1004-271KTT 270.0±10% 0.949 0.45 SLF1004-331KTT 330.0±10% 1.100 0.42 SLF1004-391KTT 390.0±10% 1.245 0.38 SLF1004-471KTT 470.0±10% 1.526 0.35 SLF1004-561KTT 560.0±10% 1.904 0.32 SLF1004-681KTT 680.0±10% 2.200 0.31 SLF1004-821KTT 820.0±10% 2.700 0.30 Part Number SLF1004 Series: Rev.02 Page 10 of 11 www.Sunltech.com SLF Series ◆ Specification Inductance (μH) DCR (Ω) max. IDC (A) max. SLF1005-1R0MTT 1.00±20% 0.010 15.35 SLF1005-1R5MTT 1.50±20% 0.020 11.58 SLF1005-2R2MTT 2.20±20% 0.020 9.24 SLF1005-3R3MTT 3.30±20% 0.030 7.36 SLF1005-4R7MTT 4.70±20% 0.030 5.67 SLF1005-6R8MTT 6.80±20% 0.040 4.52 SLF1005-100MTT 10.0±20% 0.060 2.60 SLF1005-150MTT 15.0±20% 0.080 2.27 SLF1005-220MTT 22.0±20% 0.100 1.95 SLF1005-330MTT 33.0±20% 0.120 1.50 SLF1005-470MTT 47.0±20% 0.170 1.28 SLF1005-560MTT 56.0±20% 0.190 1.17 SLF1005-680MTT 68.0±20% 0.220 1.11 SLF1005-820MTT 82.0±20% 0.250 1.00 SLF1005-101KTT 100.0±10% 0.350 0.97 SLF1005-121KTT 120.0±10% 0.400 0.89 SLF1005-151KTT 150.0±10% 0.470 0.78 SLF1005-181KTT 180.0±10% 0.630 0.72 SLF1005-221KTT 220.0±10% 0.730 0.66 SLF1005-271KTT 270.0±10% 0.970 0.57 SLF1005-331KTT 330.0±10% 1.150 0.52 SLF1005-391KTT 390.0±10% 1.300 0.48 SLF1005-471KTT 470.0±10% 1.480 0.42 SLF1005-561KTT 560.0±10% 1.900 0.33 SLF1005-681KTT 680.0±10% 2.250 0.28 SLF1005-821KTT 820.0±10% 2.550 0.24 Part Number SLF1004 Series: Rev.02 Page 11 of 11 www.Sunltech.com

下载 PDF

SLF1005-330MTT

物料型号：Sunltech SLF系列

器件简介： - 该系列电感器具有出色的焊接性和高耐热性。 - 终端强度结构优秀。 - 采用压花载带包装，适用于自动贴装机。

引脚分配：未在文档中明确说明具体的引脚分配，但通常这类电感器为表面贴装元件，具有端头或引脚用于焊接到PCB上。

参数特性： - 电感值范围从1μH到820μH，具有不同的公差选项（如10%、20%）。 - DC电阻（DCR）和最大直流电流（IDC）根据不同型号有具体数值。

功能详解： - 电感值的测量条件和方法在文档中有详细说明，包括使用特定的LCR表测量。 - 额定电流是在1kHz/1V条件下测量的，最大允许直流电流是导致电感值下降10%或线圈温度上升40°C的较小值。

应用信息： - 适用于VCR、办公自动化设备、液晶电视、笔记本电脑、DC-DC转换器、DC-AC逆变器等电源供应。

封装信息： - 提供了不同尺寸的封装，包括SLF0301、SLF0302、SLF0403等，每个封装都有详细的尺寸和标记信息。

材料： - 核心材料为铁氧体DR芯。 - 线圈材料为漆包铜线。 - 端头材料为银锡钎料。

规格： - 提供了不同系列的详细规格，包括电感值、最大直流电阻和最大直流电流。
