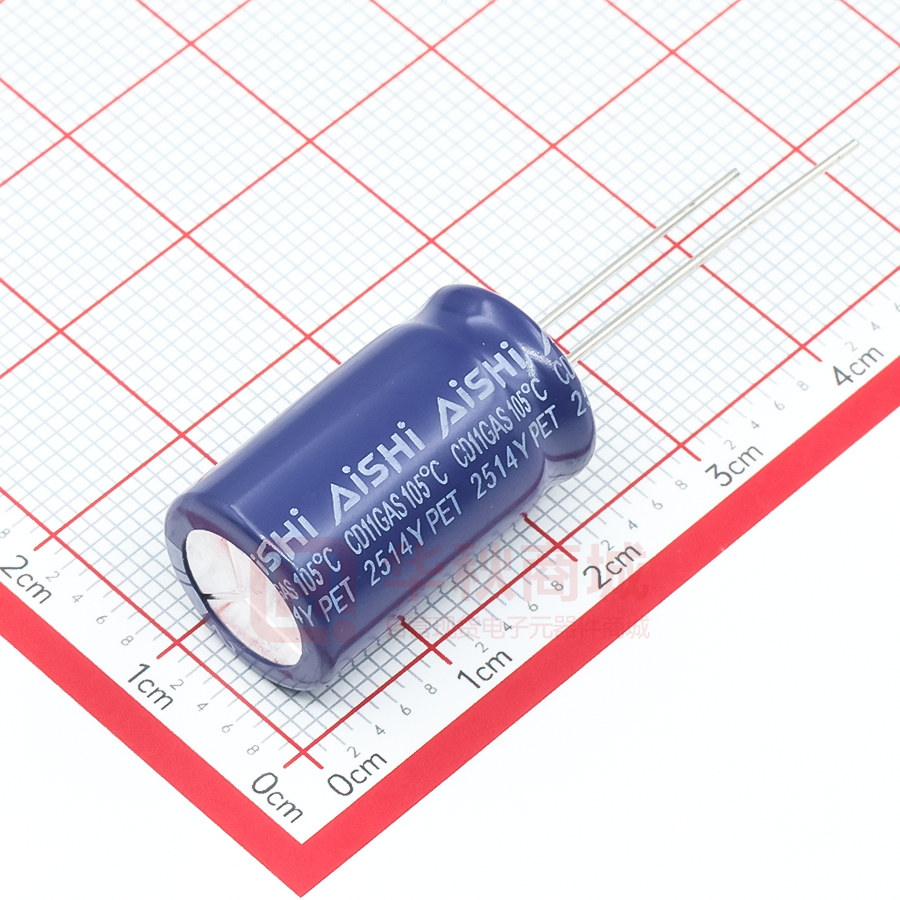

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS CD11GAS series Upgrade Miniaturized, long life Endurance: +105 °C 8,000~10,000 hours CD11GA CD11GAS 105 C 1808 CD11GAS RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C Rated Voltage Range 140~500 V dc Capacitance Tolerance ±20%(M) (at 20°C,120Hz) 140~400 V dc 450~500 V dc I≤0.02CV+10μA I≤0.03CV+10μA Leakage Current Where, I: Max.leakage current (μA),C:Nominal capacitance (μF), V: Rated voltage (V) (at 20°C after 2 minutes) Rated Voltage(V dc ) 140 160 200 250 315 350 400 450 500 tanδ (max.) 0.15 0.15 0.15 0.15 0.20 0.20 0.20 0.20 0.24 Rated Voltage(V dc ) 140 160 200 250 315 350 400 450 500 Z(-25°C)/Z(+20°C) 3 3 3 3 5 5 5 6 6 Z(-40°C)/Z(+20°C) 6 6 6 6 6 6 6 9 15 Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) (at 20°C,120Hz) (at 120Hz) The specifications listed below shall be met when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 10,000 hours at 105°C(WV:500V for 8,000 hours),the peak voltage shall not exceed the rated voltage. Endurance Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20°C after leaving them under no load at 105°C for 1,000 hours. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Ød ØD' F±0.5 L' 4min. 15min. ( Ø 6.3~ Ø 22) ØD 6.3 Ød 0.5 F ØD' L' 2.5 8 0.5 0.6 3.5 10 12.5 16 18 22 0.6 0.6 0.8 0.8 0.8 5.0 5.0 7.5 7.5 10 Ø D+0.5max. L+2max. Radial Type Sleeve(Violet) PART NUMBERING SYSTEM E GW 2G M 3R3 F09 O- - T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Rated voltage(Vdc) 140~500 120 1k 10k 100k 0.50 0.80 0.90 1.00 110 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS CD11GAS series STANDARD RATINGS (Rated ripple current: mArms/105°C 100kHz) WV (Vdc) 140(2A) Cap (µF) Size ΦD×L(mm) 10 Rated ripple current Part
Number 6.3×12 115 EGW2AM100E12OT 15 6.3×12 145 EGW2AM150E12OT 22 8×12 270 EGW2AM220F12OT 33 10×12 380 EGW2AM330G12OT 47 8×20 480 EGW2AM470F20OT 68 10×20 570 EGW2AM680G20OT 100 12.5×16 710 EGW2AM101W16OT 150 12.5×25 980 EGW2AM151W25OT 220 16×20 1320 EGW2AM221L20OT 6.3×7 36 EGW2CM010E07OT 6.3×9 40 EGW2CM010E09OT 6.3×7 40 EGW2CM1R5E07OT 6.3×9 45 EGW2CM1R5E09OT 6.3×7 45 EGW2CM1R8E07OT 6.3×9 50 EGW2CM1R8E09OT 6.3×7 50 EGW2CM2R2E07OT 6.3×9 55 EGW2CM2R2E09OT 6.3×9 70 EGW2CM2R8E09OT 6.3×12 78 EGW2CM2R8E12OT 6.3×9 85 EGW2CM3R3E09OT 6.3×12 92 EGW2CM3R3E12OT 6.3×9 92 EGW2CM4R7E09OT 6.3×12 97 EGW2CM4R7E12OT 6.3×9 96 EGW2CM5R6E09OT 6.3×12 100 EGW2CM5R6E12OT 6.3×9 100 EGW2CM6R8E09OT 6.3×12 107 EGW2CM6R8E12OT 8×9 107 EGW2CM6R8F09OT 6.3×12 150 EGW2CM8R2E12OT 8×9 150 EGW2CM8R2F09OT 8×9 190 EGW2CM100F09OT 8×12 240 EGW2CM100F12OT 8×9 270 EGW2CM150F09OT 8×12 290 EGW2CM150F12OT 8×12 390 EGW2CM220F12OT 10×12 430 EGW2CM220G12OT 33 10×16 520 EGW2CM330G16OT 47 10×16 680 56 10×20 Size ΦD×L(mm) Part
Number 8×9 120 EGW2DM5R6F09OT 8×12 126 EGW2DM5R6F12OT 8×9 126 EGW2DM6R8F09OT 8×12 132 EGW2DM6R8F12OT 8×9 180 EGW2DM8R2F09OT 8×12 200 EGW2DM8R2F12OT 8×9 190 EGW2DM100F09OT 8×12 230 EGW2DM100F12OT 8×16 310 EGW2DM150F16OT 10×12 310 EGW2DM150G12OT 10×16 475 EGW2DM220G16OT 10×20 650 EGW2DM330G20OT 12.5×16 650 EGW2DM330W16OT 12.5×16 880 EGW2DM470W16OT 12.5×20 980 EGW2DM470W20OT 12.5×25 1300 EGW2DM680W25OT 16×20 1380 EGW2DM820L20OT 16×20 1420 EGW2DM101L20OT 16×25 1494 EGW2DM101L25OT 16×25 1680 EGW2DM151L25OT 16×30 1989 EGW2DM151L30OT 220 18×30 2150 EGW2DM221M30OT 330 18×35 2250 EGW2DM331M35OT 6.3×7 45 EGW2EM010E07OT 6.3×9 50 EGW2EM010E09OT 6.3×7 50 EGW2EM1R2E07OT 6.3×9 55 EGW2EM1R2E09OT 6.3×7 55 EGW2EM1R5E07OT 6.3×9 60 EGW2EM1R5E09OT 6.3×7 61 EGW2EM1R8E07OT 6.3×9 70 EGW2EM1R8E09OT 6.3×9 72 EGW2EM2R2E09OT 6.3×12 81 EGW2EM2R2E12OT 6.3×9 81 EGW2EM2R8E09OT 6.3×12 88 EGW2EM2R8E12OT 6.3×9 102 EGW2EM3R3E09OT 6.3×12 112 EGW2EM3R3E12OT EGW2CM470G16OT 6.3×9 112 EGW2EM4R7E09OT 800 EGW2CM560G20OT 6.3×12 115 EGW2EM4R7E12OT 10×20 950 EGW2CM680G20OT 8×9 115 EGW2EM4R7F09OT 12.5×16 1060 EGW2CM680W16OT 8×12 120 EGW2EM4R7F12OT 82 12.5×20 1260 EGW2CM820W20OT 8×9 120 EGW2EM5R6F09OT 100 12.5×20 1350 EGW2CM101W20OT 8×12 126 EGW2EM5R6F12OT 12.5×25 1750 EGW2CM151W25OT 8×9 145 EGW2EM6R8F09OT 16×20 1790 EGW2CM151L20OT 8×12 150 EGW2EM6R8F12OT 220 16×25 2130 EGW2CM221L25OT 8×12 200 EGW2EM8R2F12OT 330 18×30 2520 EGW2CM331M30OT 8×16 260 EGW2EM8R2F16OT 470 18×35 2880 EGW2CM471M35OT 8×12 220 EGW2EM100F12OT 6.3×7 45 EGW2DM010E07OT 8×16 275 EGW2EM100F16OT 6.3×9 50 EGW2DM010E09OT 8×16 350 EGW2EM150F16OT 6.3×7 50 EGW2DM1R2E07OT 10×12 360 EGW2EM150G12OT 6.3×9 55 EGW2DM1R2E09OT 10×16 480 EGW2EM220G16OT 6.3×7 55 EGW2DM1R5E07OT 10×20 500 EGW2EM220G20OT 6.3×9 60 EGW2DM1R5E09OT 10×20 600 EGW2EM330G20OT 6.3×7 60 EGW2DM1R8E07OT 12.5×16 600 EGW2EM330W16OT 6.3×9 66 EGW2DM1R8E09OT 12.5×20 660 EGW2EM330W20OT 6.3×9 72 EGW2DM2R2E09OT 12.5×16 880 EGW2EM470W16OT 6.3×12 81 EGW2DM2R2E12OT 12.5×20 980 EGW2EM470W20OT 6.3×9 81 EGW2DM2R8E09OT 12.5×25 1180 EGW2EM680W25OT 6.3×12 88 EGW2DM2R8E12OT 16×20 1250 EGW2EM680L20OT 6.3×9 105 EGW2DM3R3E09OT 16×20 1320 EGW2EM820L20OT 6.3×12 112 EGW2DM3R3E12OT 16×20 1360 EGW2EM101L20OT 6.3×12 115 EGW2DM4R7E12OT 16×25 1420 EGW2EM101L25OT 8×9 117 EGW2DM4R7F09OT 8×12 120 EGW2DM4R7F12OT 1.5 1.8 2.2 2.8 3.3 4.7 5.6 6.8 8.2 10 15 22 68 150 1 1.2 1.5 1.8 200(2D) Cap (µF) Rated ripple current 1 160(2C) WV (Vdc) 2.2 2.8 3.3 4.7 5.6 6.8 8.2 10 15 22 200(2D) 33 47 68 82 100 150 1 1.2 1.5 1.8 2.2 2.8 3.3 4.7 5.6 250(2E) 6.8 8.2 10 15 22 33 47 68 82 100 111 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS CD11GAS series WV (Vdc) Cap (µF) 150 250(2E) 315(2F) (Rated ripple current: mArms/105°C 100kHz) Size ΦD×L(mm) Rated ripple current Part
Number 16×30 1820 EGW2EM151L30OT WV (Vdc) Cap (µF) Size Rated ripple current ΦD×L(mm) Part
Number 6.3×12 90 EGW2GM2R8E12OT 18×25 1820 EGW2EM151M25OT 8×9 90 EGW2GM2R8F09OT 220 18×30 2150 EGW2EM221M30OT 8×12 94 EGW2GM2R8F12OT 330 18×40 2310 EGW2EM331M40OT 6.3×12 90 EGW2GM3R3E12OT 2.2 6.3×9 82 EGW2FM2R2E09OT 8×9 100 EGW2GM3R3F09OT 3.3 6.3×12 100 EGW2FM3R3E12OT 8×12 102 EGW2GM3R3F12OT 4.7 8×9 120 EGW2FM4R7F09OT 8×10 110 EGW2GM4R7F10OT 5.6 8×12 142 EGW2FM5R6F12OT 8×12 120 EGW2GM4R7F12OT 6.8 8×12 162 EGW2FM6R8F12OT 10×9 120 EGW2GM4R7G09OT 8.2 8×12 194 EGW2FM8R2F12OT 10×12 128 EGW2GM4R7G12OT 10 10×12 230 EGW2FM100G12OT 8×12 145 EGW2GM5R6F12OT 15 10×16 340 EGW2FM150G16OT 10×12 156 EGW2GM5R6G12OT 22 10×20 460 EGW2FM220G20OT 8×12 172 EGW2GM6R8F12OT 33 47 12.5×20 600 EGW2FM330W20OT 8×16 206 EGW2GM6R8F16OT 12.5×25 680 EGW2FM470W25OT 10×12 206 EGW2GM6R8G12OT 6.3×9 55 EGW2VM010E09OT 10×12 220 EGW2GM8R2G12OT 6.3×12 60 EGW2VM010E12OT 10×16 232 EGW2GM8R2G16OT 6.3×9 60 EGW2VM1R2E09OT 10×16 253 EGW2GM100G16OT 6.3×9 65 EGW2VM1R5E09OT 10×20 275 EGW2GM100G20OT 6.3×12 70 EGW2VM1R5E12OT 10×16 270 EGW2GM120G16OT 6.3×9 72 EGW2VM1R8E09OT 10×20 280 EGW2GM120G20OT 6.3×12 80 EGW2VM1R8E12OT 10×20 324 EGW2GM150G20OT 6.3×9 82 EGW2VM2R2E09OT 12.5×16 324 EGW2GM150W16OT 6.3×12 86 EGW2VM2R2E12OT 12.5×20 480 EGW2GM220W20OT 8×9 88 EGW2VM2R8F09OT 12.5×25 500 EGW2GM220W25OT 8×12 95 EGW2VM2R8F12OT 12.5×25 550 EGW2GM330W25OT 8×9 100 EGW2VM3R3F09OT 16×20 585 EGW2GM330L20OT 8×12 108 EGW2VM3R3F12OT 16×20 650 EGW2GM470L20OT 8×9 114 EGW2VM4R7F09OT 16×25 730 EGW2GM470L25OT 8×12 120 EGW2VM4R7F12OT 16×30 770 EGW2GM560L30OT 8×12 150 EGW2VM5R6F12OT 16×30 810 EGW2GM680L30OT 8×16 162 EGW2VM5R6F16OT 18×25 830 EGW2GM680M25OT 8×12 172 EGW2VM6R8F12OT 82 18×30 980 EGW2GM820M30OT 8×16 190 EGW2VM6R8F16OT 100 18×30 1025 EGW2GM101M30OT 8×16 215 EGW2VM8R2F16OT 150 18×40 1340 EGW2GM151M40OT 10×12 215 EGW2VM8R2G12OT 180 18×45 1470 EGW2GM181M45OT 8×20 260 EGW2VM100F20OT 6.3×9 76 EGW2WM010E09OT 10×12 230 EGW2VM100G12OT 6.3×12 77 EGW2WM010E12OT 15 10×16 340 EGW2VM150G16OT 8×9 80 EGW2WM1R2F09OT 22 10×20 460 EGW2VM220G20OT 8×9 82 EGW2WM1R5F09OT 12.5×20 600 EGW2VM330W20OT 8×12 85 EGW2WM1R5F12OT 16×20 650 EGW2VM330L20OT 8×9 85 EGW2WM1R8F09OT 16×20 700 EGW2VM470L20OT 8×12 88 EGW2WM1R8F12OT 16×25 780 EGW2VM680L25OT 10×9 90 EGW2WM1R8G09OT 18×20 780 EGW2VM680M20OT 8×9 86 EGW2WM2R2F09OT 16×30 1000 EGW2VM820L30OT 8×12 92 EGW2WM2R2F12OT 18×25 1000 EGW2VM820M25OT 10×9 92 EGW2WM2R2G09OT 18×25 1120 EGW2VM101M25OT 8×12 95 EGW2WM2R8F12OT 18×30 1210 EGW2VM101M30OT 10×9 95 EGW2WM2R8G09OT 6.3×7 61 EGW2GM010E07OT 8×12 94 EGW2WM3R3F12OT 6.3×9 65 EGW2GM010E09OT 10×9 98 EGW2WM3R3G09OT 6.3×9 68 EGW2GM1R2E09OT 8×12 110 EGW2WM3R9F12OT 6.3×9 70 EGW2GM1R5E09OT 10×9 115 EGW2WM3R9G09OT 6.3×12 74 EGW2GM1R5E12OT 8×12 115 EGW2WM4R7F12OT 8×9 72 EGW2GM1R5F09OT 10×12 123 EGW2WM4R7G12OT 6.3×9 72 EGW2GM1R8E09OT 10×16 130 EGW2WM4R7G16OT 6.3×12 80 EGW2GM1R8E12OT 10×12 142 EGW2WM5R6G12OT 8×9 76 EGW2GM1R8F09OT 10×16 167 EGW2WM5R6G16OT 6.3×9 76 EGW2GM2R2E09OT 10×12 175 EGW2WM6R8G12OT 6.3×12 85 EGW2GM2R2E12OT 10×16 195 EGW2WM6R8G16OT 8×9 85 EGW2GM2R2F09OT 10×16 220 EGW2WM8R2G16OT 8×12 90 EGW2GM2R2F12OT 10×20 230 EGW2WM8R2G20OT 10×16 255 EGW2WM100G16OT 10×20 300 EGW2WM100G20OT 1 1.2 1.5 1.8 2.2 2.8 3.3 4.7 5.6 350(2V) 6.8 8.2 10 33 47 68 82 100 1 1.2 1.5 400(2G) 1.8 2.2 2.8 3.3 4.7 5.6 6.8 8.2 400(2G) 10 12 15 22 33 47 56 68 1 1.2 1.5 1.8 2.2 2.8 450(2W) 3.3 3.9 4.7 5.6 6.8 8.2 10 112 Radial Type STANDARD RATINGS MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS CD11GAS series STANDARD RATINGS (Rated ripple current: mArms/105°C 100kHz) WV (Vdc) Cap (µF) Size ΦD×L(mm) Rated ripple current Part
Number 12.5×16 365 EGW2WM150W16OT 12.5×20 410 EGW2WM150W20OT 12.5×20 480 EGW2WM220W20OT 12.5×25 530 EGW2WM220W25OT 16×20 530 EGW2WM220L20OT 16×20 600 EGW2WM330L20OT 16×25 720 EGW2WM470L25OT 16×30 800 EGW2WM470L30OT 16×30 990 EGW2WM560L30OT 18×25 1000 EGW2WM560M25OT 18×25 1150 EGW2WM680M25OT 18×30 1230 EGW2WM680M30OT 82 18×30 1320 EGW2WM820M30OT 100 18×35 1370 EGW2WM101M35OT 150 18×45 1700 EGW2WM151M45OT 12.5×20 288 EGW2HM100W20OT 12.5×25 302 EGW2HM100W25OT 12.5×25 396 EGW2HM150W25OT 16×20 396 EGW2HM150L20OT 12.5×35 504 EGW2HM220W35OT 16×25 504 EGW2HM220L25OT 33 18×25 630 EGW2HM330M25OT 47 18×30 792 EGW2HM470M30OT 56 18×30 860 EGW2HM560M30OT 18×35 1000 EGW2HM680M35OT 22×35 1070 EGW2HM680O35OT 82 22×35 1220 EGW2HM820O35OT 100 22×35 1420 EGW2HM101O35OT 15 22 33 450(2W) 47 56 68 10 15 22 500(2H) 68 113
