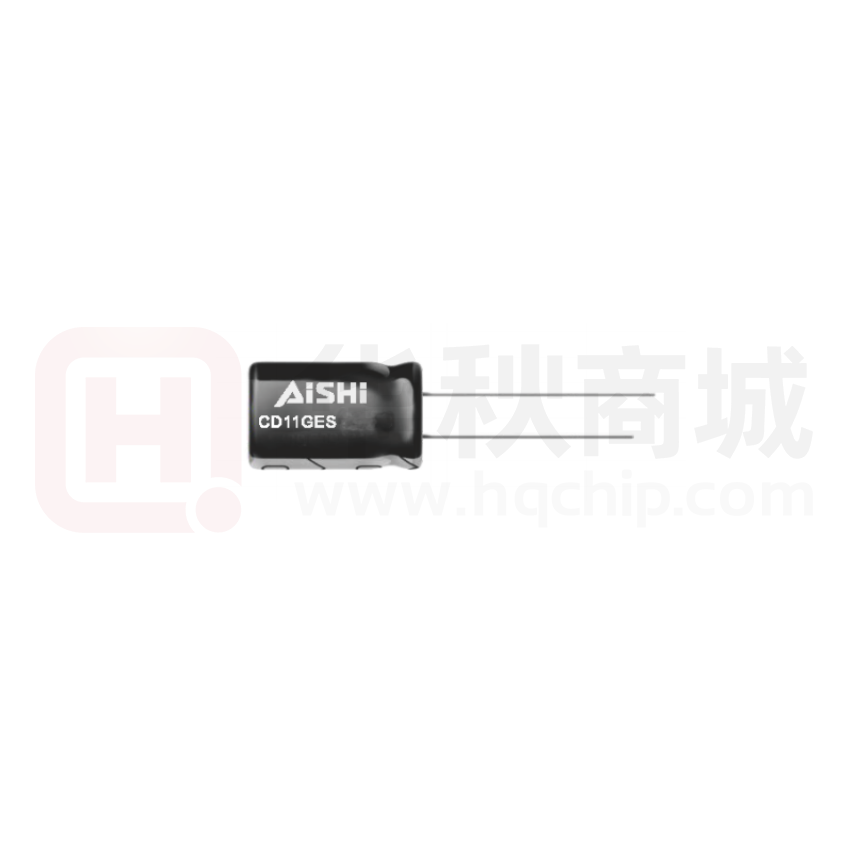

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS CD11GES series Miniaturized Endurance: +130°C 3,000 hours +105°C 12,000 hours Withstand high temperature 130°C, miniaturized and long life CD11GE CD11GES 130 C 1808 CD11GES Suitable for output circuit and input circuit of LED driving power, electronic ballast and electronic energy saving lamp. RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+130°C(160~ 450 V dc ) Rated Voltage Range 160~500 V dc Capacitance Tolerance ±20%(M) (at 20°C,120Hz) 160~400 V dc Leakage Current -40~+105°C(500 V dc ) 450~500 V dc I≤0.02CV+10μA I≤0.03CV+10μA Where, I: Max.leakage current (μA),C:Nominal capacitance (μF), V: Rated voltage (V) (at 20°C after 2 minutes) Rated Voltage(V dc ) 160 200 250 350 400 450 500 tanδ (max.) 0.15 0.15 0.15 0.20 0.20 0.20 0.24 Rated Voltage(V dc ) 160 200 250 350 400 450 500 Z(-25°C)/Z(+20°C) 3 3 3 5 5 6 6 Z(-40°C)/Z(+20°C) 6 6 6 6 6 9 15 Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) (at 20°C,120Hz) (at 120Hz) The specifications listed below shall be met when the capacitors are restored to 20°C after DC voltage is applied for 3,000 hours (WV:160~450V) at 130°C or after DC voltage with the rated ripple current is applied for 12,000 hours at 105°C (500V: 10,000 hours), the peak voltage shall not exceed the rated voltage. Endurance Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20°C after leaving them under no load at 105°C for 1,000 hours. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Ød ØD' F±0.5 L' 4min. 15min. ( Ø 6.3~ Ø 22) ØD 6.3 Ød 0.5 F ØD' L' 2.5 8 0.5 0.6 3.5 10 12.5 16 18 22 0.6 0.6 0.8 0.8 0.8 5.0 5.0 7.5 7.5 10 Ø D+0.5max. L+2max. Radial Type Sleeve(Dark Green) PART NUMBERING SYSTEM E GX 2G M 3R3 F12 O- - T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) 120 1k 10k 100k Cap.
