60070471

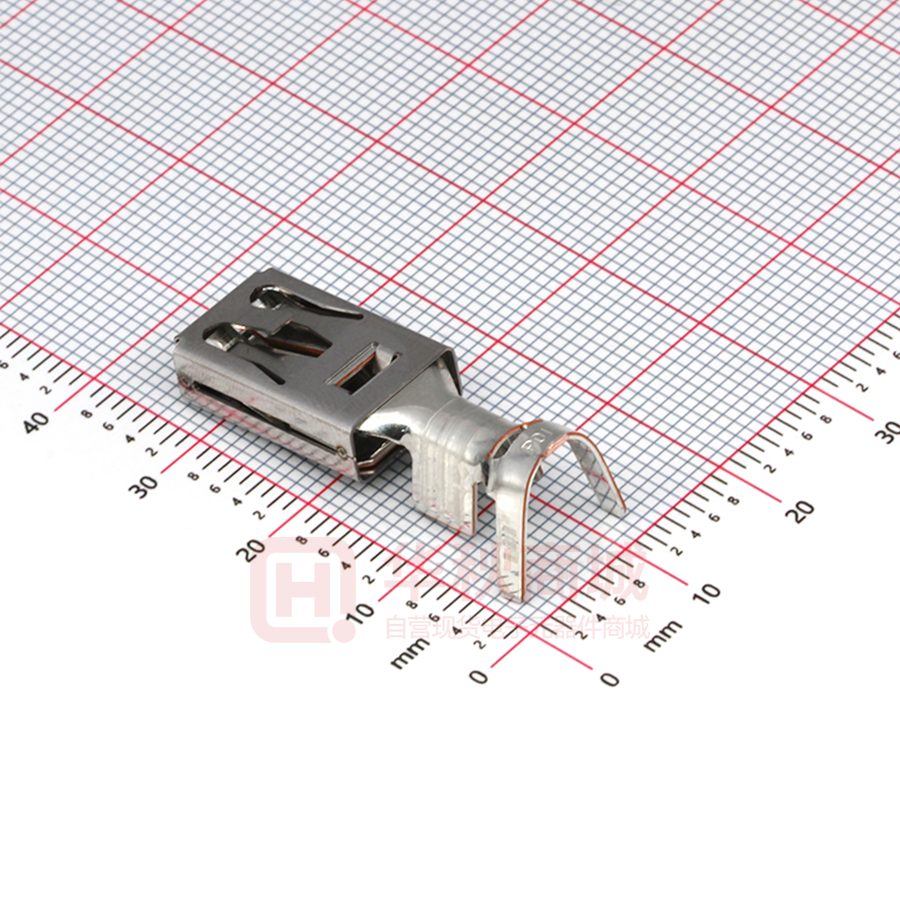

Terminal Systems DCS-1 9.5 mm female terminal (box version) Features • DCS-1 technology • 12.0 mm pitch for unsealed application • 12.5 mm pitch for sealed application with single wire seal • Version with locking lances • Long Box/Long auxiliary steel spring in CrNi • High current carrying capacity (up to 80 A at +23°C) • Protected contact springs • Compatible with single wire sealing • Crimp code on terminal Performance characteristics* Packing • Contact resistance: < 3 mΩ • No. of terminals per reel: Consult us • Contact mating force: < 22 N • No. of reels per packing: Consult us • Contact unmating force: < 16 N • Current carrying capacity with 10 mm2 wire: at 23°C up to approx.: 80 A at 85°C up to approx.: 55 A at 100°C up to approx.: 45 A Tooling • Manual crimping tool: Consult us • Mini applicator: Consult us * Mated with 9.5 x 1.2 mm DCS-1 male terminal Part Numbers Type Wire size range (in mm2) Min. Max. Insulation Ø (in mm) Max. 6 007 04 51 Female > 2.50 4.00 3.70 FLRY CuCrSiTi/CrNi Sn 6 007 04 61 Female > 4.00 6.00 4.30 FLRY CuCrSiTi/CrNi Sn 6 007 04 71 Female > 6.00 10.00 6.40 FLRY CuCrSiTi/CrNi Sn 1.51 Material Plating Terminal Systems DCS-1 9.5 mm female terminal (box version) Dimensional characteristics Notes : 1.52 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Aptiv: 60070461 60070471
