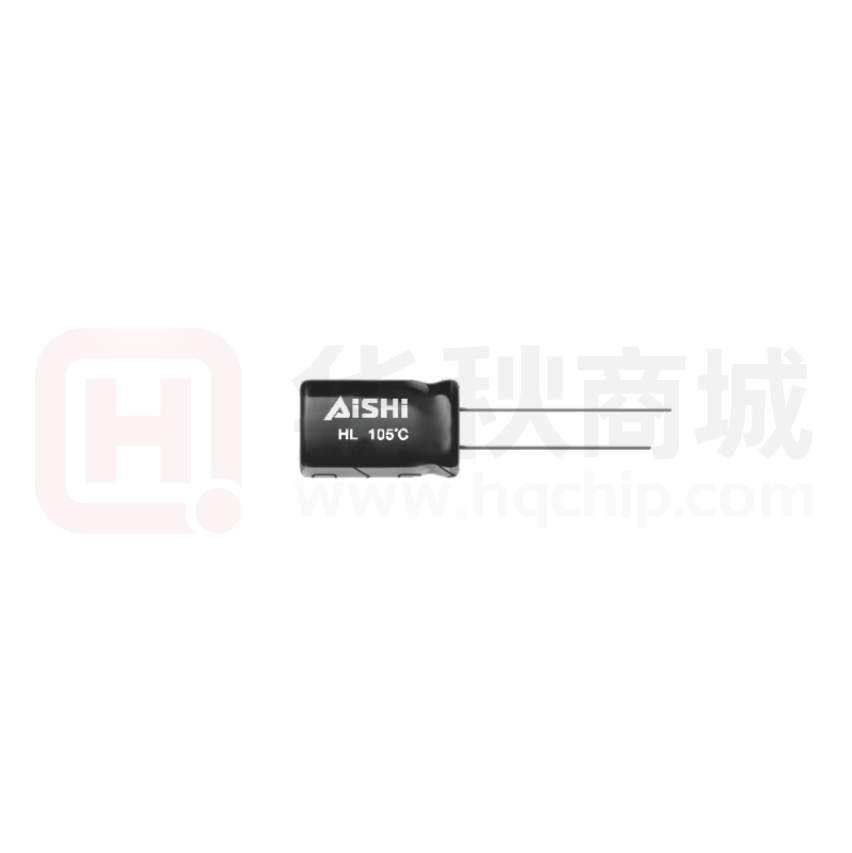

EHL2WM101M35OT

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS HL series Long life, downsized, high ripple current; For power supply applications Endurance: +105°C 8,000~12,000 hours HL 105 C 1808 RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C(160~400V dc ) Rated Voltage Range 160~500 V dc Capacitance Tolerance ±20%(M) Leakage Current -25~+105°C(450~500V dc ) (at 20°C,120Hz) CV≤1000 CV>1000 After 1 minute After 5 minutes l≤0.1CV+40μA l≤0.04CV+100μA l≤0.03CV+15μA Where,I:Max.leakage current (μA), C:Nominal capacitance (μF), V: Rated voltage (V) (at 20°C) l≤0.02CV+25μA Rated Voltage(V dc ) 160 200 400 450 500 tanδ (max.) 0.18 0.18 0.18 0.24 0.24 0.24 0.24 Rated Voltage(V dc ) 160 200 250 350 400 450 500 Z(-25°C)/Z(+20°C) 3 3 3 6 6 6 6 Z(-40°C)/Z(+20°C) 8 8 8 10 10 - - 250 350 Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) (at 20°C,120Hz) (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for a specified period of time at 105°C. Endurance Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤The initial specified value Rated Voltage Life time 160 to 450Vdc 500V dc L≤20: 10,000 hours Φ10: 8,000 hours L >20: 12,000 hours Φ≥12.5: 10,000 hours The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 105°C without voltage applied. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Sleeve(Brown) Ød ØD' F±0.5 L' 4min. 15min. ØD 10 12.5 16 18 Ød F ØD' L' 0.6 0.6 0.8 0.8 5.0 7.5 7.5 5.0 Ø D+0.5max. L+2max. ( Ø 10~ Ø 18) PART NUMBERING SYSTEM E HL 2D M 330 G20 O- - T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Cap.(μF) 120
