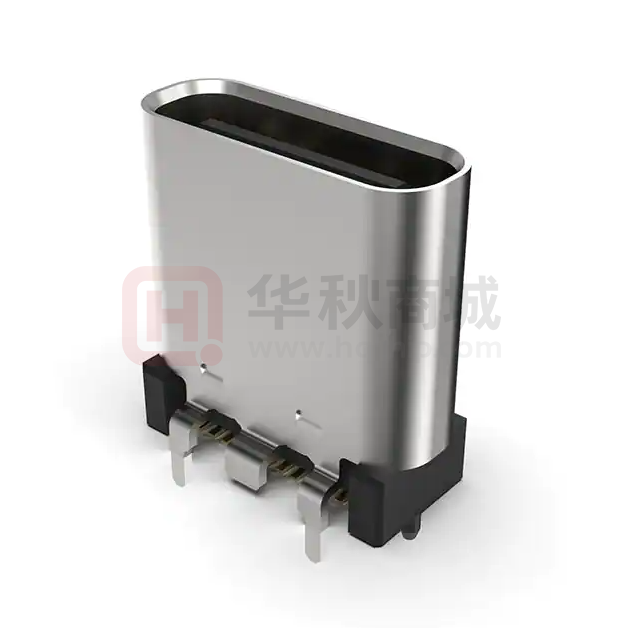

USB4115-03-C

8.34+0.06 -0.02 H A12 Specifications 3.80 A1 Material Insulator: LCP, UL 94V-0, Black Contact: Copper Alloy (C1814), T=0.12mm Mid Plate: Stainless Steel (SUS301), T=0.15mm EMI Plate: Stainless Steel (SUS301), T=0.10mm Shell: Stainless Steel (SUS304), T=0.30mm B1 B12 8.30 8.94 F 2.56±0.04 G 3.16 Plating Contact Contact Area: 3u" Au over 50µ" min. Nickel Solder Tails: Matte Tin over 50µ" min. Nickel Shell: 30µ" min. Nickel Mid Plate: Cleaning EMI Plate: Cleaning 9.25 7.35 A E Electrical Current Rating: 5.00A collectively for VBUS pins 6.25A collectively for GND pins 1.25A for B5 pin 0.25A per pin for all other pins Voltage Rating: 20V DC Contact Resistance: 40mΩ max initial. 50mΩ max after test Dielectric Withstanding Voltage: 100V AC Insulation Resistance 100MΩ min 0.10 D A 7.50±0.15 C 4.30±0.15 1.05 1.15 4.80±0.15 4x 0.50±0.05 Mechanical & Environmental Operating Temperature: -25°C to +85°C Mating Force: 5 to 20 N. Unmated Force: 6 to 20 N after test Durability: 10,000 cycles 0.70±0.05 5.50±0.10 B12 5.05 0.50±0.05 B1 Ordering Grid USB4115 2x Ø0.55 B 03 Contact Plating 03 = 3u" Gold C Request Samples and Quotation Packing Options C = Tape & Reel with Cap 1.16±0.15 A 1.16±0.15 (450 per reel) A1 A12 24x 0.20±0.05 Part Number Product Description USB4115 USB3.2 Gen2 Type C Receptacle, Vertical, SMT, H=9.25mm Drawing Date Section: A-A 28th September 2020 By Detail 1 2 3 4 Revision Date 5 CC USB4115 B PCN B2 07/10/21 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.25 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 1/3 4x Ø1.10 4x Ø0.70 Ø0.66 A1 A12 0.58 G 2x 0.70 7.50 5.50 4.80 0.50 H 10.0 USB4151 (Plug) 1.00 4.60 max. 1.35 F 2x 1.60 Recommended PCB Layout Thickness 1.20±0.10mm Tolerance: ±0.05mm 6.55 min. 0.5 ref. Mating Sequence Pin Signal Mating Sequence A1 GND First B12 GND First A2 SSTXp1 Second B11 SSRXp1 Second A3 SSTXn1 Second B10 SSRXn1 Second A4 VBUS First B9 VBUS First A5 CC1 Second B8 SBU2 Second A6 Dp1 Second B7 Dn2 Second A7 Dn1 Second B6 Dp2 Second A8 SBU1 Second B5 CC2 Second USB4115 (Receptacle) B A9 VBUS First B4 VBUS First A10 SSRXn2 Second B3 SSTXn2 Second A11 SSRXp2 Second B2 SSTXp2 Second First B1 A12 GND SHELL Product Description USB3.2 Gen2 Type C Receptacle, Vertical, SMT, H=9.25mm By Detail 2 3 4 GND SHELL USB4115 28th September 2020 1 GND Part Number Drawing Date A Revision Date 5 CC USB4115 B PCN B2 07/10/21 Component Outline Signal C Plug and Receptacle Mating View Keep Out Area Pin 4.27 5.05 4.60 Solder Area PCB Cap Information 24x 0.30 2x 2.40 Panel 11.15 D 15.4 ref. 10.3 E B1 B12 4.30 1.26 0.41 1.26 0.41 4.0 PCB Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.25 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE First GND www.gct.co Not to Scale Drawn By CC 8 Sheet No. 2/3 Unloaded Section (18 Pockets) H 450 PCS Folder Paper Board Unloaded Section (18 Pockets) Paper Board G Peeling Angle Vacuum Bag 165°~180° F Direction of Unreeling Ø380 Reel and Tape E Carton Ø13 Reel and Tape W+0.5 Label 320 D 16.00 2.00 4.00 40 0 0 40 C 24.00±0.30 Paper Board B Pcs / Reel 450 Direction of Unreeling Product Description USB4115 USB3.2 Gen2 Type C Receptacle, Vertical, SMT, H=9.25mm 28th September 2020 By Detail 1 2 3 4 Total Quantity 4,500 pcs Part Number Drawing Date A Reels / Carton 10 Revision Date 5 CC USB4115 B PCN B2 07/10/21 Tolerances (Except as Noted) Length Angle X.X ± 0.30 X.XX ± 0.25 X.XXX ± 0.10 - Units: Metric (mm) C 3rd Angle Projection 6 7 This drawing is confidential and copyright of Global Connector Technology, Ltd (GCT). This drawing must not be copied or disclosed without written consent. E & OE www.gct.co Not to Scale Drawn By CC 8 Sheet No. 3/3
