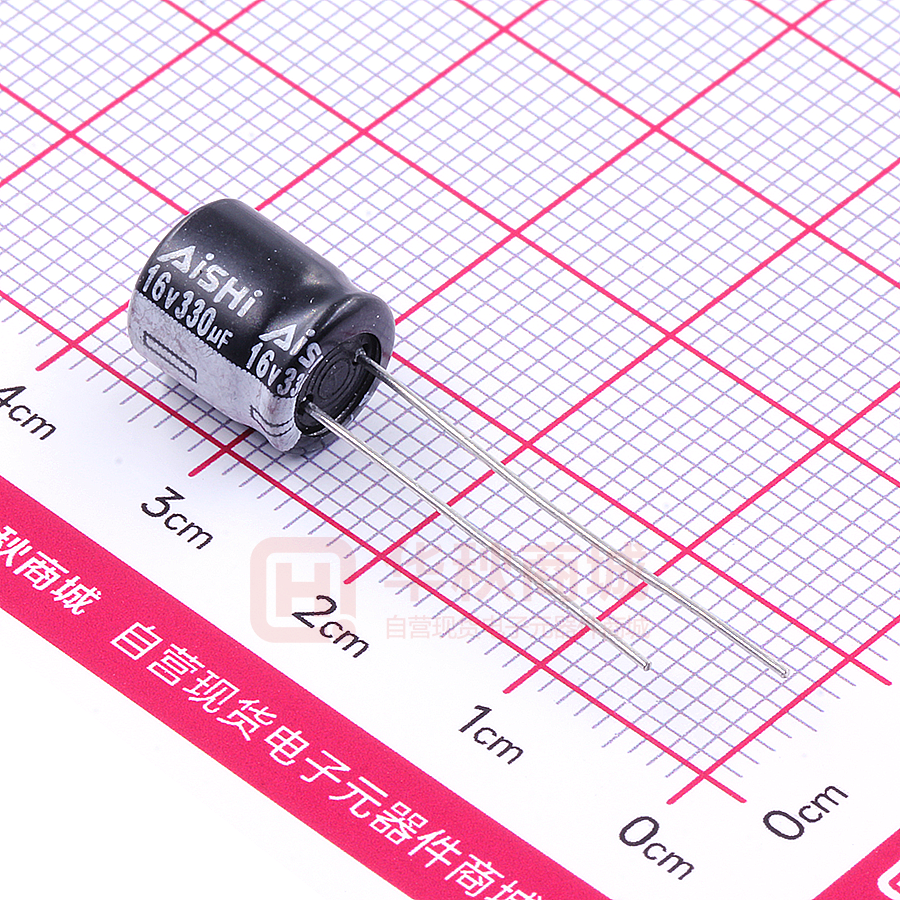

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS ML series Long life with 5mm to 9mm height. ML 105 C 1808 Endurance：+105°C 3,000~5,000 hours RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C Rated Voltage Range 6.3~50 V dc Capacitance Tolerance ±20%(M) Leakage Current I≤0.01CV or 3μA, whichever is greater. Where, I:Max.leakage current (μA),C:Nominal capacitance (μF),V: Rated voltage (V) (at 20°C,120Hz) Rated Voltage(V dc ) Dissipation Factor (tanδ) 6.3 10 16 25 35 0.40 0.35 0.30 0.25 0.20 tanδ (max.) (at 20°C after 2 minutes) 50 0.20 When nominal capacitance exceeds 1,000μF, add 0.02 to the value above for each 1,000μF increase. (at 20°C,120Hz) Low Temperature Characteristics (Max. Impedance Ratio) Rated Voltage(V dc ) 6.3 10 16 25 35 50 Z(-25°C)/Z(+20°C) 6 4 4 3 2 2 Z(-40°C)/Z(+20°C) 12 10 8 6 4 4 (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for a specified period of time at 105°C. Endurance Capacitance Change ≤±30% of the initial value D.F. (tanδ) ≤300% of the initial specified value Leakage Current ≤The initial specified value Size L=5mm L≥7mm Load life (hours) 3,000 5,000 The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 105°C without voltage applied. Shelf Life Capacitance Change ≤±30% of the initial value D.F. (tanδ) ≤300% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Sleeve(Black) Ød ØD' F±0.5 L' 4min. 15min. ( Ø 4~ Ø 10) 6.3 ØD 4 5 Ød 0.45 0.45 0.45 F 1.5 2.0 2.5 ØD' L' 8 6.3×5 6.3×7 10×9 8×5 8×7 8×9 0.5 0.45 0.5 0.5 0.6 2.5 3.5 3.5 3.5 5.0 Ø D+0.5max. L+2max. E ML 1H M 220 F05 O- - Radial Type PART NUMBERING SYSTEM T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Cap.(μF) 60(50) 120 500 1k 10k≤ Cap.
