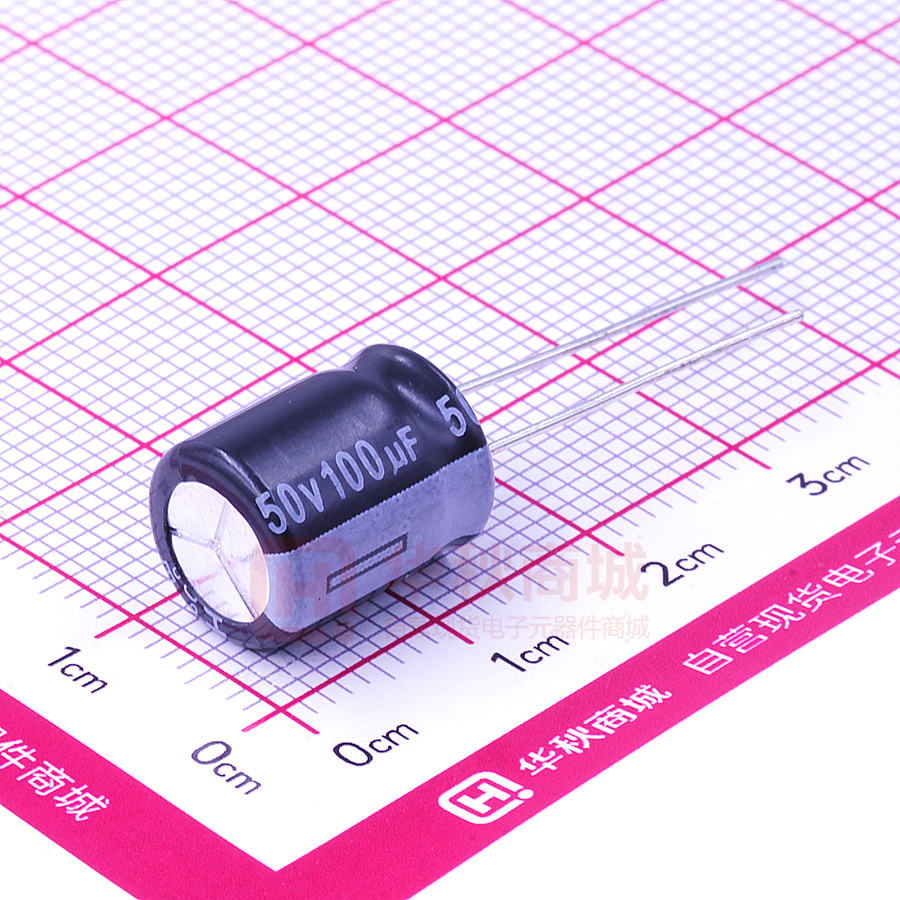

ENB1HM101G13OT

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS NB series High reliability, withstand high temperature Endurance：+130°C 2,000~5,000 hours Upgrade NB 130 C 1808 RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+130°C Rated Voltage Range 10~120 V dc Capacitance Tolerance ±20%(M) Leakage Current I≤0.01CV or 3μA, whichever is greater. Where, I:Max.leakage current (μA),C:Nominal capacitance (μF),V: Rated voltage (V) (at 20°C,120Hz) 10 16 25 35 50 63 80 100 120 0.24 0.20 0.18 0.16 0.14 0.12 0.12 0.10 0.12 Rated Voltage(V dc ) 10 16 25 35 50 63 80 100 120 Z(-25°C)/Z(+20°C) 3 Z(-40°C)/Z(+20°C) 6 Rated Voltage(V dc ) (at 20°C after 2 minutes) Dissipation Factor (tanδ) tanδ (max.) Low Temperature Characteristics (Max. Impedance Ratio) 4 2 3 3 6 (at 20°C,120Hz) (at 120Hz) The specifications listed below shall be met when the capacitors are restored to 20°C after DC voltage plus rated ripple current is applied for a specified period of time at 130°C. Endurance Capacitance Change ≤±30% of the initial value D.F. (tanδ) ≤300% of the initial specified value Leakage Current ≤The initial specified value Dia.(mm) Load life (hours) ØD=5&6.3 2,000 ØD=8 3,000 ØD=10 4,000 ØD≥12.5 5,000 The following specifications shall be satisfied when the capacitors are restored to 20°C after leaving them under no load at 130°C for 1,000 hours. Shelf Life Capacitance Change ≤±30% of the initial value D.F. (tanδ) ≤300% of the initial specified value Leakage Current ≤500% of the initial specified value DIMENSIONS[mm] Sleeve(Black) Ød ØD' F±0.5 L' 4min. 15min. ( Ø 5~ Ø 18) ØD 5 6.3 Ød F ØD' L' 0.5 0.5 2.0 2.5 8 0.5 0.6 3.5 10 12.5 16 18 0.6 0.6 5.0 5.0 0.8 7.5 0.8 7.5 Ø D+0.5max. L+2max. E NB 1H M 3R3 F11 O- - Radial Type PART NUMBERING SYSTEM T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Cap.(μF) 50/60 120 1k 10k 100k Cap.
